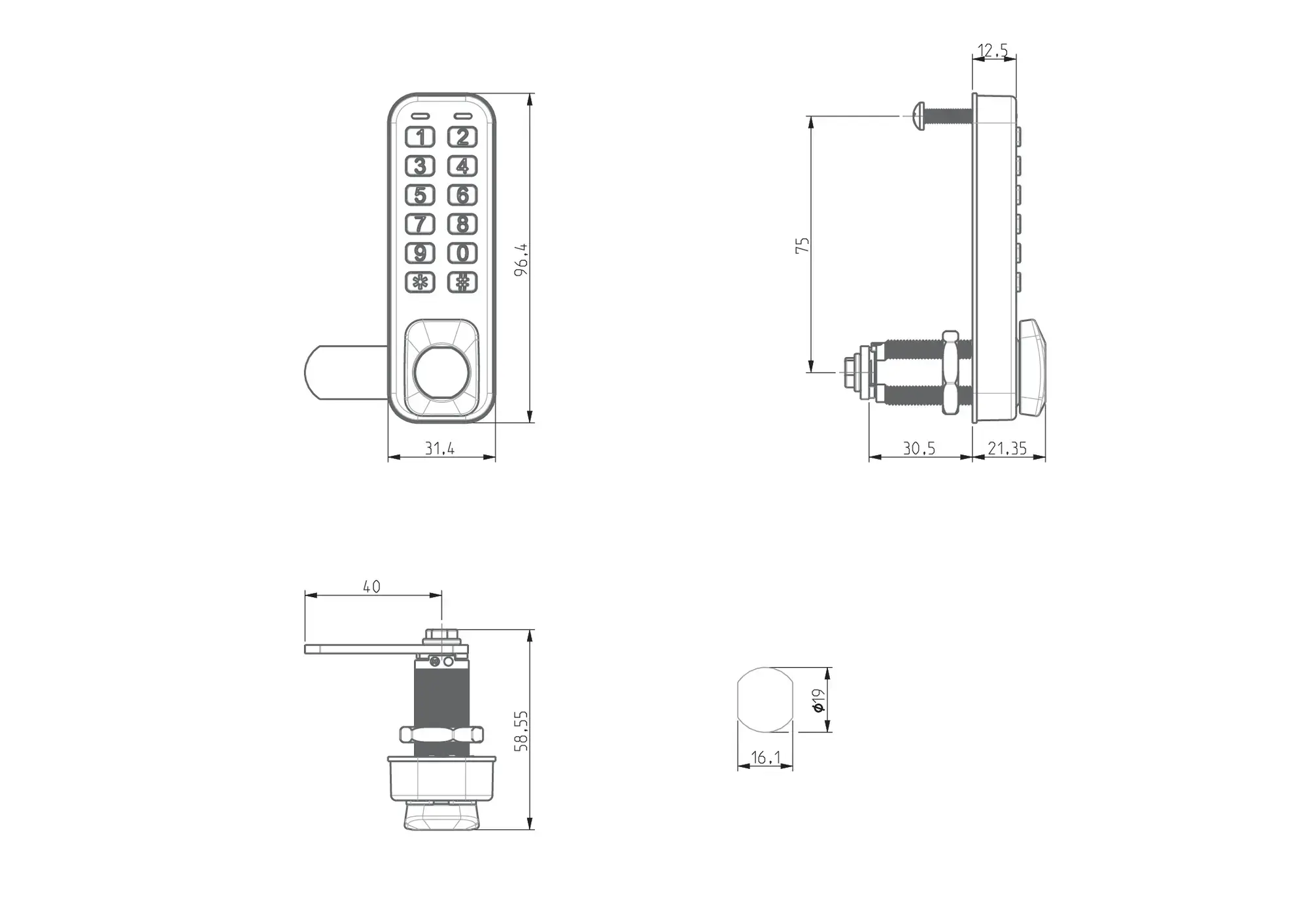

View technical drawing

RONIS E10-mini A tiny but strong furniture lock with a simple setup


The RONIS E10-mini lock is a robust electronic combination lock and is ideal for various materials such as Metal, Wood and Trespa.
2 variants are available with either a vertical keypad or a horizontal right-hand keypad.

It can be fully retrofitted allowing for integration into existing furniture (replaceable mechanical locks) as well as new installations.
You can easily swap the lock between the Multi-user mode (Public mode) or Single-user mode (Private Mode).
In Multi-user mode (Public mode), an auto-open time after X hours of use can be set (X from 01 to 12).

A simple 4 digit code is needed for the user to open and close the locker. If the code is forgotten, the site manager can use a 6 digit Technician code or 8 digit Master Code to open the lock.

It can be fixed into place with a Screw and Nut and is available in a Black finish.


  • The body and the knob of E10-mini is made of Zamak cast alloy, making this furniture lock is exceptionally strong.
  • The E10-mini lock is certified IP65, making it splash and dust resistant.
  • The single-user mode (private mode) is perfect for workplaces where an employee is assigned to one locker.
  • The multi-user mode (public mode) is suitable for companies offering lockers to large groups of people or lockers that can be used by several individuals over a period of time.
  • A low battery indication light will ensure you have adequate time to change the batteries. Changing the battery for the E10-mini is a simple procedure.
  • The E10-mini lock is a simple keypad digital furniture solution which is not only user-friendly but also easy for companies to configure.
  • In case of emergency, the E10-mini is equipped with a hidden mechanical barrel as well as a master code.
  • The E10-mini is compatible with many cam types, so you can adapt the locking position to any requirement.
IP65: dust tight and protected against low pressure water jets; limited water ingress permitted and shall have no harmful effect

Suggested application of use

Coworking Spaces, Education, Hospitals, Leisure & Fitness, Offices, Public Buildings, Retail, Shared Offices, Shop Installer, Storage, Wet & Dry environments, Wood Furniture, Metal Furniture



Water ResistantYes
Communication TechnologyKeypad
Stand-alone FunctionalityYes
Battery Lifetime CyclesUp to 20000 cycles
Acoustic SignallingYes
Optical SignallingYes
Programming MethodsKeypad
Battery TypeCR2450
Number of Batteries1
Battery Lifetime YearsUp to 1 Years
Battery Warning AlarmAudio, Visual
Power TypeBattery
Emergency Power SupplyNo
Assembly InformationRight door, Left door
Standard Warranty1 Year
Maximum Operating Temperature (celsius)60
Maximum Relative Humidity (%)90
Maximum Storage Temperature (celsius)60
Minimum Operating Temperature-15
Minimum Storage Temperature (celsius)20

Ingress Protection RatingIP65

Surface FinishBlack
Fixation TypeNut (1) Screw (1)
Outer Knob FinishBlack
Power TypeBattery
Operating Temperature (Celsius)-15° to 60°
Input Options
Assembly InformationRight door, Left door
