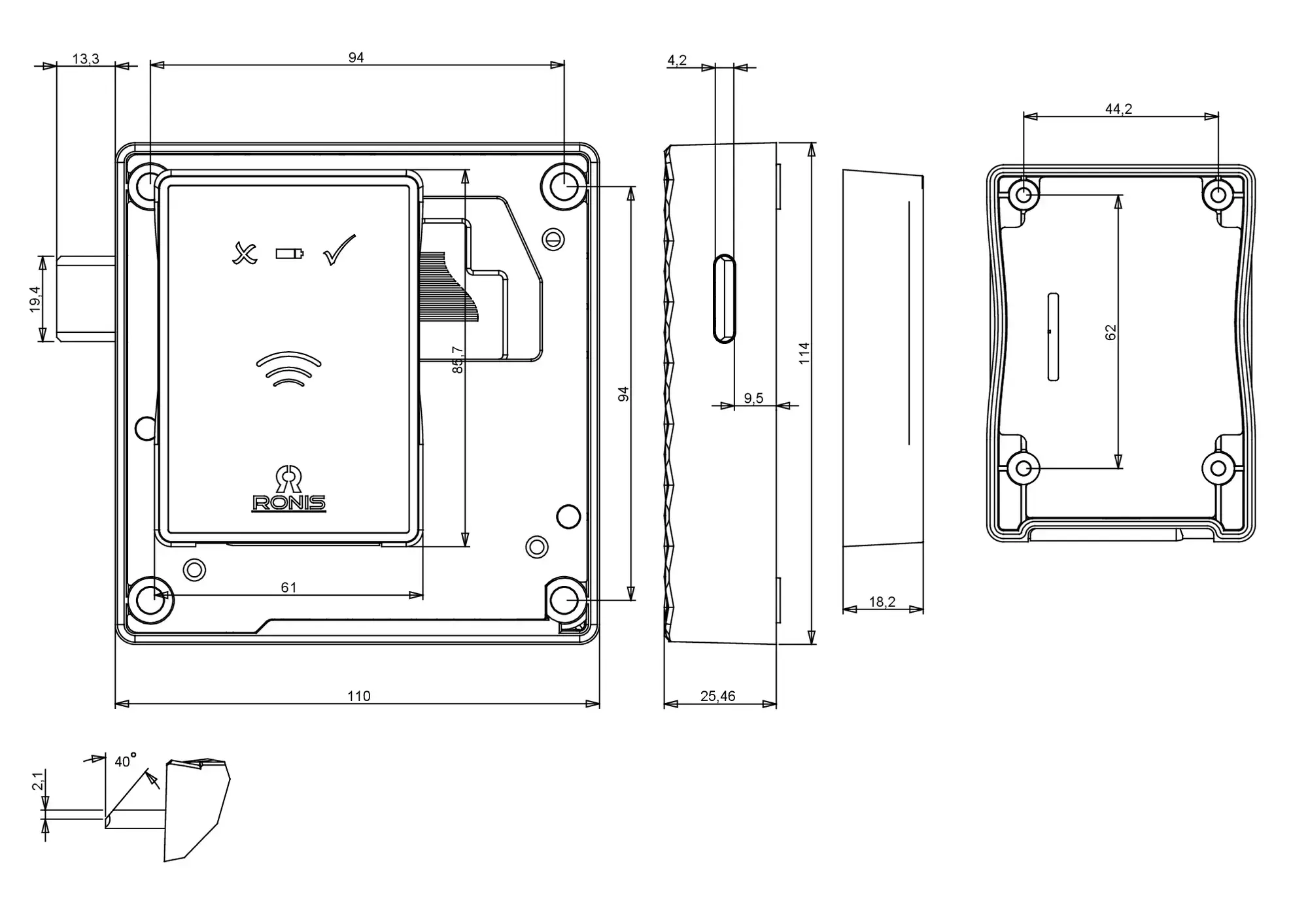

Download technical drawing

RONIS Tronic Mifare Secure RFID solution for your lockers

About

The RONIS RFID TRONIC MIFARE is a stand-alone electronic lock designed specially for lockers. It utilises EV1 DESFire technology and it's sleek and modern design will ensure it fits in with any modern style furniture, as well as providing a retrofit capability to any existing lockers. An audit trail gives you a breakdown of when the product was last used.

Using the Electronic Settings key and Management software, you can configure and define all aspects of the lock to suit your needs. This includes: Single / Multi user modes, Red LED signals, Acoustic signals, Opening times, Master codes, User codes and much more.

This is the perfect product for Workplaces, Leisure Centres, Gyms and Schools.

Features

  • Secure your lockers with a Classic Mifare card or wearable wristband
  • Configurable Single User mode is perfect for workplaces where an employee is assigned a locker for a long period of time
  • Configurable Multi User mode is perfect for leisure Centres and Gyms where multiple people will use the product using different codes
  • In the event a card is lost or stolen, simply use the Master Card to gain entry. The software can be used to delete any unaccounted for cards
  • A low battery indication light will ensure you have adequate time to change the batteries
  • Automatic opening time functionality allows you to define a time where all the lockers will open. This makes inspections and checks quicker and easier
  • Using the Electronic Settings Key, you can configure and control all parameters of the lock
  • Adjustable acoustic signals allow you to choose from High volume - Low volume and turning all audio off
RFID Mifare 13.56mHz

Suggested application of use

Coworking Spaces, Education, Hospitals, Leisure & Fitness, Offices, Public Buildings, Retail, Shared Offices, Shop Installer, Storage, Wet & Dry environments, Wood Furniture, Metal Furniture

Specifications

Features

Anti Corrosion ProtectionNo
Communication TechnologyMifare RFID 13.56 MHz
Stand-alone FunctionalityYes
Data On CardNo
Battery Lifetime CyclesUp to 35000 cycles
Remaining Battery Cycles after 1st Warning1500
User Identification TechnologyMifare RFID 13.56 MHz
Acoustic SignallingYes
Optical SignallingYes
Supported Locking MediaMifare Classic, Mifare DESFire
Programming MethodsProgramming Card, Master Card
Battery TypeAA
Number of Batteries4
Battery Lifetime YearsUp to 2 Years
Battery Warning AlarmVisual
Standard Warranty1 Year
Vibration Test10 - 200 Hz 2g
Maximum Operating Temperature (celsius)70
Maximum Relative Humidity (%)90
Maximum Storage Temperature (celsius)70
Minimum Operating Temperature-5
Minimum Storage Temperature (celsius)-20

Ingress Protection RatingIP45

Surface FinishBlack, White
Fixation TypeScrews (8)
Power TypeBattery
Events Storage Capacity in the Device20
RFID EncryptionISO 14443A
Data EncryptionISO/IEC 14443A
Operating Temperature (Celsius)-5° to 70°
Input Options110 x 110 x 25.5 (internal housing) - 86 x 61 x 18.2 (reader)
Assembly InformationRight door, Left door
