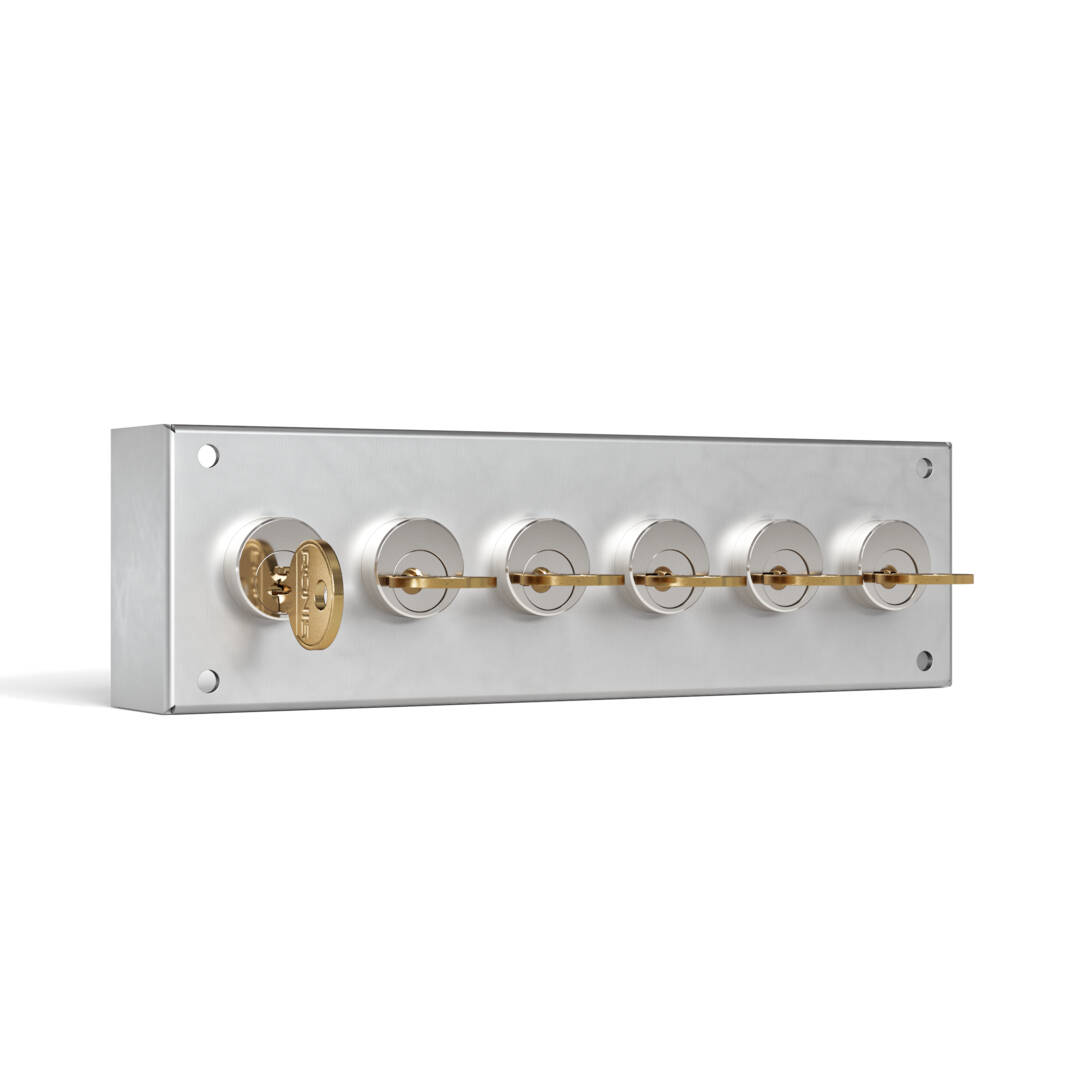

The ELC range of exchange boxes controls more complex shutdown procedures, by bringing together a series of keys, trapping them inside the exchange box, before releasing a final key in accordance with your shutdown protocol.
There can be many options on the configuration of trapped keys and released keys from the ELC Range. Offering complete control on a system shutdown. We offer a wide range of ELC exchange boxes to cover your project requirements.
| Key Type | Asymetric - Reversible |
| Application Description | Create shutdown protocol |
| Assembly Type | Surface |
| Cylinder Material | Brass |
| Housing Finish | Raw |
| Key Configuration | ELCXY with X= quantity of free keys and Y=quantity of captive keys |
| Maximum Cylinder Quantity | 6 |
| Standard Finish | Nickel |
| Standard Housing Material | Stainless Steel 304L |
| Maximum Operating Temperature (celsius) | 85 |
| Maximum Relative Humidity (%) | 90 |
| Maximum Storage Temperature (celsius) | 85 |
| Minimum Operating Temperature | -55 |
| Minimum Storage Temperature (celsius) | -55 |
| Ingress Protection Rating | 4X Compliant to IEC 60694 5.13.1 |
| Conflict Minerals Compliance | Certificate on demand |
| Damp Heat Condensing Option | Test duration 6 days 6 cycles (12h+12h) T° : 25°C / 55°CRel. Hum. = 95% IEC 60068-2-30 |
| H2S SO2 Spray | Level 21 days C°=0.5ppm T°C=+25°C Rel Hum = 75% Compliant to NF-ISO-EN-CEI 68-2-60 (12/1995) |
| IK Coding | IK08 Compliant to IEC 60694 5.13.3 Compliant to IEC 227162 |
| ISO13849 1:2015 | We, DOM, the manufacturer, declare that proof of use in accordance with most of the rules of ISO 13849-1:2015 Safety of Machinery 2006/42/EC Machinery Directive has been demonstrated and is certified for the components detailed herein and placed on the market. |
| ISO9001 : 2015 | Certified according to ISO 9001:2015 quality standards |
| Mechanical Withstand of Locking Bolt or Latch | 60daN Compliant to IEC 60947-3 |
| REACH | Certificate on demand |
| ROHS | Certificate on demand |
| Salt Spray | 240h Compliant to IEC 68694 |
| Withstand to Free Fall | Height 1m on concrete floor - IEC 60068-2-2 |
| Withstand to Key Torsion | 5 N.m |
| Withstand to Pulling Force | 100 daN |
| Additional Information | Exchange Boxes : series of released and trapped / captured keys. The only way to release a trapped key is to ensure that all currently released keys are present and locked into the exchange box. |
| Standard Finish | Nickel |
| Standard Housing Material | Stainless Steel 304L |
| Assembly Information | This safety lock should be installed by a competent and qualified person, after reading and understanding the following instructions: 1 - Use anti-tamper fixings according to your application (maximum torque 5 N.m) 2 - The locks should be mounted in a non-corrosive environment and compatible with IP indicators 3 - Maximum torque while turning the key: 5 N.m 4 - The key should not be placed under stress. 5 - A bad alignment of the strike or in the course of the bolt may cause malfunction or blocking. 6 - Lubricate the clinder with CK Dry Power Graphite once the product has been assembled. 7 - In case of installing an electromechanical lock, make sure that the power is off before carrying out the wiring. |
| Maintenance Information | The interlock cylinder should not be lubricated with oil or grease. Please use CK Dry Powder Graphite to lubricate the lock. The interlock must be inspected every 6 months. These safety inspections should include the following: 1 - Absence of shock/damage on the product 2 - Absence of foreign bodies in the keyhole 3 - Lock fixing OK 4 - Strike plates fixing OK 5 - The keys and lock bolt can only be removed under the correct safety operating conditions. In case of any detected defect, please contact your nearest DOM Support Department to take the necessary actions. |
