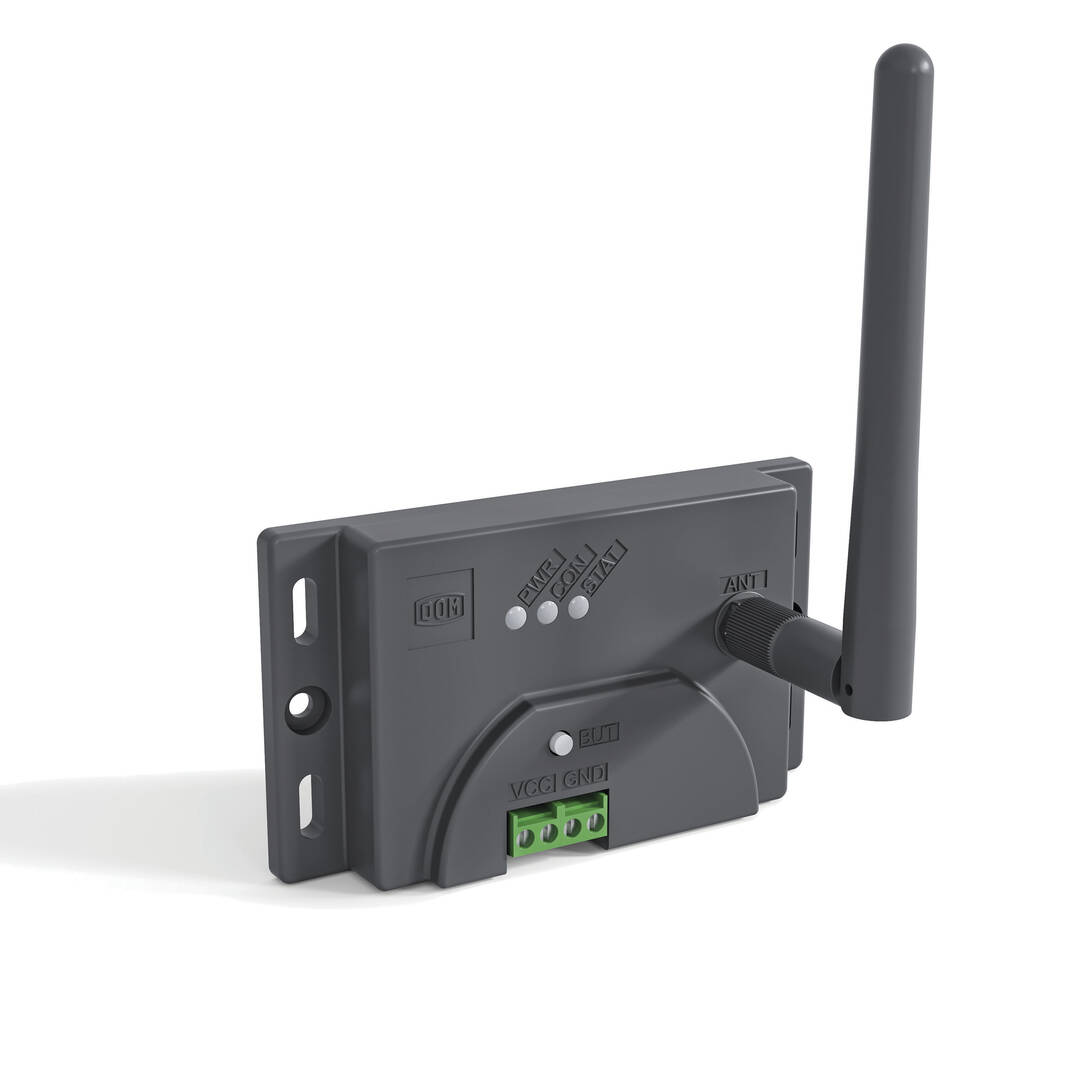

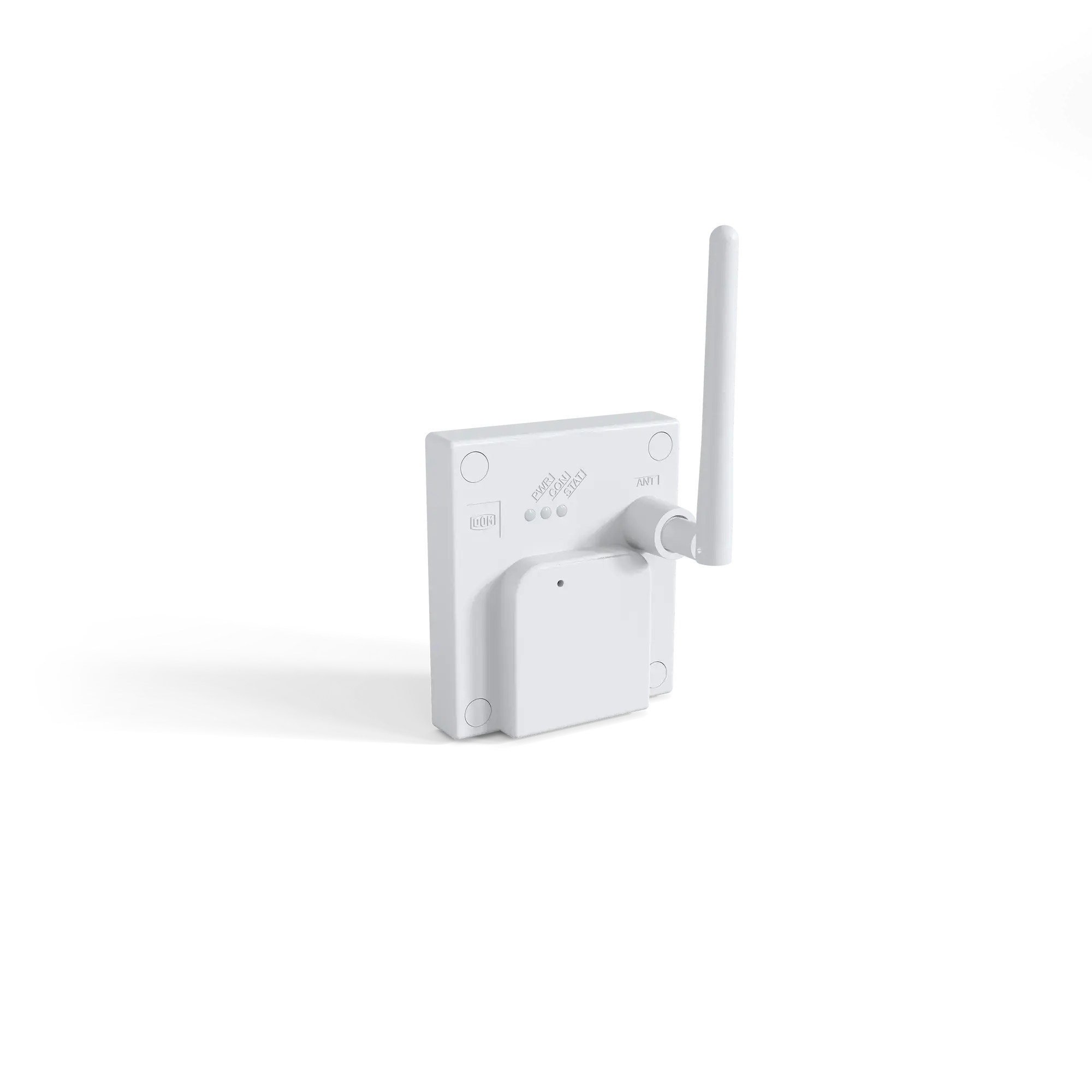

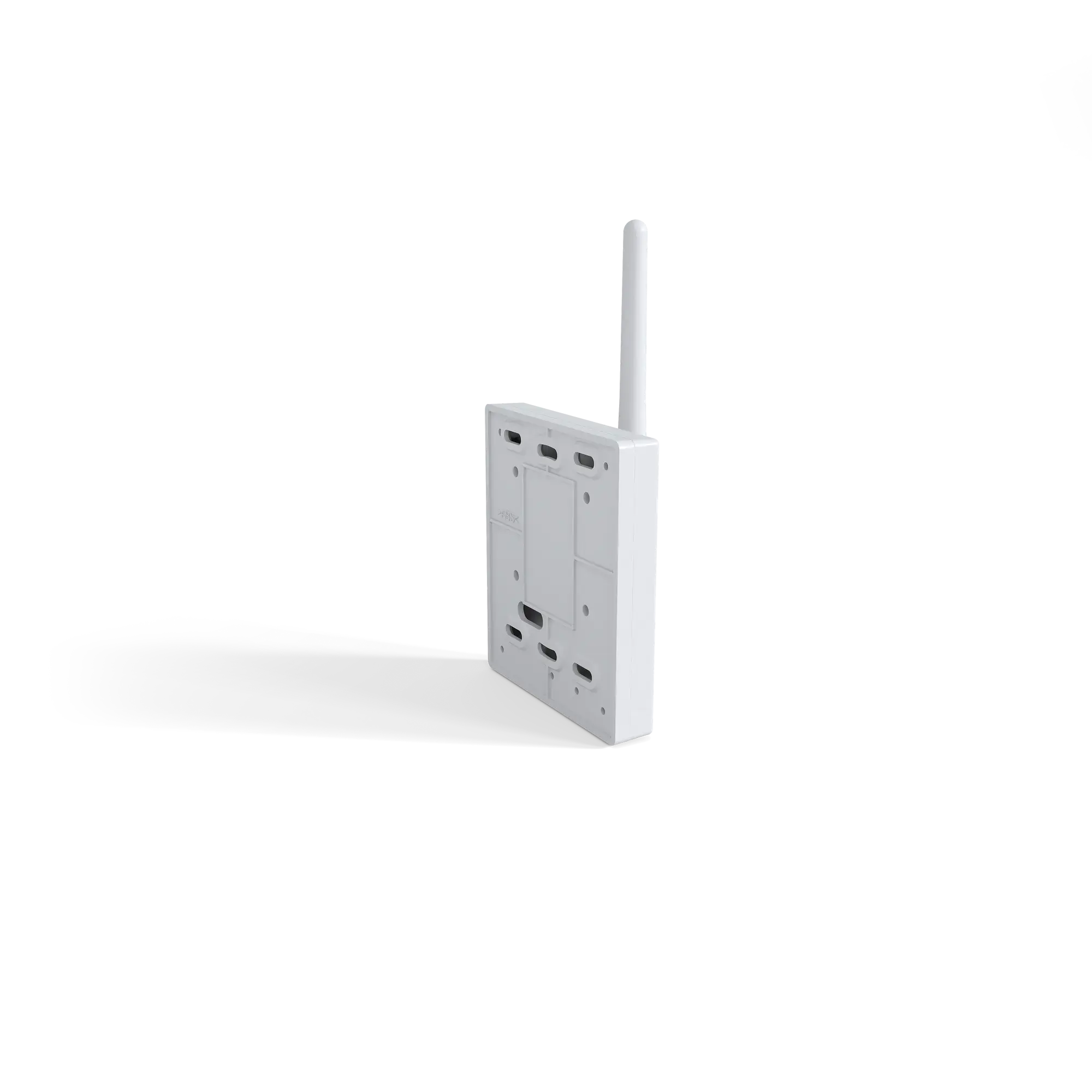

Upgrade your access control with the DOM Online Repeater, a key element of the DOM Mesh Network. It employs advanced Thread technology, flexible 5V–30V input, and minimal wiring to support up to 16 devices, delivering secure, scalable, and reliable connectivity in any environment.
Enables access to the powerful DOM thread mesh network
Up to 16 locks can be managed concurrently per a single DOM Online Repeater
Thread technology for reliable connectivity
Agile Thread mesh network for scalability and high fault tolarance
Easy coupling/commissioning with DOM Online Gateway
Airports, Education, Hospitals, Hotels, Industrial, Medium to Large Sized Businesses, Offices, Plants, Public Buildings, Small to Medium Sized Businesses
| Communication Technology | BLE 5.4, Thread 1.3 |
| Stand-alone Functionality | No |
| User Identification Technology | Ethernet |
| Number of Inputs | 0 |
| Number of Outputs | 0 |
| Acoustic Signalling | No |
| Optical Signalling | Yes |
| Programming Methods | OTA THREAD, USB |
| Power Supply Required | Yes |
| Standard Warranty | 1 Year |
| Maximum Operating Temperature (celsius) | 55 |
| Maximum Relative Humidity (%) | 95 |
| Maximum Storage Temperature (celsius) | 70 |
| Minimum Operating Temperature | 0 |
| Minimum Storage Temperature (celsius) | -20 |
| Surface Finish | Black |
| Fixation Type | n/a |
| Power Type | Wired, Plugin (USB-C) |
| Current Consumption | max. 2 A |
| Power Consumption | <<> 4 W |
| RFID Encryption | |
| Data Encryption | |
| Voltage Range | 5-20VDC |
| Voltage Type | DC |
| Power Cable Type | USB-C |
| Voltage Range | 5-20VDC |
| Voltage Type | DC |
| Net Weight | 0.108 |
