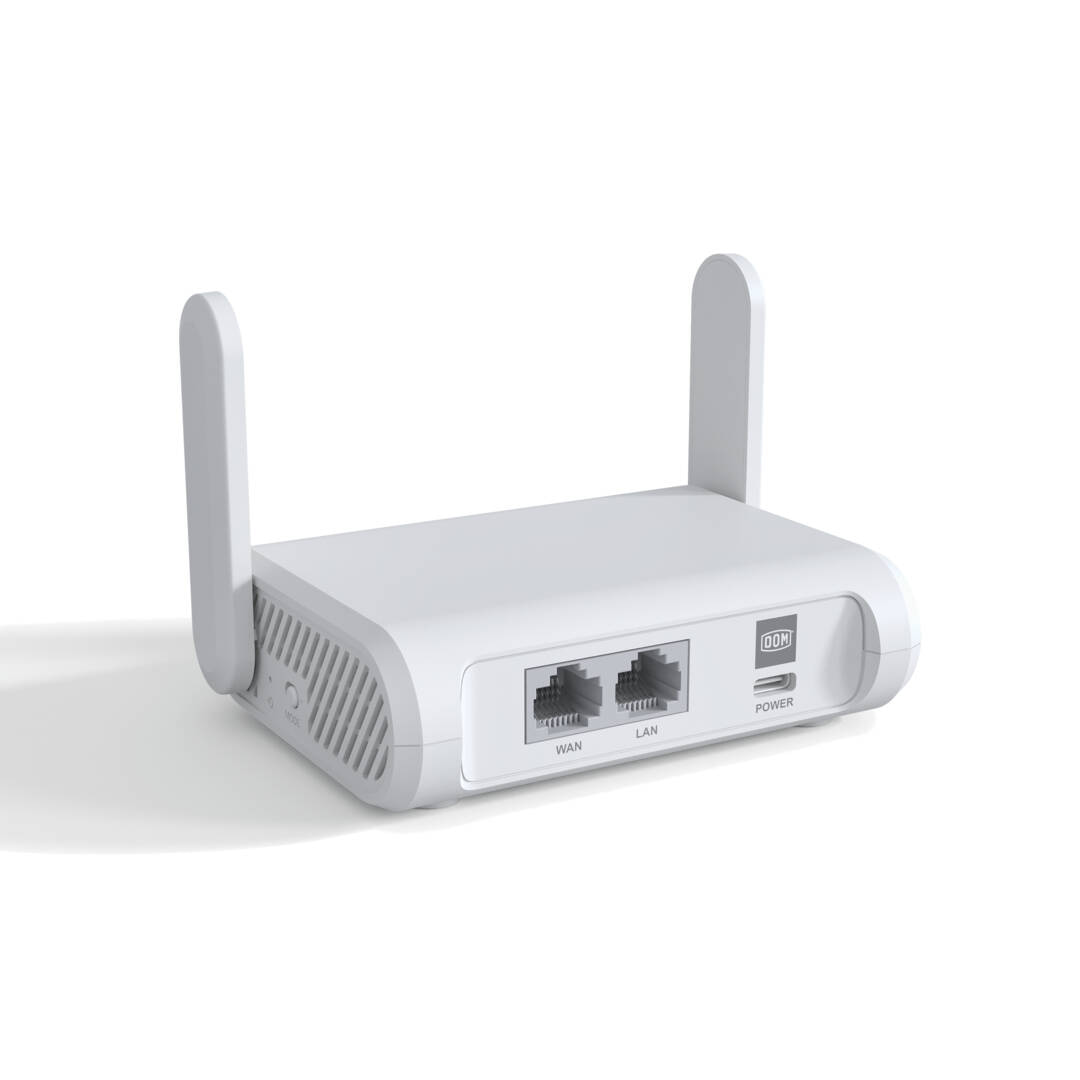

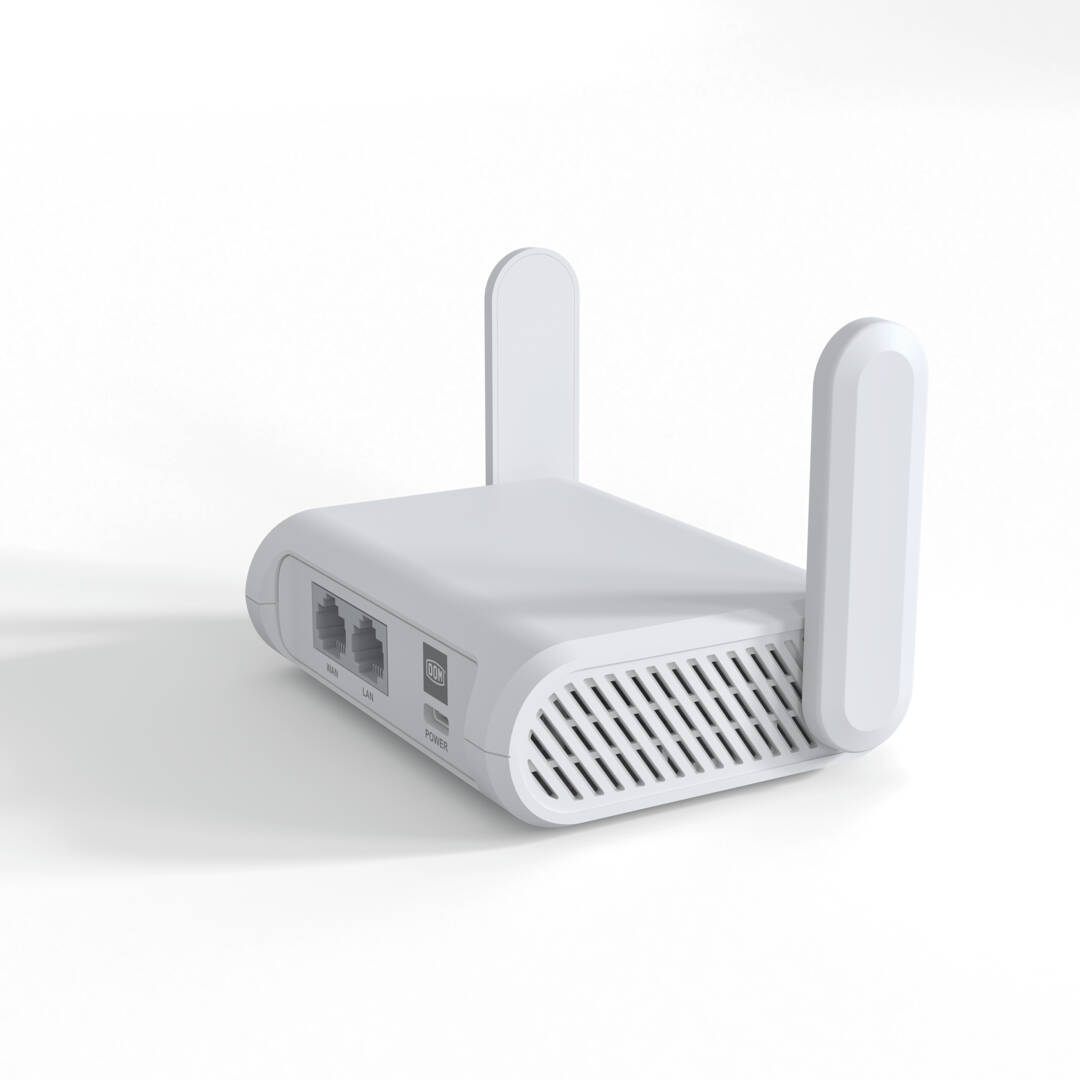

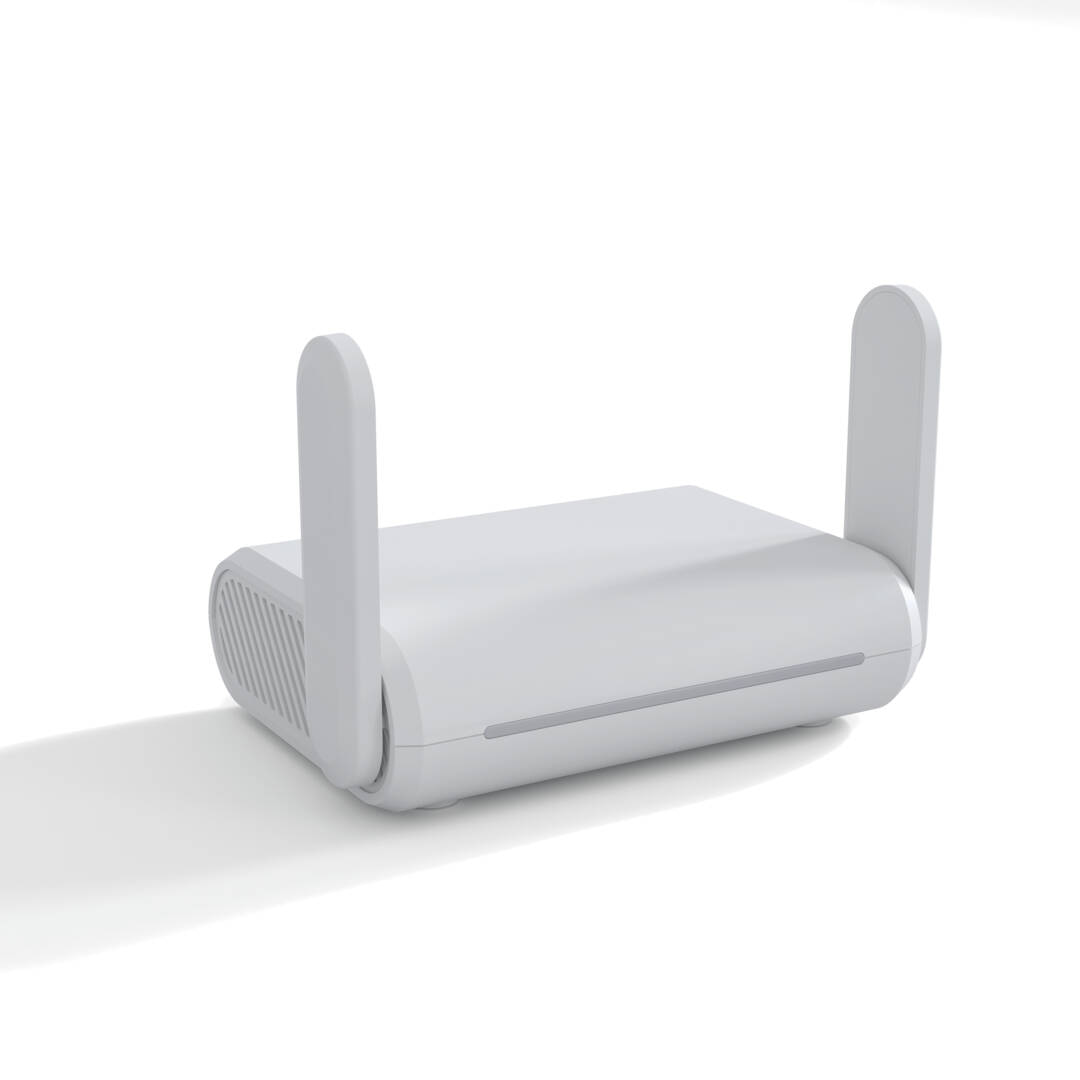

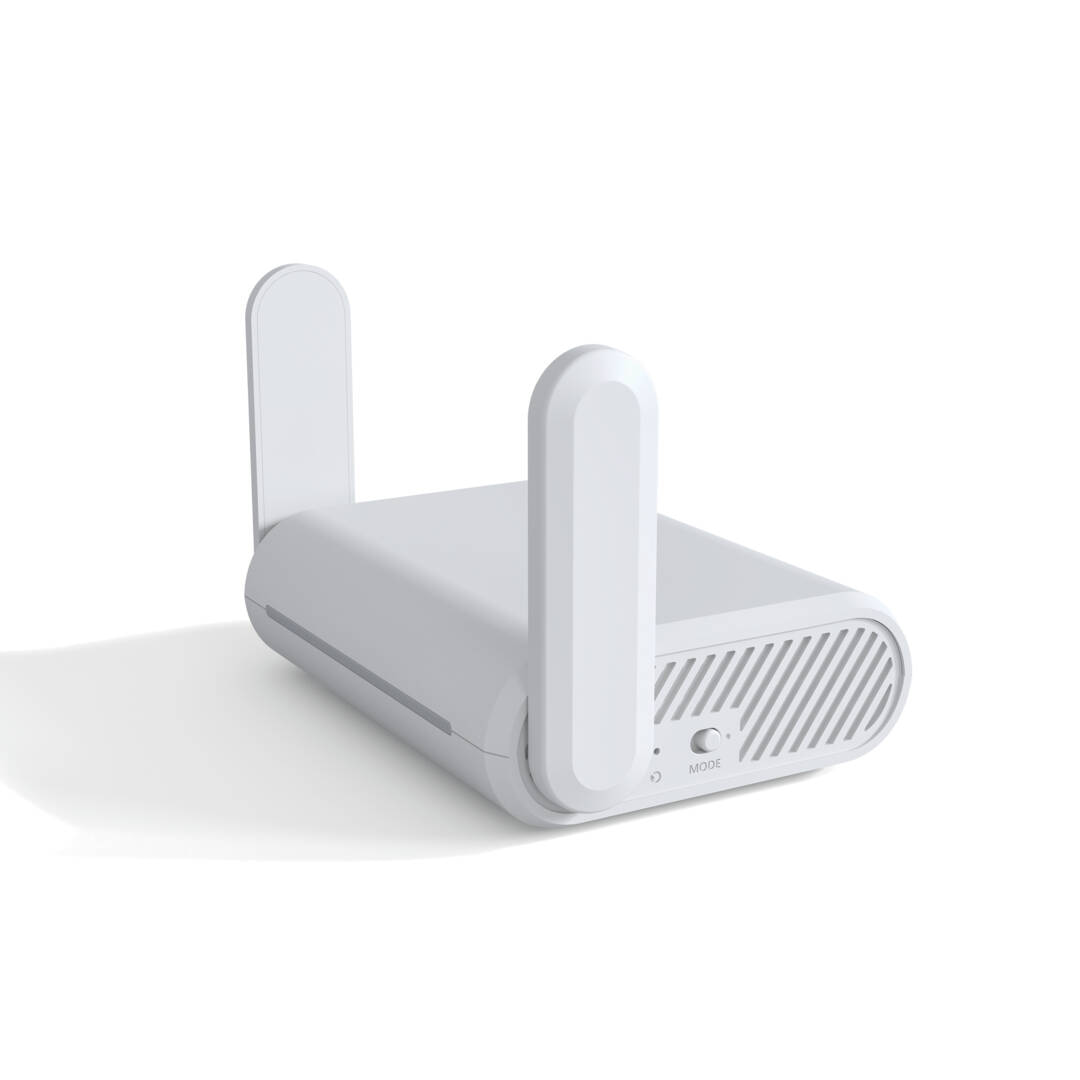

The DOM Online Gateway is the Ethernet wired entry device for the DOM Thread mesh network. It enables the use of DOM Online Repeater which manages all the data of the DOM digital locks and handles through BLE.
Enables access to the powerful DOM thread mesh network
UP to 512 locks can be managed per a single DOM Online Gateway
Thread technology for reliable connectivity
Live monitoring and powerful whitelisting
Easy scalability and network expansion
Reduced wiring for cost effective installation
Seamless integration with DOMConnect
Airports, Education, Hospitals, Industrial, Medium to Large Sized Businesses, Offices, Plants, Public Buildings, Small to Medium Sized Businesses
| Communication Technology | BLE, Ethernet, Thread, WLAN RF 2.4 GHz |
| Stand-alone Functionality | No |
| User Identification Technology | Ethernet |
| Number of Inputs | 0 |
| Number of Outputs | 0 |
| Acoustic Signalling | No |
| Optical Signalling | Yes |
| Programming Methods | Software |
| Power Supply Required | Yes |
| Standard Warranty | 1 Year |
| Maximum Operating Temperature (celsius) | 40 |
| Maximum Relative Humidity (%) | 95 |
| Maximum Storage Temperature (celsius) | 70 |
| Minimum Operating Temperature | 0 |
| Minimum Storage Temperature (celsius) | -20 |
| Surface Finish | White |
| Fixation Type | n/a |
| Power Type | Plugin (USB-C) |
| Current Consumption | max. 2 A |
| Power Consumption | < 4 W |
| RFID Encryption | |
| Data Encryption | |
| Voltage Range | 5V |
| Voltage Type | DC |
| Power Cable Type | USB-C |
| Voltage Range | 5V |
| Voltage Type | DC |
| Net Weight | 0.108 |
