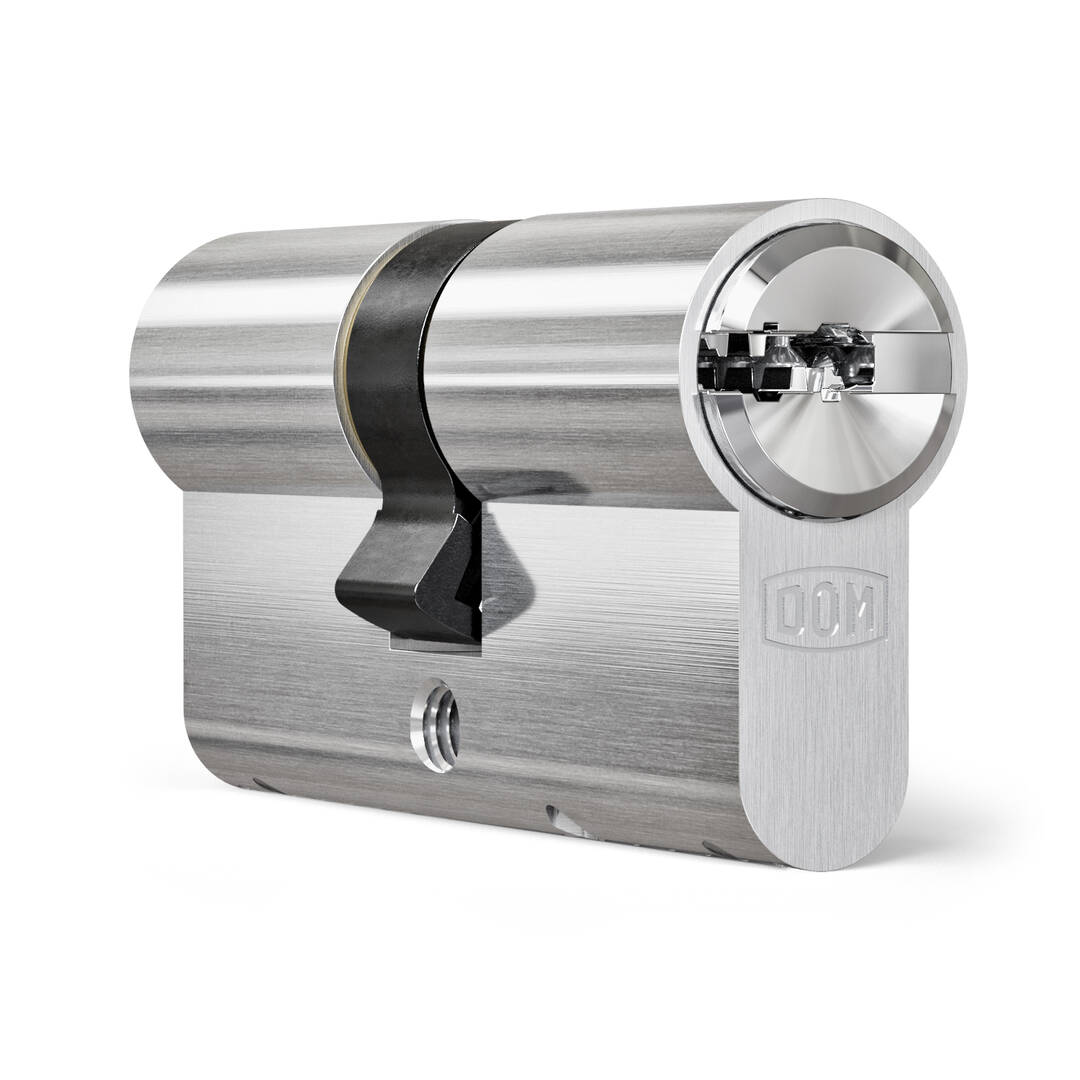

DOM ix Teco® Patented security cylinder with an innovative stamped recess on a reversible key


A double cylinder has an internal and external key way and is hence a both sided lockable cylinder.

By opting for the DOM ix Teco® cylinder system, you are selecting a patented security cylinder with an innovative stamped recess on a reversible key which makes it particularly well protected against unauthorised copying.

A special high-deep milling (HT) technique which is used in the horizontal basic profile enhances security during profile checks and also makes the profile more difficult to copy. With the innovative and sophisticated design you are purchasing a locking system with an efficient key copy protection which is widely applicable as is suitable for residential or commercial use.


  • Patent protection until 2038
  • Innovative stamped recess on a reversible key which makes it particularly well protected against unauthorised copying
  • Resistant to common attack methods such as; drilling, bumping and picking
  • DIN EN 1303
  • Durable and wear-resistant nickel silver key
  • Reversible key allows for comfortable and easy key entry
  • Registration card included in the scope of delivery
  • Modular cylinder system allows for the highest level of drilling & pull protection
Reversible Key System
Master Key System
Grand Master Key System
5 Year Guarantee
Certification EN 1303
Certification SKG 2 Star
Anti Bump Protection
Anti Pick Protection
Anti Pull Protection
Dealer Profile
Registration Card

Suggested application of use

Airports, Education, Financial, Homes, Hospitals, Industrial, Medium to Large Sized Businesses, Offices, Plants, Public Buildings, Small to Medium Sized Businesses, Hotels



Key TypeReversible Key System
Registration CardYes
Total Number of Locking Elements19
MKS PossibilitiesGrand Master Keyed, Master Key, Central Locking
Anti Drill Protection HousingYes
Maximum Number of Lateral Elements12
Maximum Number of Upper Elements6
Number of Active Locking Elements7
Number of Ant Bumping Elements2
Number of Anti Picking Elements2
Number of Passive Elements12
Standard Warranty5 Years
Standard FinishMatt Nickel
Standard Housing MaterialBrass

EN 1303:2015160B0C6B
SKG Star Rating2 *
Key Patent ProtectionYes
Key Patent Until (year)2038
System Patent ProtectionYes
System Patented Until (year)2038

Standard FinishMatt Nickel
Optional FinishesBright Brass, Bright Chrome, Matt Chrome, Matt Brass, Dark Bronze, Gold, Old Bronze
Standard Housing MaterialBrass
Number of Keys2
Key MaterialNew Silver
Standard CamDIN
Optional CamsCam 90°, Cam Biffar, Swiss Cam, Cam Corbin, Spanish Cam, 10 Teeth Gear Cams, 14 Teeth Gear Cams

Optional Accessories

DOM Service Pen

DOM Service Pen

Universal lubricant
Clip Tag V2

Clip Tag V2

Architectural Finishes (Colour Matching Service Available)

DOM Cilinder Dull Nickel

01 Dull Nickel

DOM Cilinder Bright Chrome

04 Polished Chrome

DOM Cilinder Satin Brass

05 Satin Brass

DOM Cilinder Satin Brass

06 Polished Brass

DOM Cilinder Light Oxidized Bronze

07 Dark Bronze

DOM Cilinder dark oxidized antique

09 Antique Bronze

DOM Cilinder Gold Plate

25 Gold

Matt Black

27 Matt Black

Available Knob Variants

DOM K1 Knob


DOM K2 Knob


DOM K4 Knob


DOM K6 Knob
