DOM ENiQ Pro V2 Mobile Operated Electronic Cylinder ENiQ – Advanced Access Control

About

DOM ENiQ Pro V2 electronic cylinders provide secure, keyless access control as part of the wider DOM ENiQ access control ecosystem. Designed for commercial buildings, workplaces and other environments where access needs to be managed across multiple users and doors, ENiQ combines electronic locking with flexible, scalable access management.

Battery-powered and requiring no wiring at the door, the ENiQ Pro V2 electronic cylinder can be installed with minimal disruption, making it suitable for both existing buildings and new installations. Its compact design incorporates a robust clutch mechanism, enhanced drill protection and long battery life of up to 80,000 cycles for reliable, low-maintenance operation.

Electronic Access Control Without Wiring at the Door



DOM ENiQ electronic cylinders provide a practical way to extend access control to doors where installing a conventional wired system may be difficult or disruptive. Available in configurations suitable for a range of wood, metal and glass doors, including compatible fire-rated applications, they can be used across a wide variety of commercial and shared environments.

Authorised users can gain access using compatible electronic credentials, while access permissions can be managed through the DOM ENiQ system rather than relying on traditional mechanical keys.

Part of the DOM ENiQ Access Control Ecosystem



The ENiQ Pro V2 cylinder integrates with the wider DOM ENiQ ecosystem, allowing electronic cylinders to form part of a more comprehensive access control solution.

Access rights can be assigned, changed or revoked as requirements change, providing greater control over who can enter individual doors or areas. This makes ENiQ particularly useful for organisations managing employees, contractors and other users across multiple access points.

The system can also grow as requirements change, allowing additional ENiQ-compatible locking devices and access points to be incorporated into the same access control environment.

Flexible, Scalable Electronic Locking



DOM ENiQ Pro V2 electronic cylinders combine the convenience of keyless entry with the management capabilities of an electronic access control system. With battery-powered operation, straightforward installation and integration with the DOM ENiQ ecosystem, they provide a flexible solution for organisations looking to upgrade from mechanical locking or extend electronic access control to additional doors.

For applications ranging from individual controlled doors to larger multi-door installations, DOM ENiQ provides a scalable approach to managing electronic access.

Features

  • Available in multiple variants to suit various applications and environments, offering flexible solutions for both residential and commercial use.

  • Features a long battery life for extended use, reducing the need for frequent replacements and ensuring reliable performance.

  • Easy to set up and install with a Plug & Play design, allowing for quick and hassle-free installation without the need for complex wiring.

  • Available in a variety of finishes as standard, including stainless steel, white, black, and brass, to complement any door hardware.

  • No wiring required, providing a simple, wireless installation for a cleaner and more flexible setup.

  • IP65, T90, VDS BZ+, and SKG*** tested for superior durability and security, ensuring reliable performance in a variety of challenging environments.

  • NFC technology enables fast reading performance and provides advanced security encryption, ensuring quick and secure access control.

  • NFC technology, combined with low battery consumption and DOM's high-quality locking devices, ensures reliable, long-term use with convenient and secure access control.

Anti Corrosion
Certification EN 1125
Certification EN 179
Certification SKG 3 Star
IP65: dust tight and protected against low pressure water jets; limited water ingress permitted and shall have no harmful effect
Anti Drill Protection
Anti Pull Protection
NFC

Suggested application of use

Airports, Education, Financial, Hospitals, Industrial, Offices, Plants, Public Buildings, Small to Medium Sized Businesses, Bed & Breakfast, Coworking Spaces, Leisure & Fitness, Metal Furniture, Shared Offices, Sustainable Energy, Vacation Rentals, Wet & Dry environments, Warehouses, Camping

Specifications

Features

Fire Resistant90 Minutes
Water ResistantYes
Patent ProtectionYes
Anti Corrosion ProtectionYes
Anti Drill ProtectionYes
Anti Pull ProtectionYes
Communication TechnologyNFC, BLE 5.0
Stand-alone FunctionalityYes
Data On CardYes
Remaining Battery Cycles after 1st Warning1000
User Identification TechnologyMifare RFID 13.56 MHz
Acoustic SignallingNo
Optical SignallingYes
Supported Locking MediaMifare DESFire, Mifare Classic, Mifare Plus, Mifare Ultralight, ISO 14443 A
Programming MethodsSoftware, Master Card, Programming Card, USB Key
Battery TypeCR2
Number of Batteries2
Battery Lifetime YearsUp to 3 Years
Battery Warning AlarmVisual
Standard Warranty1 Year
Maximum Operating Temperature (celsius)65
Maximum Relative Humidity (%)99
Minimum Operating Temperature-25

SKG Star Rating3 *
Patent ProtectionYes
VdS 2156:2 ClassificationBZ+
Ingress Protection RatingIP65
EN 179:2008Für die Verwendung in Fluchtwegen gemäß EN179 geeignet
EN 1125:2008Für die Verwendung in Fluchtwegen gemäß EN1125 geeignet

Surface FinishMatt Nickel
Outer Knob FinishStainless Steel, High Gloss Black, High Gloss White, Brass
Inner Knob FinishMatt Nickel, High Gloss Black, High Gloss White, Brass
Power TypeBattery
Events Storage Capacity in the Device2000
RFID EncryptionAES-128 Bit, Crypto-1, ISO 14443A
Data EncryptionXSALSA20-256 Bit, Curve 25519-256 Bit, Poly 1305-128 Bit

Optional Accessories

Building Locking Card

Building Locking Card

Function test of the devices in the installation state before the master card is created.
ENiQ Starter package Pro

ENiQ Starter package Pro

352155
Consisting of master card, programming card, knob tool, Torx TX 6, bixing bracket

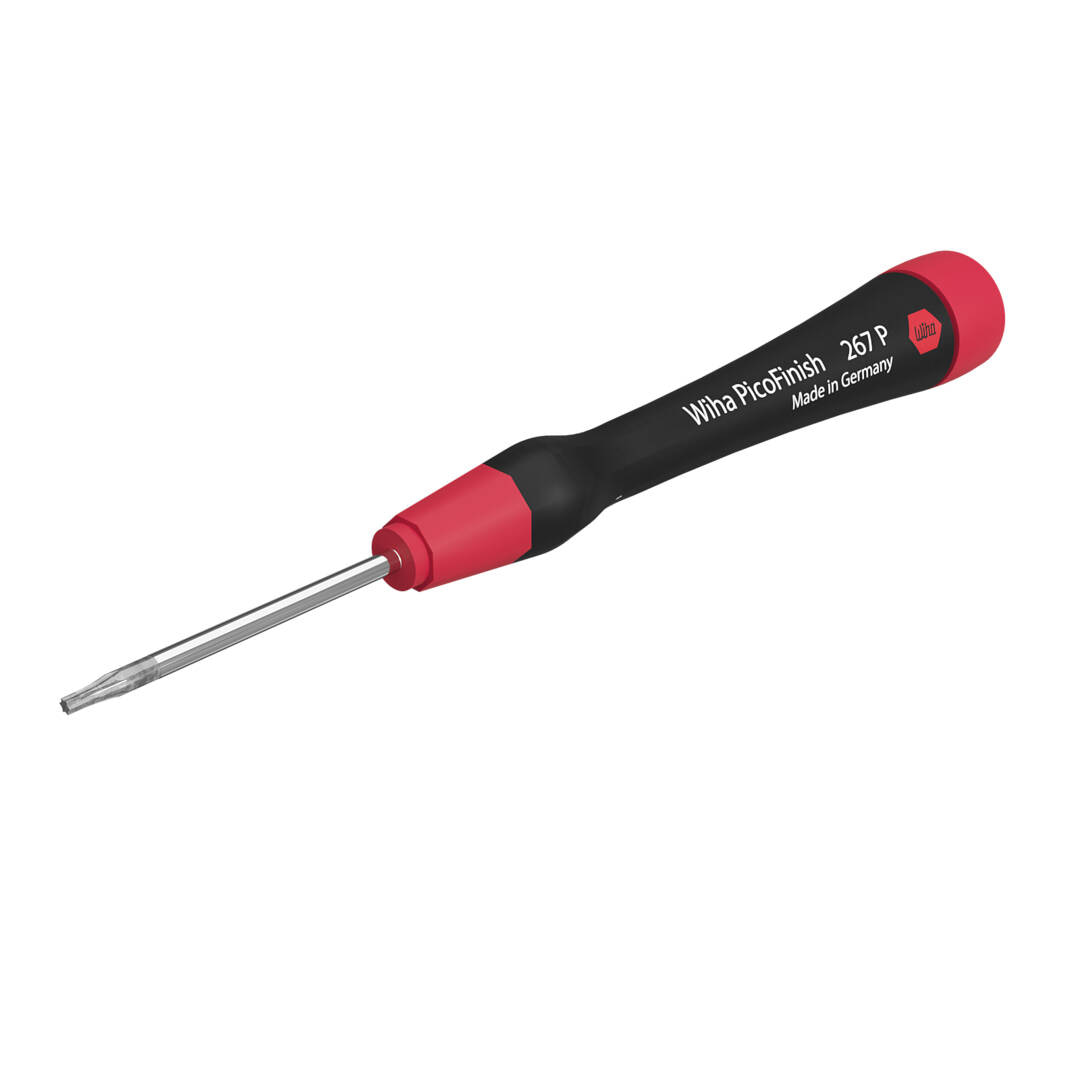

Torx Srewdriver TX 10

Torx Srewdriver TX 10

290493
Required for the installation of the Pro padlock cover

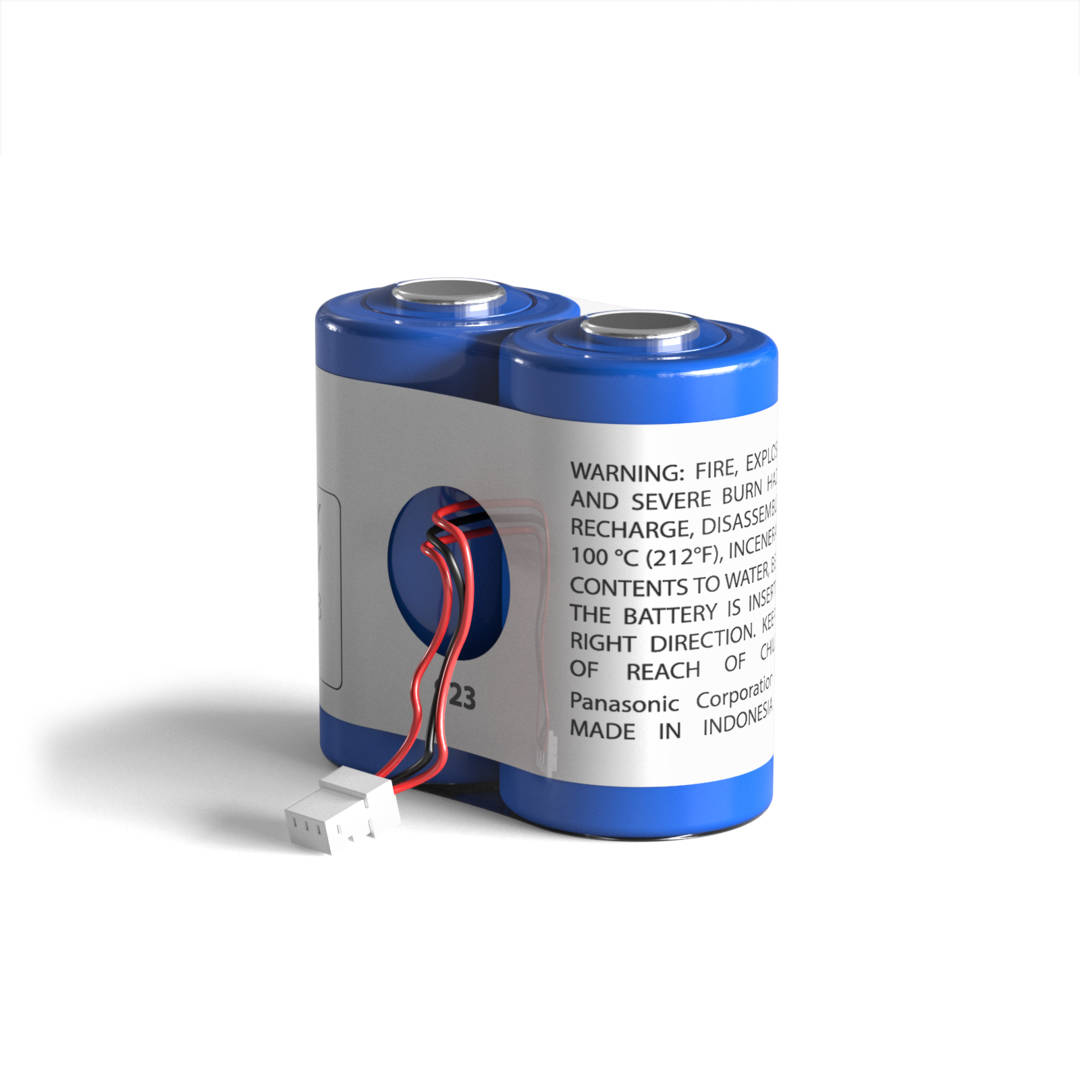

Battery Pack

Battery Pack

352153
2-CR2-Pack for Protector and Guardian
Key Ring Tags

Key Ring Tags

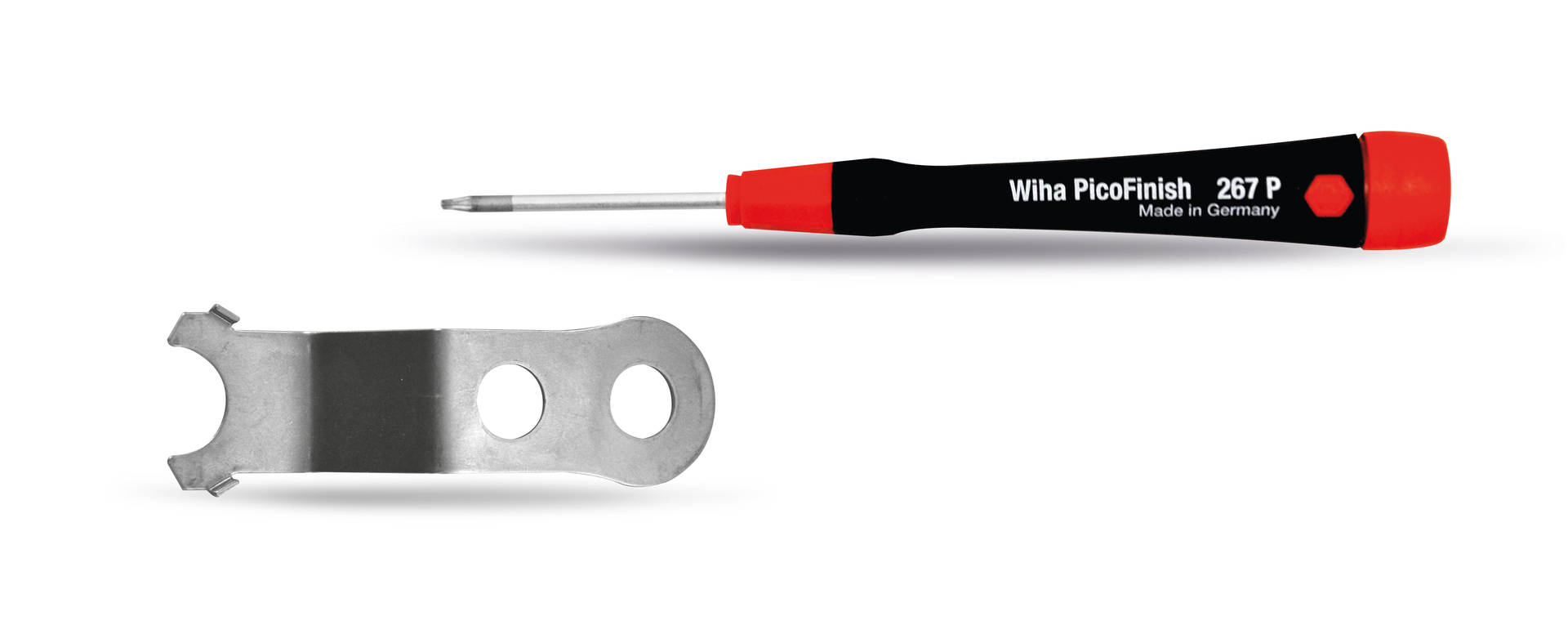

Installation tool set

Installation tool set

516574
Consisting of Torx screwdriver TX6, knob tool, fixing bracket
ISO Cards

ISO Cards

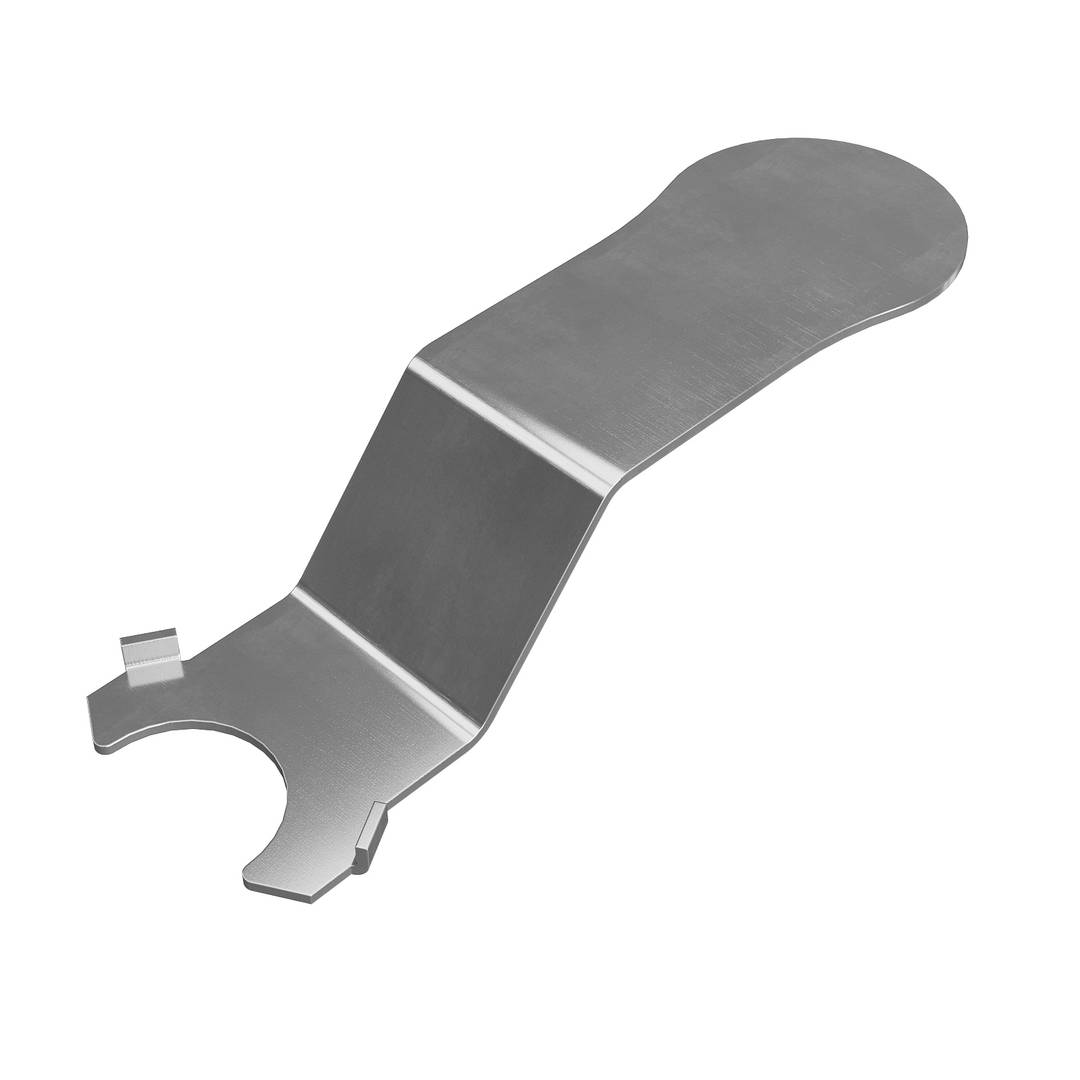

Knob tool

Knob tool

515820
Is required for mounting and dismounting the external knob sleeve
ENiQ RF NetManager

ENiQ RF NetManager

Advanced communication module designed for integration within your system.

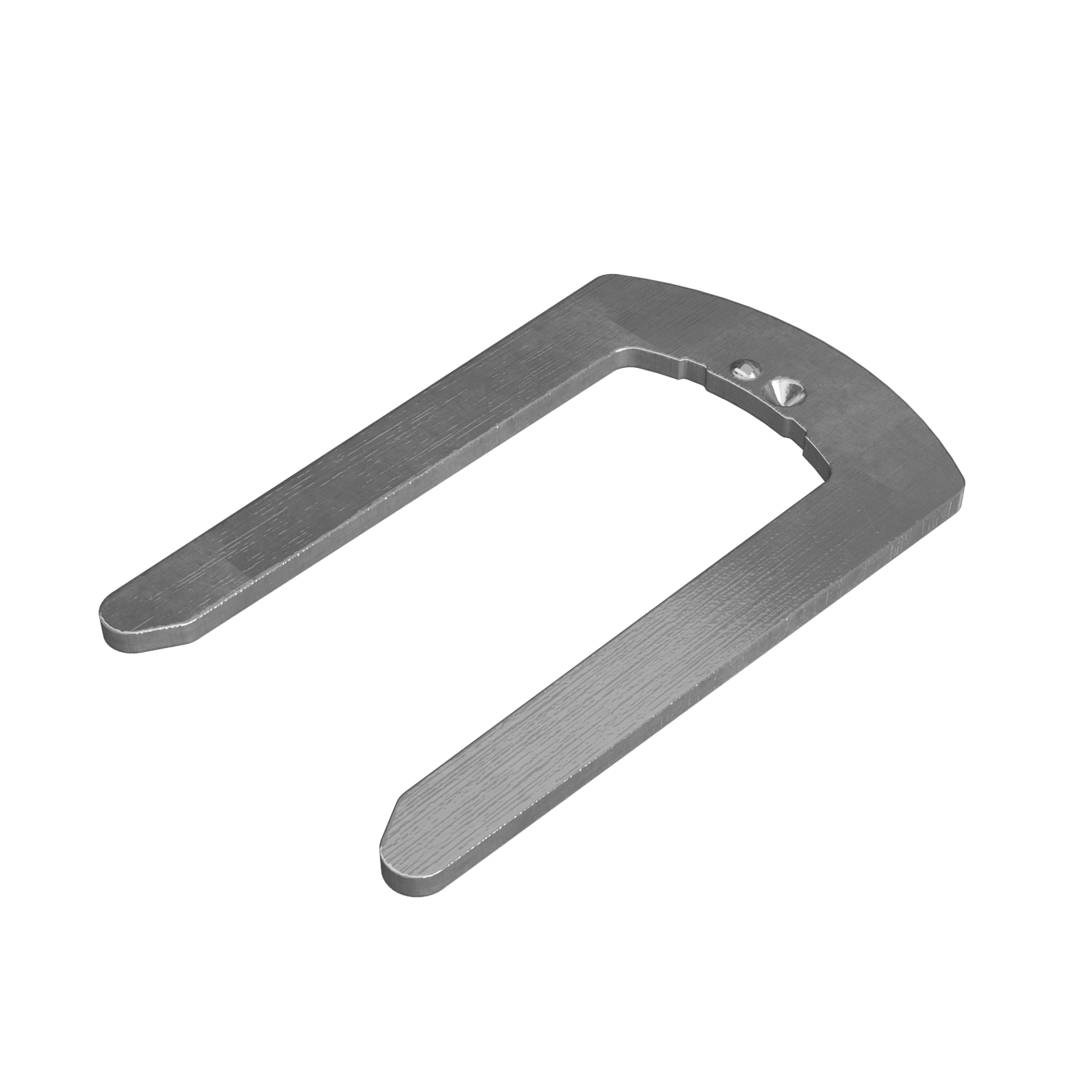

Fixing bracket

Fixing bracket

517707
Is required for mounting and dismounting the knob electronics on the cylinder body
ENiQ Standard Tag

ENiQ Standard Tag

STANTAC504599M
Torx Srewdriver TX 6

Torx Srewdriver TX 6

513828
Required for mounting the mechanical inner knob
ENiQ Premium Plus Tag

ENiQ Premium Plus Tag

PREMPLUSTAC504599M

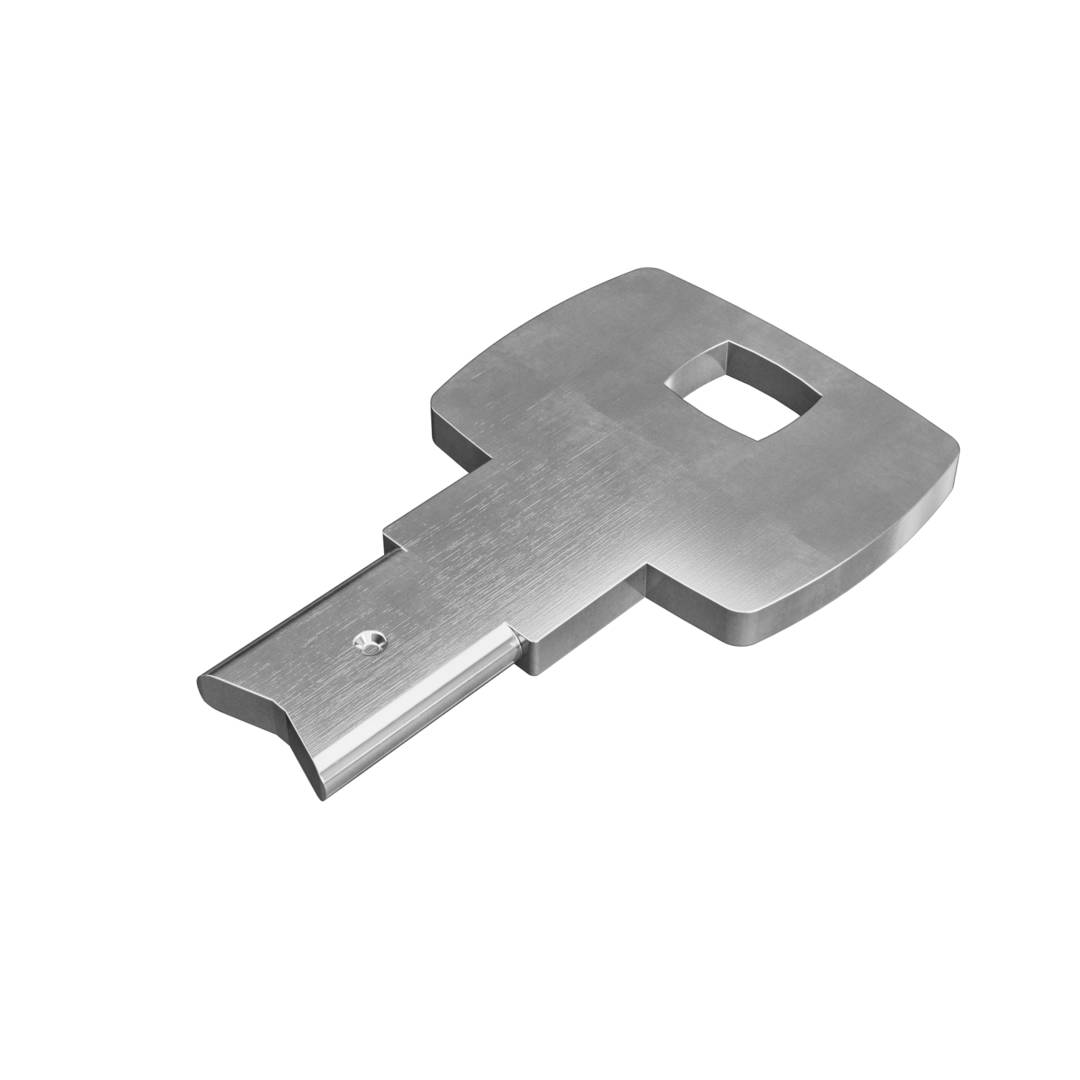

Special key for mechanical inner locking of EE IM

Special key for mechanical inner locking of EE IM

254491
Key for locking function of Pro EE with inner lock
ENiQ Combined Transponder Standard Tag

ENiQ Combined Transponder Standard Tag

STANTAC504599M
Silicon Labs BLED112 V1

Silicon Labs BLED112 V1

352357
ENiQ Clip Tag V2

ENiQ Clip Tag V2

Silicon Labs BLED112 V1 with Wake Up Card

Silicon Labs BLED112 V1 with Wake Up Card

352460
ENiQ ISO Cheque Card Transponder

ENiQ ISO Cheque Card Transponder

ISOSCHE503523M
