DOM ENiQ LoQ Designed to function as part of the DOM ENiQ Ecosystem (Our in house access control system) powered in the background using DOM ENiQ software and/or the DOM ENiQ App.

About

Enter the world of access control solutions with the new state-of-the-art ENiQ LoQ - Digital Furniture Storage Lock, with enhanced security, designed to add a stylish appearance to modern furniture used in many buildings today.

Not only does this digital furniture lock look visually appealing, but the installation process is also simple.

It can be easily fitted to a panel thickness ranging from 1 to 20mm, making it a suitable solution for all types of wood or metal cabinet or locker. To action the LoQ, the user taps their Mifare transponder against their device and is provided with instant access. Due to the Auto-Lock function, the user can close the cabinet within (1-30 seconds) after placing the transponder against the device.

With the ENiQ LoQ you can also integrate your lockers or cabinets with your ENiQ Access Management system. Easily allowing you to access multiple entry points of a building or storage compartment with just one device.

Features

  • Suitable for wood and metal furniture
  • Can be assembled in four directions (horizontal, vertical, and right/left knob position)
  • Available in seven colours: red, blue, yellow, green, pink, black, and white. (You can also choose between standard or round knob)
  • Can be operated with different technology, such as Bluetooth Low Energy (BLE), Near Field Communication (NFC), as well as diverse Mifare technology
  • Requires 2 x AAA batteries
  • Can be connected and managed by the ENiQ App (for Android smartphones) or ENiQ software for Windows laptop and PC's
  • Connect almost any digital locking products from DOM Security to your system
  • Compatible with a complete range of cams, allowing the perfect closing solution to your furniture
RFID Mifare 13.56mHz
NFC

Suggested application of use

Education, Electrical Equipment, Hygiene, Industrial, Letter Boxes, Maintenance, Metal Furniture, Offices, Retail, Shop Installer, Wood Furniture, Hospitals, Shared Offices, Wet & Dry environments, Leisure & Fitness, Storage

Specifications

Features

Patent ProtectionYes
Anti Corrosion ProtectionNo
Anti Drill ProtectionN/A
Communication TechnologyBLE 5.0, Mifare RFID 13.56 MHz, NFC
Stand-alone FunctionalityYes
Data On CardYes
Remaining Battery Cycles after 1st Warning500
User Identification TechnologyMifare RFID 13.56 MHz, NFC, BLE 5.0
Acoustic SignallingYes
Optical SignallingYes
Supported Locking MediaMifare Classic, Mifare DESFire, Mifare Ultralight, Mifare Plus, ISO 14443 A, Mifare DESFire 8k
Programming MethodsMaster Card, Programming Card, Software, Smartphone
Battery TypeAAA Lithium
Number of Batteries2
Battery Lifetime YearsUp to 2 Years
Battery Warning AlarmVisual, Audio
Cam Family131100
Standard Warranty1 Year
Maximum Operating Temperature (celsius)65
Maximum Relative Humidity (%)90
Maximum Storage Temperature (celsius)65
Minimum Operating Temperature-25
Minimum Storage Temperature (celsius)21

Patent ProtectionYes
Patented Until (year)2028
Ingress Protection RatingIP53

Surface FinishAnthracite Grey
Outer Knob FinishBlack, Red, Green, White, Yellow, Blue, Pink
Power TypeBattery
Events Storage Capacity in the Device2000
RFID EncryptionAES-128 Bit, Mifare Classic Crypto-1, XSALSA20-256 Bit, Poly 1305-128 Bit, Curve 25519-256 Bit
Data EncryptionAES-128 Bit
Operating Temperature (Celsius)-25° to 65°
Input OptionsKnob position open/closed.
Assembly InformationFlexible

Optional Accessories

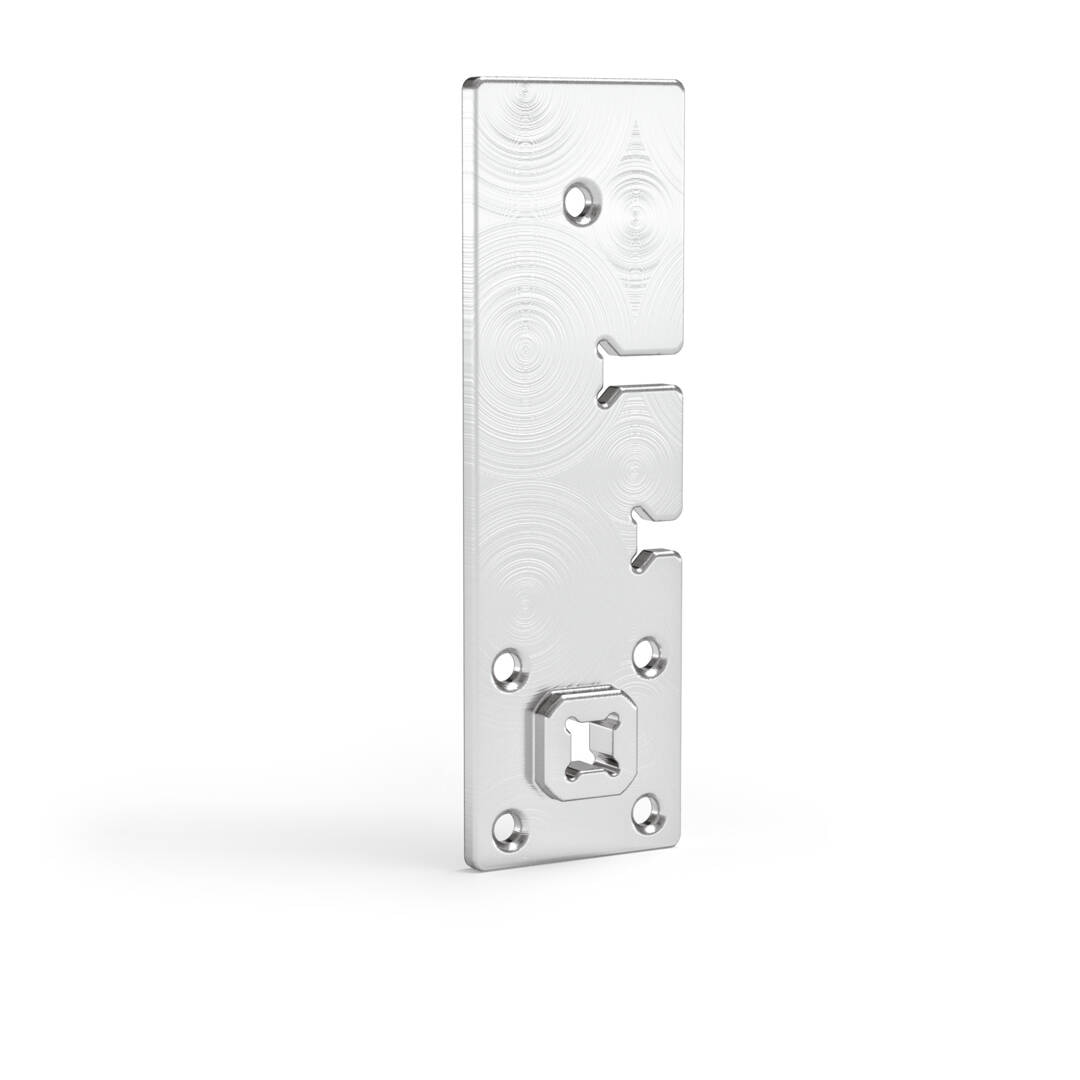

LoQ drilling plate

LoQ drilling plate

Multifunction drilling plate to facilitate LoQ fixing.
