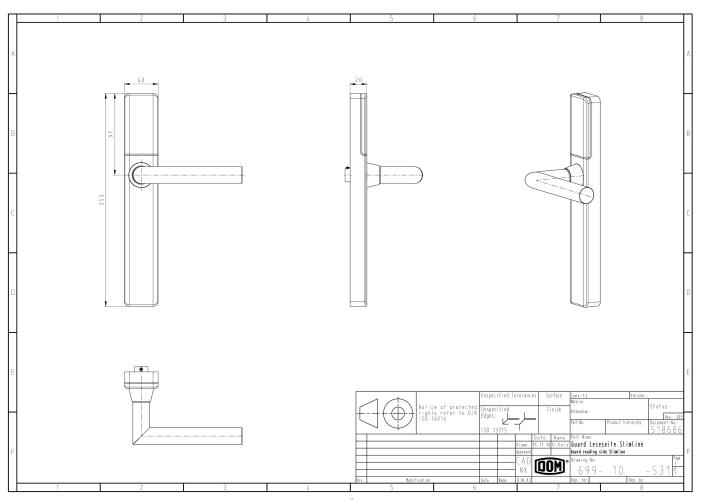

Download technical drawing

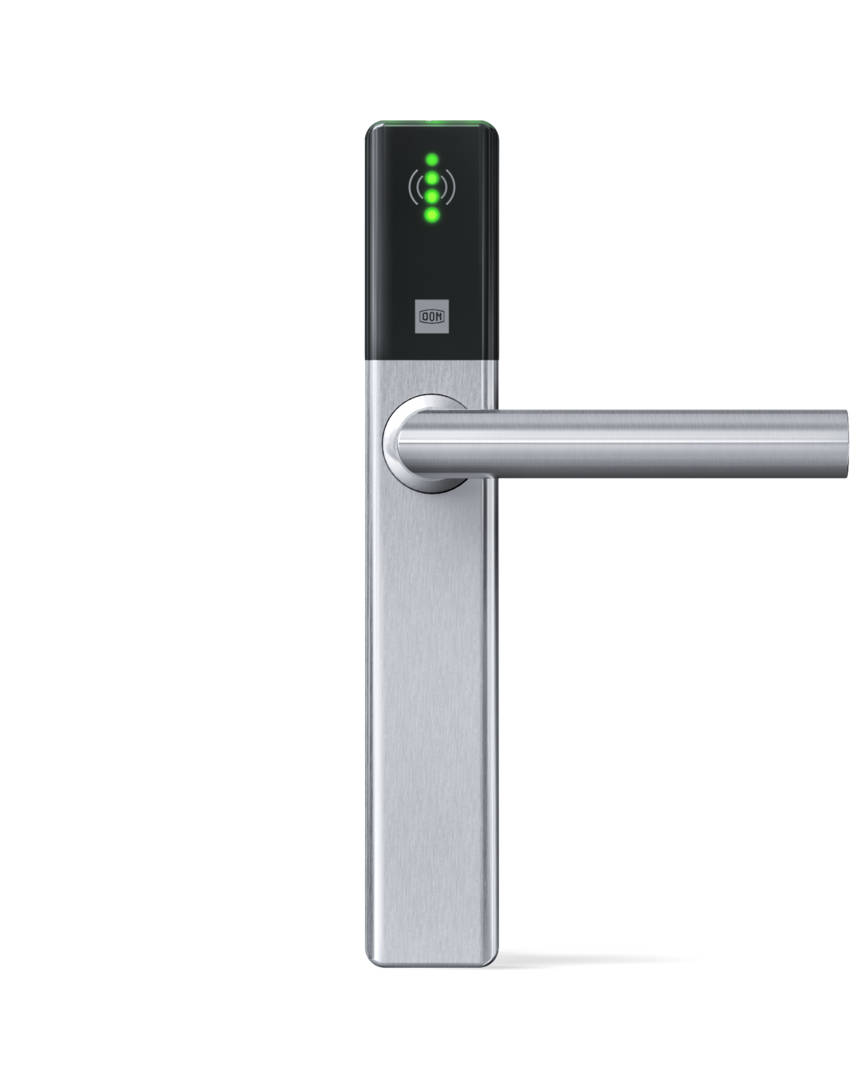

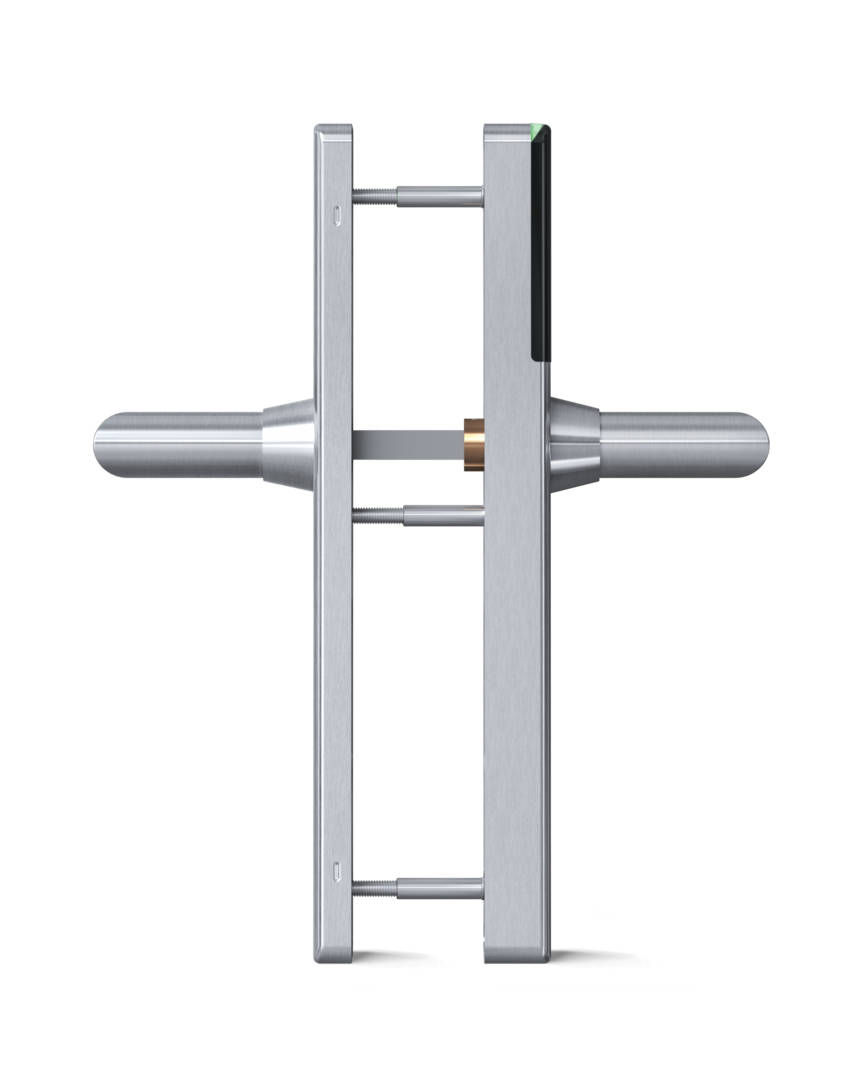

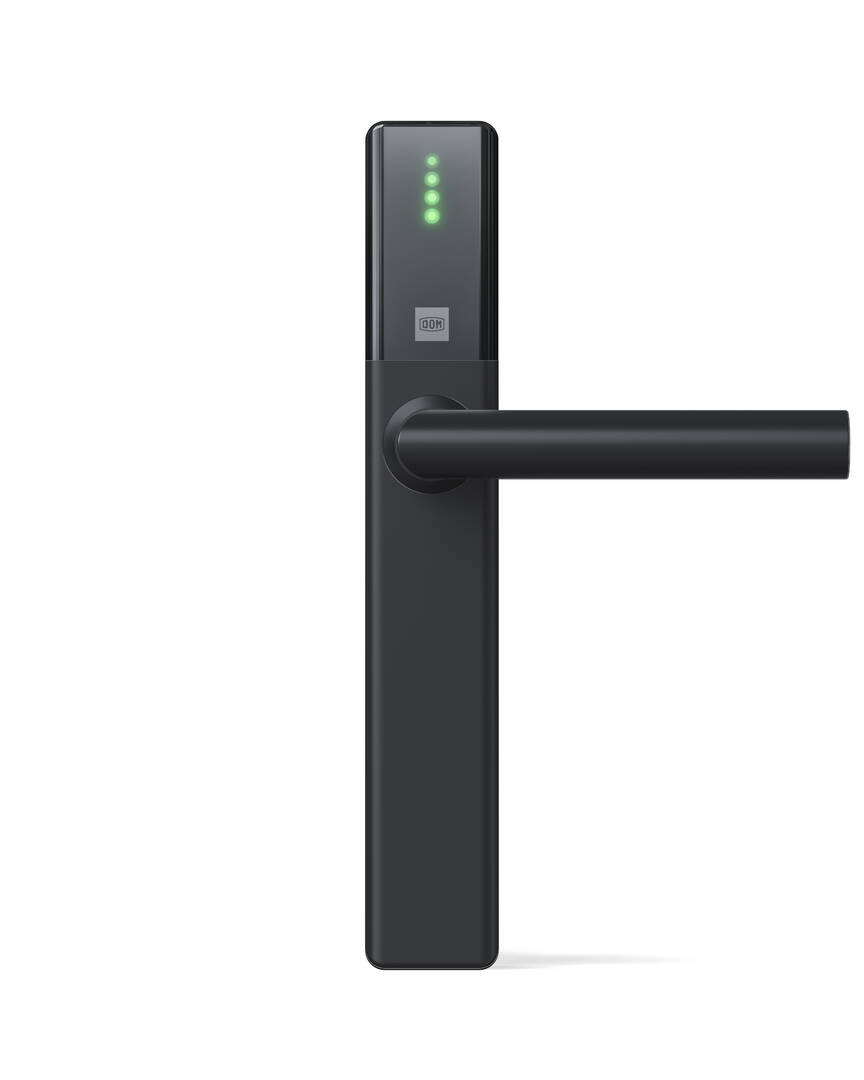

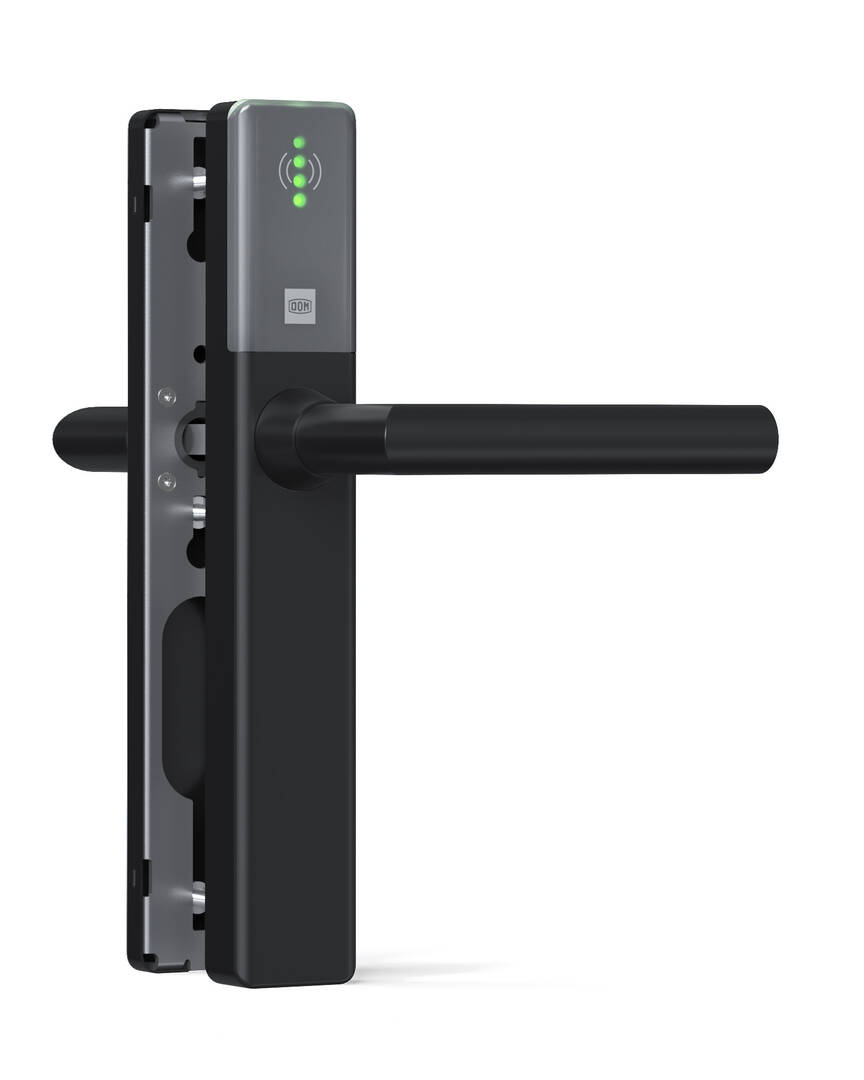

DOM ENiQ® Guard Designed to function as part of the DOM ENiQ Ecosystem (Our in house access control system) powered in the background using DOM ENiQ software and/or the DOM ENiQ App.

About

DOM Digital Smart Handles come in many different variants with multiple handle types and three different colours. Customise your door handles and enhance your buildings security system in one go.

Designed to function as part of the DOM ENiQ Ecosystem (Our in house access control system) operated in the background using DOM ENiQ software and/or the DOM ENiQ App.

Future-proof your building with ENiQ Guard and the ENiQ Security Ecosystem.

Features

  • Complete digital handle portfolio. Available as Slimline, Wideline and Compact version with one or two-sided readability or as purely mechanical fitting.

  • No matter what taste you have, always meet your preference of architectual design respecting the safety and security regulations.

  • Compatible with all European cylinder models and interaxes dimensions.

  • Intuitive visual and acoustic signalisation lets you know directly if you are allowed to open the door.

  • Easy battery change and long maintenance intervals due to long stand-by time and large number of locking cycles per battery.

  • Available in 3 modern design colours matching to your doors. At the moment you install the Guard, your door becomes innovative and elegant

  • Robust handle with a strong resistance against vandalism, fulfilling the highest grade of use class.

  • Adjustable fixing points, allowing a universal fit regardless of the door

Anti Corrosion
IP54: protection from limited dust ingress and against water splashed from all directions; limited water ingress permitted and shall have no harmful effect
NFC

Suggested application of use

Airports, Education, Financial, Homes, Hospitals, Hotels, Industrial, no value, Offices, Plants, Public Buildings, Small to Medium Sized Businesses, Prisons, Gambling Machines, Cash Machines, Cash Machines, Transport, Energy, Wood Furniture

Specifications

Features

Fire Resistant90 Minutes
Water ResistantNo
Patent ProtectionYes
Anti Corrosion ProtectionYes
Communication TechnologyBLE 5.0, RFID 13.56 MHz, NFC
Stand-alone FunctionalityYes
Data On CardYes
Remaining Battery Cycles after 1st Warning500
User Identification TechnologyBLE 5.0, RFID 13.56 MHz, NFC
Number of Inputs2
Number of Outputs0
Acoustic SignallingYes
Optical SignallingYes
Supported Locking MediaMifare Classic, Mifare DESFire, Mifare DESFire 8k, Mifare Ultralight, Mifare Plus, ISO 14443 A, Legic ATC 1024
Programming MethodsMaster Card, Programming Card, Software, Smartphone
Battery TypeAAA Lithium
Number of Batteries2
Battery Lifetime YearsUp to 3 Years
Battery Warning AlarmAudio, Visual
Maximum Operating Temperature (celsius)65
Maximum Relative Humidity (%)99
Maximum Storage Temperature (celsius)65
Minimum Operating Temperature-25
Minimum Storage Temperature (celsius)-25

Patent ProtectionYes
Patented Until (year)2038
Ingress Protection RatingIP54

Surface FinishBrushed Stainless Steel, Black, White, Grey
Fixation TypeScrew on or screw through
Handle TypesL-Shape mitre, L-Shape curved, U-Shape mitre, U-Shape curved, Cranked curved, Cranked mitre, Ball mitre only outside, L-Shape mitre + ball, L-Shape curved + ball, U-Shape mitre + ball, U-Shape curved + ball, Cranked mitre + ball, Cranked curved + ball
Power TypeBattery
Events Storage Capacity in the Device2000
RFID EncryptionAES, AES-128 Bit, DES, 3DES, Crypto-1, ISO 14443A, OSS
Data EncryptionXSALSA20-256 Bit, Curve 25519-256 Bit, Poly 1305-128 Bit
Operating Temperature (Celsius)-25° to 65°
Input OptionsDoor open, lock status, ect.
Assembly InformationFlexible Fixation Points due to movable sleeves/screws

Optional Accessories

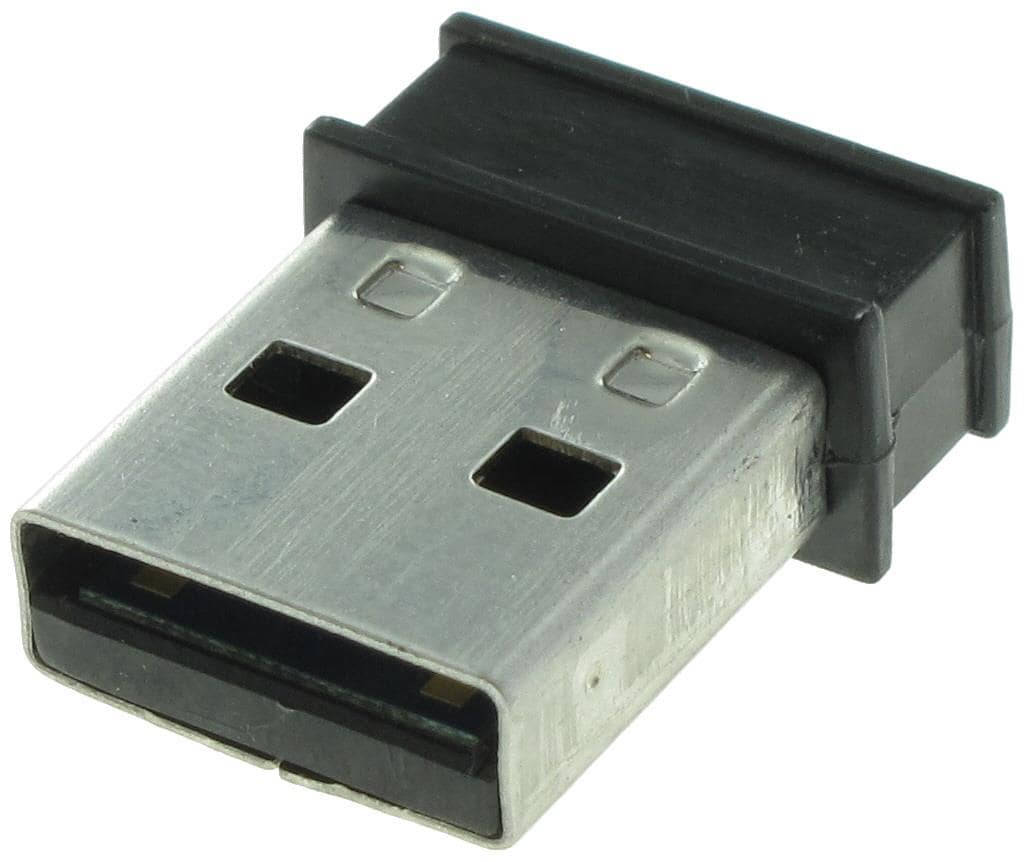

Silicon Labs BLED112 V1

Silicon Labs BLED112 V1

352357
ENiQ Starter package Guard

ENiQ Starter package Guard

352399
Master card, programming card, battery change card, Torx screwdriver TX 10

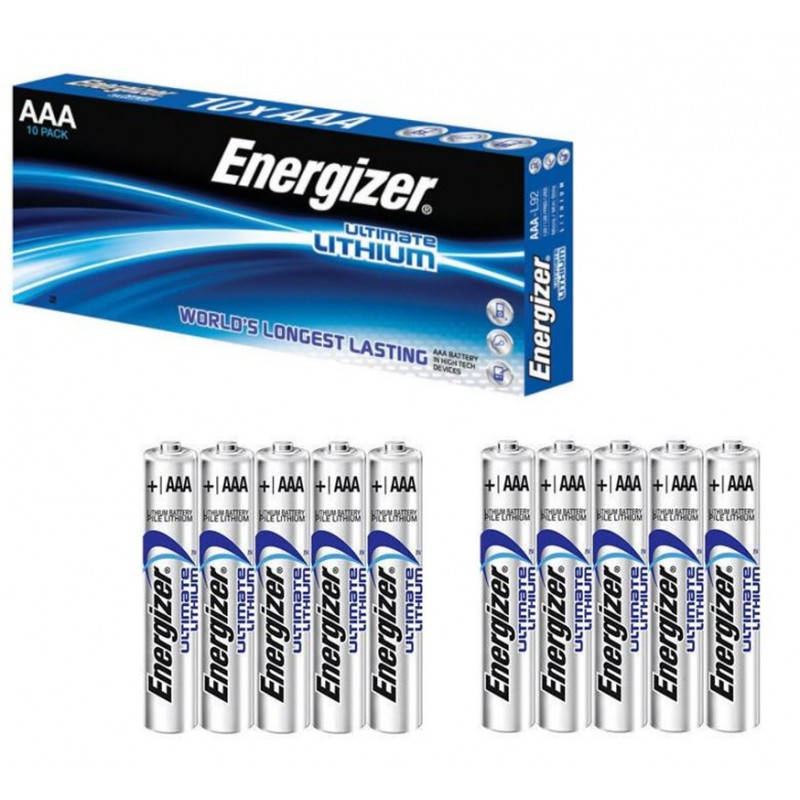

Batteries 10 pieces per box

Batteries 10 pieces per box

352356
Battery for the Guard

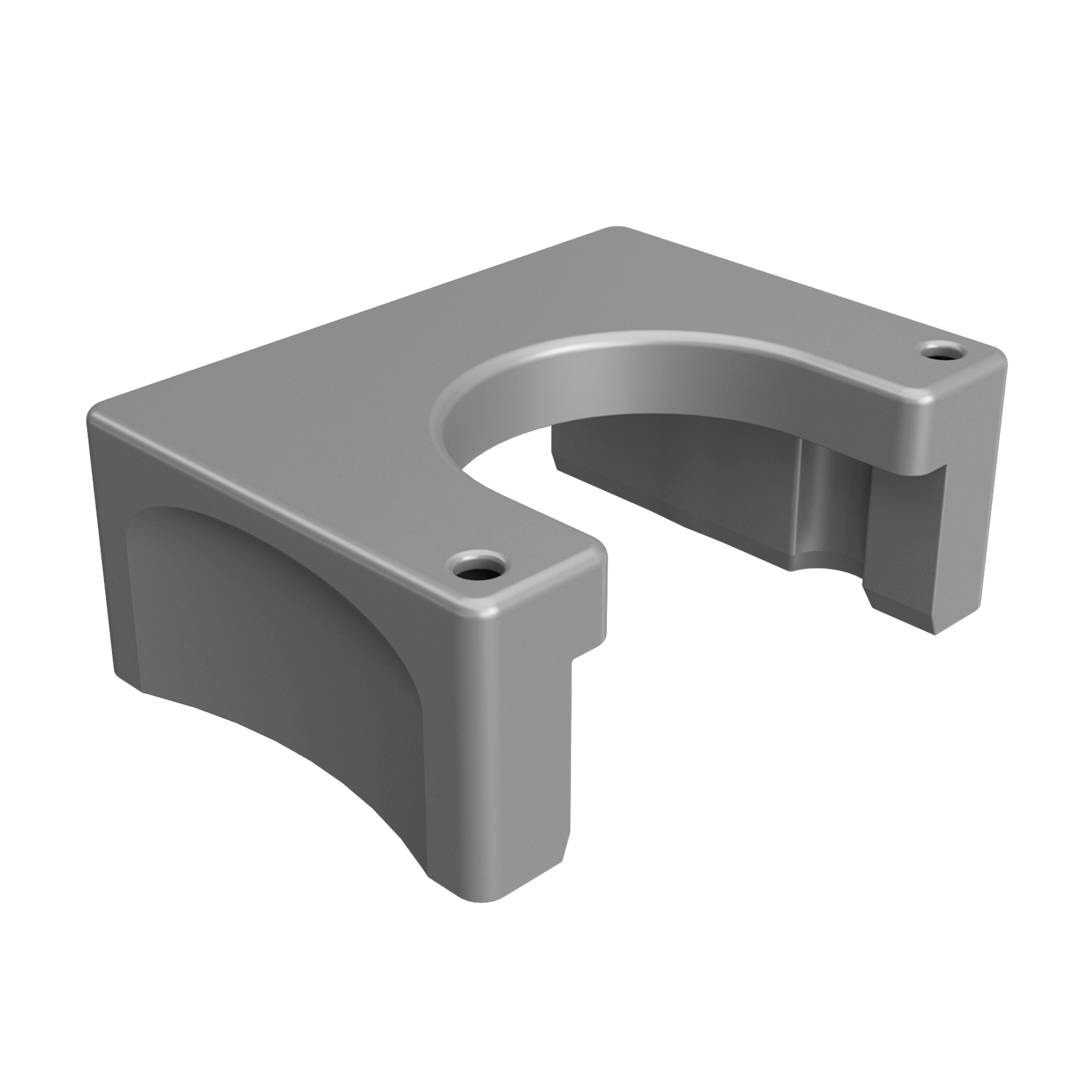

Mounting tool Hook bush

Mounting tool Hook bush

518841C032
Required for mounting and dismounting of hook bushes
Silicon Labs BLED112 V1 with Wake Up Card

Silicon Labs BLED112 V1 with Wake Up Card

352460

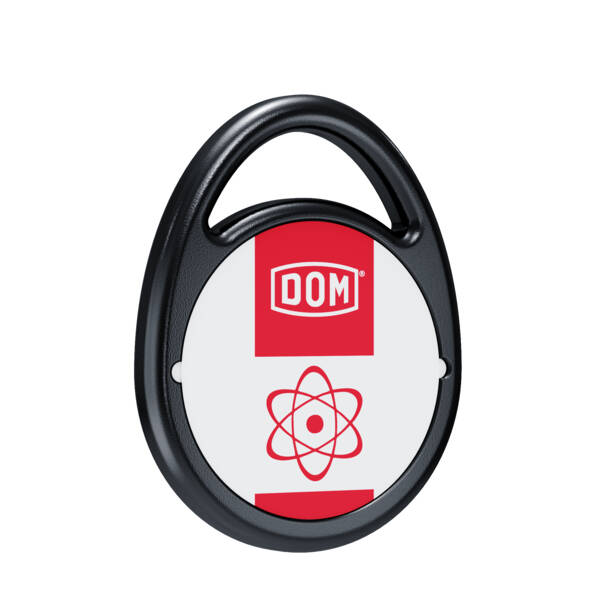

ENiQ Standard Tag

ENiQ Standard Tag

STANTAC504599M

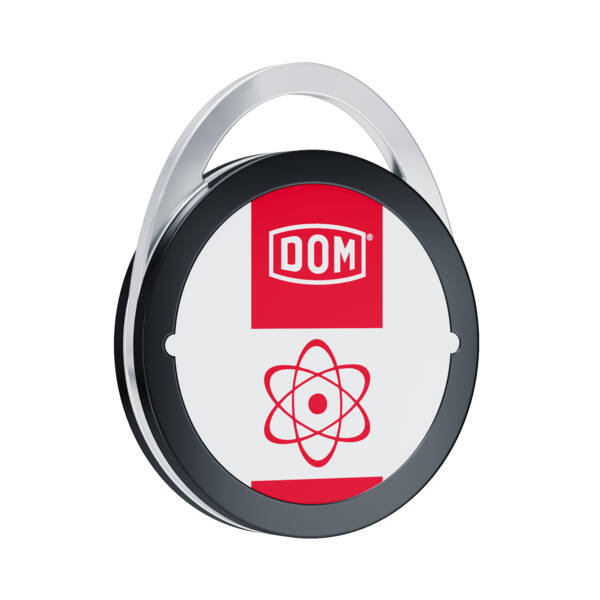

ENiQ Premium Plus Tag

ENiQ Premium Plus Tag

PREMPLUSTAC504599M

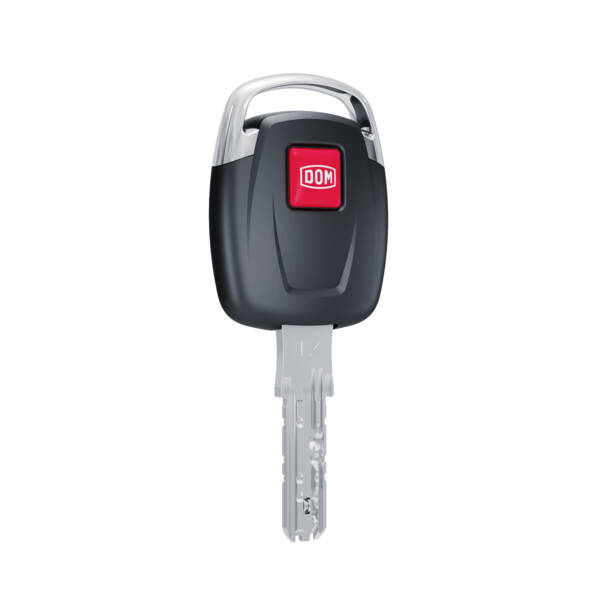

ENiQ Combined Transponder Standard Tag

ENiQ Combined Transponder Standard Tag

STANTAC504599M
ENiQ Clip Tag V2

ENiQ Clip Tag V2

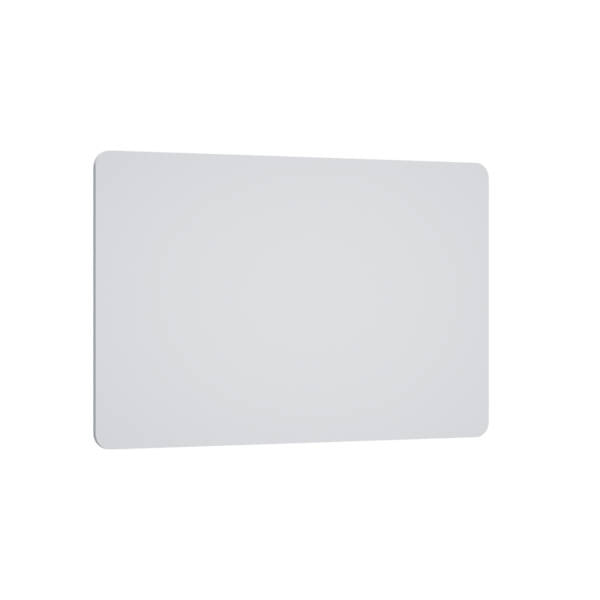

ENiQ ISO Cheque Card Transponder

ENiQ ISO Cheque Card Transponder

ISOSCHE503523M

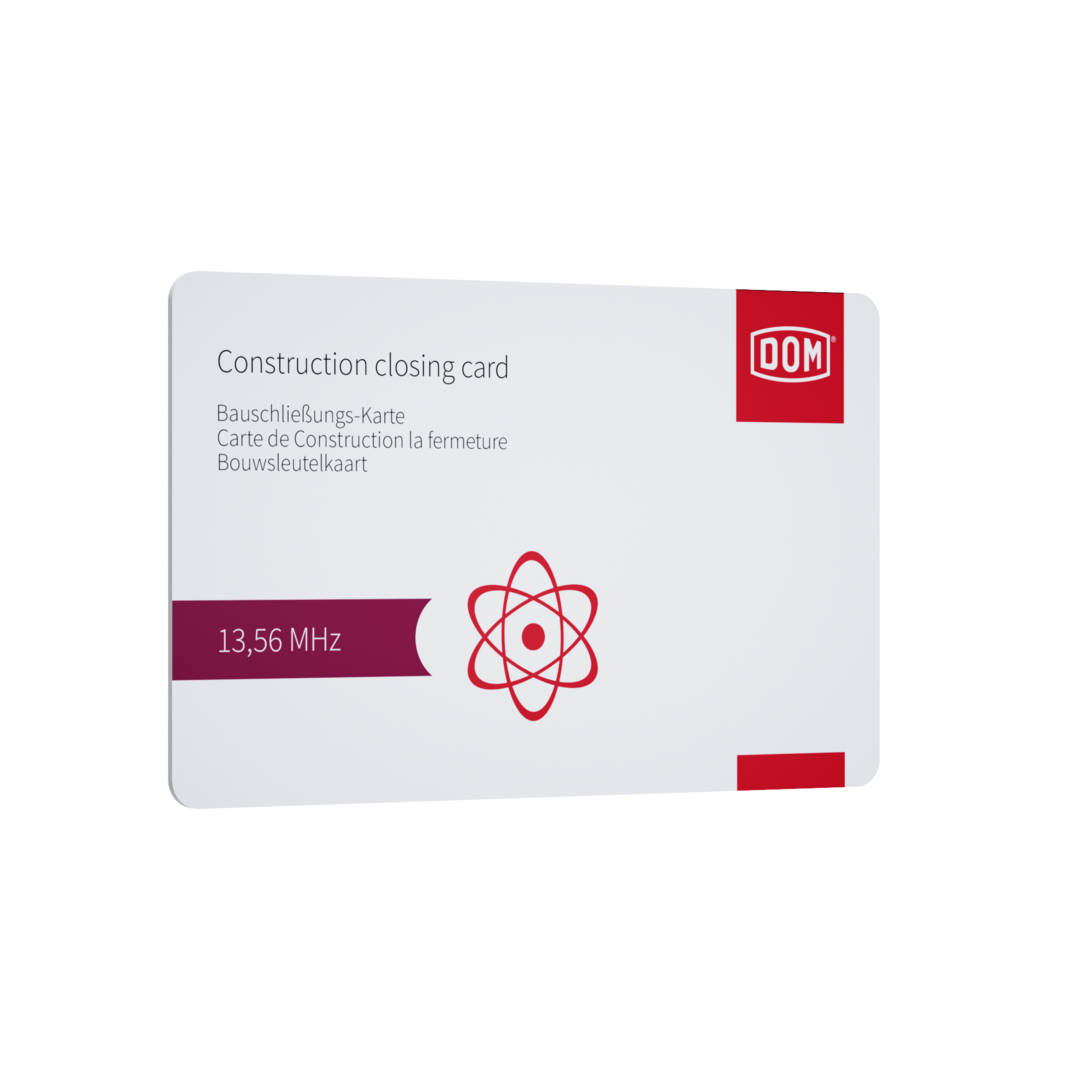

Building Locking Card

Building Locking Card

Function test of the devices in the installation state before the master card is created.

Related Software

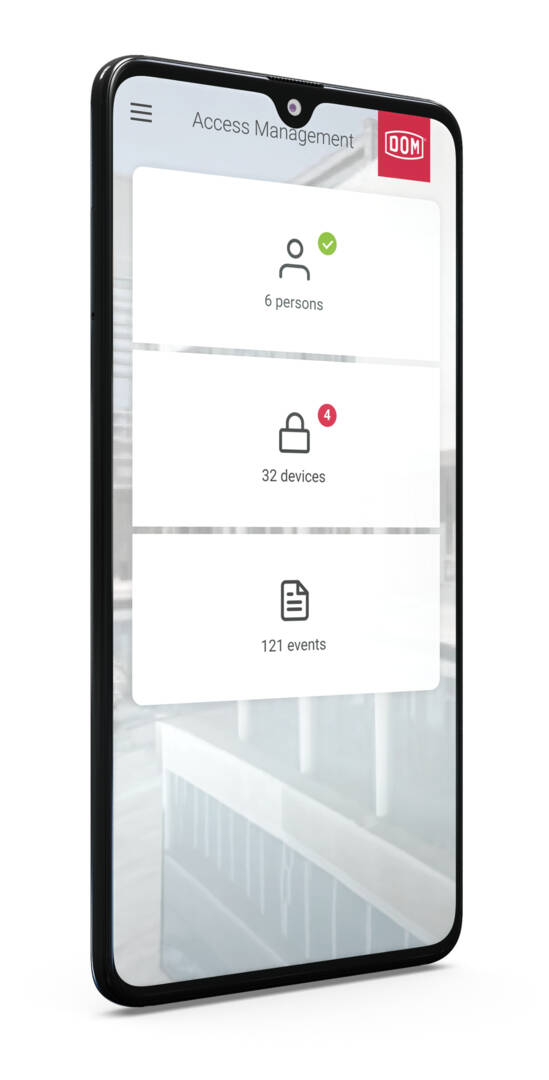

ENiQ AccessManagement Software

ENiQ AccessManagement Software

The new software has been developed as a single administrative platform for the DOM ENiQ® Mifare fam...

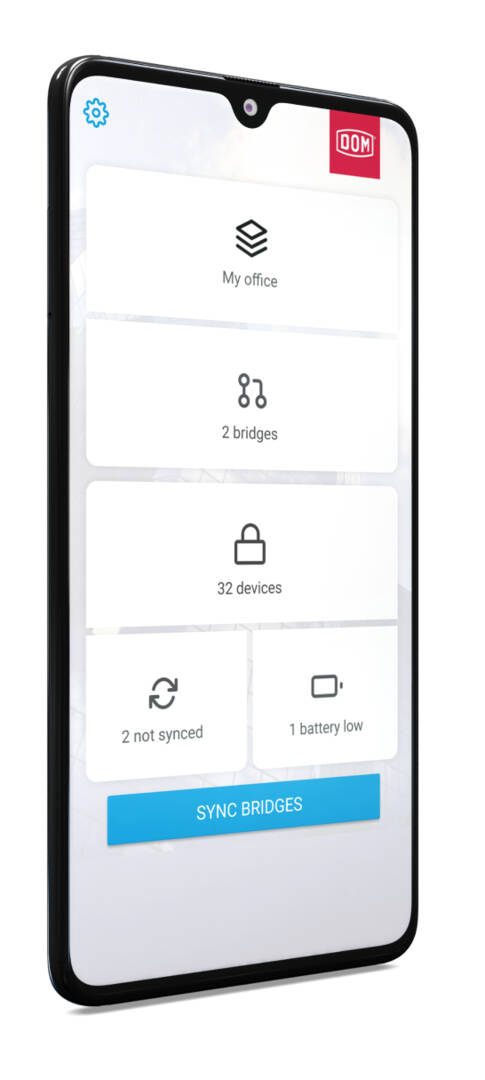

DOM Connect App
