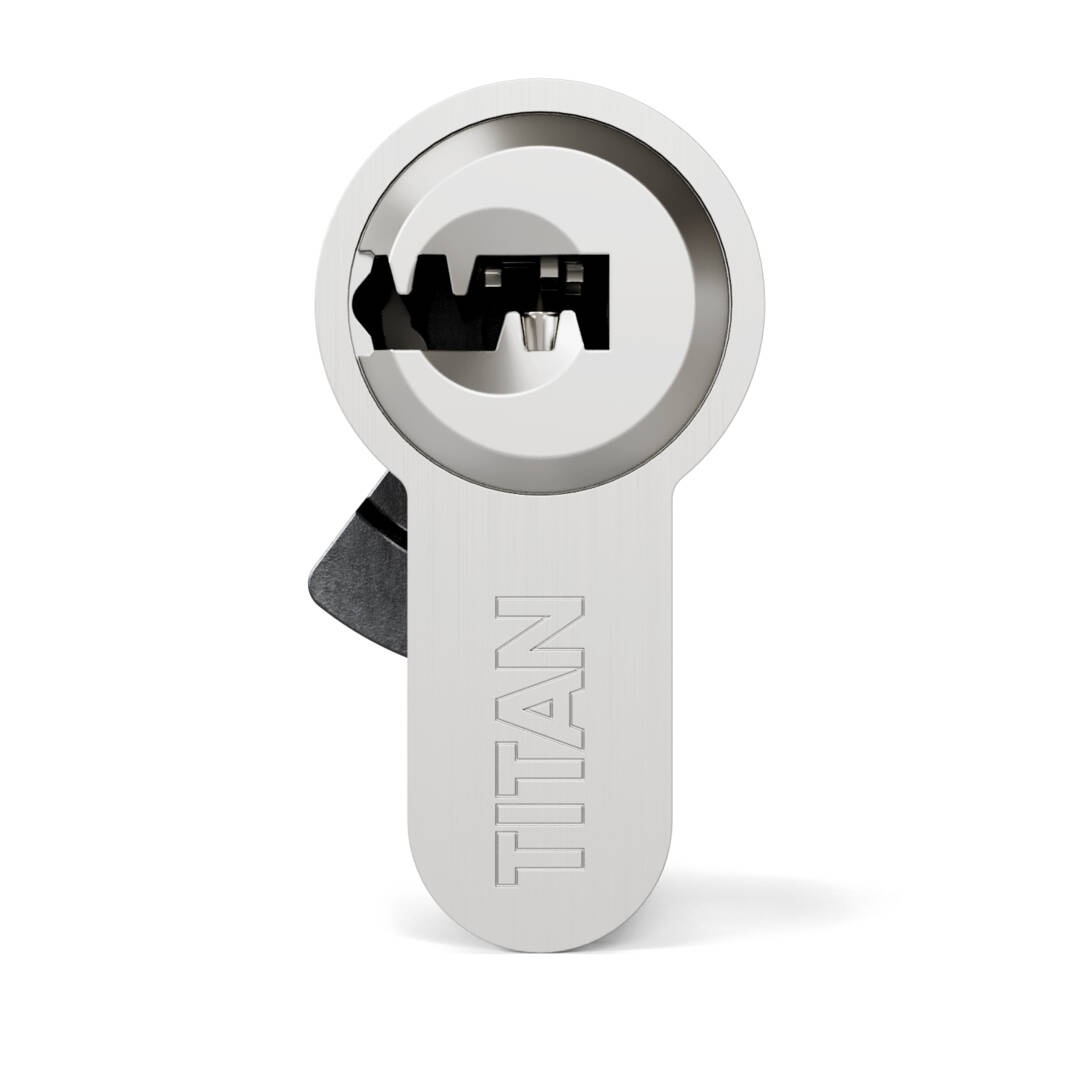

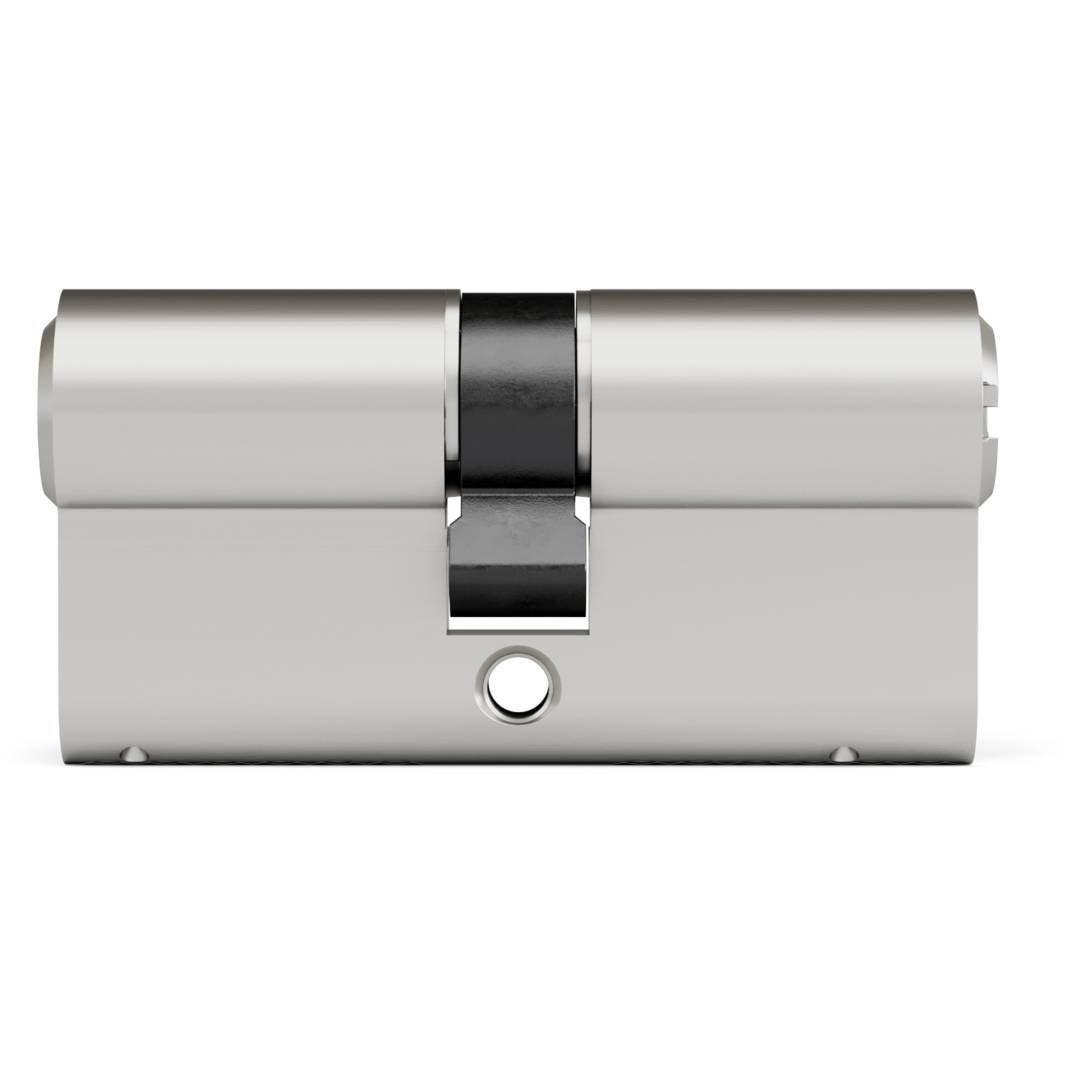

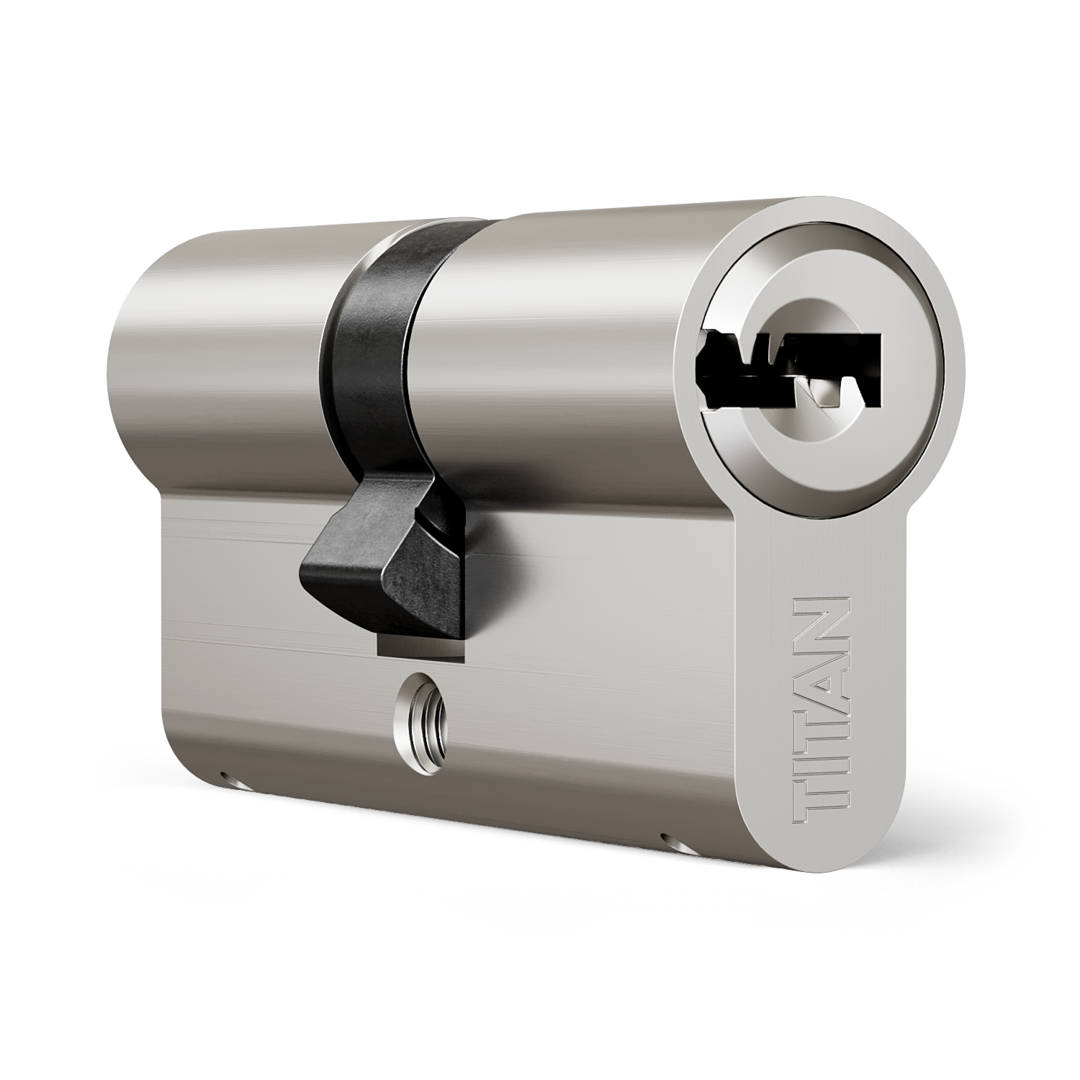

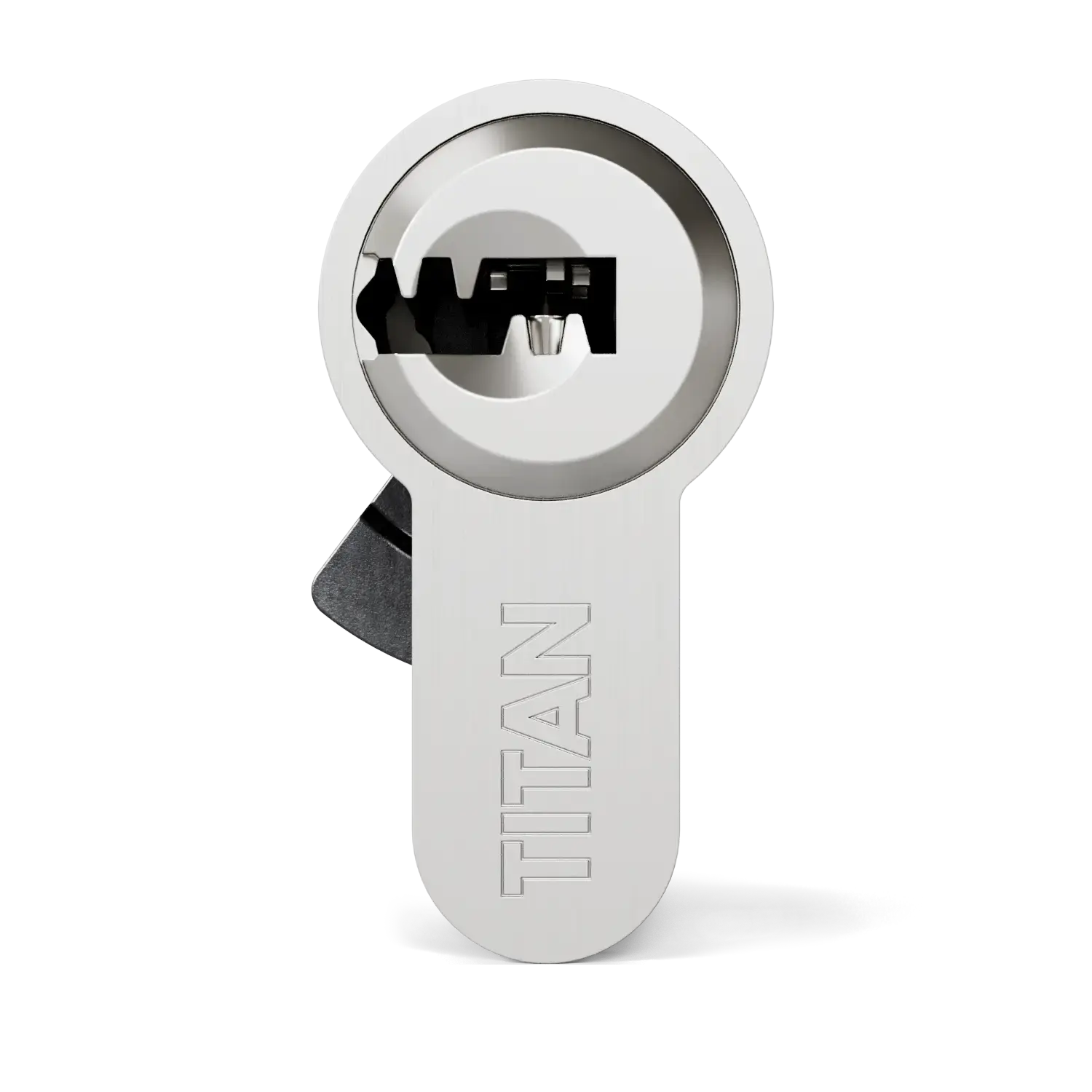

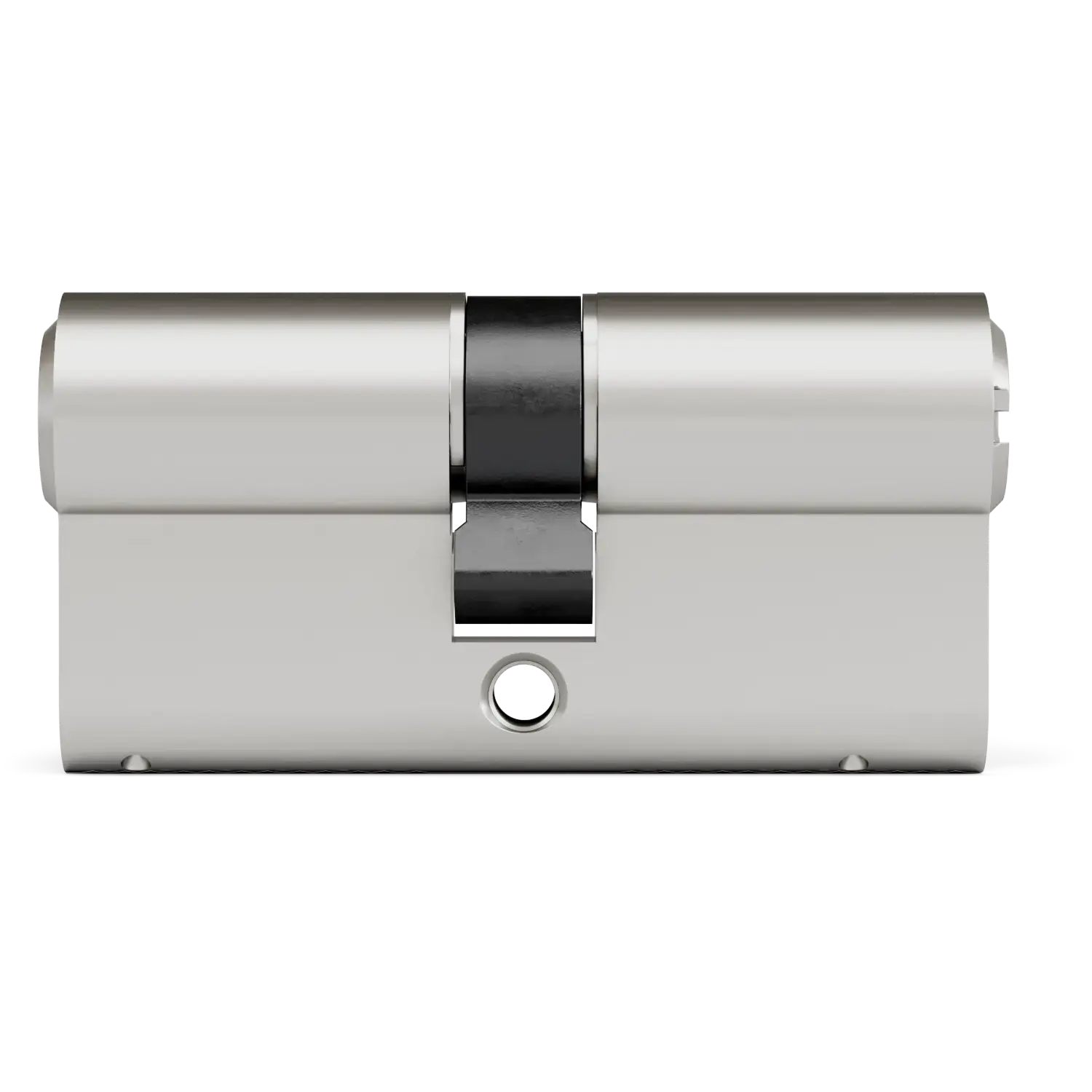

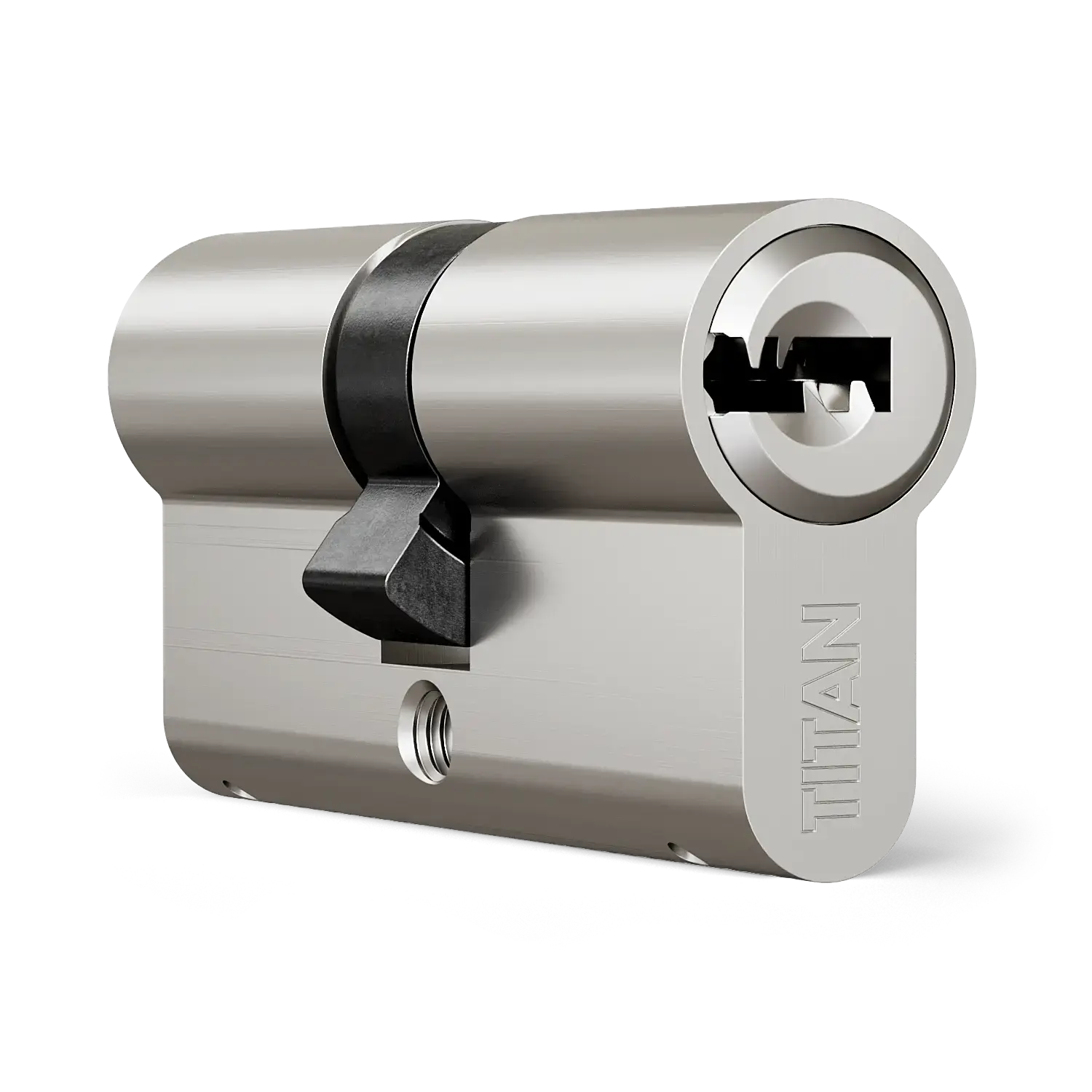

Titan T250

About

The cylinder system T250 is definitely the best solution for those users who are searching for patented security, with EN1303 highest certification and suitable for installation either on individual security doors or in master-key systems.

Due to its patent, the cylinder system T250 is highly protected against illegal key-copying, as the additional keys cannot be duplicated without prior authorization. The new keys can be ordered only with the official Service Centers and only after the presentation of the Owner's card. That is why it is very important to always keep the Owner's card in a safe place!

Besides, T250 is successfully tested and certified according to European Norm EN 1303:2015. The obtained certification guarantees the highest tested level of resistance against various intrusion attacks, such as drilling, picking or bumping, the highest durability, corrosion and temperature resistance. The highest grade received for key related security guarantee a large number of locking combinations enabling its use in master-key installations.

The cylinder T250 is available in various dimensions and can be used in all type of doors, including smoke and fire resistant doors. Nice range of the most popular finishes assures an ideal match with contemporary door designs. Its strong and ergonomic New Silver keys are suitable for use with all cylinder protectors and are perfect for users of all ages.

Various additional options are available with T250:
- keyed alike option that gives the possibility to open several doors just with one key;
- double entry function enabling door opening from one side even if the second key is inserted from another side;
- break secure cuts protecting cylinder mechanism against illegal intrusion.

Our official security partners appreciate their dedicated independent keyway profiles and various key head designs with their name or logo.

Features and Benefits

  • Patented technology designed for the highest level of security of individual doors and master-key installations
  • Owner's Card supplied with the cylinder is obligatory for duplication of keys which can be done only in official Service Centers
  • The high level of security and attack resistance is confirmed by several Independent Test Institutes in Europe
  • Officially tested and certified in accordance with the highest requirements of the European Norm EN1303:2015
  • Suitable for inside and outside doors of all thicknesses, including smoke and fire resistant doors
  • Strong key in nickel silver assures nice grip convenient for users of all ages
  • Optional "Double entry" function allows opening the door from one side even if the key is inserted from another side
  • Upon request, several cylinders can be opened with the same key (option "Keyed alike")
Reversible Key System
Single Coded
Master Key System
Certification SKG 2 Star
Anti Bump Protection
Anti Pick Protection
Registration Card

Suggested application of use

Public Buildings, Offices, Education, Homes

Specifications

Technical features

Key TypeReversible Key System
Registration CardYes
Total Number of Locking Elements16
MKS PossibilitiesMaster Key, Single Coded
Anti Drill Protection HousingYes
Standard Warranty2 Years
Maximum Number of Lateral Elements5
Maximum Number of Upper Elements5
Number of Moveable Elements16
Number of Passive Elements5

EN 1303:2015 Rating160B0C6D
A2P Rating2 *
SKG Star Rating2 *
Key Patent ProtectionYes
Key Patent Until (year)2027
System Patent ProtectionYes
System Patented Until (year)2027

Standard FinishMatt Nickel
Optional FinishesBright Chrome, Bright Brass
Standard Housing MaterialBrass
Standard Number of Keys4
Standard Key MaterialNew Silver
Standard CamDIN
Optional CamsTitan

Knob variations

Knob A

A

Knob B

B

Knob C

C

Knob D

D

Knob E

E

Available colors

Mat Nikel

MN mat nikel
