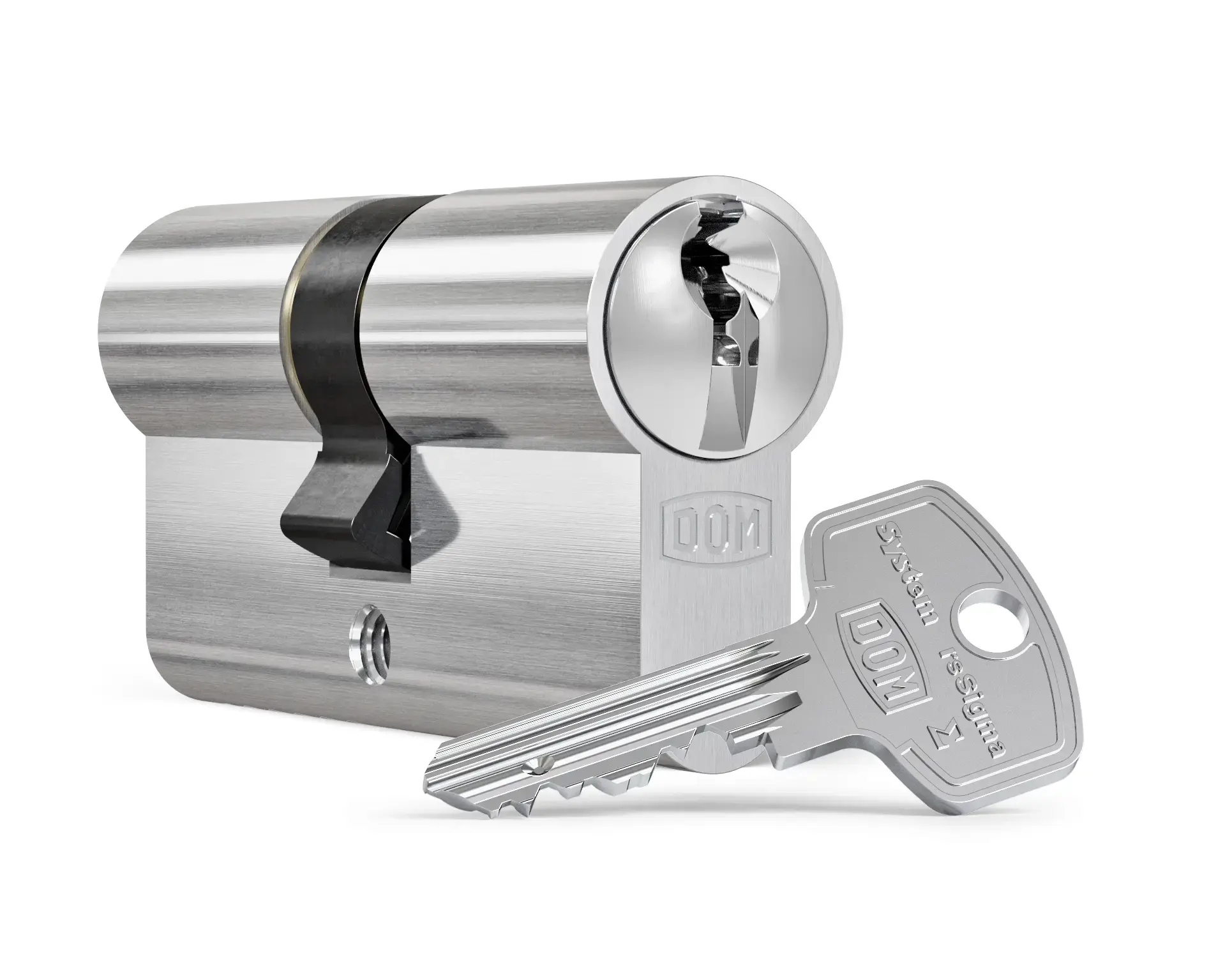

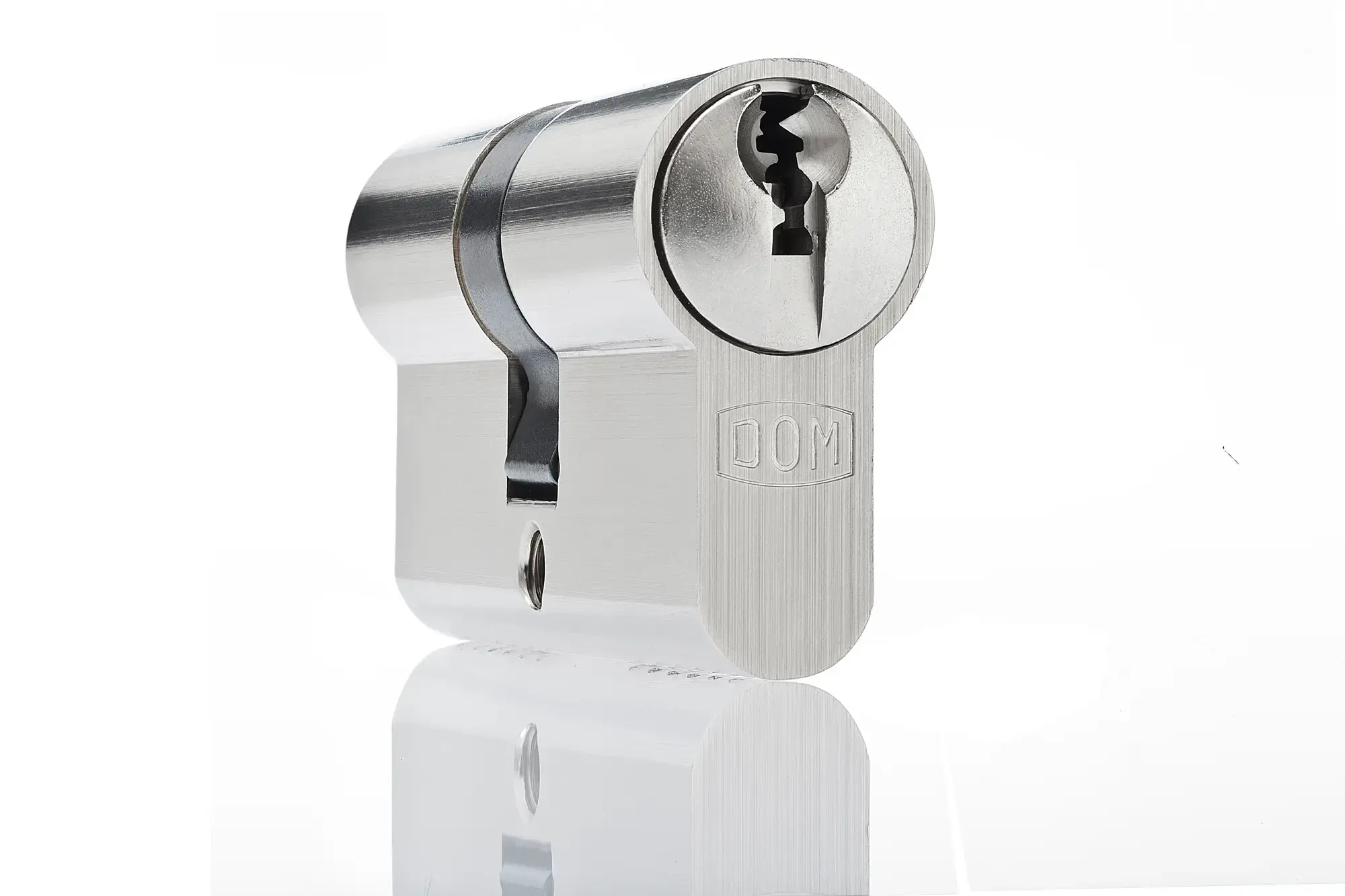

The RS Sigma system is the brand locking system for customers who value a high level of security but watch their costs at the same time. Whether in new or refurbished buildings – property or company secrets all need protection. And there can be quite a lot of doors involved in apartment blocks, condominiums and other building complexes. Designed as a master-keyed system, RS Sigma offers you the convenience you can expect from a modern master-keyed system. You need the security, we offer the matching solution. Safe, fast and reliable.
Simple to extend using the clip tag and compatible with the electronic locking systems from DOM, RS Sigma is future-proof and thus protects your investment long-term!

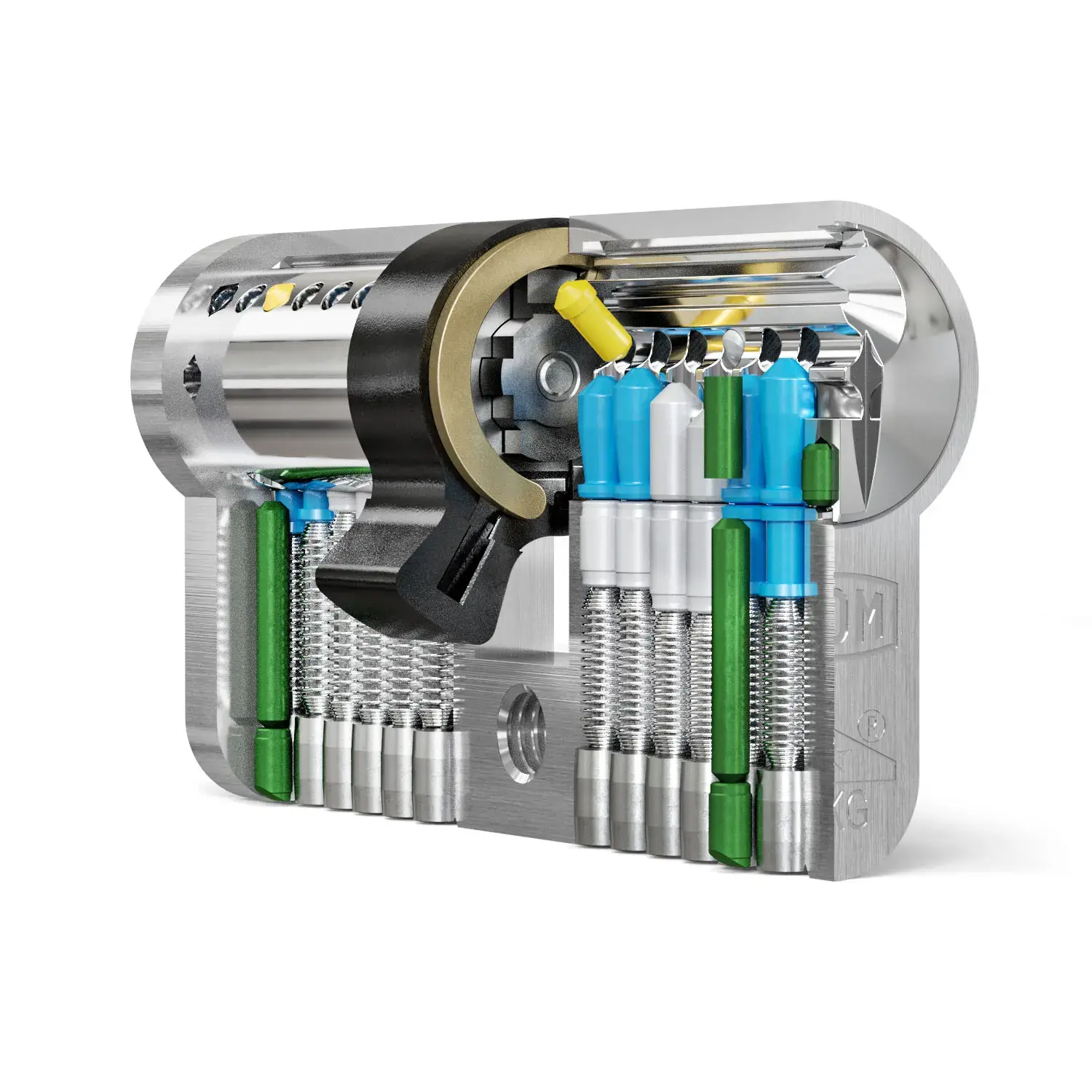

Up to 12 pins at the side
Cut layers matching the profile
DIN EN 1303
VDS AZ optional
Airports, Education, Financial, Homes, Hospitals, Industrial, Medium to Large Sized Businesses, Offices, Plants, Public Buildings, Small to Medium Sized Businesses, Hotels
| Key Type | Conventional Key System |
| Registration Card | Yes |
| Total Number of Locking Elements | 18 |
| MKS Possibilities | Grand Master Keyed, Master Key, Single Coded |
| Anti Drill Protection Housing | Yes |
| Modular | Optional |
| Maximum Number of Upper Elements | 6 |
| Number of Active Locking Elements | 6 |
| Number of Ant Bumping Elements | 2 |
| Number of Anti Picking Elements | 2 |
| Number of Moveable Elements | 0 |
| Number of Passive Elements | 12 |
| Standard Warranty | 2 Years |
| Standard Finish | Matt Nickel |
| Standard Housing Material | Brass |
| EN 1303:2015 | 160B0C6D |
| VdS 2156:1 Classification | AZ |
| SKG Star Rating | 2 * |
| Standard Finish | Matt Nickel |
| Optional Finishes | Bright Chrome, Bright Nickel, Matt Nickel, Matt Chrome, Matt Brass, Gold, Dark Bronze |
| Standard Housing Material | Brass |
| Number of Keys | 3 |

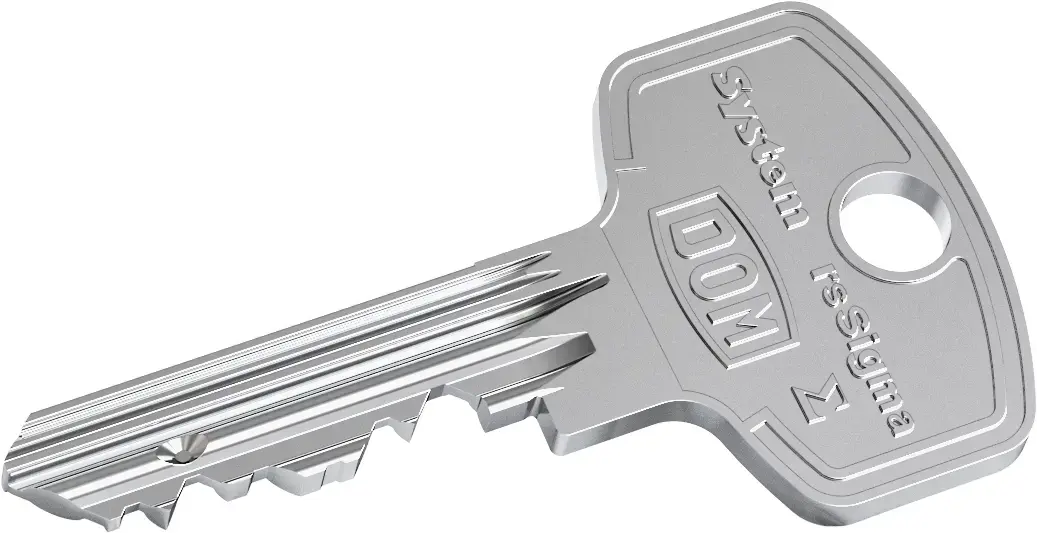

| Key Material | New Silver |
| Standard Cam | DIN |
| Optional Cams | Cam 90°, Cam Biffar, Swiss Cam, Cam Corbin, Spanish Cam 13.2 mm, 10 Teeth Gear Cams, 14 Teeth Gear Cams |
