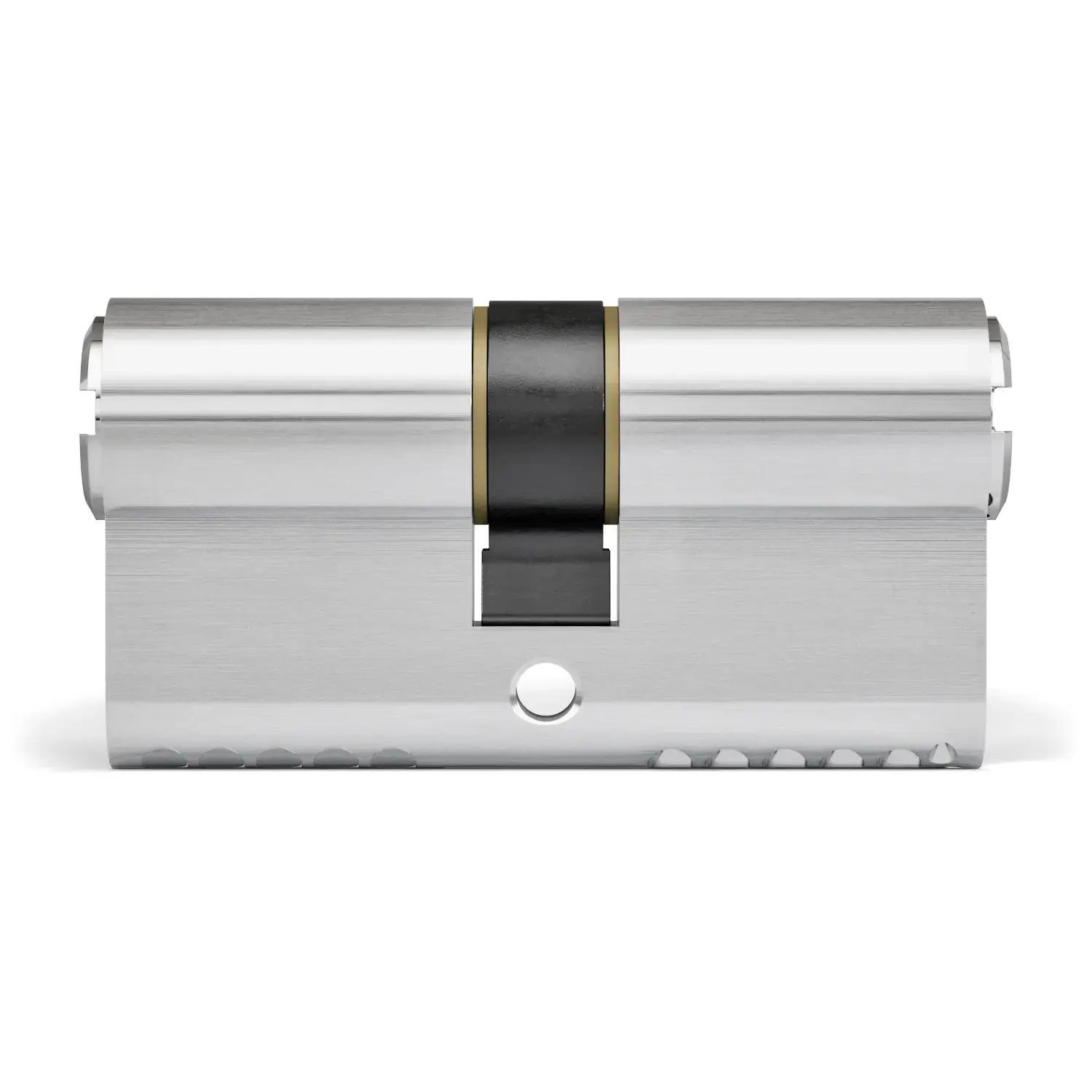

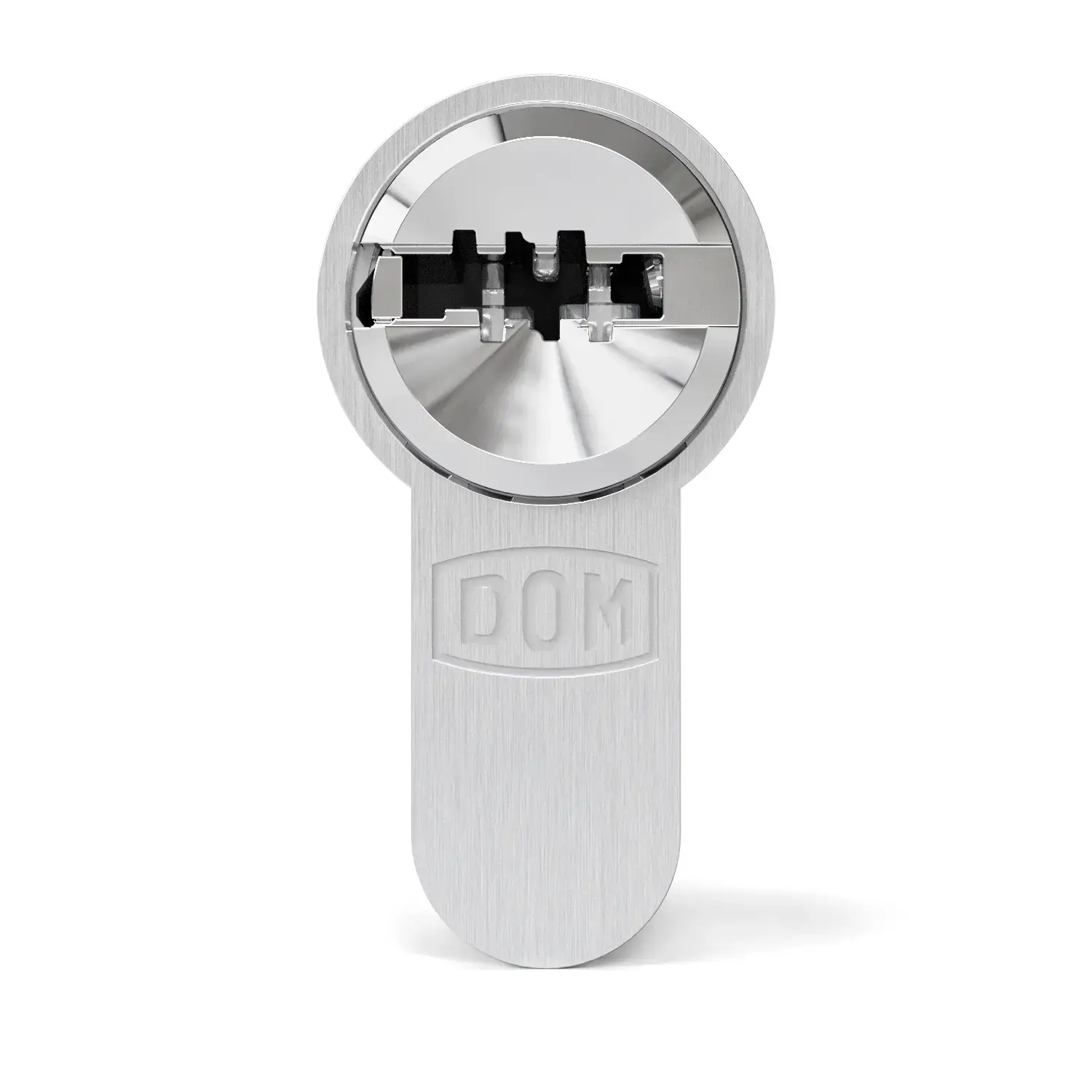

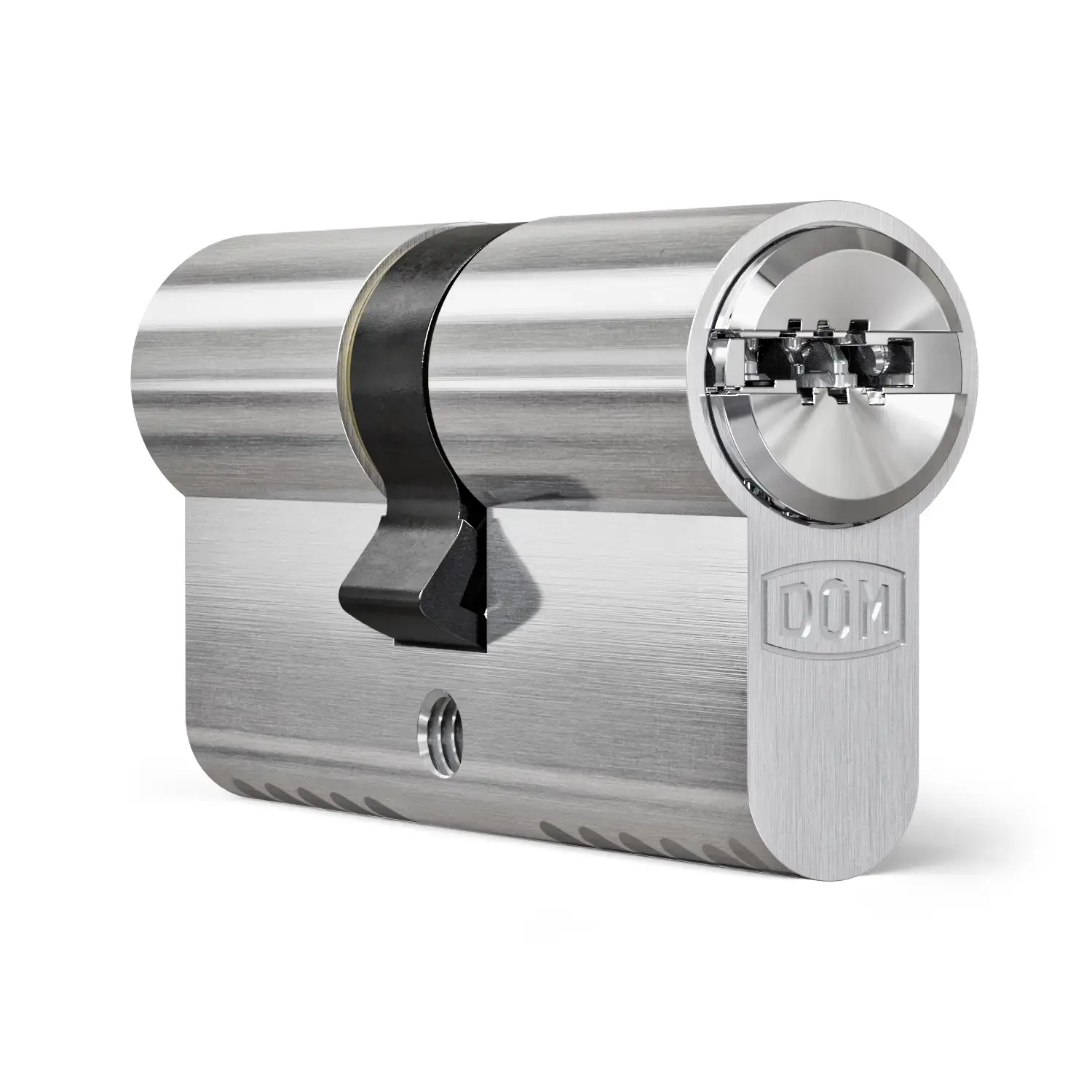

DOM ix TwinStar

About

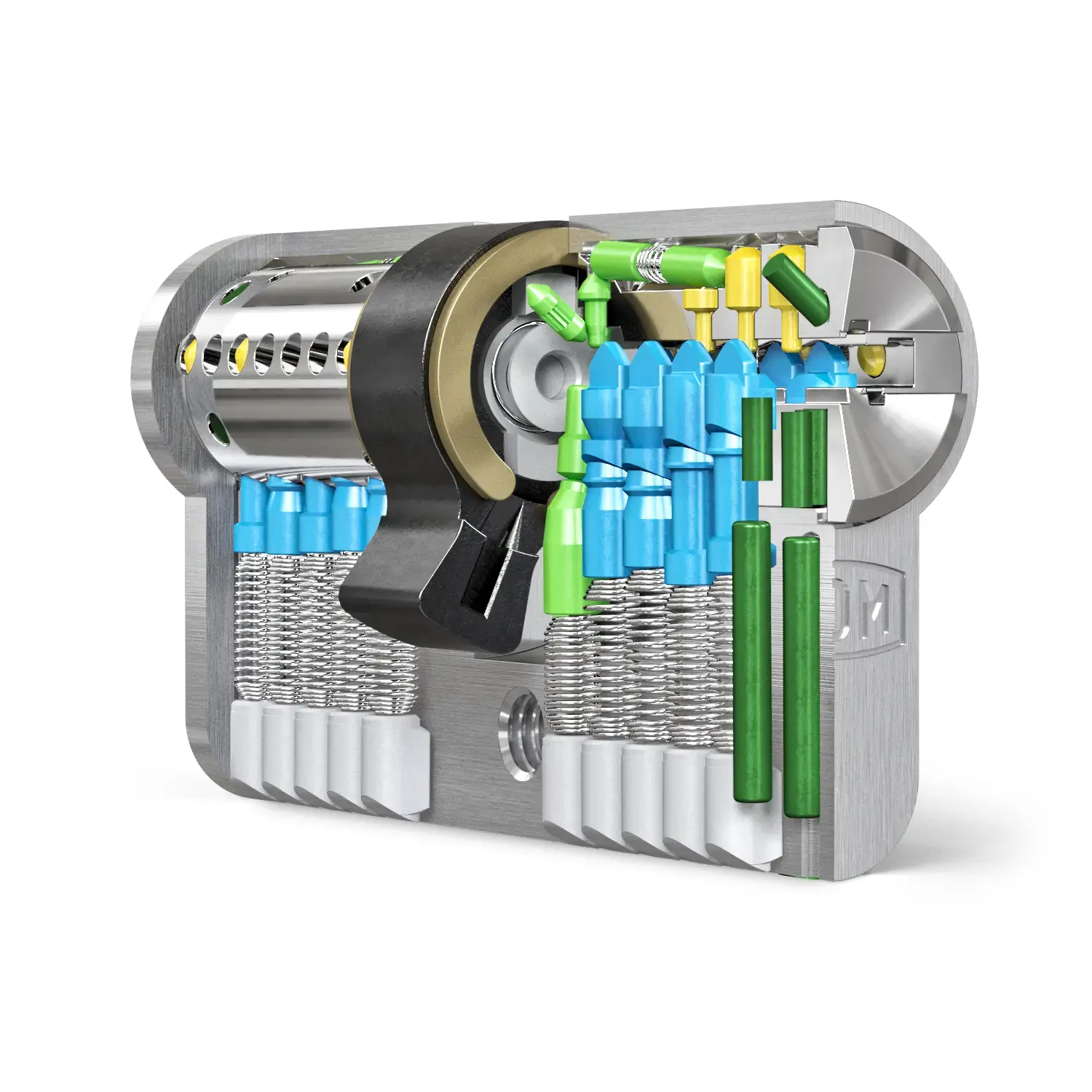

With its floating mounted dual role within the key the new reversible key system ix TwinStar provides the highest protection against unauthorised key copying. The complex system of 11 active locking elements has been desgined for use as a complex locking system or as registered individual locks for the home.

Features and Benefits

  • Patent is declared at European Patent Office

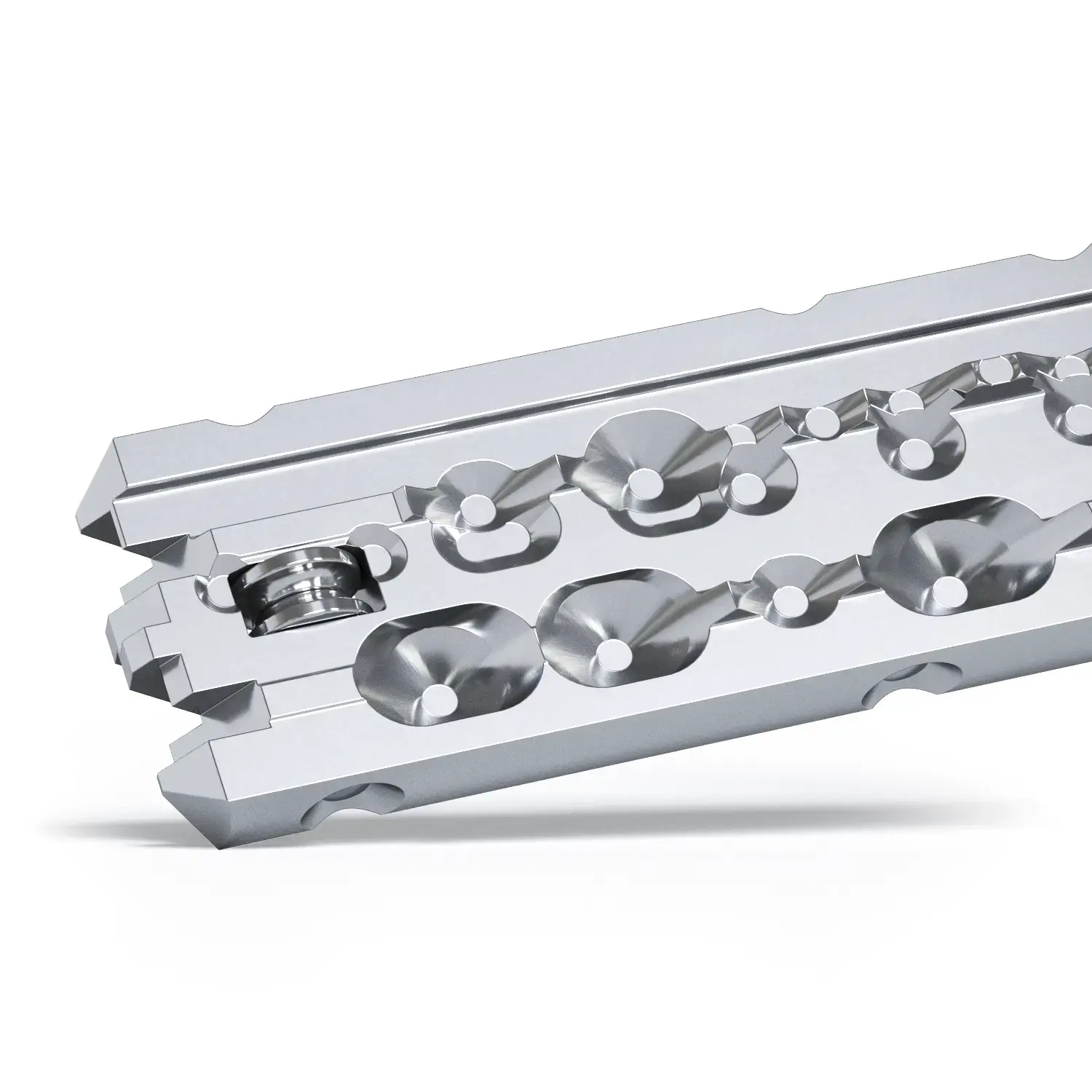

  • Floating mounted dual role within the key
  • DIN EN 1303, VDS BZ+
  • High manipulation protection with up to 23 locking authorisation queries per key
  • Possibility of complex Master Key Systems, Security Card 2in1 function in preparation
  • Registered Single Coded System, VdS Classification in preparation, 2in1 function, Security Card
  • Compatibility to electronic locking systems with ClipTag
  • Optional: Modular cylinders, Highest level of drilling & pull protection
Reversible Key System
Master Key System
Grand Master Key System
Anti Bump Protection
Anti Pick Protection
Anti Pull Protection
Registration Card

Suggested application of use

Airports, Education, Financial, Homes, Hospitals, Hotels, Industrial, Medium to Large Sized Businesses, Offices, Plants, Public Buildings, Small to Medium Sized Businesses

Specifications

Technical features

Key TypeReversible Key System
Registration CardYes
Total Number of Locking Elements21
MKS PossibilitiesGrand Master Keyed, Master Key, Registered Single Coded
Anti Drill Protection HousingYes
ModularOptional
Standard Warranty2 Years
Maximum Number of Lateral Elements10
Maximum Number of Upper Elements9
Number of Moveable Elements2
Number of Passive Elements10

EN 1303:2015 Rating160B0C6B
VdS 2156:1 ClassificationBZ+
Key Patent ProtectionYes
Key Patent Until (year)2036
System Patent ProtectionYes
System Patented Until (year)2036

Standard FinishMatt Nickel
Optional FinishesBright Brass, Bright Chrome, Bright Nickel, Matt Chrome, Matt Brass, Gold, Dark Bronze
Standard Housing MaterialBrass
Number of Keys3
Key MaterialNew Silver
Standard CamDIN
Optional Cams10 Teeth Gear Cams, 14 Teeth Gear Cams, Cam Biffar, Swiss Cam, Spanish Cam 13.2 mm, Cam Corbin, Cam 90°
Adjustable CamYes

Optional Accessories

Clip Tag V2

Clip Tag V2

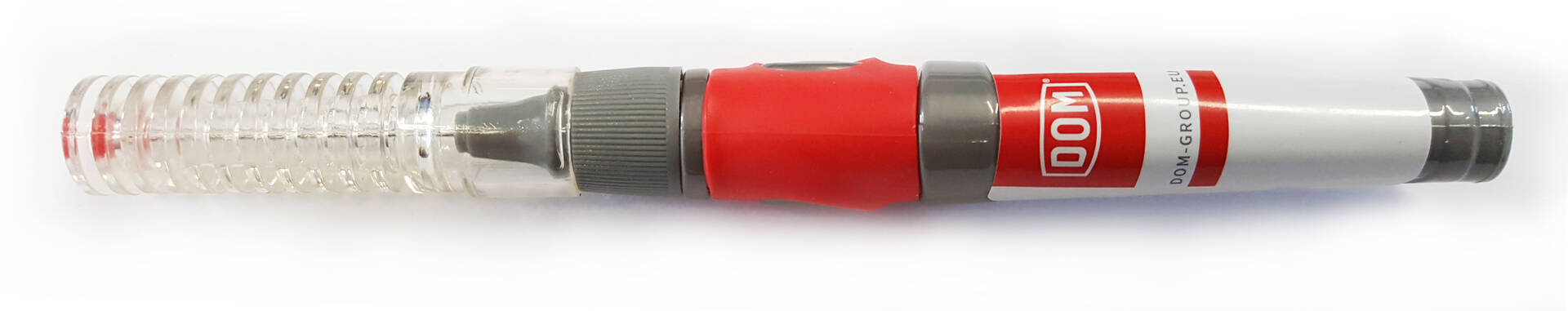

Service Pen

Service Pen

Knob variations

DOM K1 Knob

K1

DOM K3 Knob

K3

DOM K4 Knob

K4

DOM K5 Knob

K5

DOM K6 Knob

K6

Available colors

DOM Cilinder Dull Nickel

01 Dull Nickel

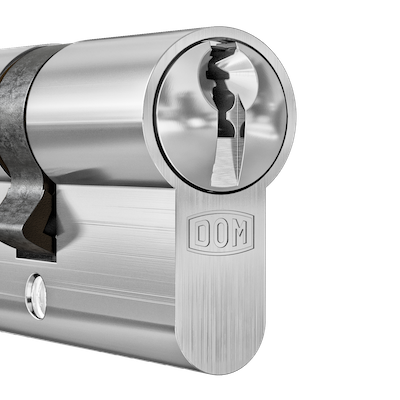

DOM Cilinder Matt Chrome

03 Matt Chrome

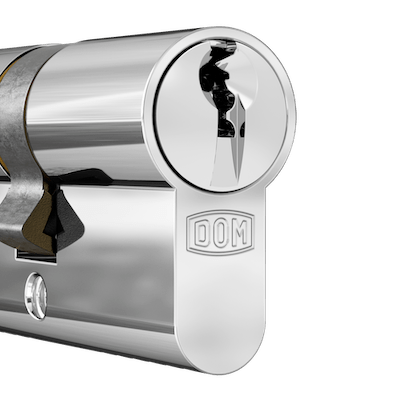

DOM Cilinder Bright Chrome

04 Bright Chrome

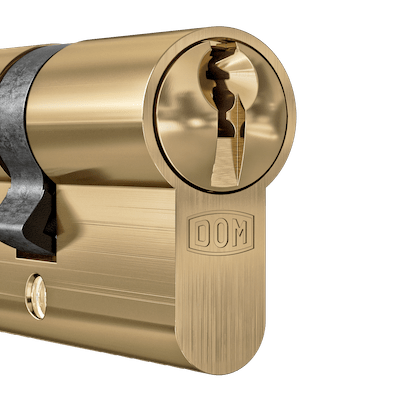

DOM Cilinder Satin Brass

05 Satin Brass

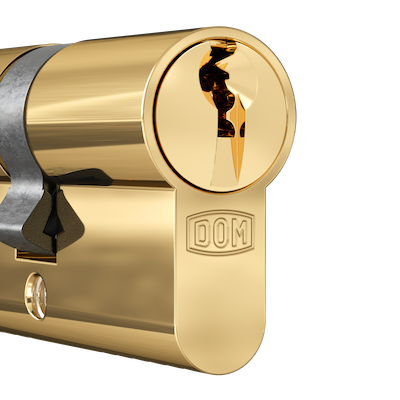

DOM Cilinder Polished Brass

06 Polished Brass

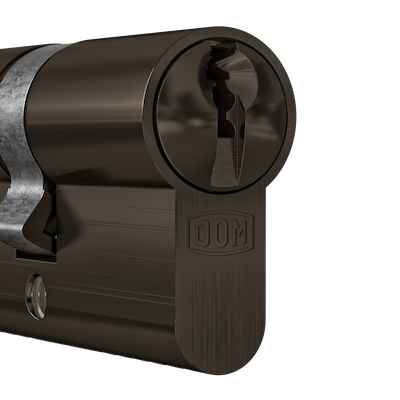

DOM Cilinder Light Oxidized Bronze

07 Light Oxidised Bronze

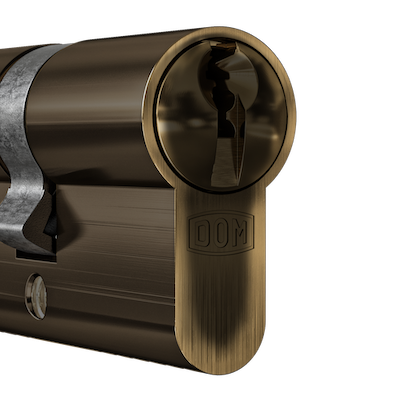

DOM Cilinder dark oxidized antique

09 Dark Oxidised Antique

DOM Cilinder Gold Plate

25 Gold Plate
