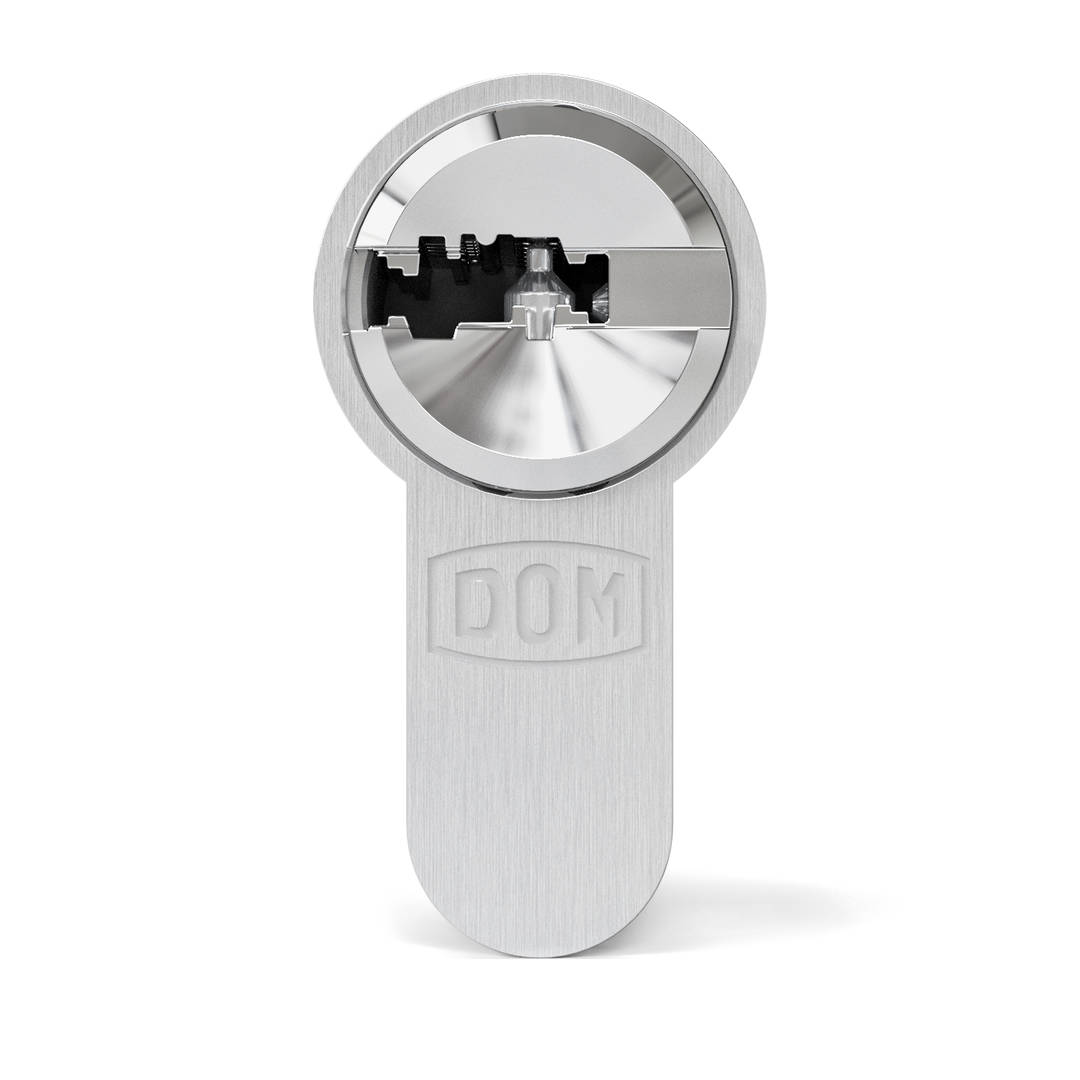

By opting for the DOM ix Twido® cylinder system, you are selecting a patented high security cylinder with a float mounted double roller on a reversible key which makes it particularly well protected against unauthorized copying.
A special high-deep milling (HT) technique which is used in the horizontal basic profile enhances security during profile checks and also makes the profile more difficult to copy. With its new roller technology and sophisticated design the new ix Twido® meets almost every security requirement.
Patent protection until 2036
Innovative float mounted dual roller on a reversible key which makes it particularly well protected against unauthorised copying
Resistant to common attack methods such as; drilling, bumping and picking
DIN EN 1303
Durable and wear-resistant nickel silver key
Reversible key allows for comfortable and easy key entry
Registration card included in the scope of delivery
Modular cylinder system allows for the highest level of drilling & pull protection
Airports, Education, Financial, Homes, Hospitals, Industrial, Medium to Large Sized Businesses, Offices, Plants, Public Buildings, Small to Medium Sized Businesses
| Key Type | Reversible Key System |
| Registration Card | Yes |
| Total Number of Locking Elements | 19 |
| MKS Possibilities | Grand Master Keyed, Master Key |
| Anti Drill Protection Housing | Yes |
| Modular | Optional |
| Number of Active Locking Elements | 7 |
| Number of Ant Bumping Elements | 2 |
| Number of Anti Picking Elements | 2 |
| Number of Moveable Elements | 0 |
| Number of Passive Elements | 12 |
| Standard Warranty | 2 Years |
| Standard Finish | Matt Nickel |
| Standard Housing Material | Brass |
| EN 1303:2015 | 160B0C6B |
| SKG Star Rating | 2 * |
| EN 12320:2012 | Not Tested |
| Key Patent Protection | Yes |
| Key Patent Until (year) | 2036 |
| System Patent Protection | Yes |
| System Patented Until (year) | 2036 |
| Standard Finish | Matt Nickel |
| Optional Finishes | Bright Brass, Bright Chrome, Bright Nickel, Matt Chrome, Gold, Dark Bronze |
| Standard Housing Material | Brass |
| Key Material | New Silver |
| Standard Cam | DIN |
| Optional Cams | Cam 90°, Cam Biffar, Swiss Cam, Cam Corbin, Spanish Cam, 10 Teeth Gear Cams, 14 Teeth Gear Cams |
