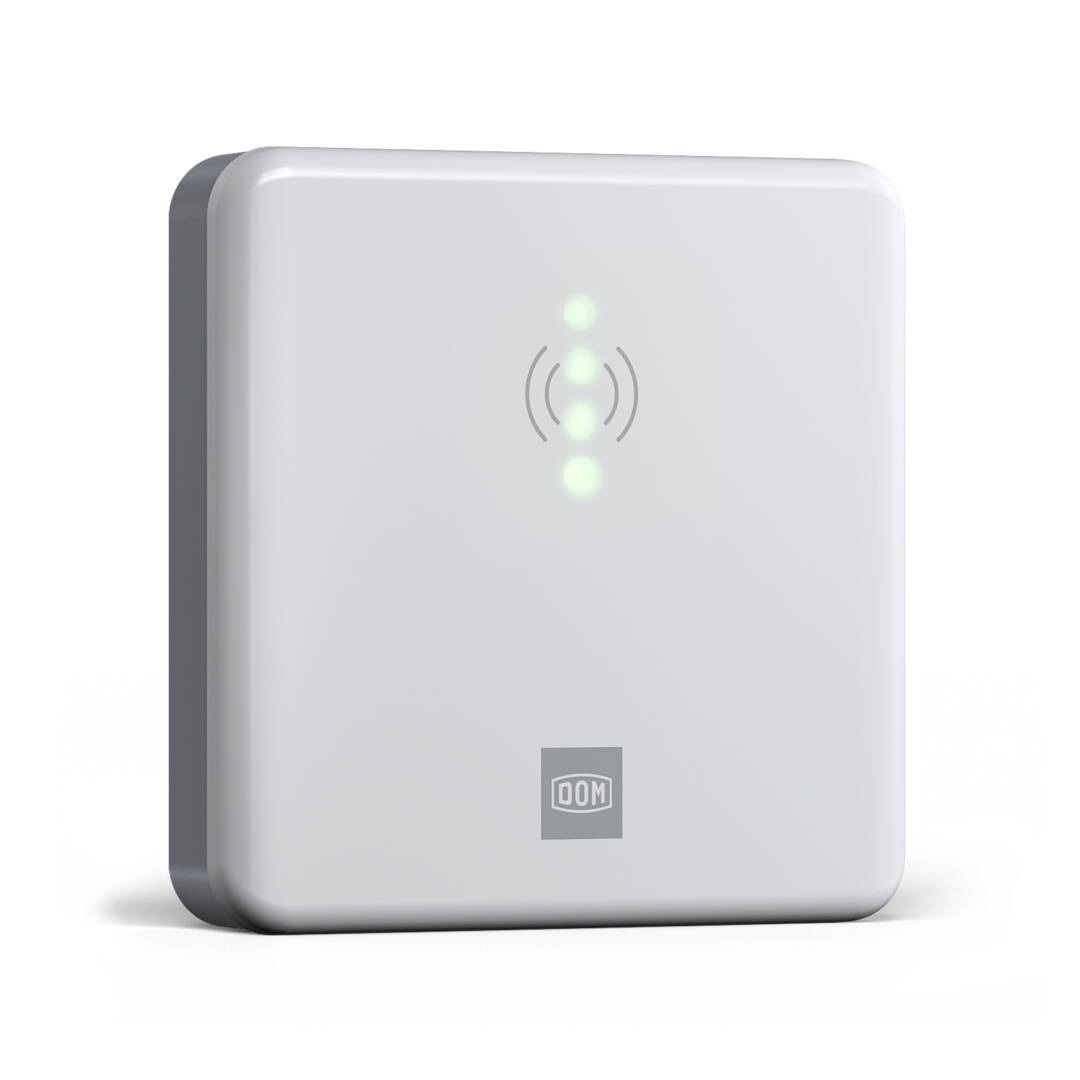

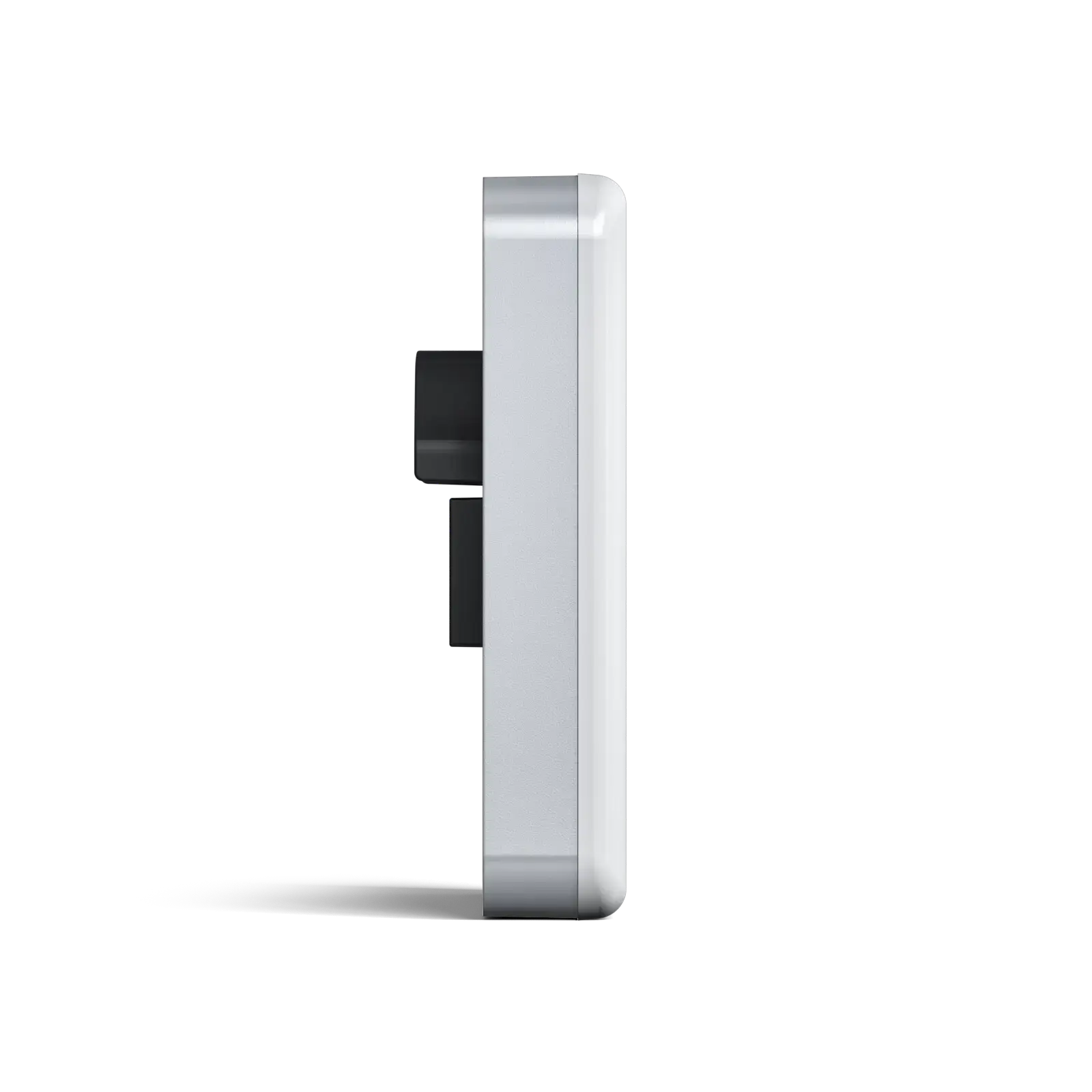

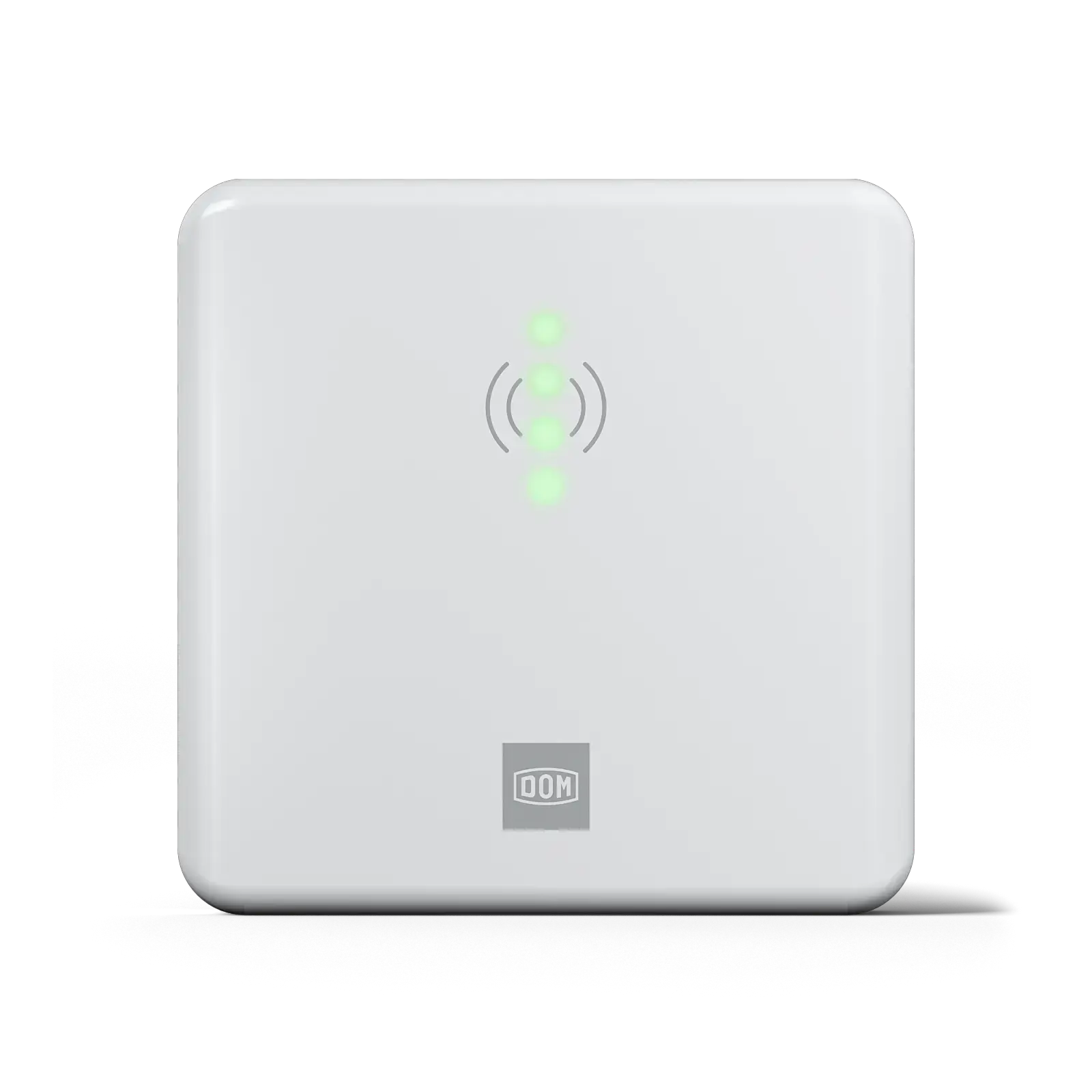

The ENiQ AccessManager is a wall reader tjat persuades due to its variety of possible uses and extensions. It can be installed onto a standard wall socket, or with a surface-mounted frame it can also be placed directly onto the wall. Depending on your individual requirements, ENiQ AccessManager is available in three different versions. The Compact version, consisting of a reader and control unit in one device, allows you to have a simple basic model for access control. In the HiSec Version, the control unit with reader is available with up to three passive reader units.
Airports, Education, Financial, Homes, Hospitals, Hotels, Industrial, Medium to Large Sized Businesses, Offices, Plants, Public Buildings, Small to Medium Sized Businesses
| Water Resistant | Yes |
| Anti Corrosion Protection | Yes |
| Communication Technology | BLE 5.2, NFC, Ethernet, RS 485 |
| Stand-alone Functionality | Yes |
| Data On Card | Yes |
| User Identification Technology | BLE 5.2, NFC, Mifare RFID 13.56 MHz |
| Number of Inputs | 2 |
| Number of Outputs | 1 |
| Acoustic Signalling | Yes |
| Optical Signalling | Yes |
| Supported Locking Media | Mifare Classic, Mifare DESFire, Mifare Plus, Mifare Ultralight, ISO 14443 A |
| Programming Methods | Programming Card, App, Software |
| Power Supply Required | Yes |
| Standard Warranty | 1 Year |
| Maximum Operating Temperature (celsius) | 55 |
| Maximum Relative Humidity (%) | 95 |
| Minimum Operating Temperature | -20 |
| Ingress Protection Rating | IP54 |
| Surface Finish | Black, White, Grey |
| Fixation Type | In-wall mounting with flush boxes diameter 60 X 42 mm (DIN VDE 0606, DIN VDE 0471, DIN IEC 695) or alternatively with surface mounted frame or on wall mounting |
| Power Type | Wired |
| Current Consumption | max. 250 mA (uniquement pour le lecteur/unité de contrôle) |
| Power over Ethernet | PoE IEEE 802.3af, PoE IEEE 802.3at, PoE IEEE 802.3bt |
| Events Storage Capacity in the Device | 2000 |
| RFID Encryption | Additional AES -128 Bit over all, Mifare Desfire AES-128 Bit, Mifare Classic Crypto-1 |
| Data Encryption | XSALSA20-256 Bit, Curve 25519-256 Bit, Poly 1305-128 Bit |
| Operating Temperature (Celsius) | -20° to 55° |
| Voltage Range | 12-24V |
| Voltage Type | DC, PoE |
| Input Specification | For DIP-switches |
| Input Options | 2.0 |
| Output Specification | Floating change over contact: Electric strength 30V DC 125 V AC, Current load 1 A/DC 0,3 A/AC |
| Output Options | 1.0 |
| Assembly Information | On switch box diameter 60m x 42 mm (DIN VDE 0606, DIN VDE 0471, DIN IEC 695). Alternatively with DOM surface-mounted frame |
| Metallic objects in the immediate environment of the reader or other interfrences can reduce the range of the RFID and radio interface. Minimum distance between two AccessManager > 50 cm |
ENiQ Standard Tag

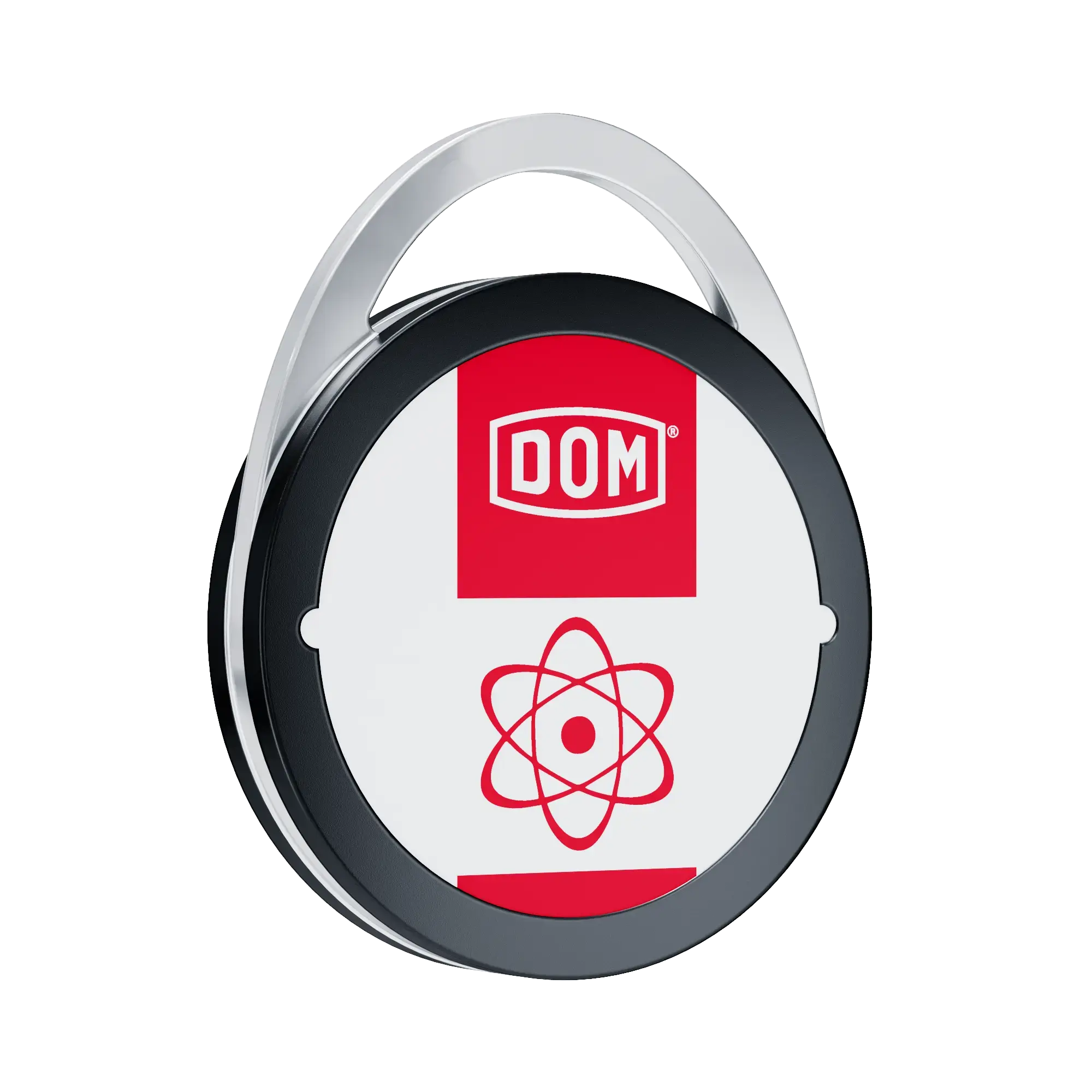

ENiQ Premium Plus Tag

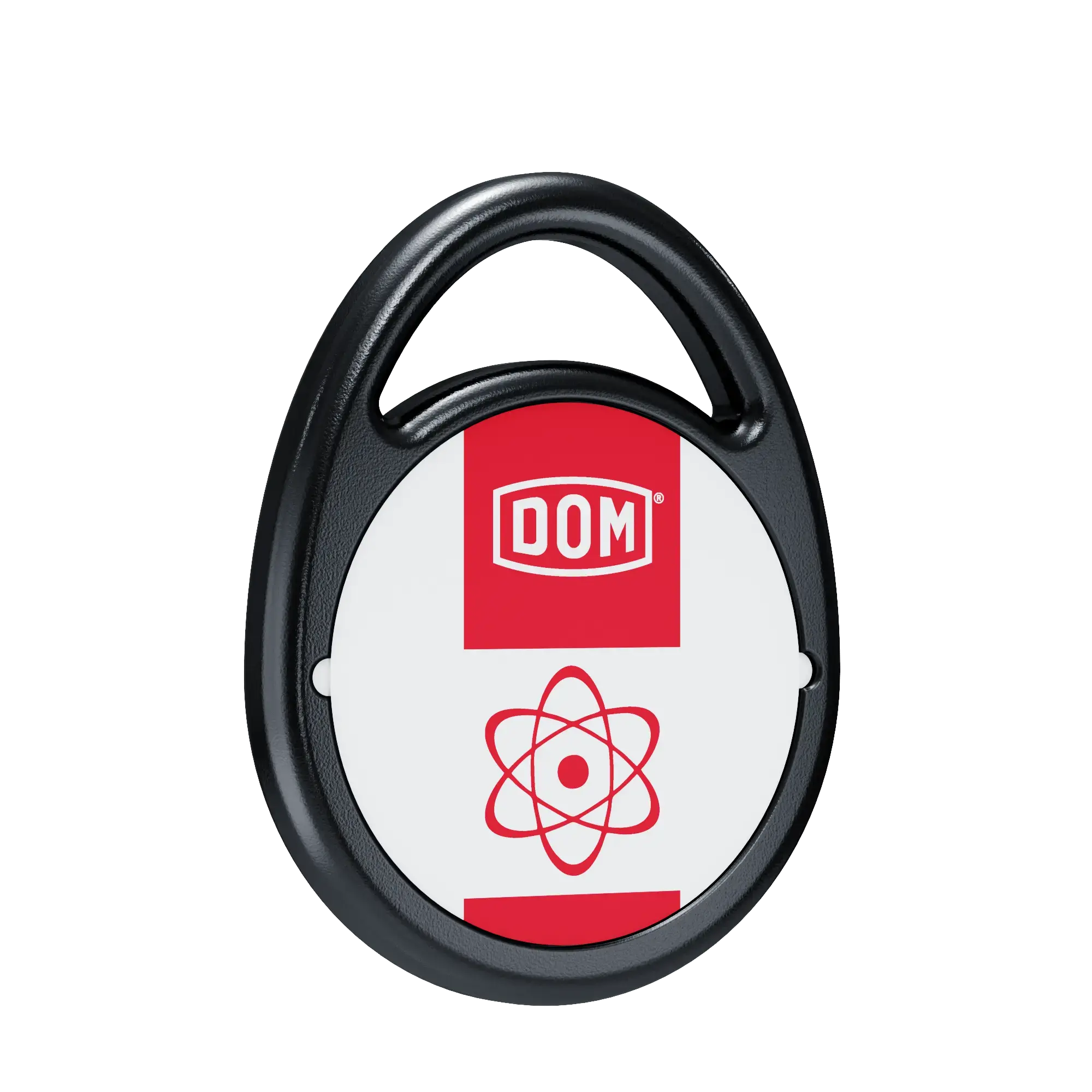

ENiQ Combined Transponder Standard Tag

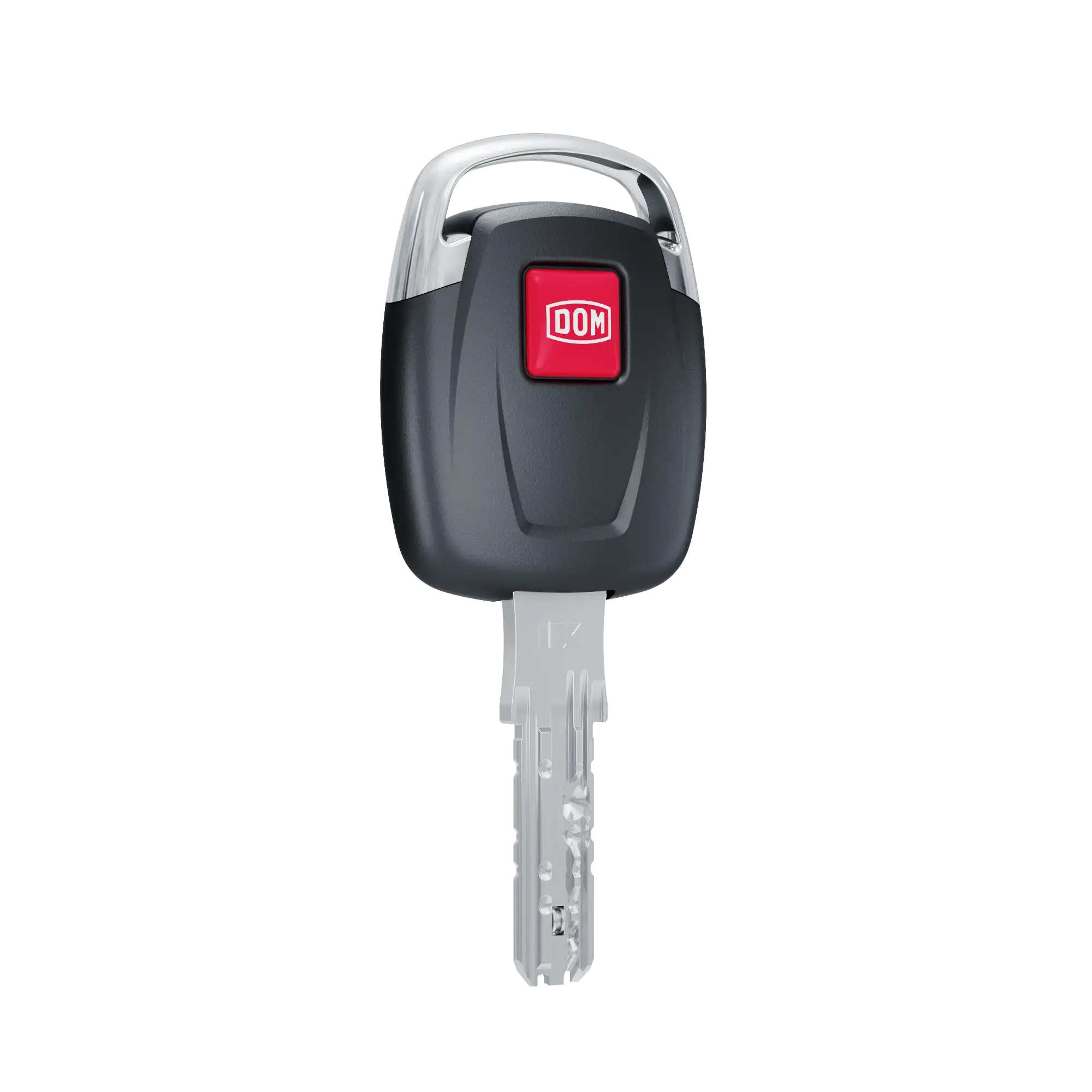

ENiQ Clip Tag V2
Clip Tag Dummy

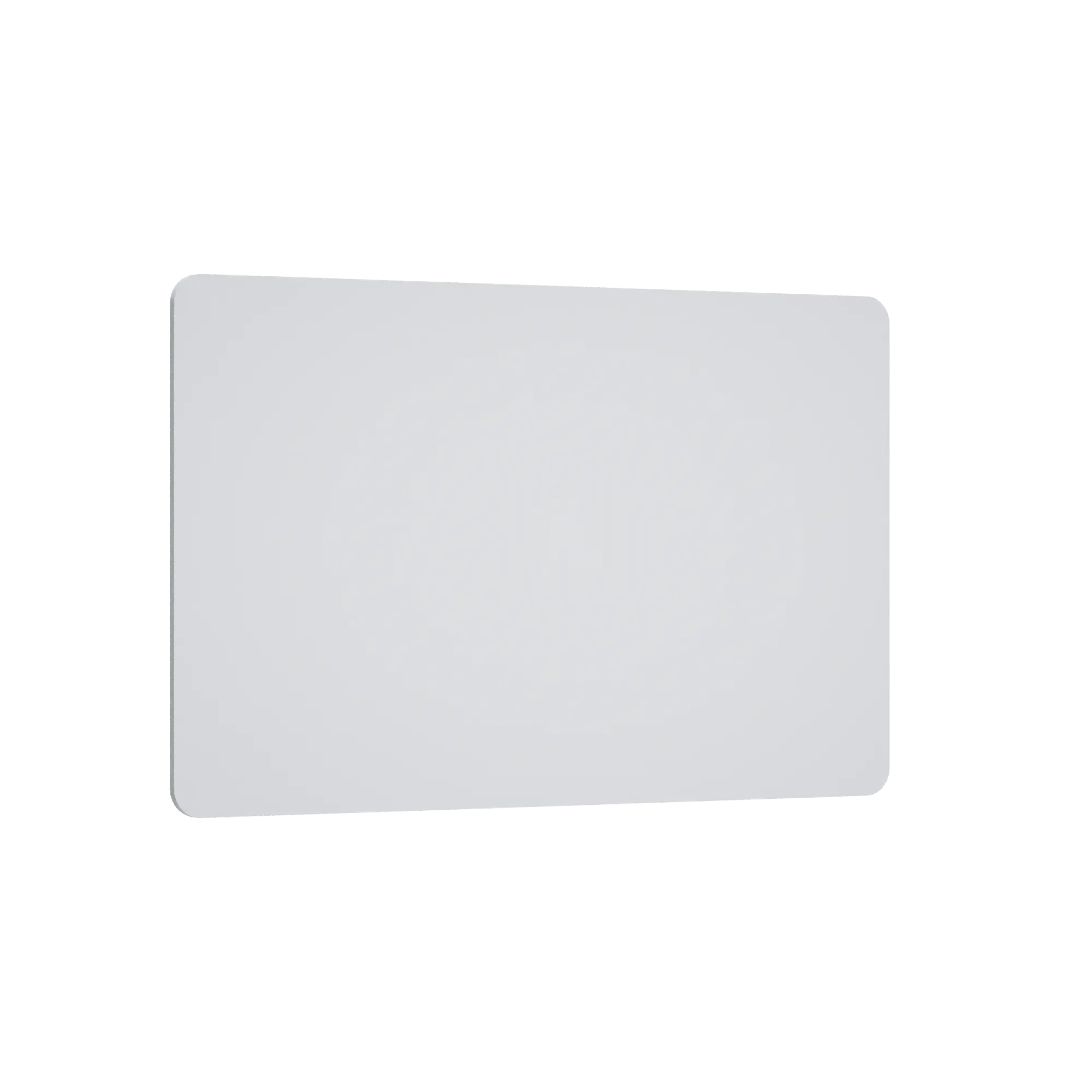

ENiQ ISO Cheque Card Transponder
ENiQ RF NetManager V2

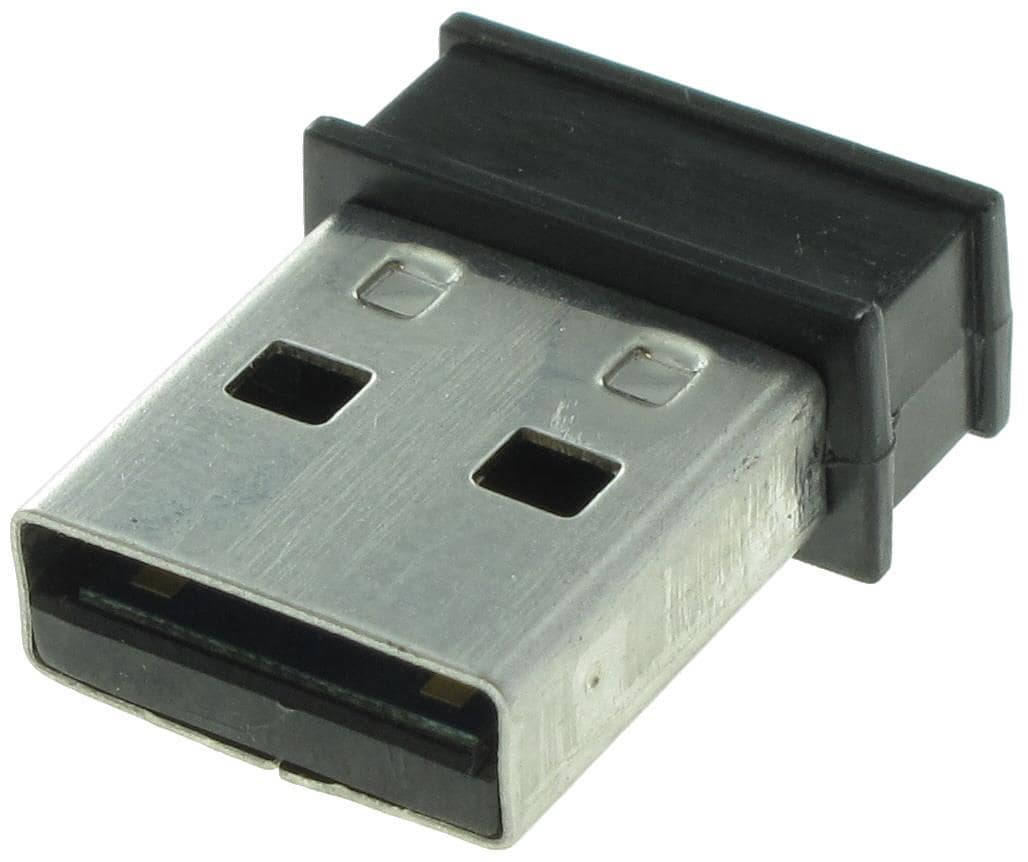

Silicon Labs BLED112 V1
Silicon Labs BLED112 V1 with Wake Up Card

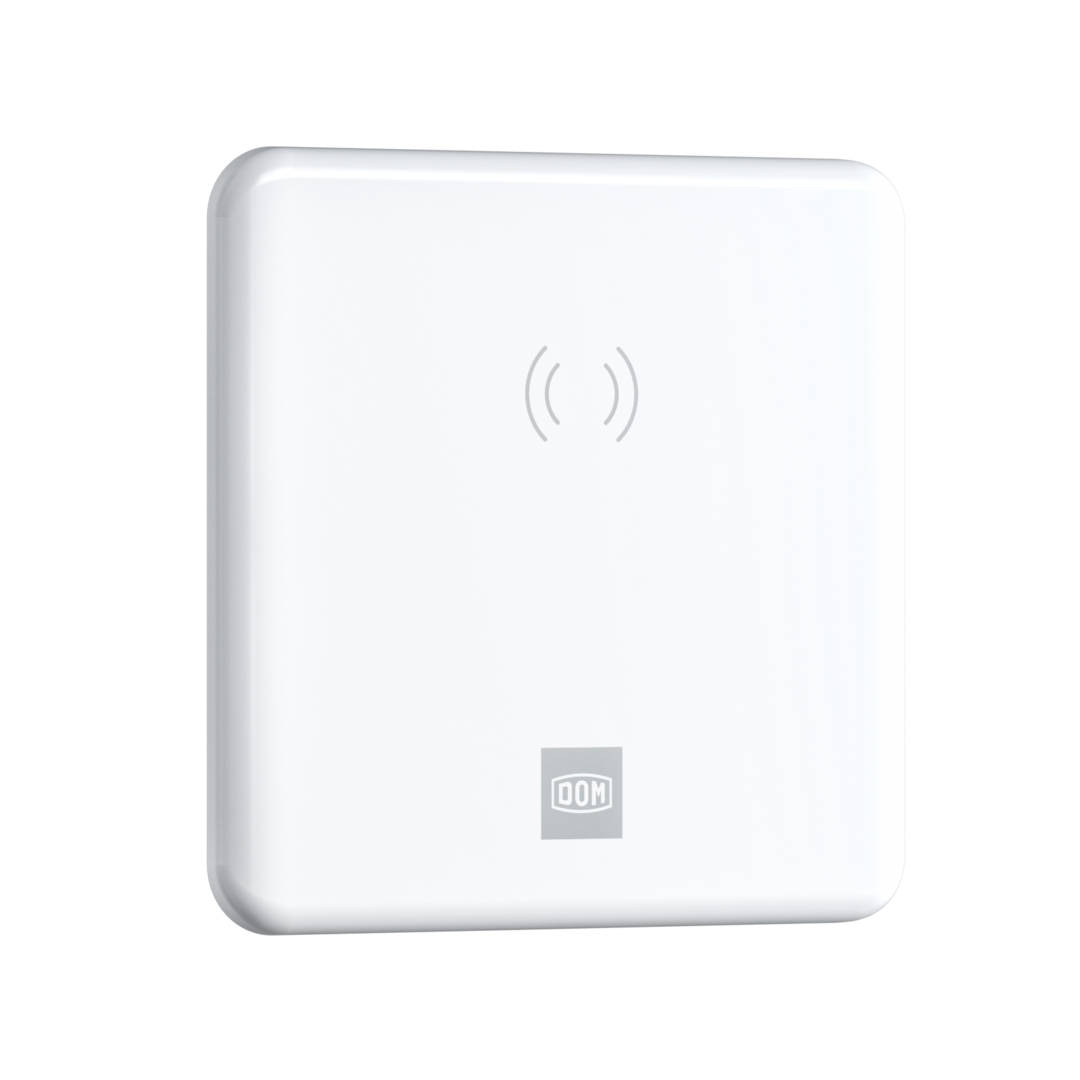

Cover white

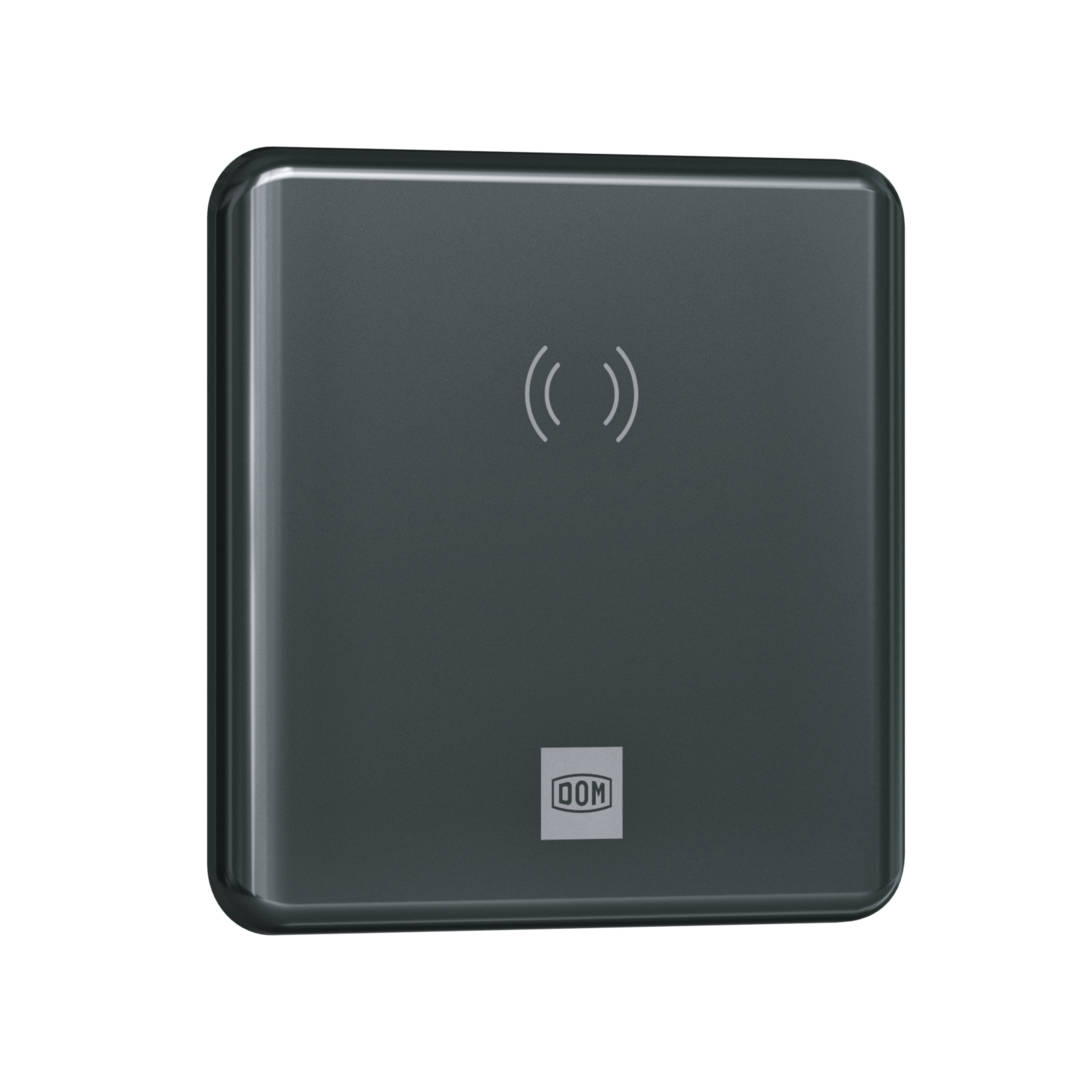

Cover black

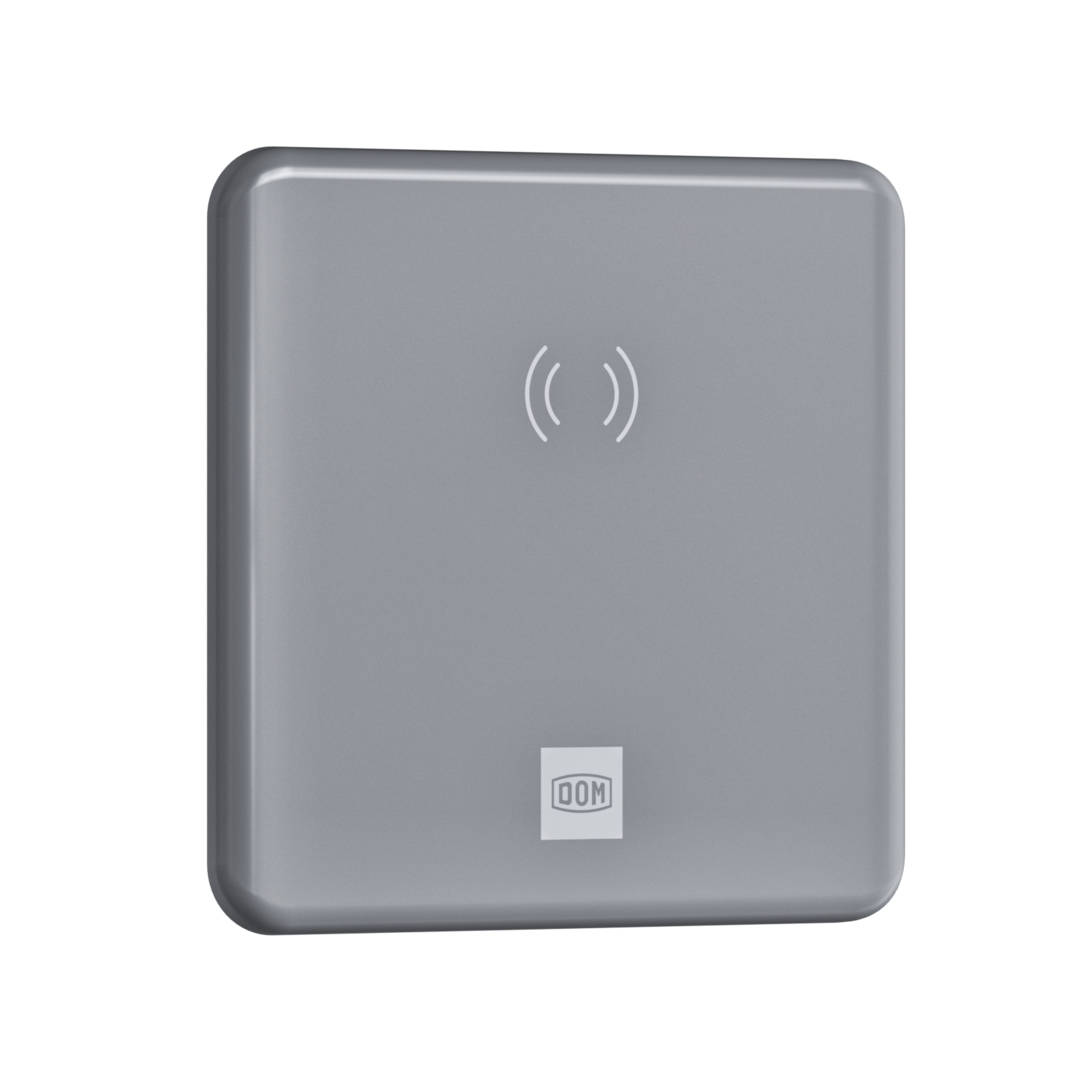

Cover grey

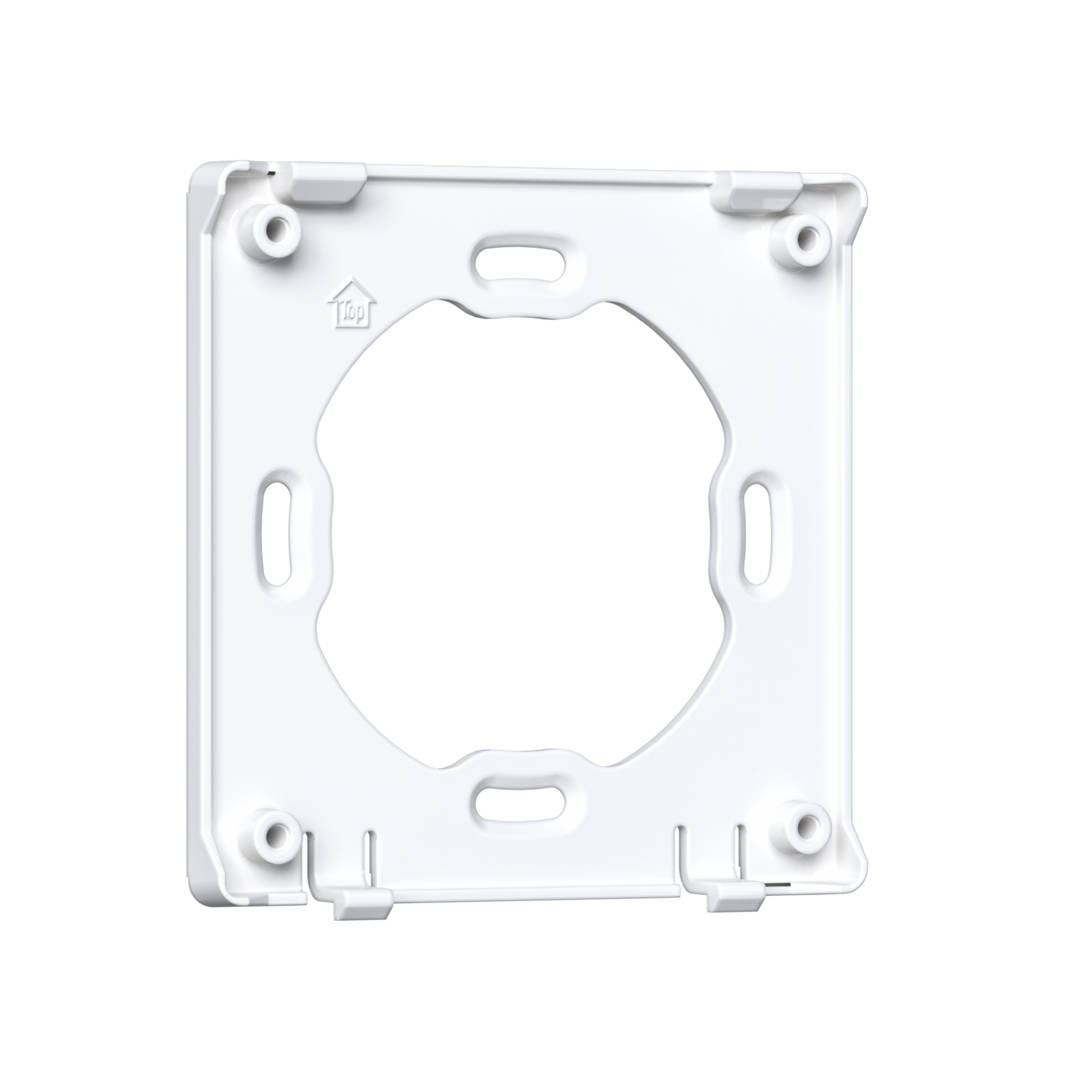

Installation frame
Screwset for surface-mounting frame
Surface-mounting frame unit
ENiQ V2 ELS V8 Ethernet Cable

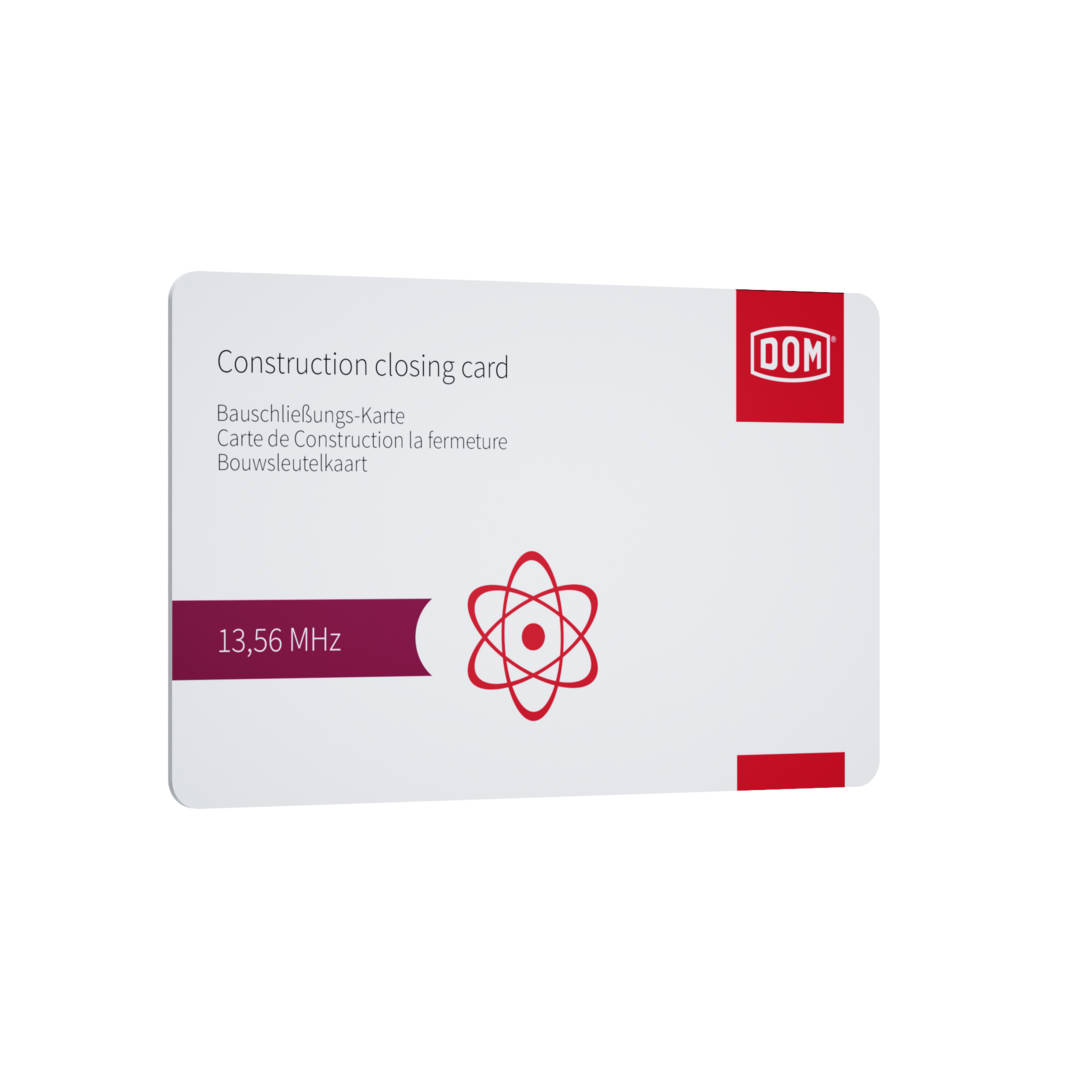

Building Locking Card
