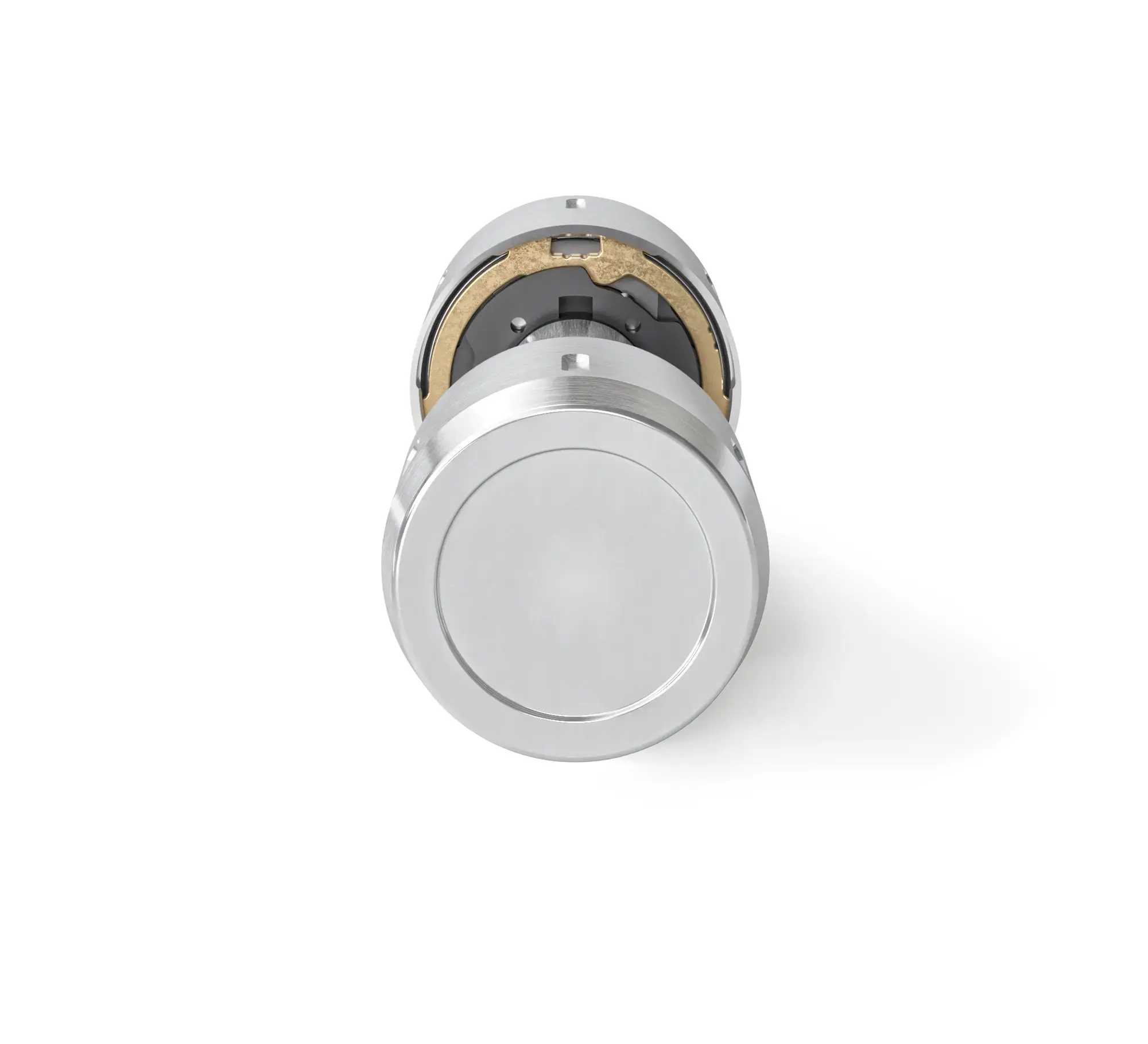

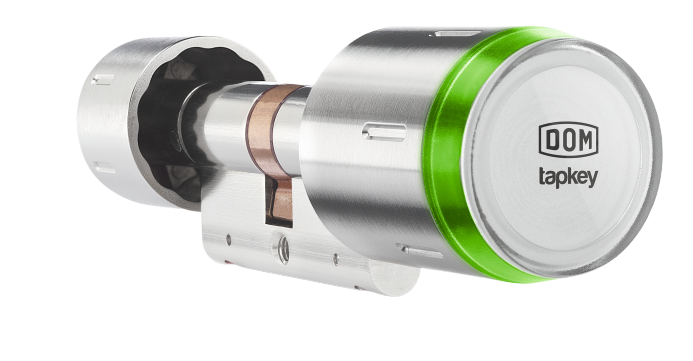

DOM Tapkey Pro The smartphone is the key

About

THE SMARTPHONE IS THE KEY

DOM and Tapkey offer you the best of both worlds. The wide range of DOM Tapkey digital locking devices enables you to deal with virtually every situation.
We offer a huge range of digital cylinders, digital handles, digital padlocks and digital wall readers to activate an alarm or open a garage door. We believe that everyone and everything of value should be kept secure without any compromise. That’s why all DOM products are highly secured by using strong encryptions. Additionally the strong, high-quality mechanical hardware combined with innovative electronic components is proof of reliability and long life.
Just like the digital devices, the Tapkey app is easy to use. It activates a DOM Tapkey device via the NFC (Near Field Communication) of a smartphone. The admin user can give authorisations to other users, safely and securely, via a highly protected Tapkey ID or Google ID.


THE TAPKEY APP PROVIDES EASY MOBILE ACCESS.

You can create your own digital locking system within minutes. There are three simple steps: download the Tapkey app via Google or the Apple store, activate your account, connect your locking device for your digital cylinder in the entrance door and garage (for example), and there you go! In just a few steps you can authorise users to open or close a door with a digital device or DOM Tapkey tag.

Download brochure

Benefits

  • The Tapkey app is easy to use. Through the app you can safely give authorizations to users via Tapkey ID or Google ID.
  • The DOM Tapkey is standardly applicable to burglar resistance (SKG3), fire resistance (T90) and external doors (IP65). The DOM Tapkey is besides your front door also applicable to your barn door, gate, garage door, padlock, etc.
  • Available in various variants, such as: half, whole, double sided, for escape doors (EN179) and glass doors.

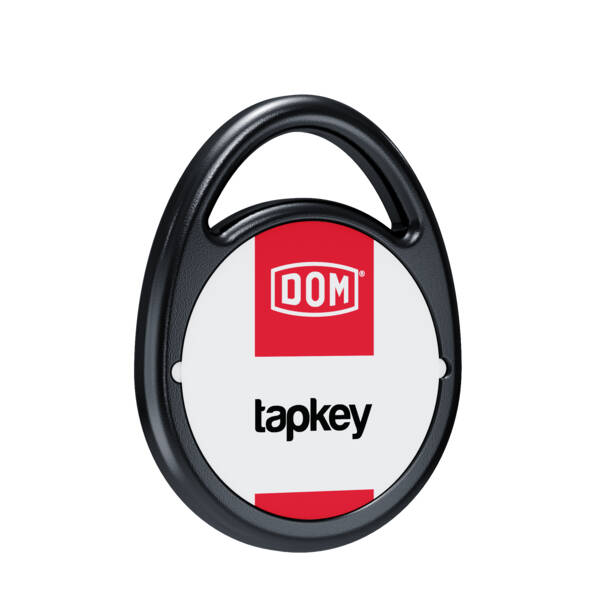

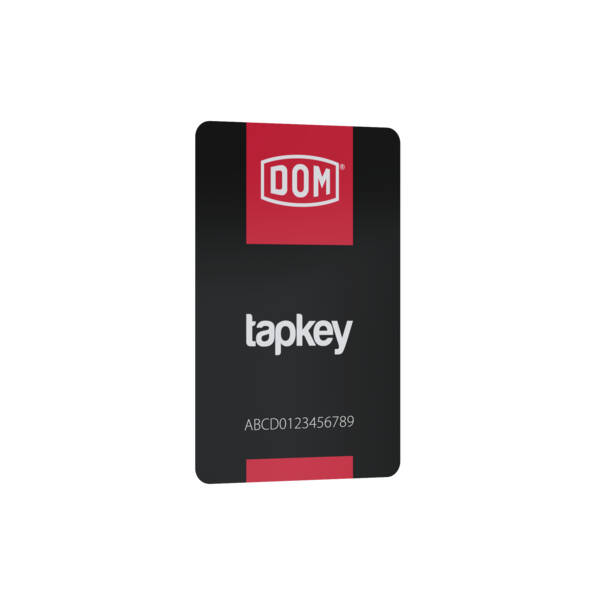

  • You can use a transponder (tag) to open your door. If you lose the tag, all you have to do is block the tag in the app. Then just create a new tag.
  • The battery has a long lifetime and is easy to replace from the outside. You can check the battery status in the Tapkey app.
  • Available in a variety of colours (stainless steel, black, white and polished brass) to match the latest trends and needs in modern architecture.
  • Remotely unlock your door with the Tapkey app for the parcel delivery service, family and friends or set a time lock for the cleaning lady.
  • When you choose to upgrade to online features, you don't need to replace cylinders.
Certification SKG 3 Star
IP65: dust tight and protected against low pressure water jets; limited water ingress permitted and shall have no harmful effect
Anti Drill Protection
Copy Protection

Suggested application of use

Airports, Education, Financial, Homes, Hospitals, Hotels, Industrial, Medium to Large Sized Businesses, Offices, Plants, Public Buildings, Small to Medium Sized Businesses

Download manual

Specifications

Technical features

Fire ResistantYes, 90 Minutes
Water ResistantYes
Patent ProtectionYes
Anti Corrosion ProtectionYes
Anti Drill ProtectionYes
Standard Warranty1 Year
Communication TechnologyNFC, BLE
Standalone FunctionalityYes
Data On CardYes
Battery Lifetime CyclesUp to 25,000 cycles
User Identification TechnologyNFC, Mifare RFID 13.56 MHz, BLE 4.2
Acoustic SignallingNo
Optical SignallingYes
Supported Locking MediaMifare DESFire, ISO 14443 A
Programming MethodsSmartphone
Battery TypeCR2
Number of Batteries2
Battery Lifetime YearsUp to 3 Years
Battery Warning AlarmVisual

SKG Star Rating3 *
Patent ProtectionYes
Ingress Protection RatingIP65

Surface FinishMatt Nickel
Outer Knob FinishStainless Steel
Inner Knob FinishMatt Nickel
Power TypeBattery
Events Storage Capacity2000
RFID EncryptionAES-128 Bit
Data EncryptionISO/IEC 18092, AES-128 Bit
Operating Temperature-25° to 65° Celsius

Optional Accessories

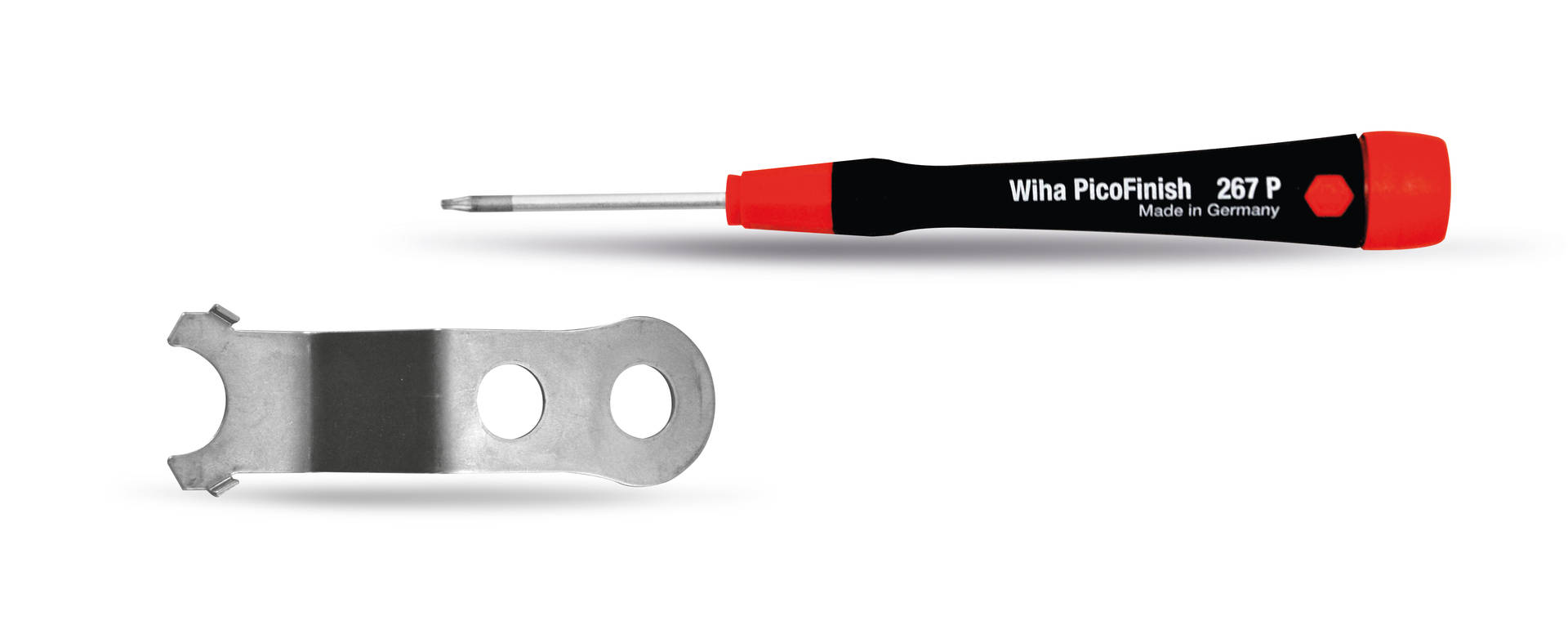

Installation tool set

Installation tool set

516574
Consisting of Torx screwdriver TX6, knob tool, fixing bracket
Knob tool

Knob tool

515820
Is required for mounting and dismounting the external knob sleeve

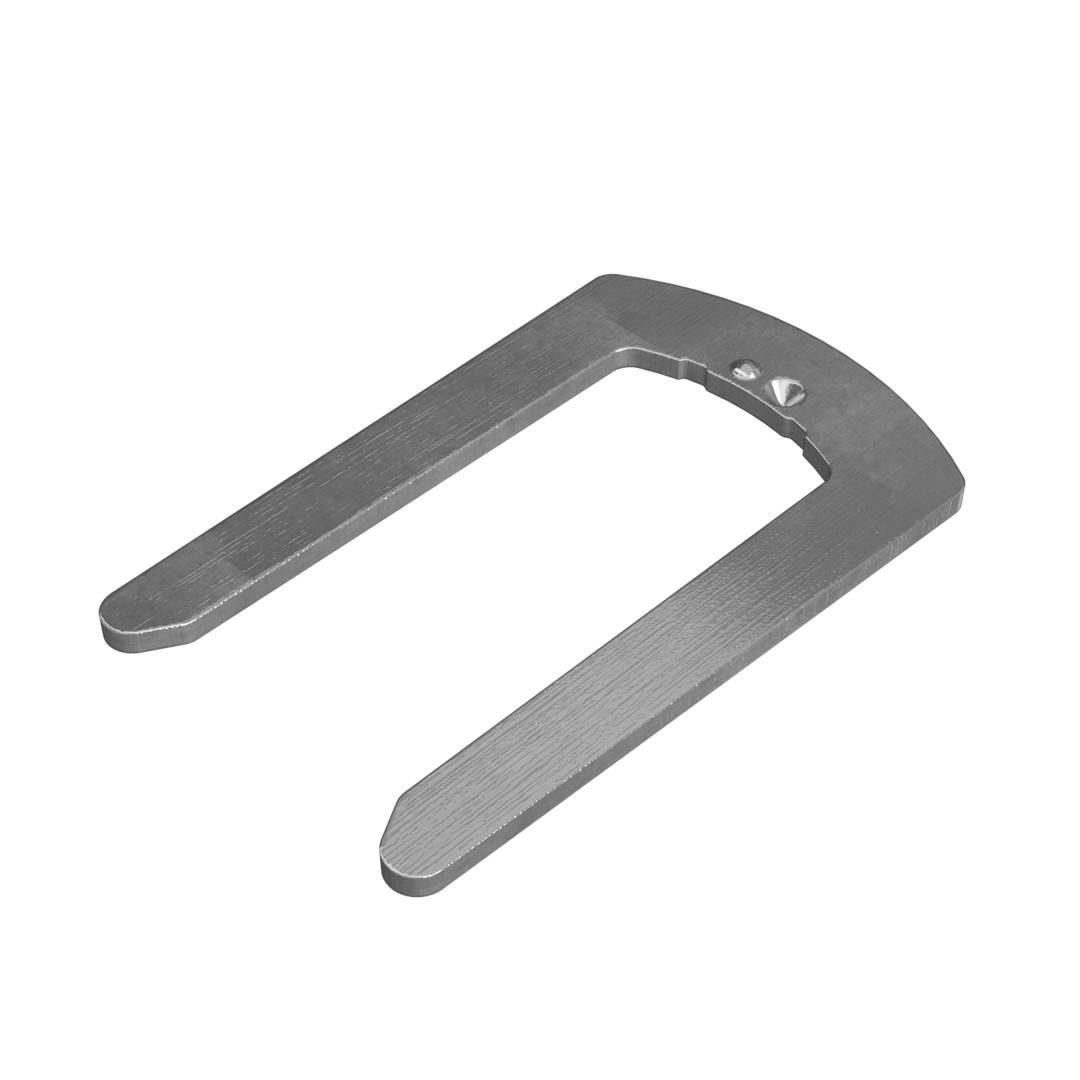

Fixing bracket

Fixing bracket

517707
Is required for mounting and dismounting the knob electronics on the cylinder body

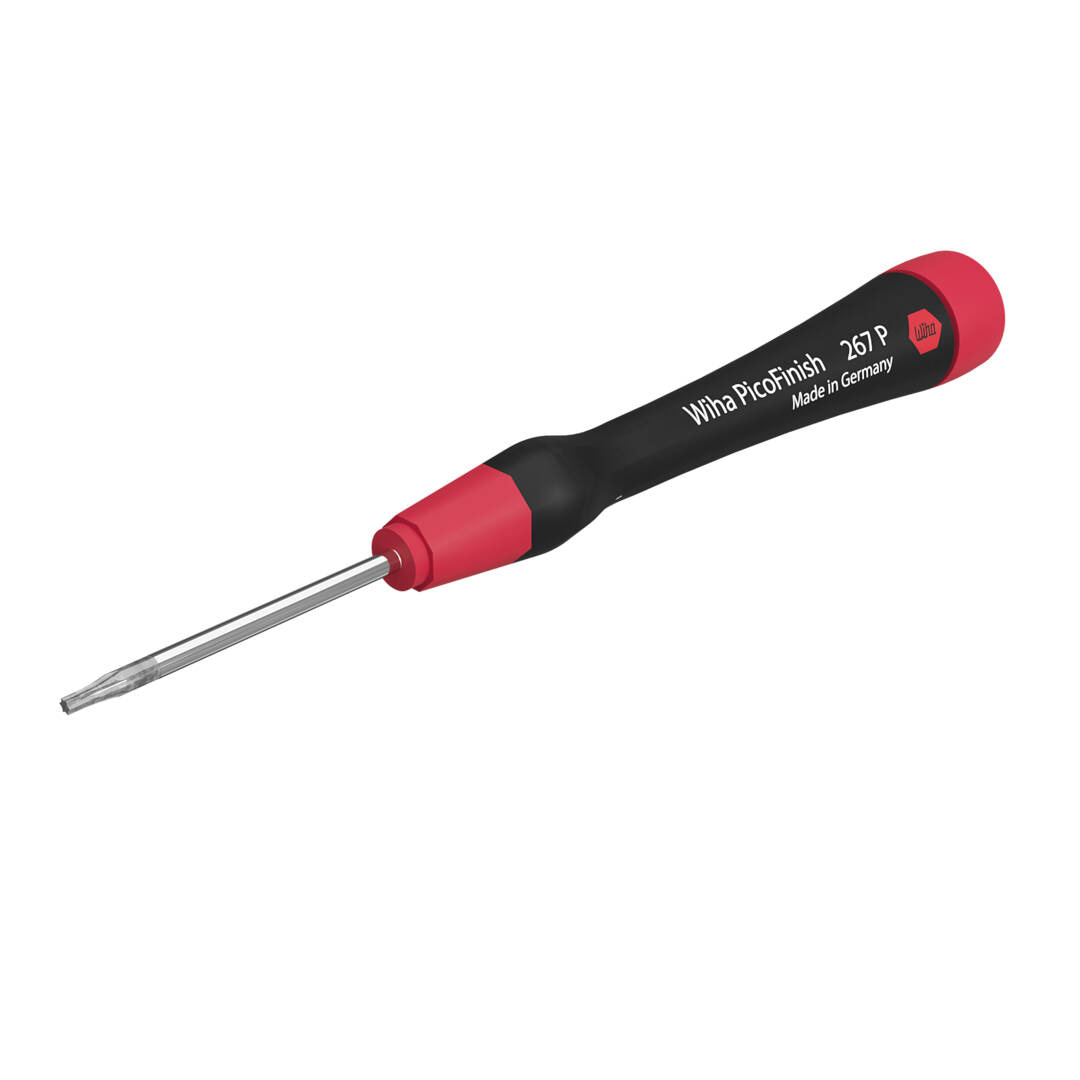

Torx Srewdriver TX 6

Torx Srewdriver TX 6

513828
Required for mounting the mechanical inner knob

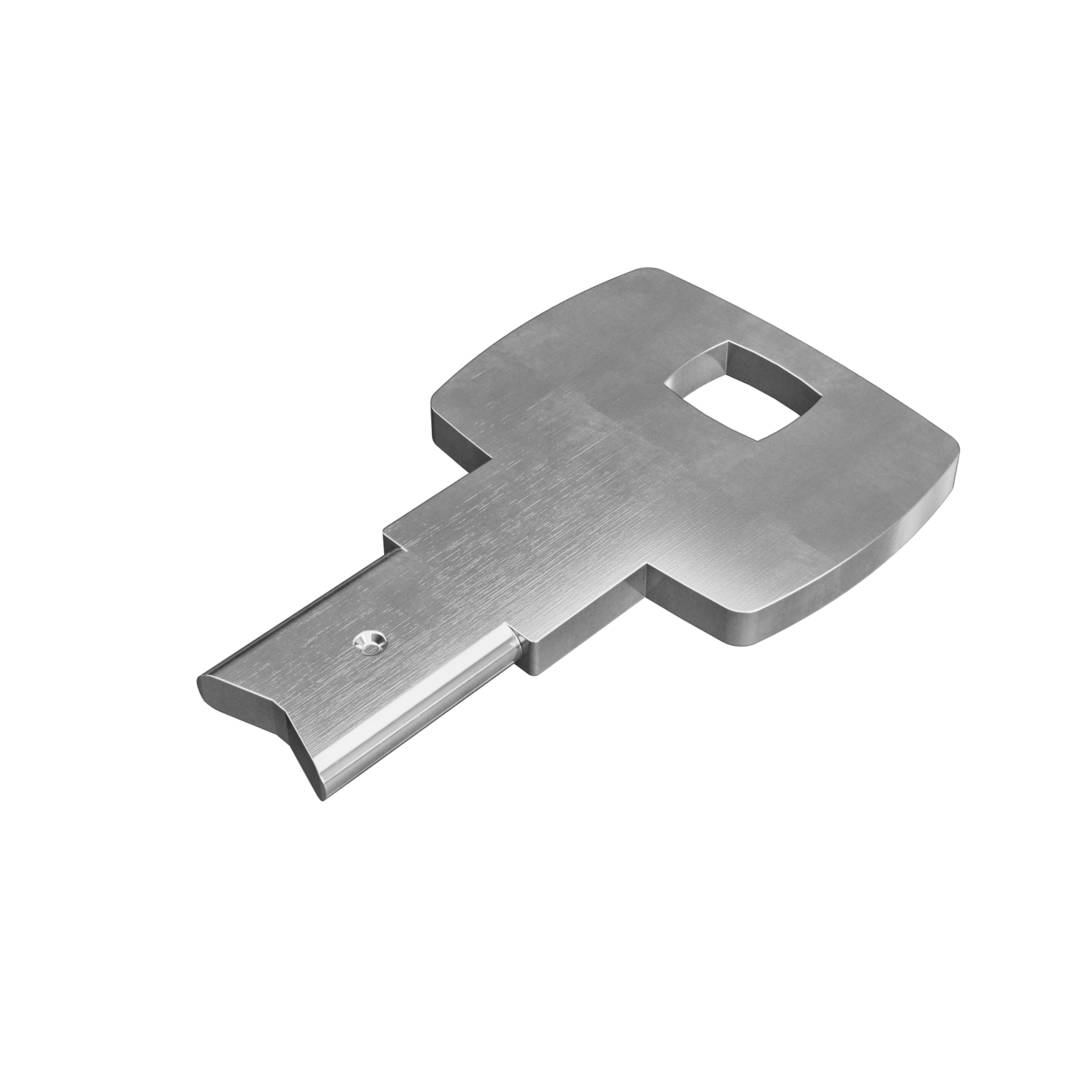

Special key for mechanical inner locking of EE IM

Special key for mechanical inner locking of EE IM

254491
Key for Emergency Exit cylinders with locking on the inside

Related Software

Included Accessories

Installation tool set

Installation tool set

516574

Tapkey App Pricing

All subscriptions include the full range of features (see below). All you have to do is decide how many smartphone users you want to give access to at the same time. You can also add or upgrade NFC Transponders to more users at any time.

5 Smarthphone users free (0.00 €*)
25 Smartphone users for 49,00 €*
100 Smartphone users for 149,00 €*
250 Smartphone users for 299,00 €*
> 250 Smartphone users on request**

* Including VAT
** Request only directly from Tapkey GmbH, Brucknerstraße 2/6, 1040 Wenen, Oostenrijk.'
