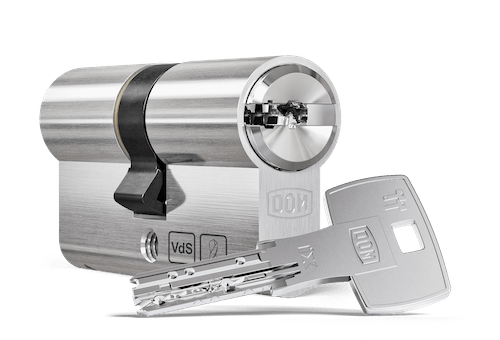

DOM ix Teco Security can cost so little

About

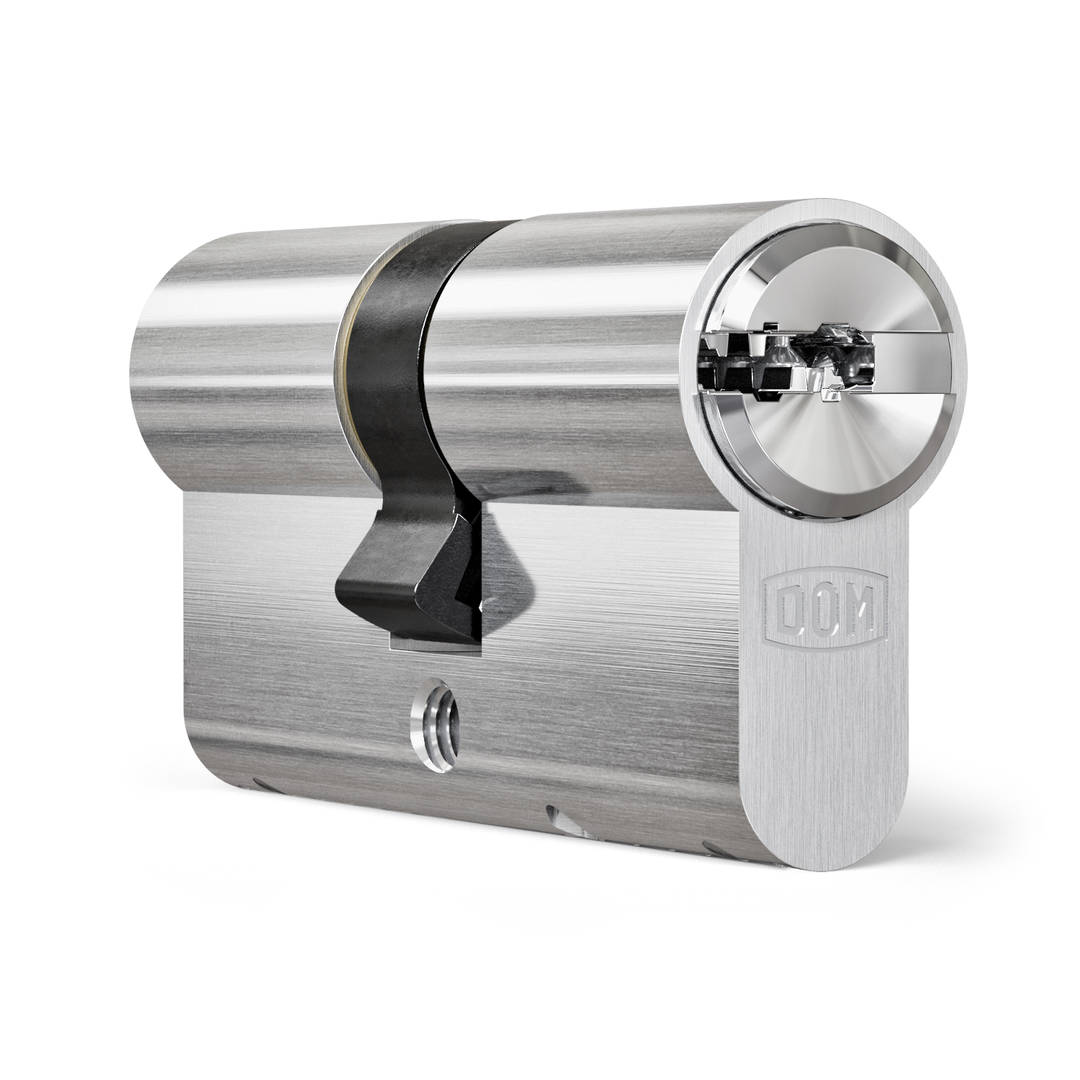

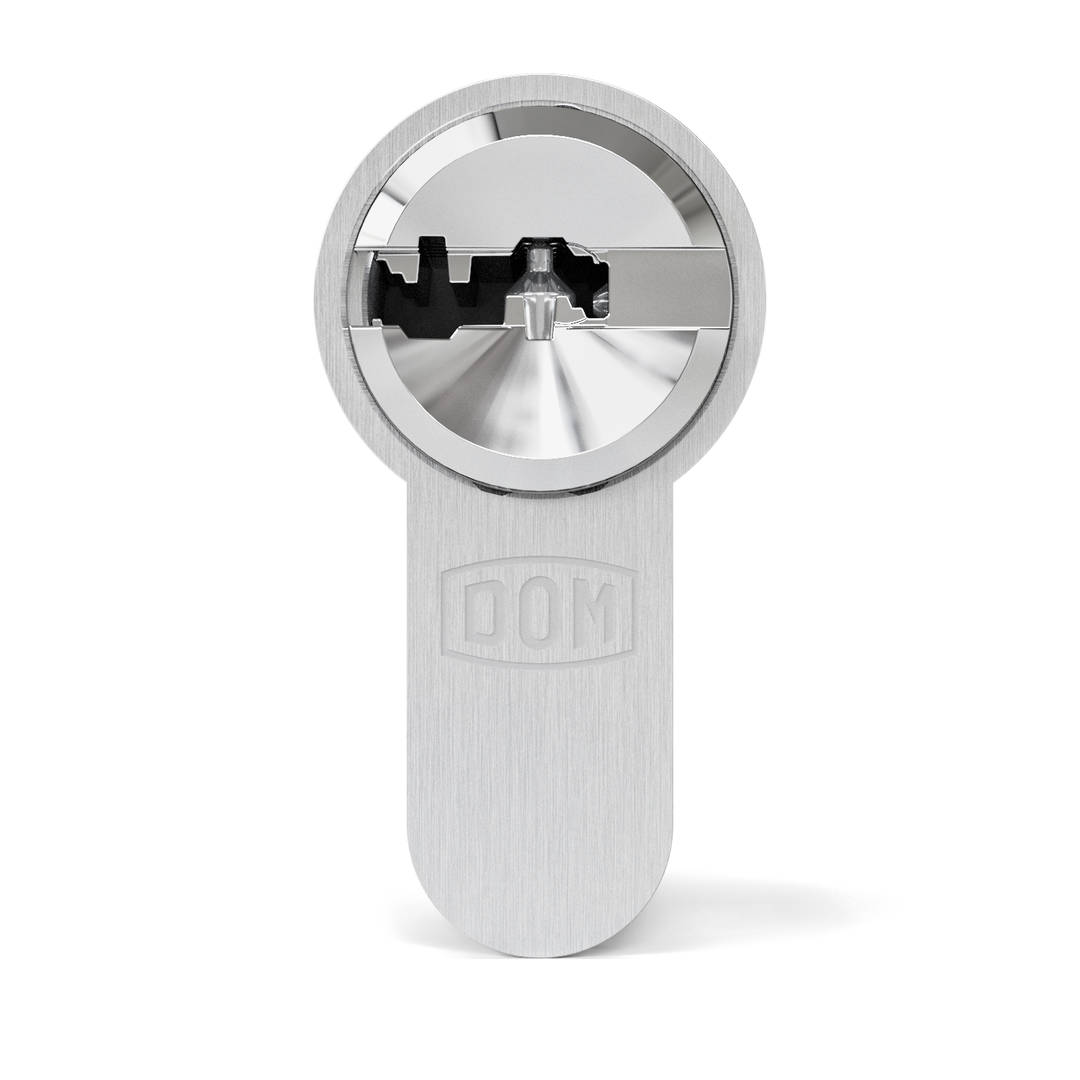

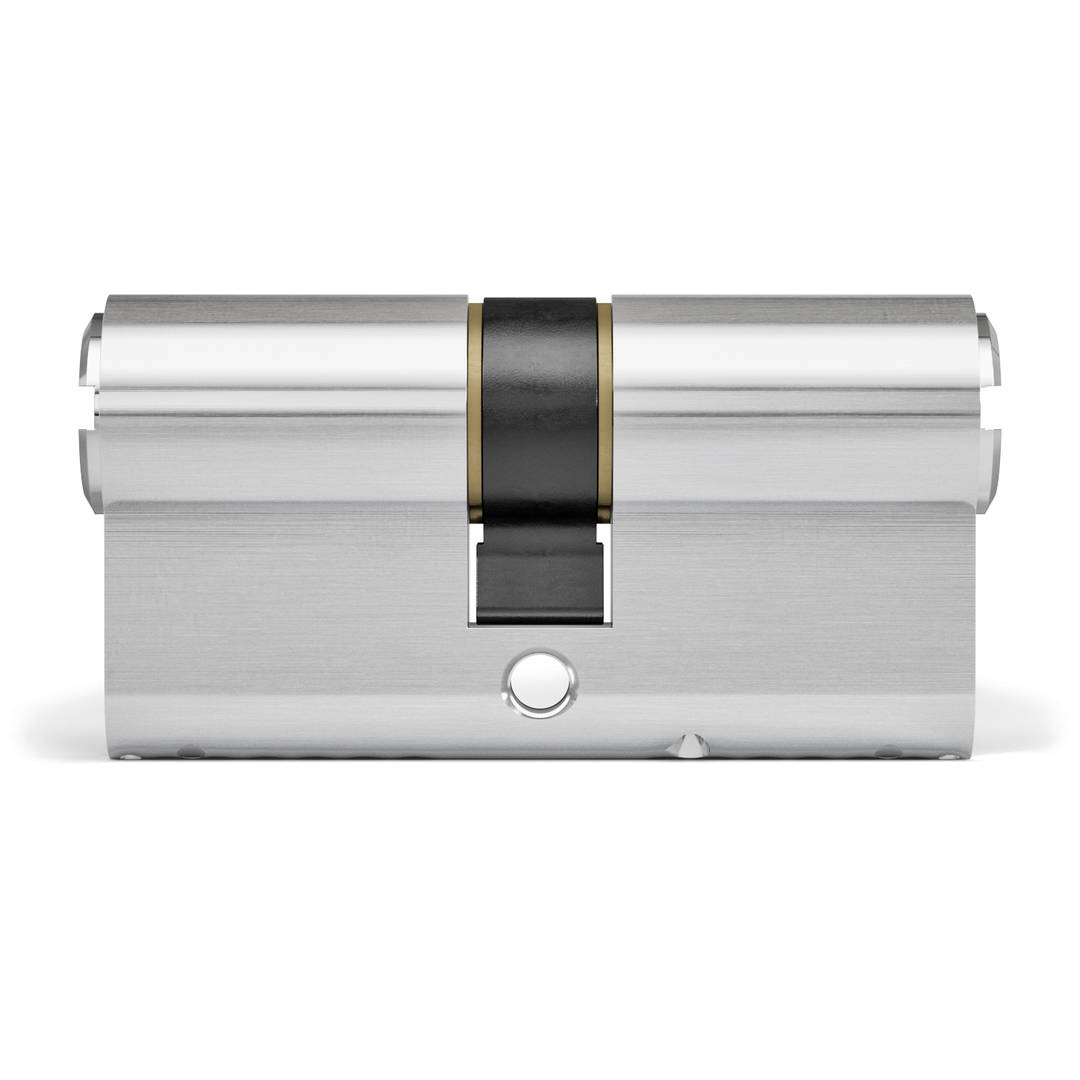

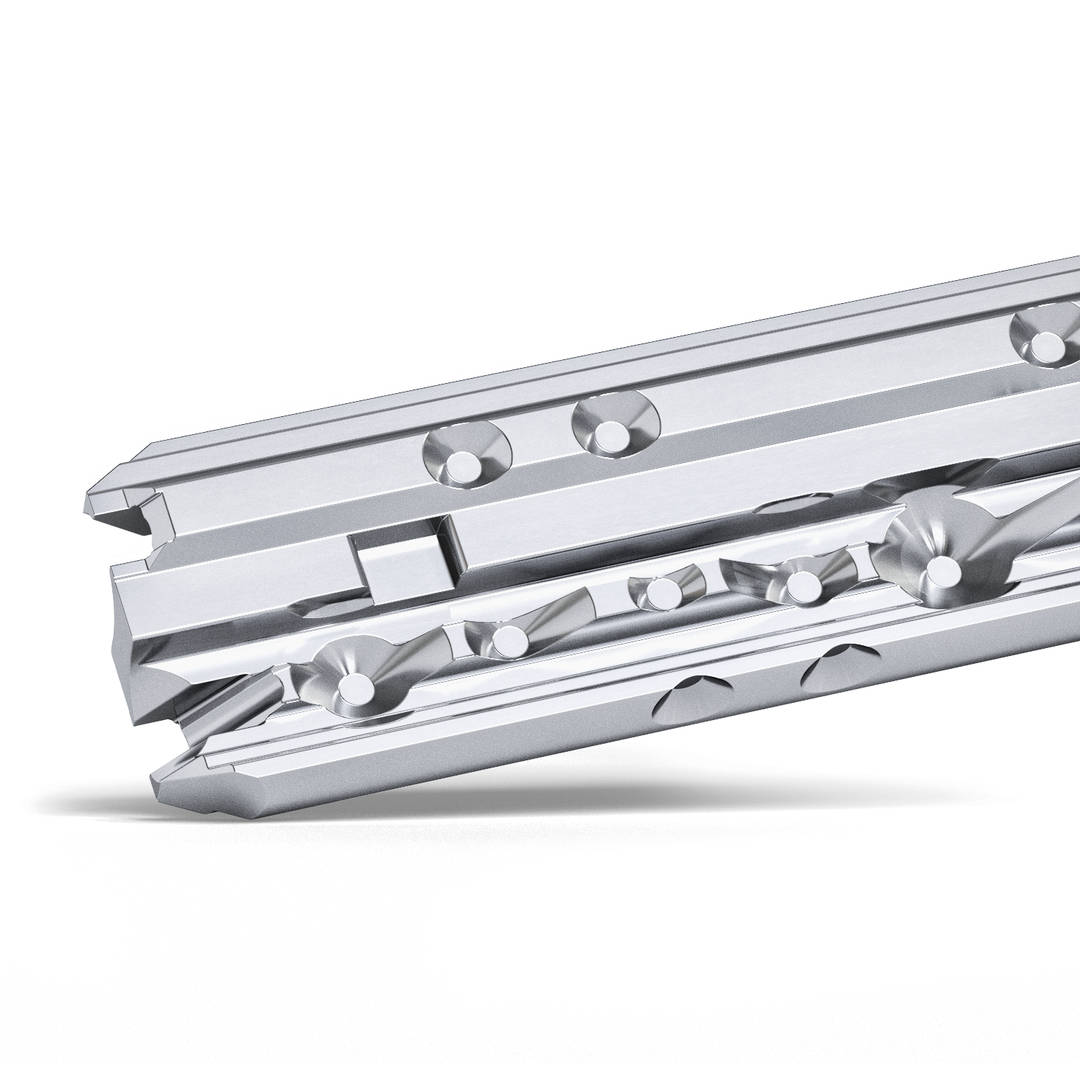

The key of the ix Teco® reversible key system is particularly secured against copying. This is first and foremost due to a patented surface rib in the key profile. In addition, the special cut-out in this rib provides extra security during profile checking and also makes the key stronger. The mechanical cylinders can be used, for example, on your front door, cellar door, garage door or garden door and are available in various versions, such as a euro profile cylinder. Master key systems are also possible.

Download flyer

Benefits

  • Resistant to the most common burglary methods, such as knocking and other manipulation techniques
  • Very comfortable key entry. Thanks to the reversible key. it makes no difference how the key is inserted into the profile cylinder.
  • Widely applicable. Suitable for your front door, basement door, mailbox, garden gate or garage door, operated with the same key. Or as complex masterkey system for large buildings.
  • The optional modular technology with hardened steel bridge provides better protection against violent "breaking" and "core pulling" of the cylinder.
  • The extended key is matched to all common security fittings with anti-core pulling function
  • The complex coding guarantees your own registered key
  • Made of nickel silver, the key is durable and wear-resistant.
Reversible Key System
Master Key System
Grand Master Key System
Certification EN 1303
Certification SKG 2 Star
Anti Bump Protection
Anti Pick Protection
Anti Pull Protection
Dealer Profile
Registration Card

Suggested application of use

Airports, Education, Financial, Homes, Hospitals, Industrial, Medium to Large Sized Businesses, Offices, Plants, Public Buildings, Small to Medium Sized Businesses, Hotels

Specifications

Technical features

Key TypeReversible Key System
Registration CardYes
Total Number of Locking Elements19
MKS PossibilitiesSingle Coded, Grand Master Keyed, Master Key, Central Locking
Anti Drill Protection HousingYes
ModularOptional
Standard Warranty2 Years
Maximum Number of Lateral Elements12
Maximum Number of Upper Elements6
Number of Active Locking Elements7
Number of Ant Bumping Elements2
Number of Anti Picking Elements2
Number of Moveable Elements0
Number of Passive Elements12

EN 1303:2015160B0C6B
SKG Star Rating2 *
Key Patent ProtectionYes
Key Patent Until (year)2038
System Patent ProtectionYes
System Patented Until (year)2038

Standard FinishMatt Nickel
Optional FinishesBright Brass, Bright Chrome, Bright Nickel, Matt Chrome, Matt Brass, , Dark Bronze
Standard Housing MaterialBrass
Number of Keys3
Key MaterialNew Silver
Standard CamDIN
Optional CamsCam 90°, Cam Biffar, Swiss Cam, Cam Corbin, Spanish Cam, 10 Teeth Gear Cams, 14 Teeth Gear Cams

Knob variations

DOM K1 Knob

K1

DOM K2 Knob

K2

DOM K3 Knob

K3

DOM K4 Knob

K4

DOM K6 Knob

K6

Available colors cylinders

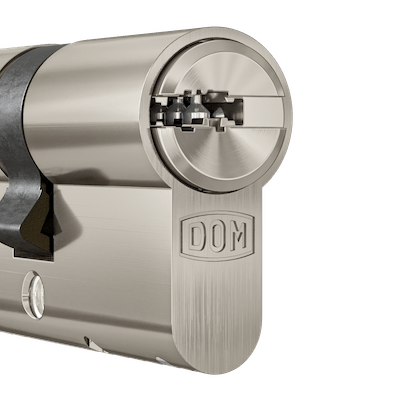

DOM Cilinder Dull Nickel

01 Dull Nickel

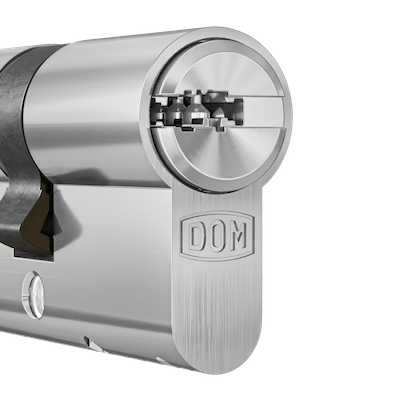

DOM Cilinder Matt Chrome

03 Matt Chrome

DOM Cilinder Bright Chrome

04 Bright Chrome

DOM Cilinder Satin Brass

05 Satin Brass

DOM Cilinder Polished Brass

06 Polished Brass

DOM Cilinder Light Oxidized Bronze

07 Light Oxidised Bronze

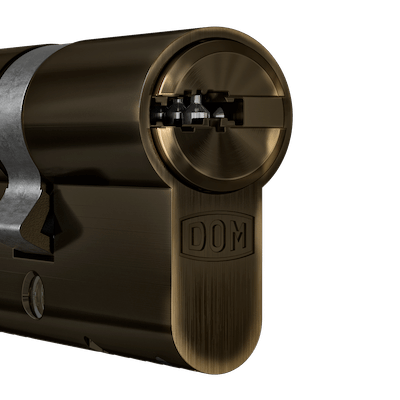

DOM Cilinder dark oxidized antique

09 Dark Oxidised Antique

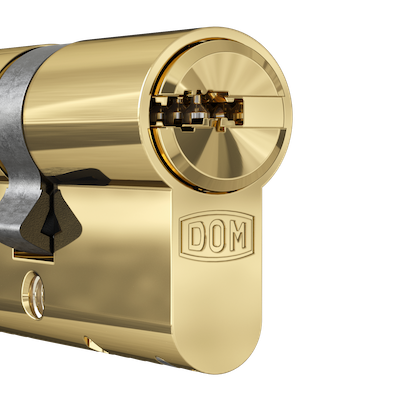

DOM Cilinder Gold Plate

25 Gold Plate
