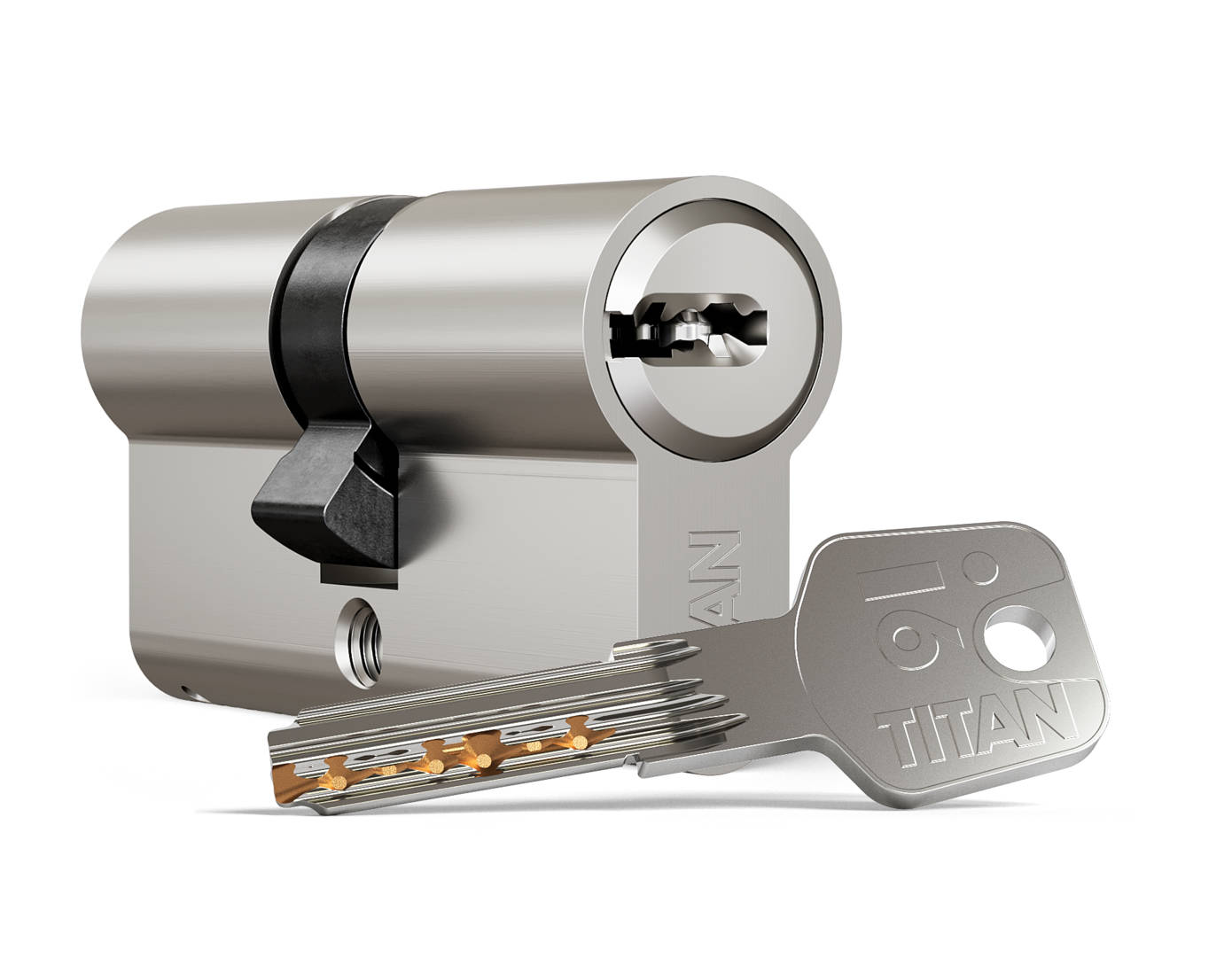

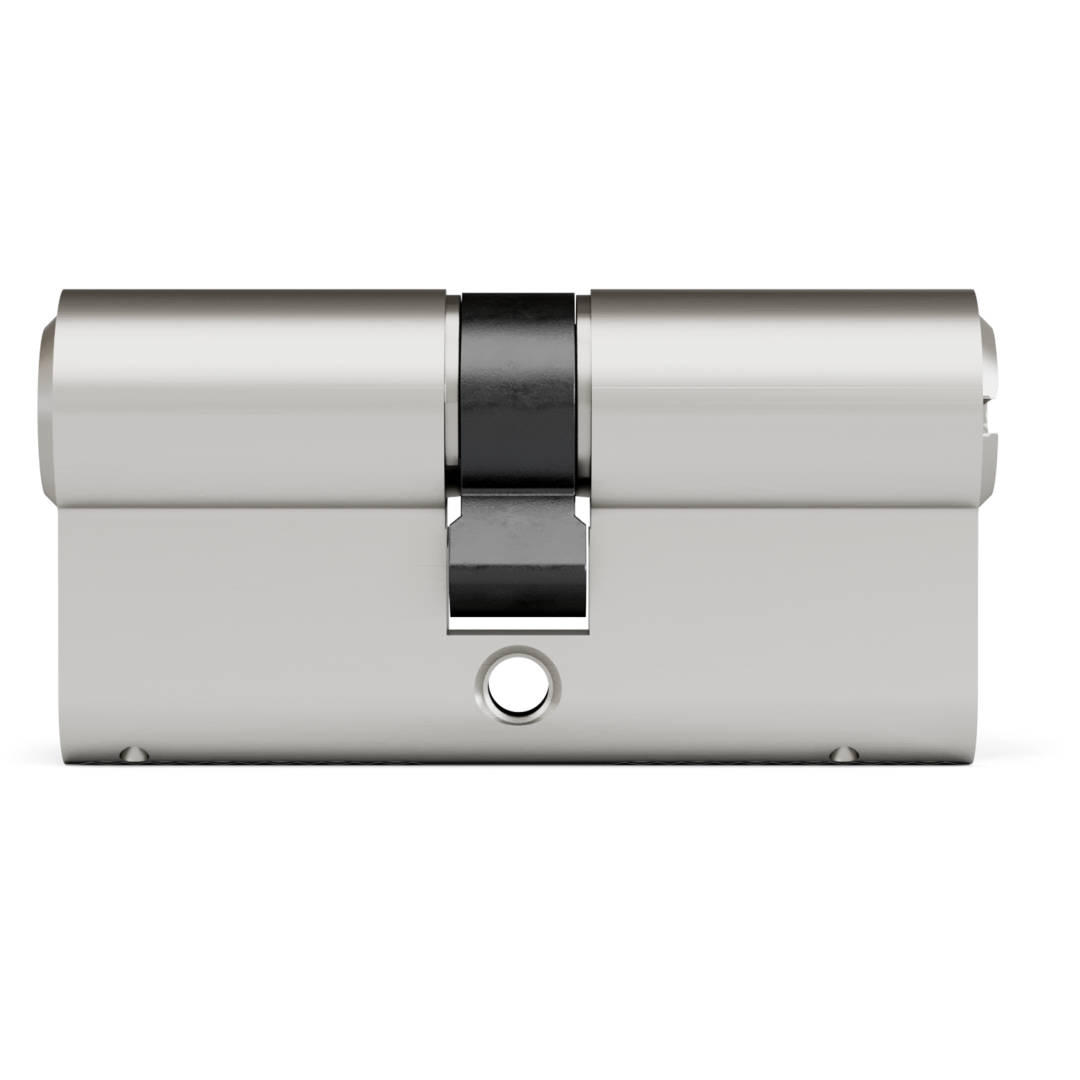

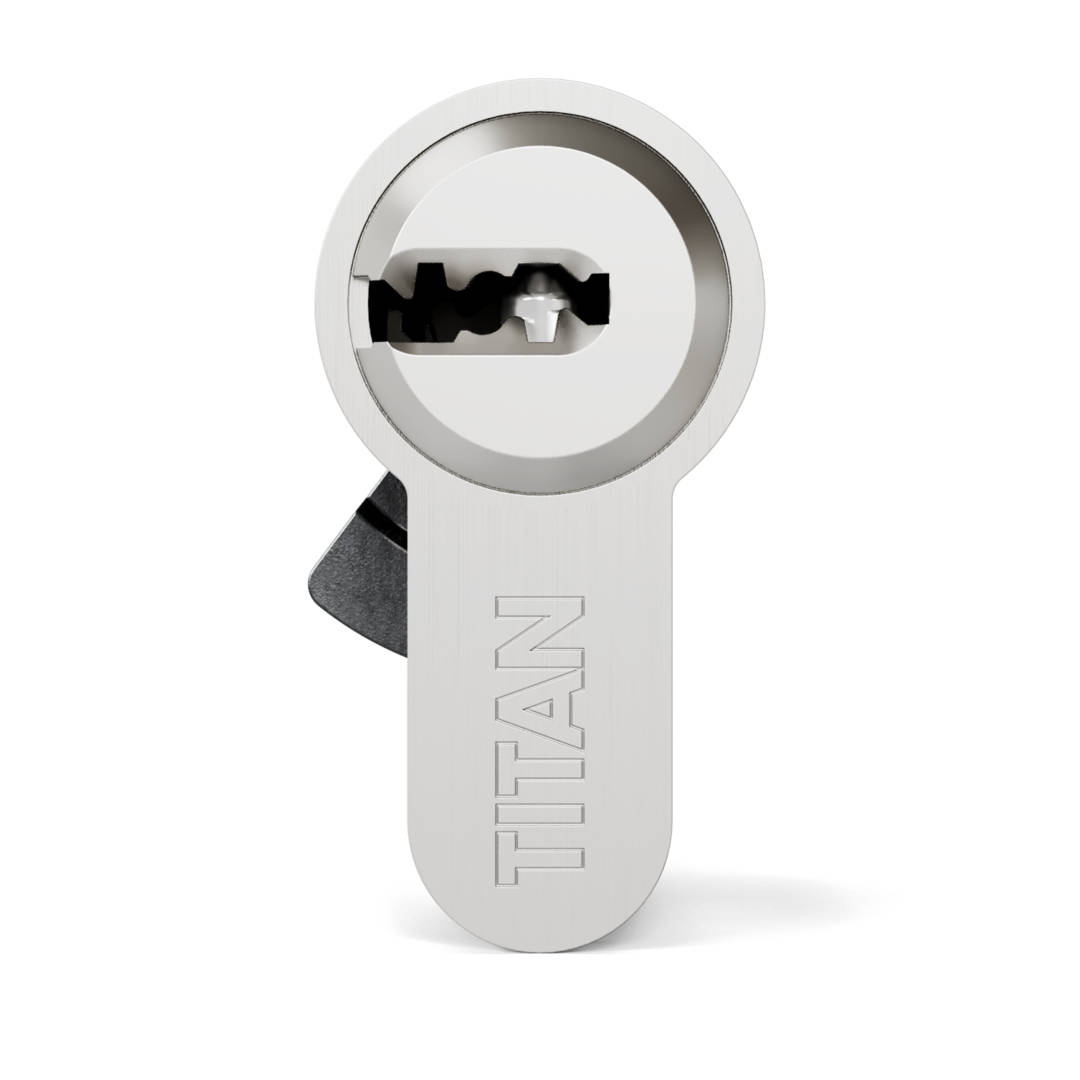

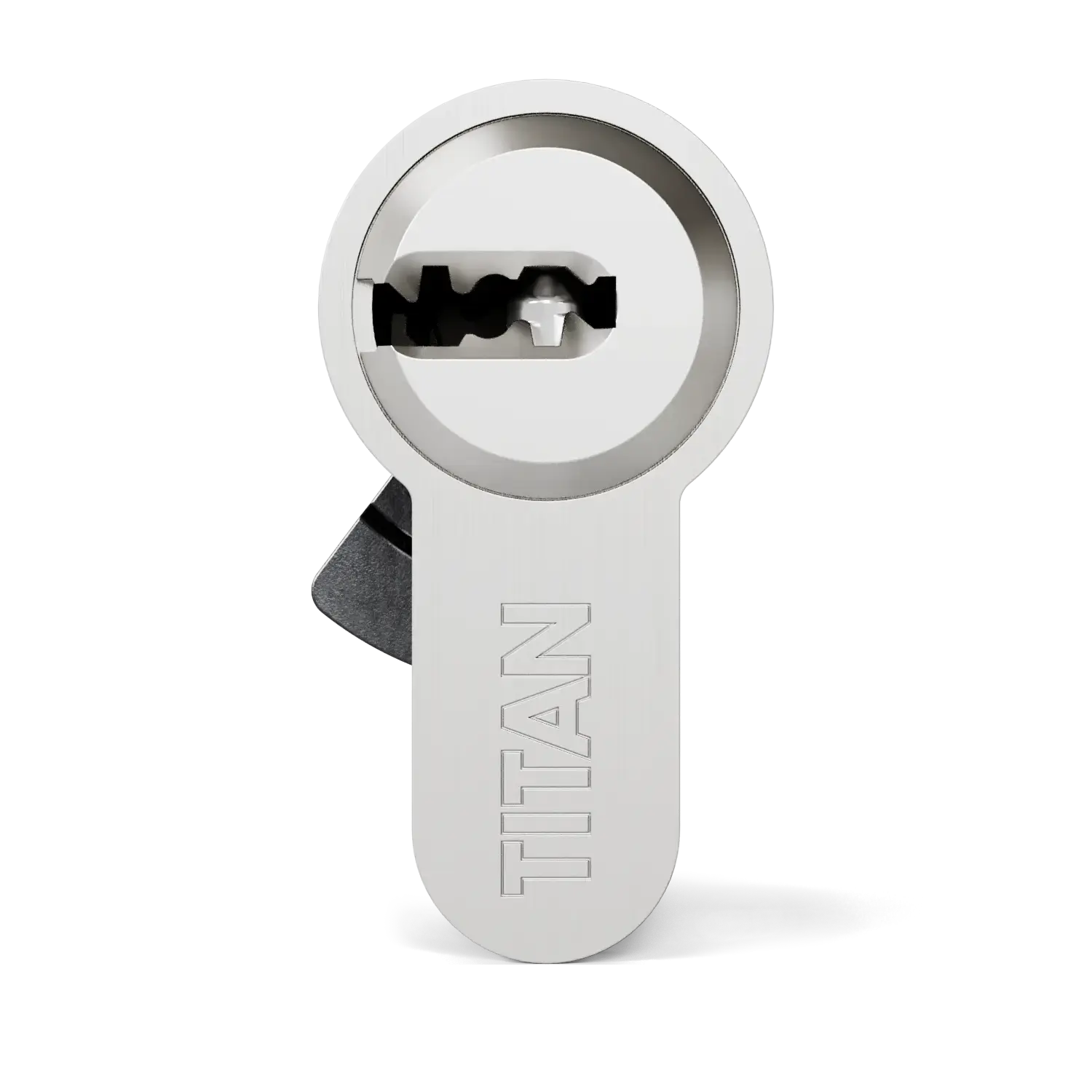

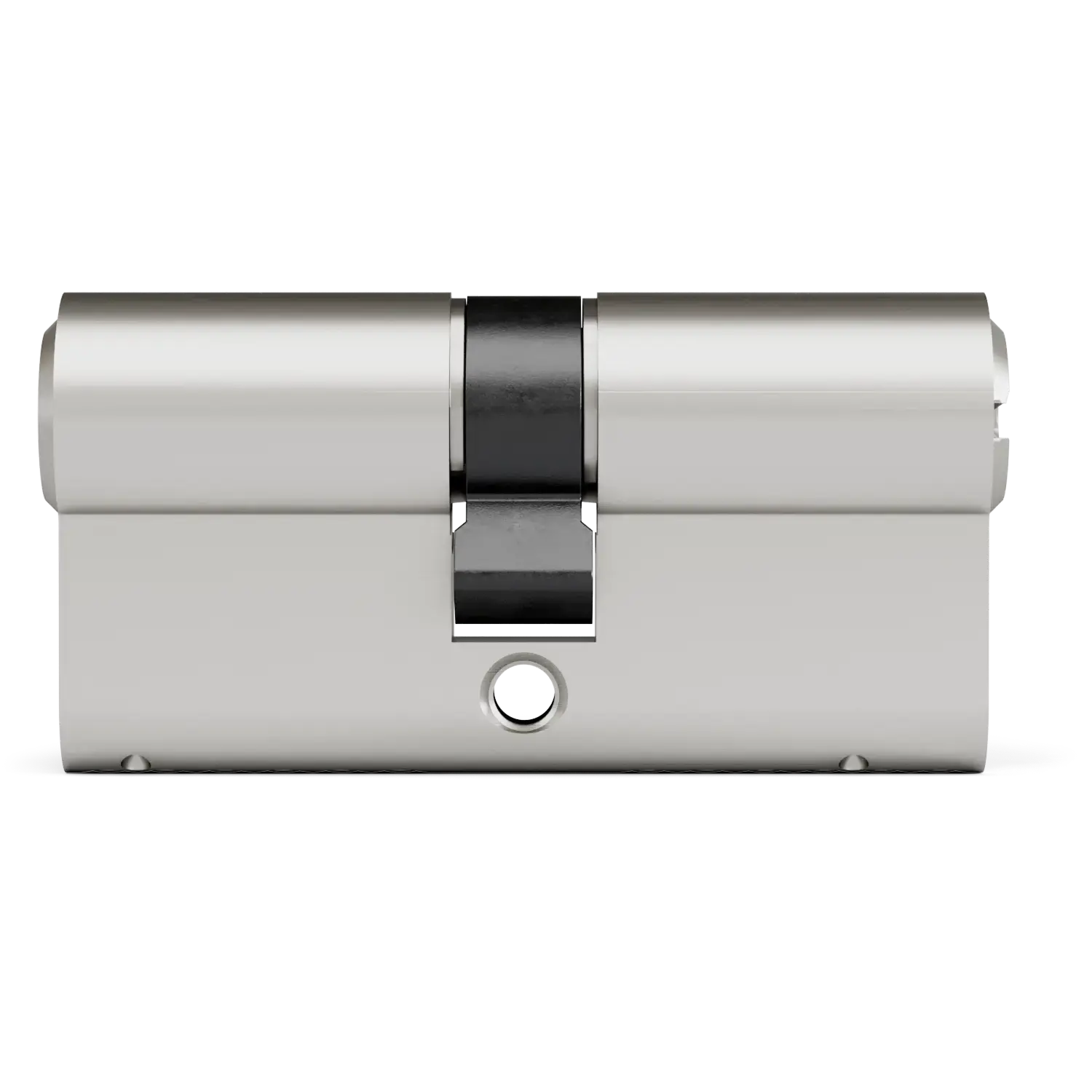

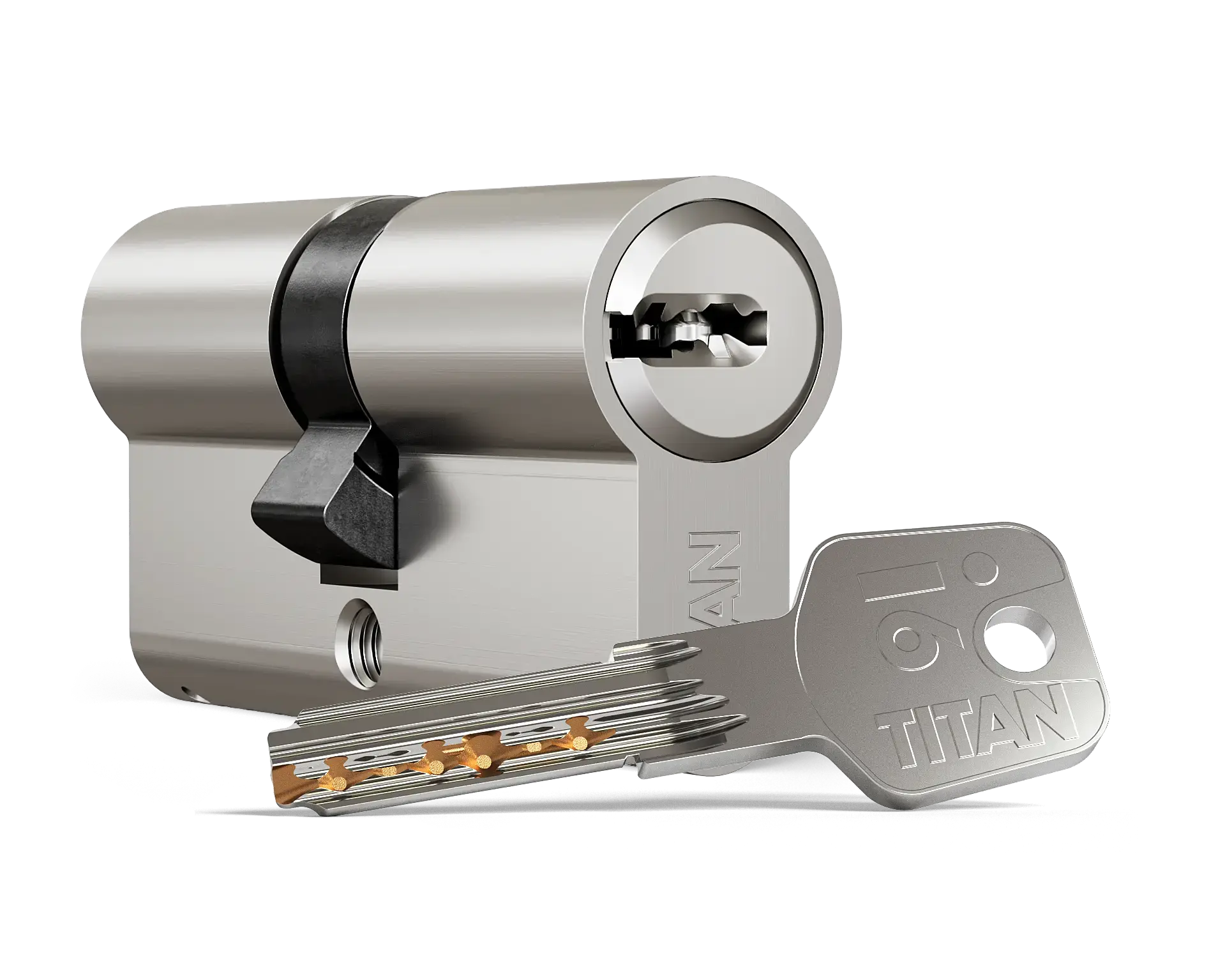

Titan i6 Security cylinder with high level of resistance

About

The mechanical cylidner i6 stands for certified security in flats, houses and offices. Its official certificate EN1303 confirms the highest tested level of durability, temperature and corrosion resistance.

Special security elements inside this cylinder (anti-drilling inserts in housing and anti-bumping pins in hardened steel) helps to protect the door against the intrusion attacks.
Optional break secure cuts allows the buglar to snap cylinder front leaving the remaining part of the cylinder fully operational.

Functional, strong and affordable - that is why this cylinder is highly appeciated by both installers and homeowners.

Upon request our Official Service Centers can have their name or logo on the key head.

Features

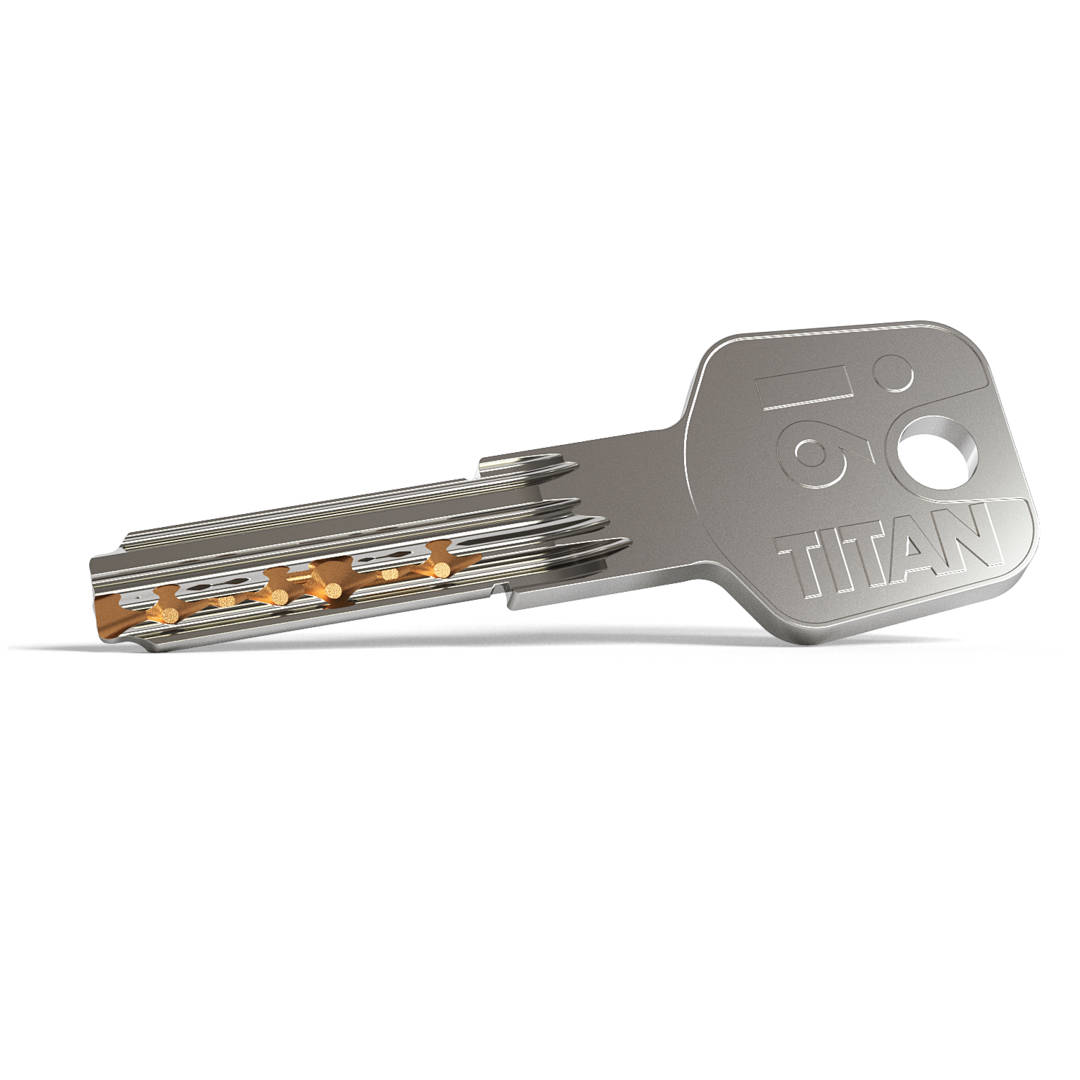

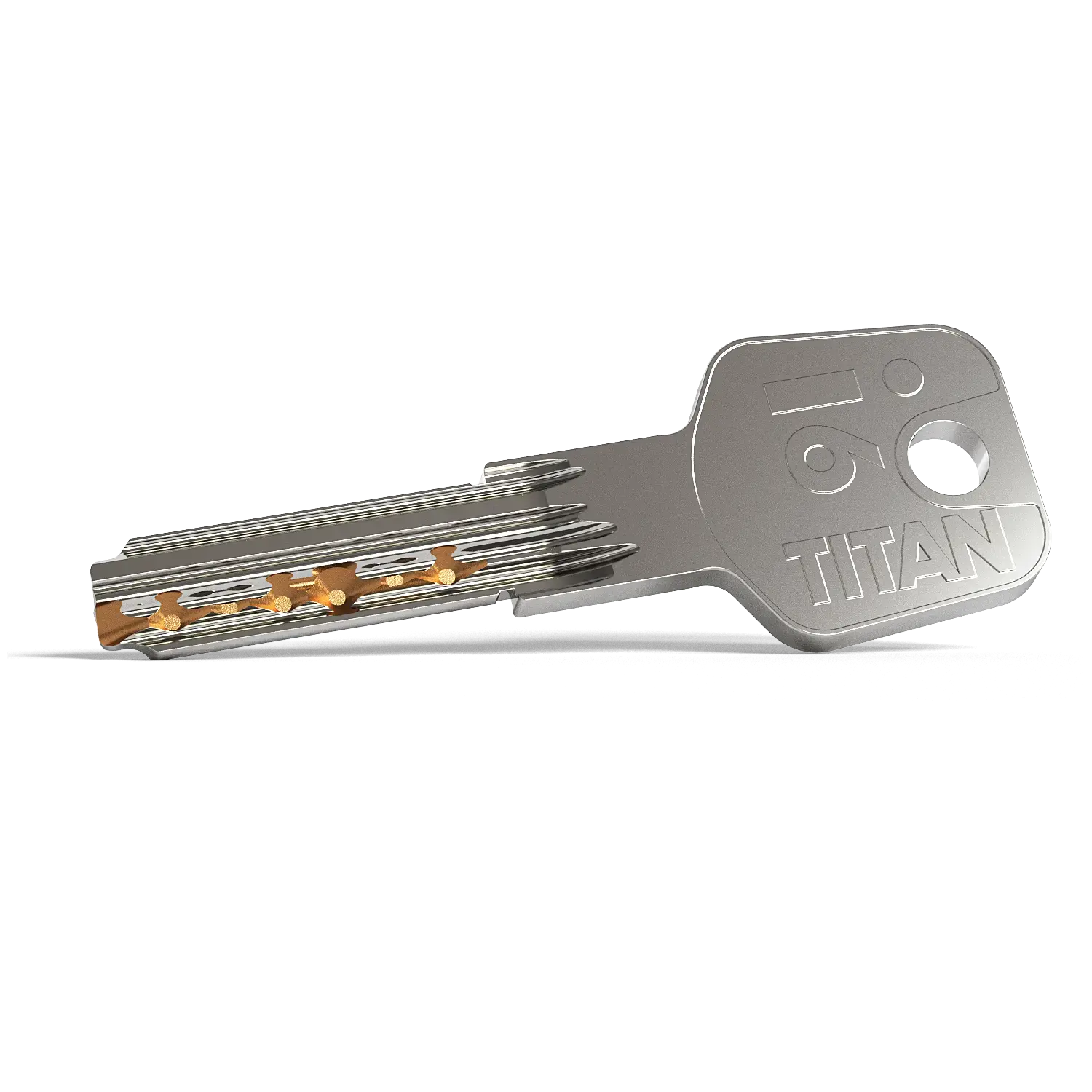

  • Two versions: the key of the Titan i6 cylinder is available in metal or with a plastic head.
  • Anti-picking and anti-drilling protection contribute to door resistance against break-in attempts
  • Optional "Break Secure cuts" are deliberately designed for being broken during snapping attack, leaving the main part of the cylinder intact and operational
  • Long reversible key can be used with all cylinder security eschutcheons
  • Wide range of cylinder dimensions covers all thicknesses of new or existing doors
  • Nickel matt cylinder finish assures perfect match with door hardware
  • Optional double entry function (N+G) permits to open the door from one side even if the key is inserted from another side
  • Possibility to use one key for several doors with the help of "Keyed alike" option
Reversible Key System
Single Coded
Certification Fire Resistant
Certification SKG 2 Star
Anti Bump Protection
Anti Pick Protection
Reproduction Card

Suggested application of use

Homes, Offices

Specifications

Technical features

Fire ResistantYes
Key TypeReversible Key System
Reproduction CardYes
Total Number of Locking Elements6
MKS PossibilitiesSingle Coded
Anti Pick ProtectionYes
Anti Bump ProtectionYes
Anti Drill Protection HousingYes
Anti Drill Core ProtectionYes
ModularNo
Construction Key FunctionNo
Available as a Service CylinderNo
Maximum Number of Lateral Elements0
Maximum Number of Upper Elements0
Number of Active Locking Elements6
Number of Ant Bumping Elements4
Number of Anti Picking Elements2
Number of Moveable Elements6
Number of Passive Elements0
Standard Warranty2 Years
Standard FinishMatt Nickel
Standard Housing MaterialBrass

SKG Star Rating2 *

Number of Keys5
Key MaterialBrass Nickel
Standard FinishMatt Nickel
Optional FinishesBright Brass, Bright Nickel
Standard Housing MaterialBrass
Standard KnobD
Standard CamDIN
Optional CamsTitan
