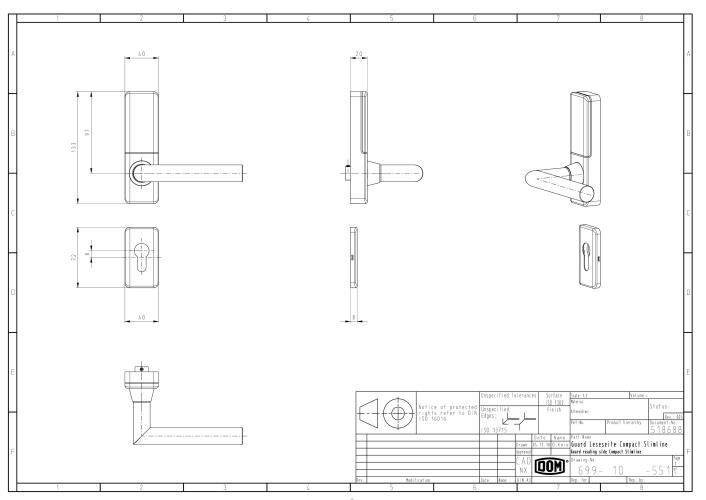

Download technical drawing

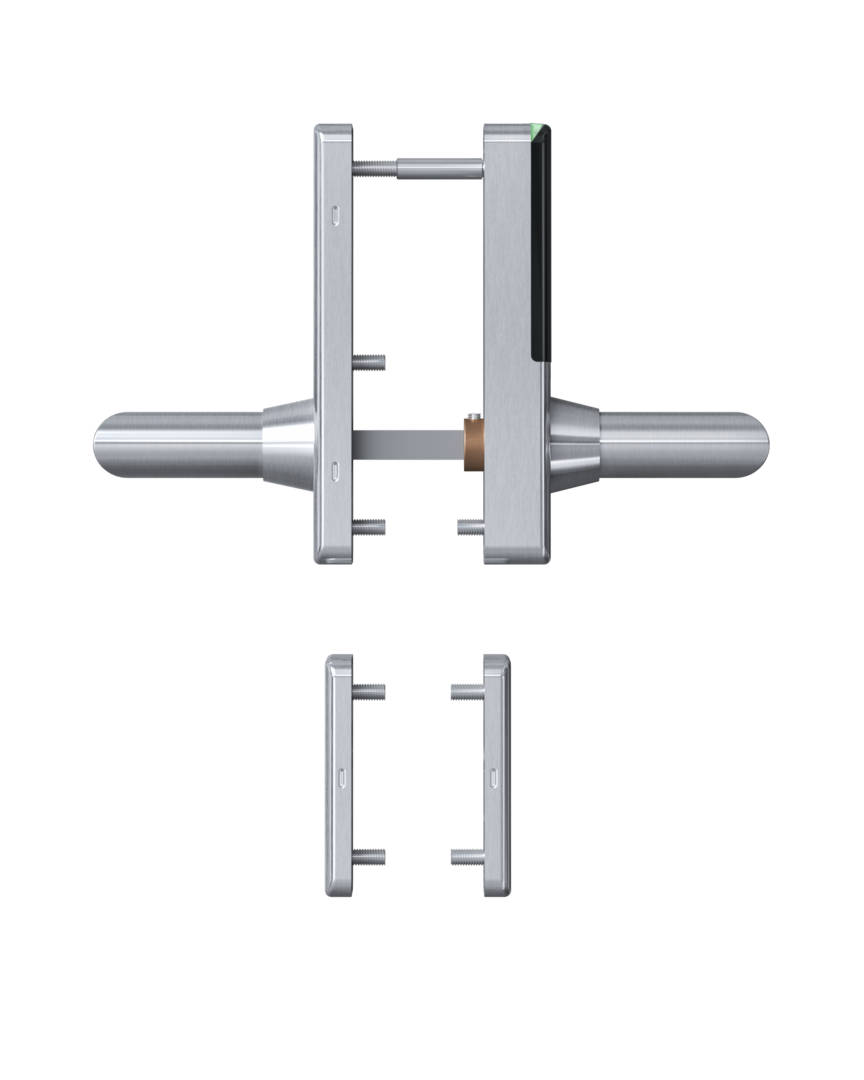

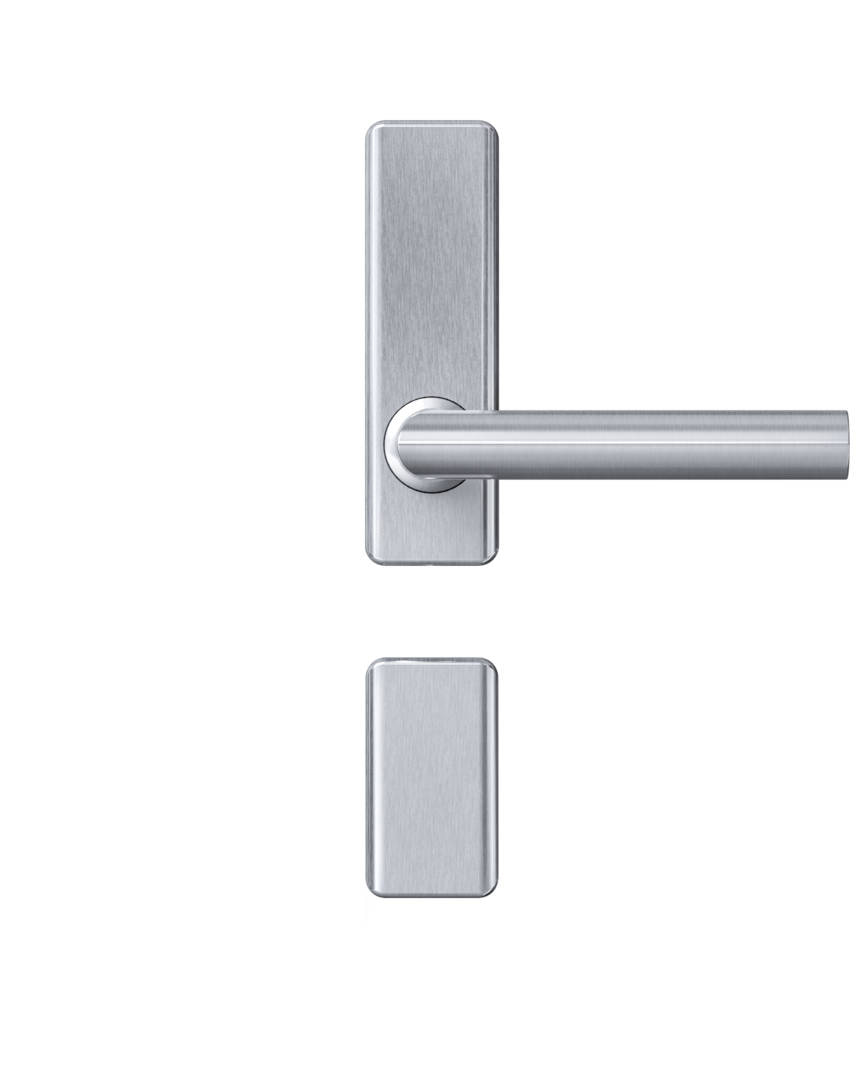

ENiQ Guard Digital handle for access control


  • Complete digital handle portfolio. Available as Slimline, Wideline and Compact version with one or two-sided readability or as purely mechanical fitting.
  • No matter what taste you have, always meet your preference of architectual design respecting the safety and security regulations.
  • Compatible with all European cylinder models and interaxes dimensions.
  • Intuitive visual and acoustic signalisation lets you know directly if you are allowed to open the door.
  • Easy battery change and long maintenance intervals due to long stand-by time and large number of locking cycles per battery.
  • Available in 3 modern design colours matching to your doors. At the moment you install the Guard, your door becomes innovative and elegant
  • Robust handle with a strong resistance against vandalism, fulfilling the highest grade of use class.
Certification Fire Resistant
IP54: protection from limited dust ingress and against water splashed from all directions; limited water ingress permitted and shall have no harmful effect

Suggested application of use

Airports, Education, Financial, Homes, Hospitals, Hotels, Industrial, Medium to Large Sized Businesses, Offices, Plants, Public Buildings, Small to Medium Sized Businesses


Technical features

Fire Resistant90 Minutes
Water ResistantNo
Patent ProtectionYes
Anti Corrosion ProtectionYes
Communication TechnologyBLE 5.0, RFID 13.56 MHz, NFC
Stand-alone FunctionalityYes
Data On CardYes
User Identification TechnologyBLE 5.0, RFID 13.56 MHz, NFC
Number of Inputs2
Number of Outputs0
Acoustic SignallingYes
Optical SignallingYes
Supported Locking MediaMifare Classic, Mifare DESFire, Mifare DESFire 8k, Mifare Ultralight, Mifare Plus, ISO 14443 A, Legic ATC 1024
Programming MethodsMaster Card, Programming Card, Software, Smartphone
Battery TypeAAA Lithium
Number of Batteries2
Battery Lifetime YearsUp to 3 Years
Battery Warning AlarmAudio, Visual
Maximum Operating Temperature (celsius)65
Maximum Relative Humidity (%)99
Maximum Storage Temperature (celsius)65
Minimum Operating Temperature-25
Minimum Storage Temperature (celsius)-25

Patent ProtectionYes
Patented Until (year)2038
Ingress Protection RatingIP54
EN 179:2008In Testing

Surface FinishBrushed Stainless Steel, Black, White, Grey
Fixation TypeScrew on or screw through
Handle TypesL-Shape mitre, L-Shape curved, U-Shape mitre, U-Shape curved, Cranked curved, Cranked mitre, Ball mitre only outside, L-Shape mitre + ball, L-Shape curved + ball, U-Shape mitre + ball, U-Shape curved + ball, Cranked mitre + ball, Cranked curved + ball
Power TypeBattery
Events Storage Capacity in the Device2000
RFID EncryptionAES, AES-128 Bit, DES, 3DES, Crypto-1, ISO 14443A, OSS
Data EncryptionXSALSA20-256 Bit, Curve 25519-256 Bit, Poly 1305-128 Bit
Operating Temperature (Celsius)-25° to 65°
Input OptionsDoor open, lock status, ect.
Assembly InformationFlexible Fixation Points due to movable sleeves/screws

Optional Accessories

Silicon Labs BLED112 V1

Silicon Labs BLED112 V1

ENiQ Starter package Guard

ENiQ Starter package Guard

Master card, programming card, battery change card, Torx screwdriver TX 10
Batteries 10 pieces per box

Batteries 10 pieces per box

Battery for the Guard
Mounting tool Hook bush

Mounting tool Hook bush

Required for mounting and dismounting of hook bushes
Silicon Labs BLED112 V1 with Wake Up Card

Silicon Labs BLED112 V1 with Wake Up Card

ENiQ Standard Tag

ENiQ Standard Tag

ENiQ Premium Plus Tag

ENiQ Premium Plus Tag

ENiQ Combined Transponder Standard Tag

ENiQ Combined Transponder Standard Tag

ENiQ Clip Tag V2

ENiQ Clip Tag V2

ENiQ ISO Cheque Card Transponder

ENiQ ISO Cheque Card Transponder

Building Locking Card

Building Locking Card

Function test of the devices in the installation state before the master card is created.
