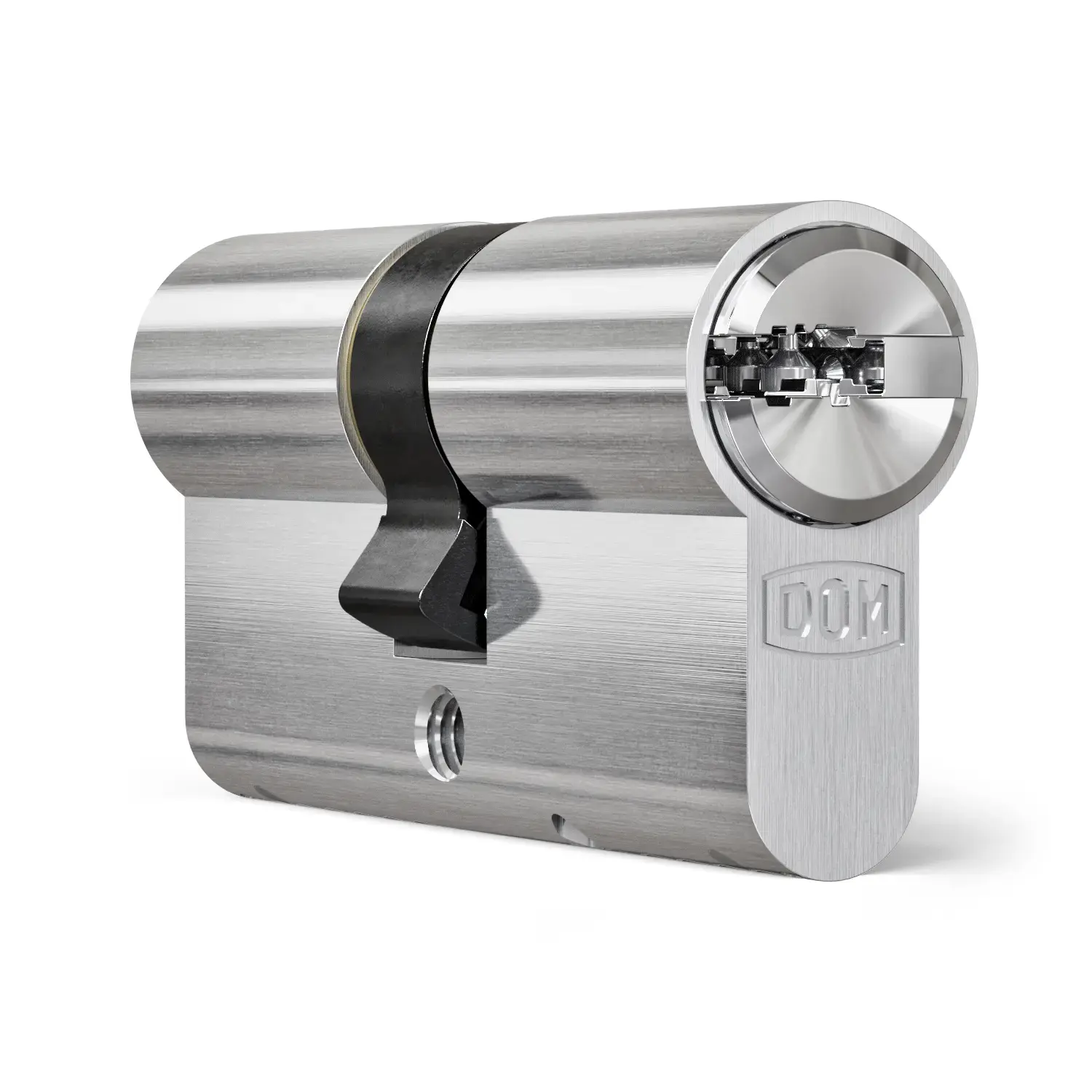

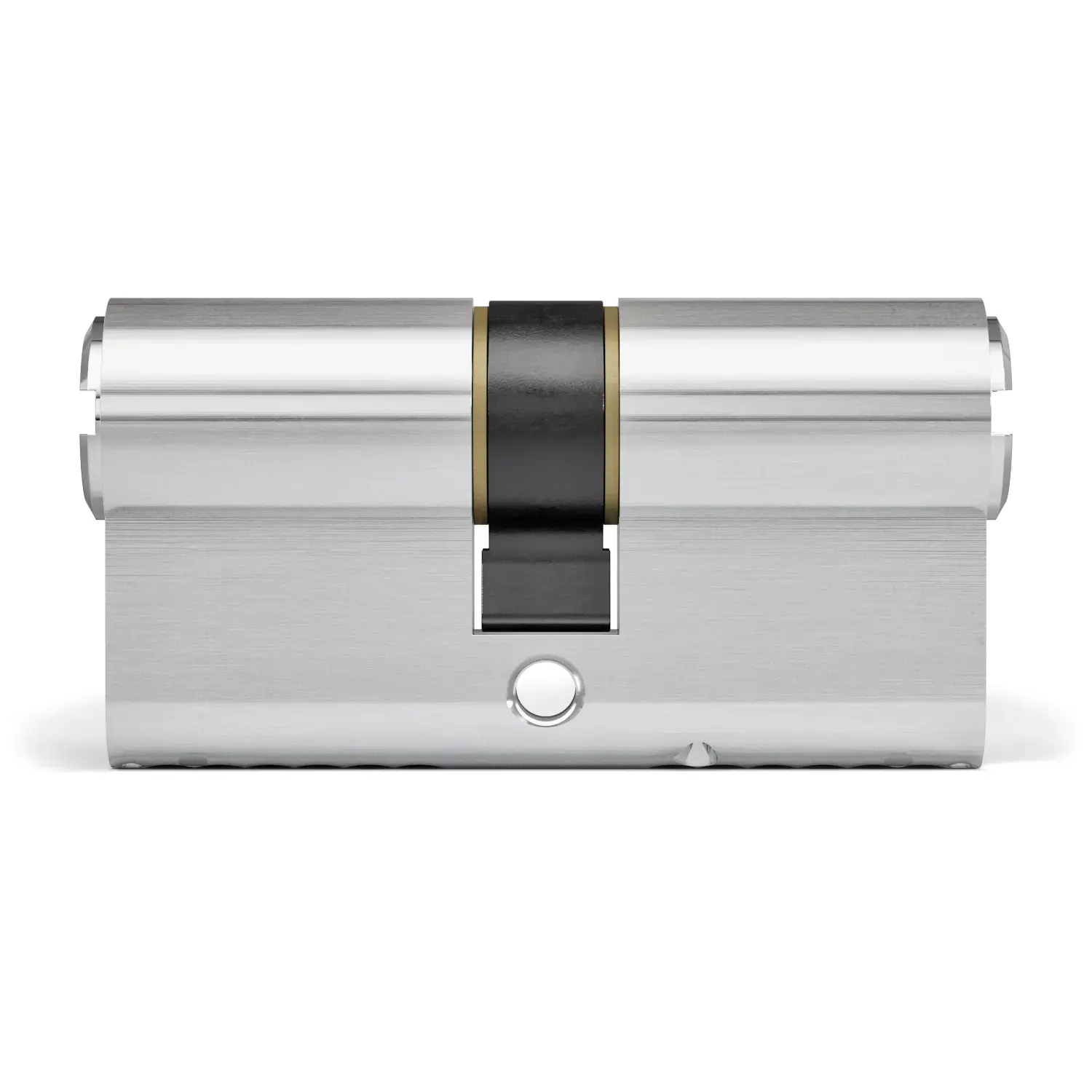

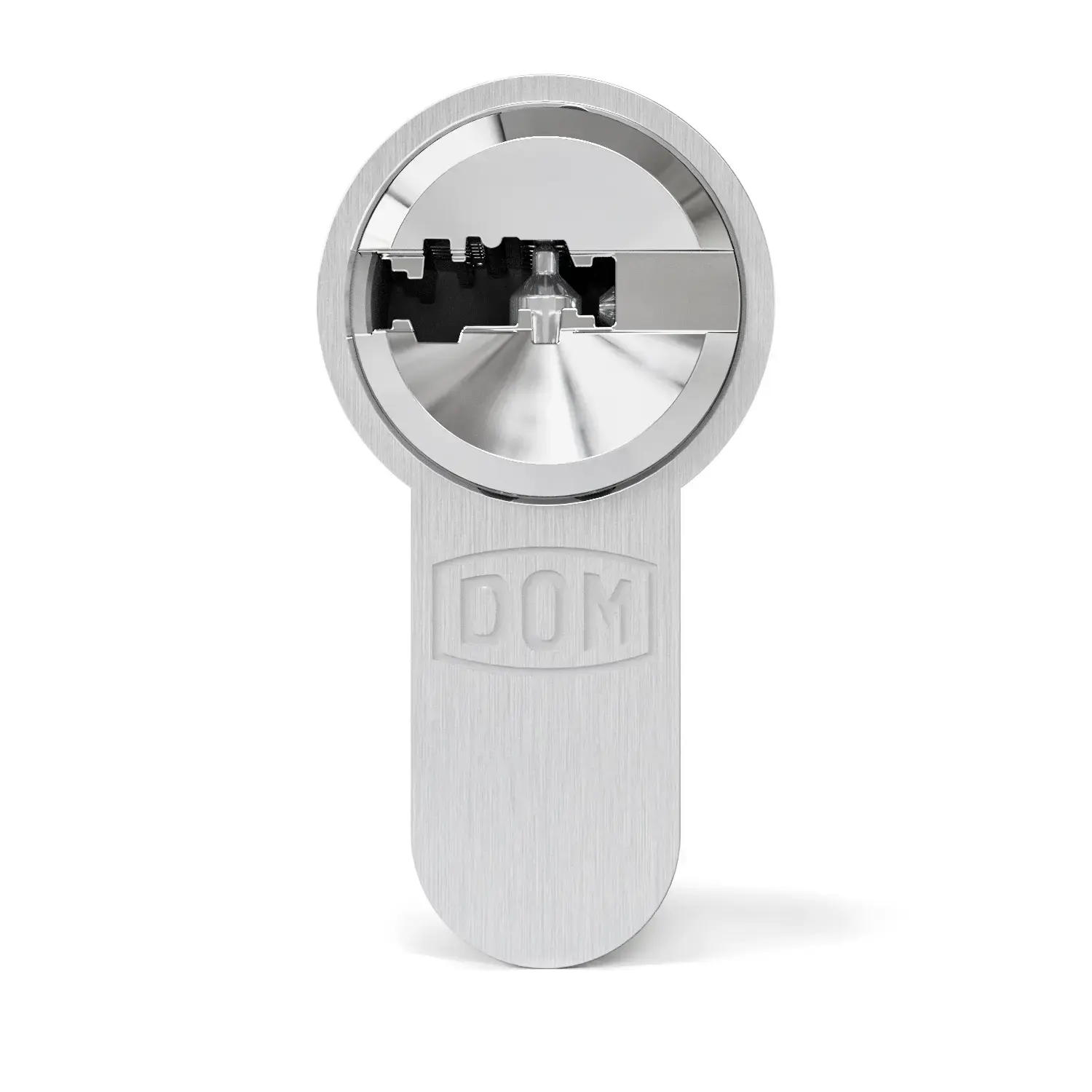

DOM ix Twido® European Profile Double Cylinder - Reversible Key Systems

About

The new reversible key system DOM ix Twido is particularly well protected against unauthorised copying thanks to the float-mounted double roller in the key. A special high-deep milling (HT) technique used in the horizontal basic profile enhances security during profile checks and is difficult to copy. With its technology and sophisticated design, this locking system literally has more to it than meets the eye.

Features

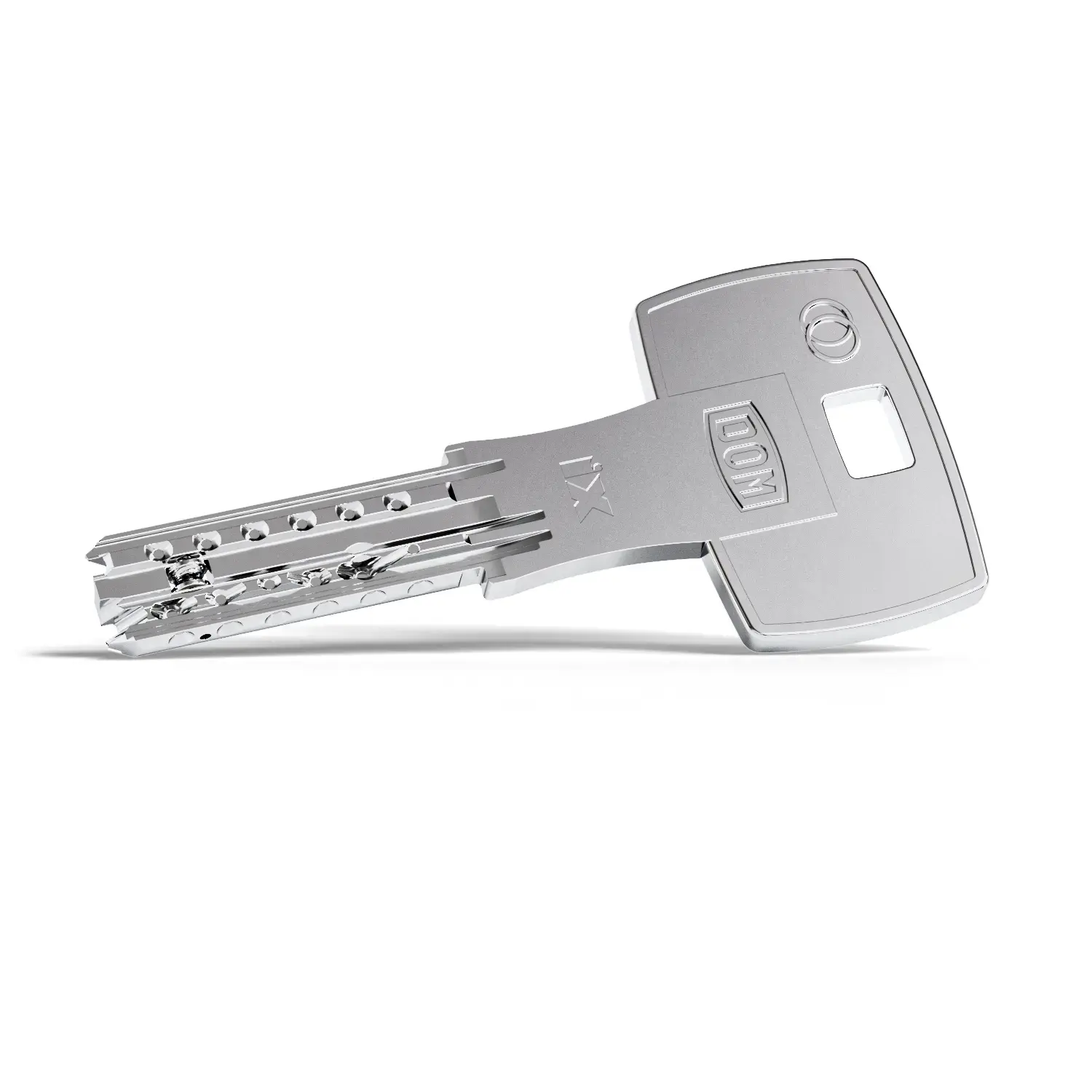

New generation key: the DOM ix Twido key is equipped with two movable discs that prevent unauthorised duplication, even with the most advanced copying techniques. The copy of the key is feasible exclusively from DOM and this guarantees an additional level of protection.
Open multiple doors with one key: you can use the same key to open different doors thanks to the same key coding system (Keyed Alike, KA).
Manage accesses: you can request a master key system (MKS) to manage the access authorisations to the different areas of your company so that each person can only access the areas of their competence.
Patent protection: DOM ix Twido is protected by a long-term double patent.
Compatible with electronic systems: the key head is compatible with the DOM ClipTag device for use with electronic locking systems.
Certified: DOM ix Twido meets the highest security standards and is tested and certified by independent institutes.

Suggested application of use

Airports, Education, Financial, Homes, Hospitals, Industrial, Medium to Large Sized Businesses, Offices, Plants, Public Buildings, Small to Medium Sized Businesses, Hotels

Specifications

Technical features

Key Type	Reversible Key System
Registration Card	Yes
Total Number of Locking Elements	19
MKS Possibilities	Grand Master Keyed, Master Key
Anti Pick Protection	Yes
Anti Bump Protection	Yes
Anti Drill Protection Housing	Yes
Anti Drill Core Protection	Yes
Modular	Optional
2 in 1 Function	No
Construction Key Function	No
Number of Active Locking Elements	7
Number of Ant Bumping Elements	2
Number of Anti Picking Elements	2
Number of Moveable Elements	0
Number of Passive Elements	12
Standard Warranty	2 Years
Standard Finish	Matt Nickel
Standard Housing Material	Brass

Certifications

EN 1303:2015	160B0C6B
SKG Star Rating	2 *
EN 12320:2012	Not Tested
	Key Patent Protection	Yes
Key Patent Until (year)	2036
System Patent Protection	Yes
System Patented Until (year)	2036

Configuration

Key Material	New Silver
Standard Finish	Matt Nickel
Optional Finishes	Bright Brass, Bright Chrome, Bright Nickel, Matt Chrome, Gold, Dark Bronze
Standard Housing Material	Brass
Standard Cam	DIN
Optional Cams	Cam 90°, Cam Biffar, Swiss Cam, Cam Corbin, Spanish Cam, 10 Teeth Gear Cams, 14 Teeth Gear Cams

Optional Accessories

DOM Service Pen

298700

Universal lubricant

Clip Tag V2
