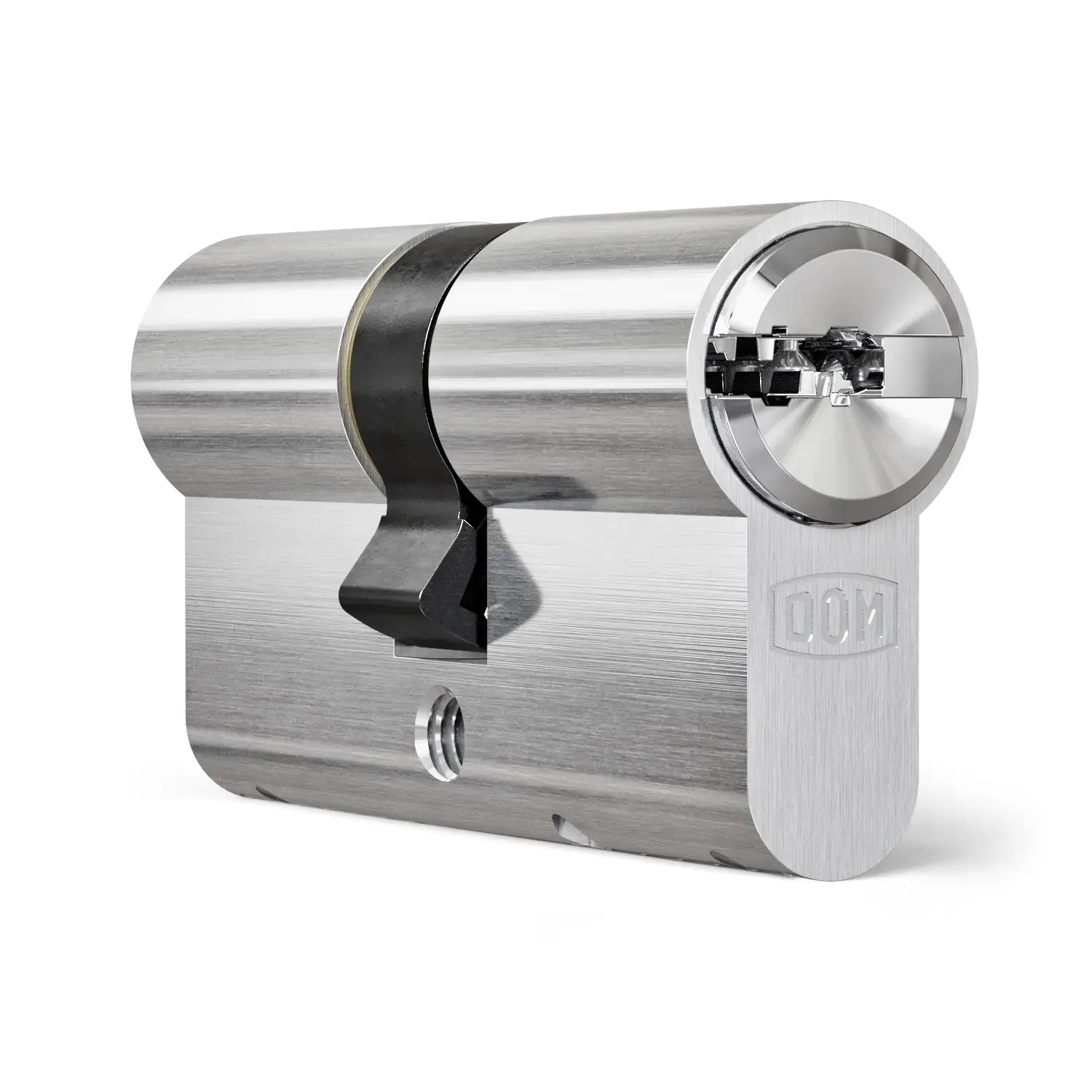

DOM ix Teco® Patented high security cylinder with innovative engraving on key

About

The new reversible key system DOM ix Teco is especially well protected against unauthorised copying by an innovative stamped recess in the key. A special high-deep milling (HT) technique used in the horizontal basic profile enhances security during profile checks and is difficult to copy. With the innovative and sophisticated design you are purchasing a locking system with an efficient key copy protection which is predestined for use in locking system but also for single locks.

Features

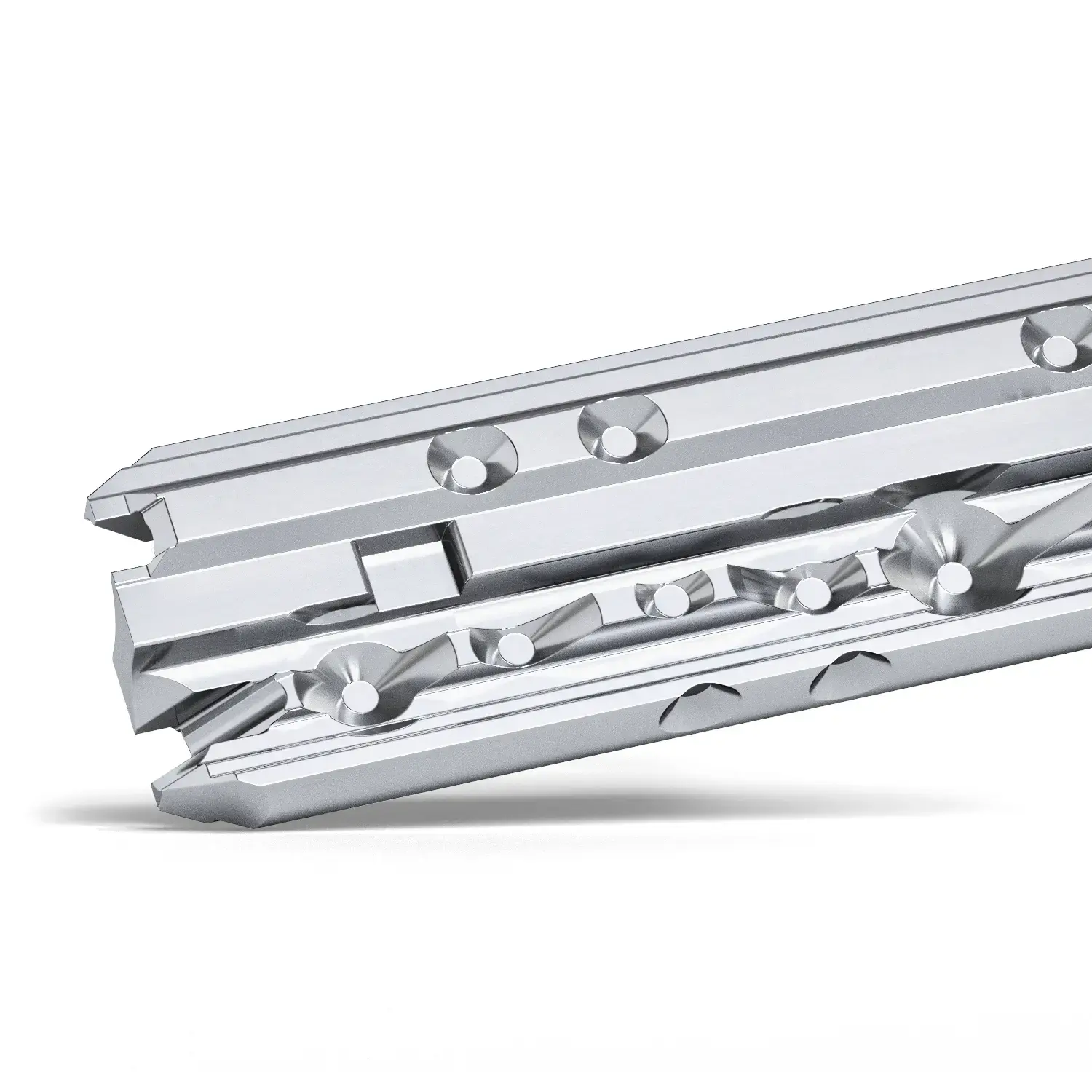

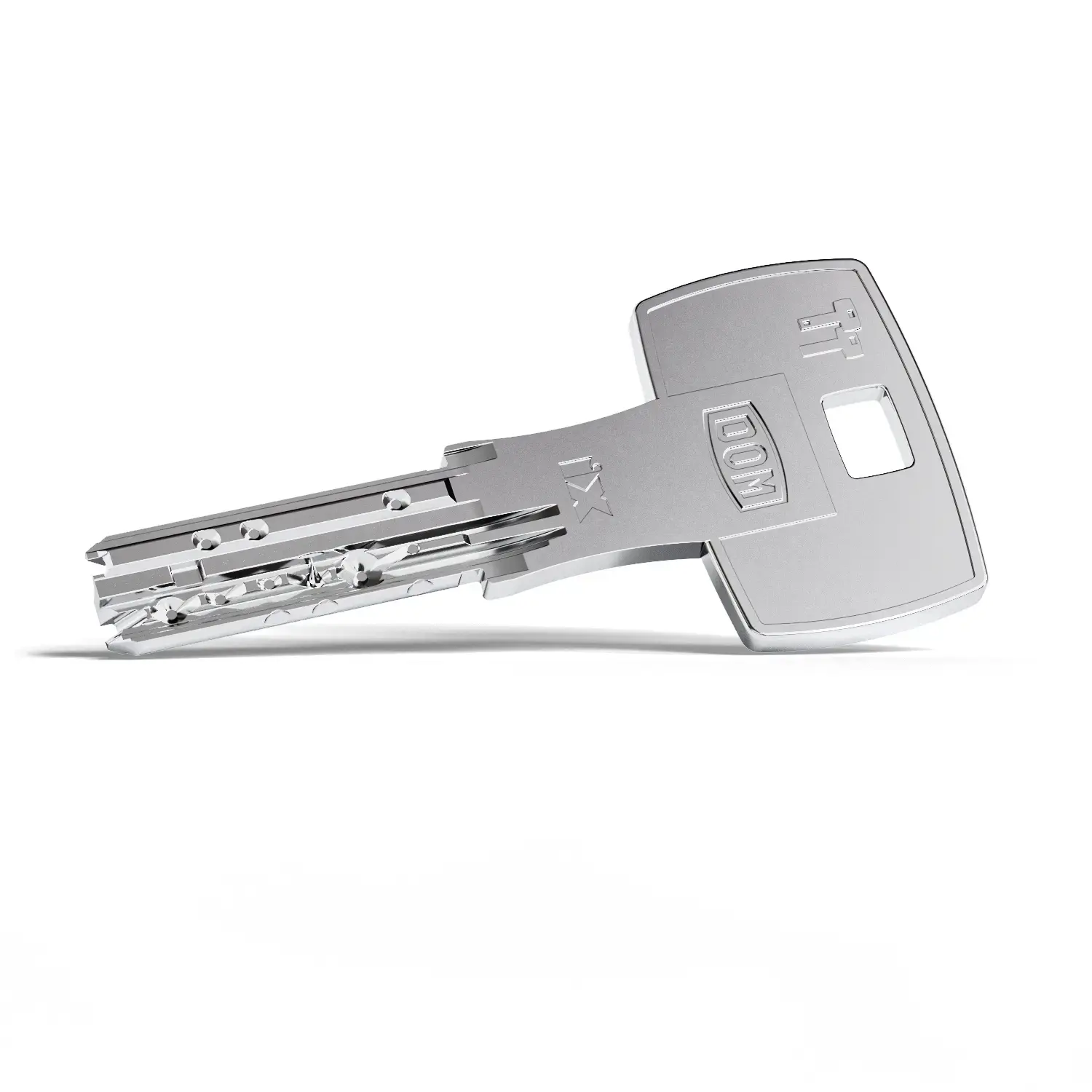

  • Stamped recess in the key: the DOM ix Teco key is marked by an innovative engraving that prevents unauthorised duplication. The copy of the key is feasible exclusively from DOM and this guarantees an additional level of protection.
  • Open multiple doors with one key: you can use the same key to open different doors thanks to the same key coding system (Keyed Alike, KA).
  • Manage accesses: you can request a master key system (MKS) to manage the access authorisations to the different areas of your company so that each person can only access the areas of their competence.
  • Patent protection: DOM ix Teco is protected by a long-term double patent.
  • Compatible with electronic systems: the key head is compatible with the DOM ClipTag device for use with electronic locking systems.
  • Certified: DOM ix Teco meets the highest security standards and is tested and certified by independent institutes.
Reversible Key System
Master Key System
Grand Master Key System
5 Year Guarantee
Certification EN 1303
Certification SKG 2 Star
Anti Bump Protection
Anti Pick Protection
Anti Pull Protection
Dealer Profile
Registration Card

Suggested application of use

Airports, Education, Financial, Homes, Hospitals, Industrial, Medium to Large Sized Businesses, Offices, Plants, Public Buildings, Small to Medium Sized Businesses, Hotels

Specifications

Technical features

Key TypeReversible Key System
Registration CardYes
Total Number of Locking Elements19
MKS PossibilitiesGrand Master Keyed, Master Key, Central Locking
Anti Pick ProtectionYes
Anti Bump ProtectionYes
Anti Drill Protection HousingYes
Anti Drill Core ProtectionYes
ModularOptional
2 in 1 FunctionNo
Construction Key FunctionNo
Maximum Number of Lateral Elements12
Maximum Number of Upper Elements6
Number of Active Locking Elements7
Number of Ant Bumping Elements2
Number of Anti Picking Elements2
Number of Moveable Elements0
Number of Passive Elements12
Standard Warranty5 Years
Standard FinishMatt Nickel
Standard Housing MaterialBrass

EN 1303:2015160B0C6B
SKG Star Rating2 *
EN 12320:2012Not Tested
 Key Patent ProtectionYes
Key Patent Until (year)2038
System Patent ProtectionYes
System Patented Until (year)2038

Key MaterialNew Silver
Standard FinishMatt Nickel
Optional FinishesBright Brass, Bright Chrome, Matt Chrome, Matt Brass, Dark Bronze, Gold, Old Bronze
Standard Housing MaterialBrass
Standard CamDIN
Optional CamsCam 90°, Cam Biffar, Swiss Cam, Cam Corbin, Spanish Cam, 10 Teeth Gear Cams, 14 Teeth Gear Cams
