The DOM Diamant cylinder delivers high performance every time. Designed by DOM this new generation of mechanical locking system consists of 21 rotating steel discs and impresses with its quality and design. Complying with the highest of security requirements every single component from material through to the locking mechanism has been designed with quality and security in mind.
Airports, Education, Financial, Homes, Hospitals, Industrial, Medium to Large Sized Businesses, Offices, Plants, Public Buildings, Small to Medium Sized Businesses, Hotels
| Fire Resistant | Yes |

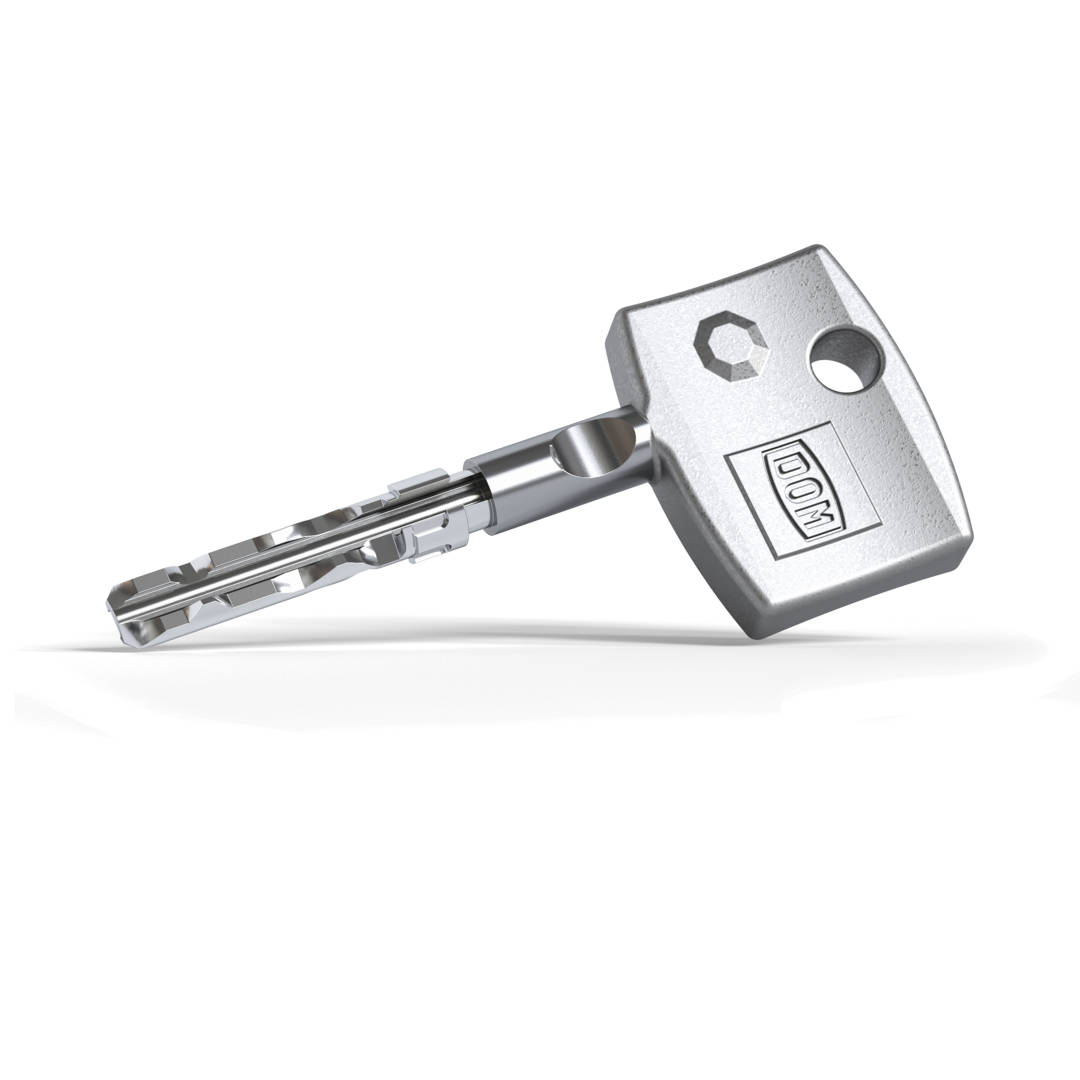

| Key Type | 3 Dimensional Key System |
| Registration Card | Yes |
| Total Number of Locking Elements | 10 |
| MKS Possibilities | Single Coded |
| Anti Pick Protection | Yes |
| Anti Bump Protection | Yes |
| Anti Drill Protection Housing | Yes |
| Anti Drill Core Protection | Yes |
| Anti Pull Protection | Yes |
| Modular | Yes |
| 2 in 1 Function | No |
| Construction Key Function | No |
| Available as a Service Cylinder | No |
| Maximum Number of Lateral Elements | 0 |
| Maximum Number of Upper Elements | 10 |
| Number of Active Locking Elements | 10 |
| Number of Ant Bumping Elements | 10 |
| Number of Anti Picking Elements | 10 |
| Number of Moveable Elements | 0 |
| Number of Passive Elements | 0 |
| Standard Warranty | 2 Years |
| Standard Finish | Matt Nickel |
| Standard Housing Material | Steel & Zamak |
| EN 1303:2015 | 160B0C6D |
| SKG Star Rating | 3 * |
| Number of Keys | 5 |
| Key Material | Stainless Steel |
| Standard Finish | Matt Nickel |
| Optional Finishes | Bright Brass, Matt Chrome, Matt Brass, Dark Bronze |
| Standard Housing Material | Steel & Zamak |
| Standard Knob | K6 |
| Standard Cam | DIN |
| Optional Cams | 10 Teeth Gear Cams |
