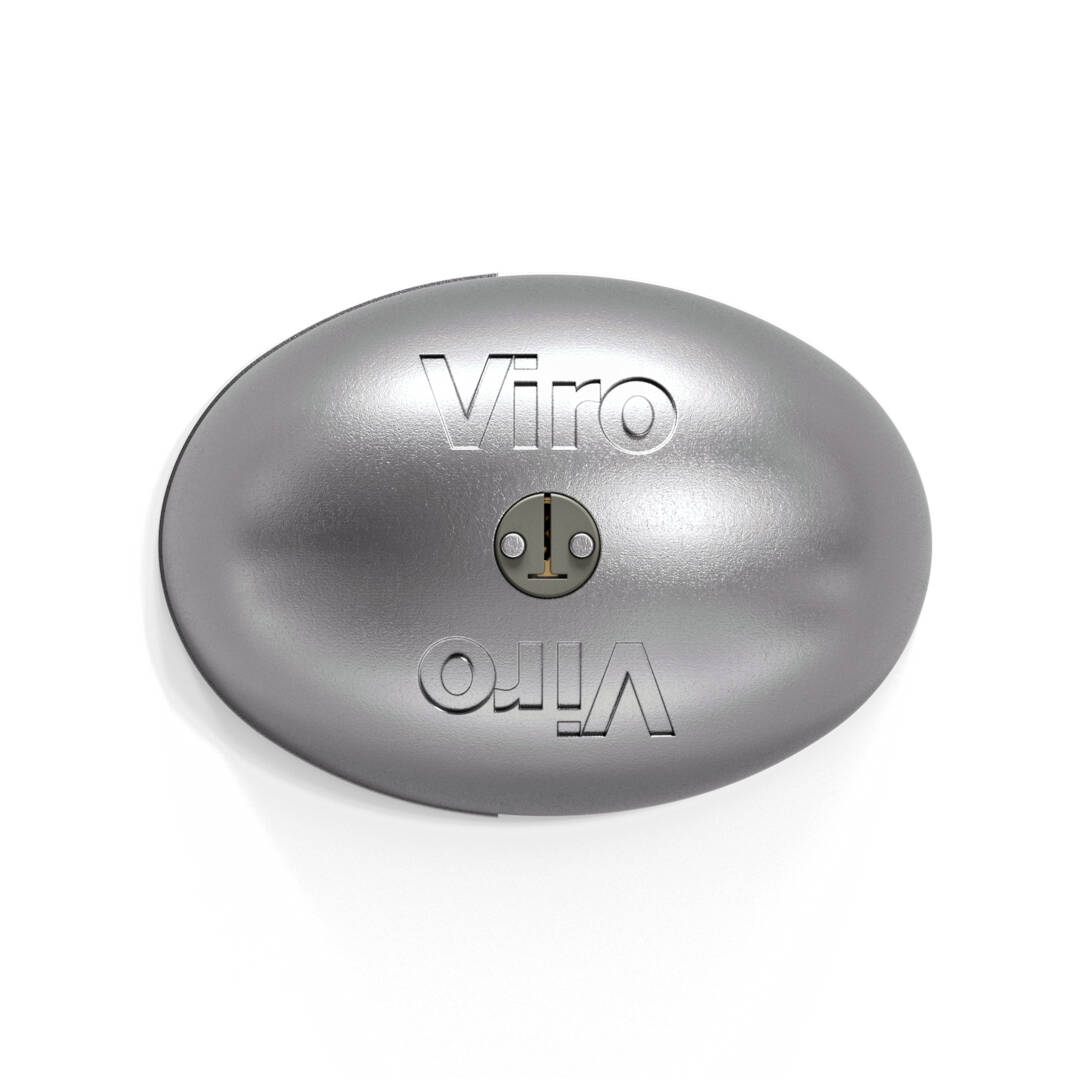

The special shape without sharp edges or gripping points, together with the sturdy and corrosion-proof stainless steel distinguish this innovative locking system for trucks and vans, which can be applied to rear wing doors or side sliding doors, or both, in the KA pair version (same key). VAN LOCK can be installed in any situation (thanks to its accessory item 4222.2035, even on containers used as goods storage), as it tolerates and compensate (with shims) any door misalignment. It closes easily (push closure) and ensures high security thanks to the fixing system, the 7-pin key and the anti-drill plate.
Spring-loaded case-hardened, tempered and galvanized steel dead‑bolt.
Locks automatically (without using the key) by pushing the second closing door against the first, or closing the side sliding door.
Possibility to keep the VAN LOCK "always open" with the key inserted and fully turned.
Brass pins.
Mushroom brass counterpins, pick-resistant.
Stainless steel pin springs.
Lock protected by weather proof cap.
Device for emergency unlocking from the inside (practically impossible to grip from the outside with burglary tools) if the operator reangles accidentally closed in the loading compartment.
| Anti Corrosion Protection | Yes |
| Anti Drill Protection | Yes |
| Closing Mechanism | Mechanical Automatic Closing |
| Anti Saw Protection | Yes |
| Key Type | Conventional Key System |
| Anti Pick Protection | Yes |
| Anti Pull Protection | Yes |
| Cylinder Material | Brass |
| Anchor Plate | 2 anchor plates: the first half-moon shaped plate with sturdy stainless steel conical pin is fixed, with 2 stainless steel bolts and 2 rivets (supplied), on the first closing door (for rear doors), or on the fixed part next to the loading compartment (for side sliding doors); the second trapezoidal shaped is fixed with 2 stainless steel bolts and 2 rivets (supplied) on the second closing door (for rear doors), or on the side sliding door of the loading compartment. |
| Plug | Protected by 1.5 mm thick tempered and satin-finish AISI 420B stainless steel anti-drill plate. |
| EN 12320:2012 | Yes |
| Padlock Body Material | Stainless Steel |
| Additional Information | MK and KA executions are possible. Versions available with patented profile keys (form trademark) which can only be duplicated by Viro (.PB profile) or versions which can only be duplicated by Viro Authorized Centres (.PV profile). |
| Number of Pins | 7 |
| Number of Keys | 2 |
| Key Material | Brass Nickel |
| Deadbolt Material | Stainless Steel |
