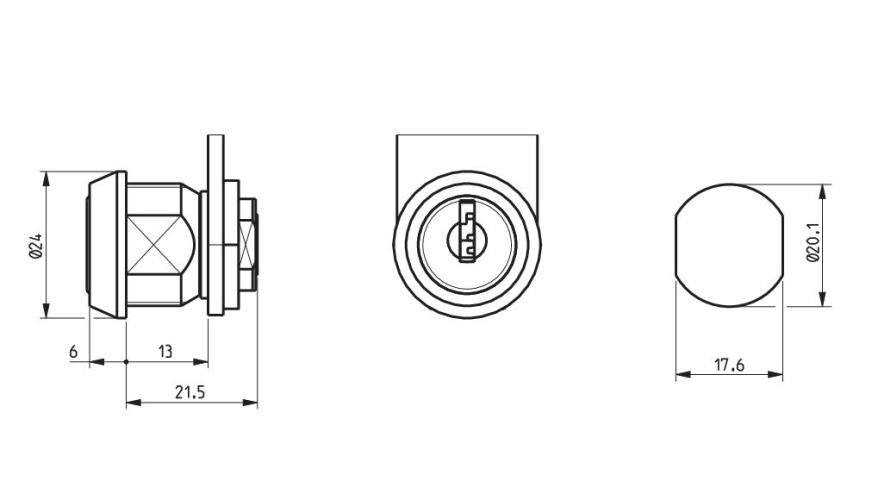

View technical drawing

About

The RONIS 911A cam lock is built from high quality materials. The body is cast from a single piece that offers a robust and strong solution with a proven track record of offering a long life cycle. The core itself is made from Zamak and utilises Wafer Technology, providing affordable security for your application. It can also be integrated into new or existing Master Key systems where required.

We offer a wide range of wafer cam locks to suit the market requirements. Depending on your assembly process, we can offer you the best suited lock fixing to ensure an efficient and effective installation. The cam can be secured in place with a Brass Nut fixing.

Download Industry Catalogue

Features

  • Made from high quality materials providing a strong and robust product that you can rely on.
  • Wafer technology provides an affordable level of security.
  • We offer an extensive range of cams to ensure we offer the best locking solution.
  • Available mastered or non mastered, they can be easily integrated into a new or existing system seamlessly providing full control over your security.
  • Offering up to a 5 Wafer barrel with a possible 500 combinations. Lock rotations possible are: 90° Right opening / Left closing, 90° Left opening / Right closing and 180° Left & Right.
  • 2 keys are provided as standard with Steel and Nickel key options available.
  • Secured in place with a Nut fixing.
  • Bright Chrome finish available as standard.
Wafer System
Master Key System
Profile Hole 3

Suggested application of use

Metal Furniture, Electrical Equipment, Retail, Storage

Specifications

Features

Security TypeWafer System
Available Key Series11, 15, 16, 2, 26, 5, KM
MKS PossibilitiesMaster Key
Available Lock FixingsNuts
Standard Cam Family1729-911

Standard MaterialZamak
Standard FinishBright Chrome
Number of Keys2
Flats Body A (mm)17.50
Body Diameter B (mm)M20x1,25
Body Length13.00
Full Length H (mm)21.50
