The 75300 central locking system is used in conjunction with a locking bar, providing a centralised locking source for all drawers on the cabinet.
Compatible with the RONIS Ultra Track anti-tilt system.
It is built from high quality materials made from Mazak offering a robust solution with a proven track record of offering a long life cycle. The core itself utilises Wafer Technology, providing affordable security for your application.
We offer a wide range of wafer central locking systems to suit the market requirements. To help with your assembly process, we offer a Horseshoe Clip or Brass Nut fixing which ensures an efficient and effective installation.
Offices, Education, Retail, Storage, Metal Furniture
| Security Type: | Wafer System |
| Available Key Series | 4R, CC, KT, SH, SM, TK |
| MKS Possibilities | Master Key |
| Available Lock Fixings | Horseshoe Clip, Nuts |
| Anti Tilt ApplicationYes | |
| Standard Cam Family | None |
| Standard Finish | Matt Nickel, Bright Chrome |
| Number of Keys | 2 |
| Standard Material | Zamak |
| Standard Finish | Matt Nickel, Bright Chrome |

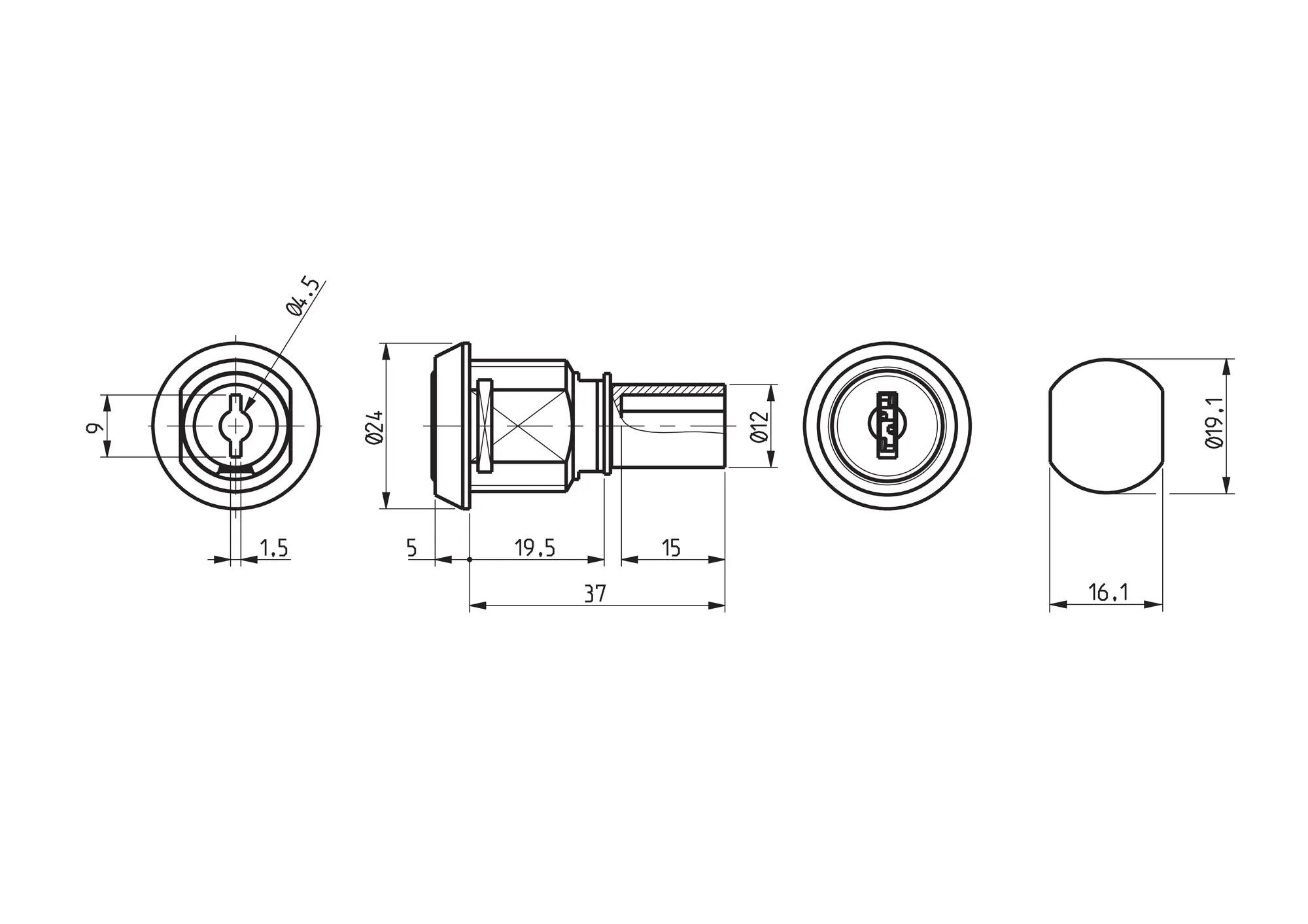

| Flats Body A (mm) | 16.00 |
| Body Diameter B (mm) | 19.0 |
| Body Length | 19.50 |
| Full Length H (mm) | 37.00 |
