Back to products

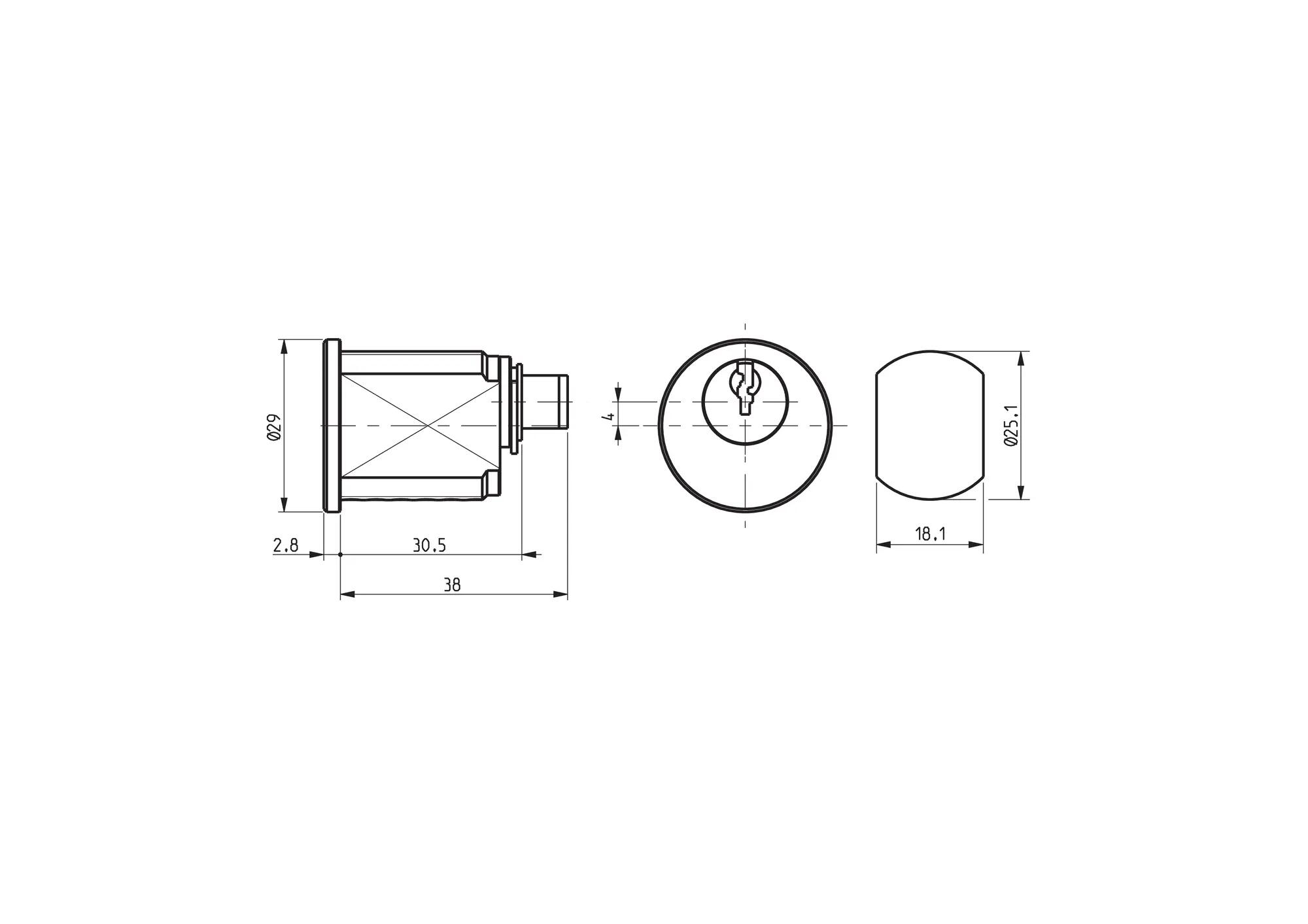

View technical drawing

About

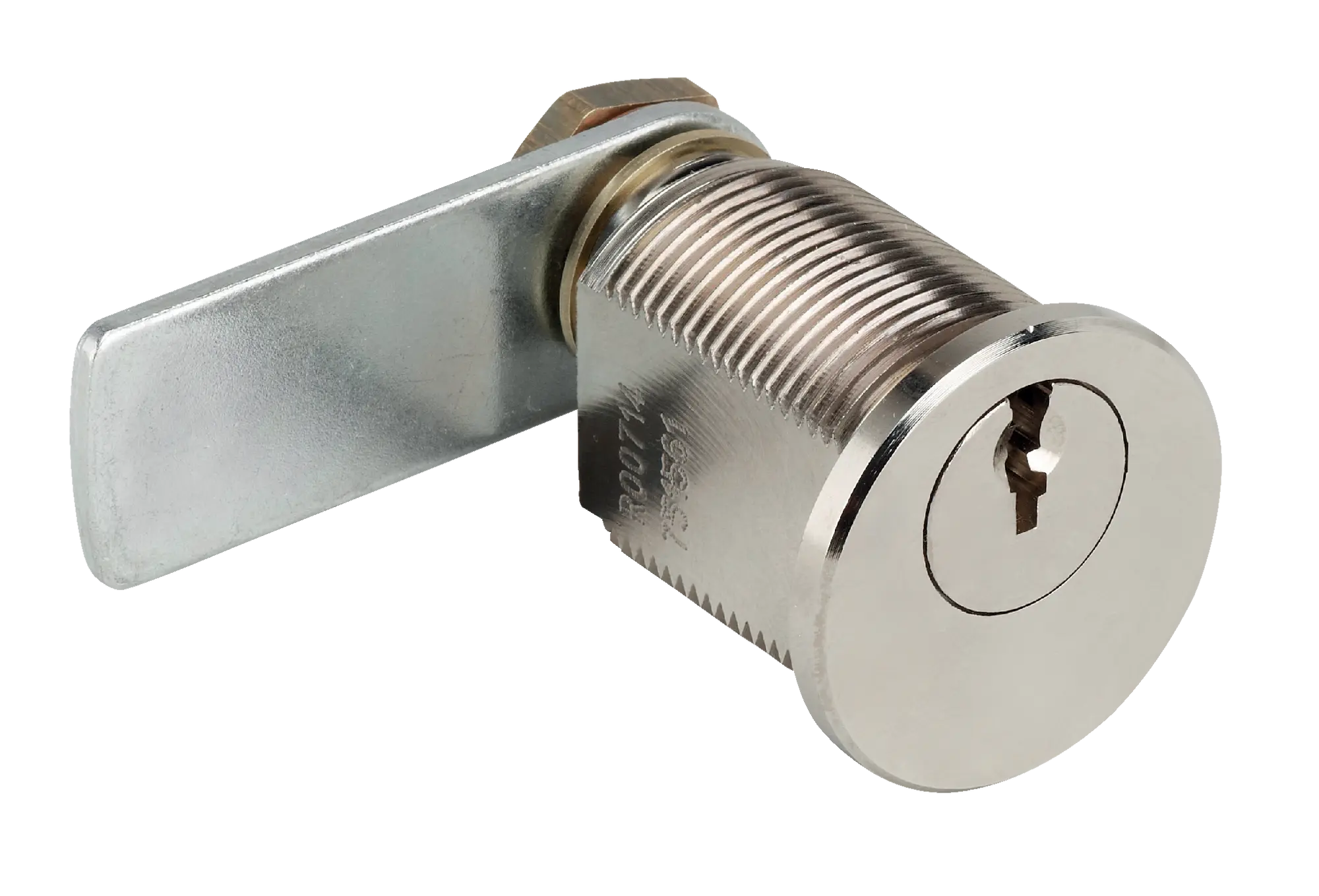

The RONIS 7310 cam lock is manufactured in Brass. This ensures we can offer a product that is a robust and strong solution with a proven track record of offering a long life cycle. The core itself utilises Pin Technology, providing a medium level of security for your application. It can also be integrated into new or existing Master Key systems where required.

We offer a comprehensive range of pin cam locks to suit the market requirements. Depending on your assembly process, we can offer you the best suited lock fixing to ensure an efficient and effective installation . The cam can be secured in place with a Brass Nut fixing.

Download Industry Catalogue

Features

  • Made from high quality materials, with a choice of finishes that provide a strong and robust product that you can rely on.
  • Conventional Pin technology offers a medium level of security.
  • Available mastered or non mastered, they can be easily integrated into a new or existing system seamlessly providing full control over your security.
  • Offering a 6 Pin barrel and giving you a possible 30000 lock combinations. Lock rotations possible are: 180º Right opening / Left closing and 180º Left opening / Right closing.
  • 2 keys are provided as standard with a choice of: Steel and Brass Key options.
  • Secured with a Horseshoe Clip or a Nut fixing.
  • Matt Brass finish available as standard.
  • We offer an extensive range of cams to ensure we offer the best locking solution.
Conventional Pin System
Master Key System

Suggested application of use

Metal Furniture, Letter Boxes, Retail, Storage

Specifications

Features

Security TypeConventional Pin System
Available Key Series6
MKS PossibilitiesMaster Key
Available Lock FixingsHorseshoe Clip, Nuts
Standard Cam Family1128
Standard FinishBright Nickel, Matt Brass

Standard MaterialBrass
Standard FinishBright Nickel, Matt Brass
Number of Keys2
Body Length30.50
Full Length H (mm)38.00
