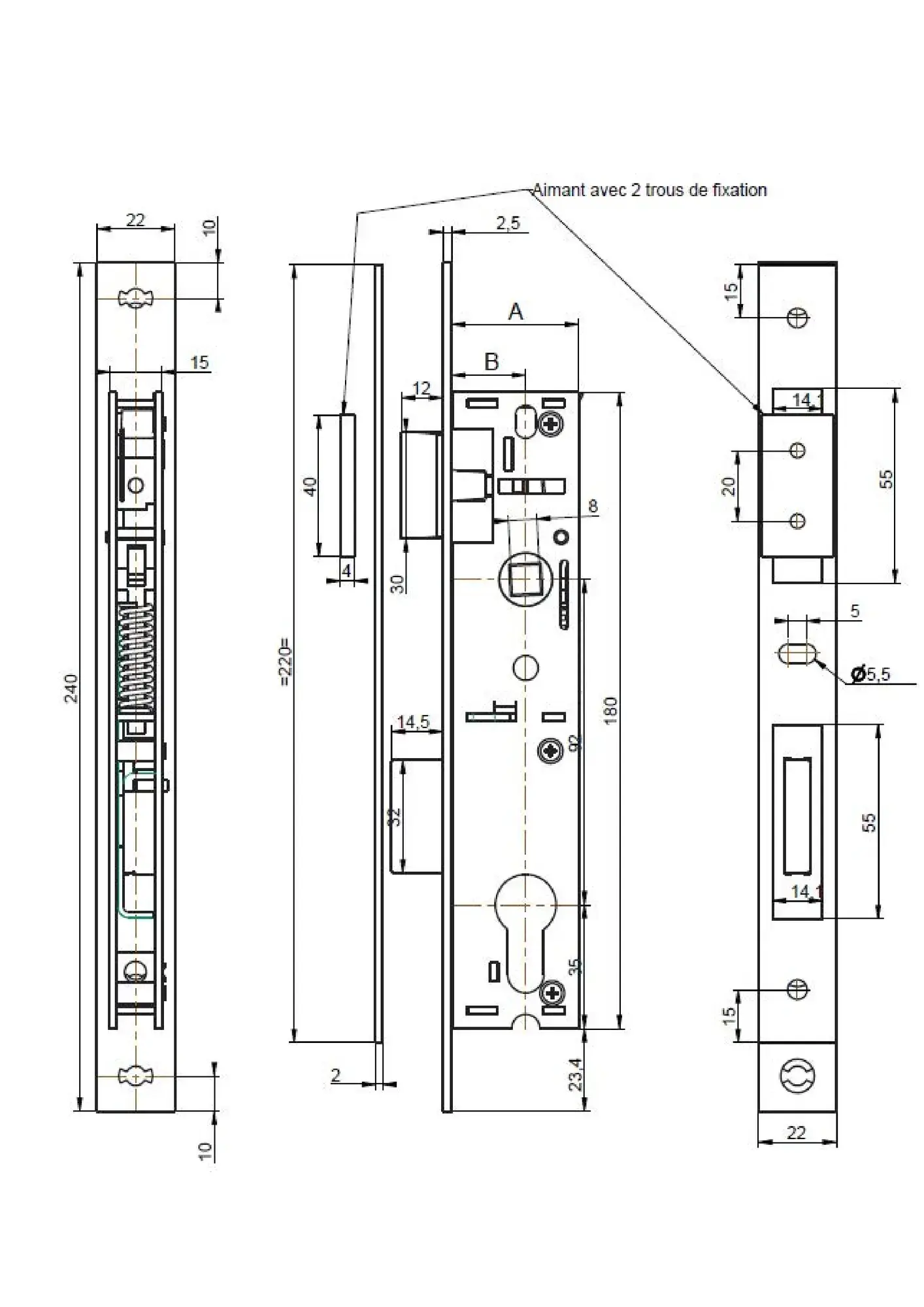

View technical drawing

Metalux 780 MAGNET Interaxis 92 - European Profile - Deadbolt and magnetic latch

About

The 780 Magnet is a 1 point mortise lock for metal doors, fitted with a magnetic latch. Thanks to it, it brings discretion, fluidity and design to your doors. The latch remains integrated in the lock when the door is open and is only activated in front of its magnetic strike plate. Its interaxis is 92 mm. Designed for integration into aluminum and steel profiles, it adapts perfectly in a new or replacement environment.

Features

  • The 780 MAGNET guarantees silent closing of the doors. Its magnetic latch generates a discreet click. A door can be closed many times during a day, so it avoids loud noise pollution repeatedly.
  • The door can be closed very fluidly without having to actuate the handle. In addition, the combination of this lock with a door closer optimizes its closing.
  • It gives a modern and refined look to your door. The magnetic latch remains integrated in the lock when the door is opened. Thus, unlike a classic lock model, it does not protrude on the edge of the door.
  • Its forend and strike plate bring a qualitative touch with their stainless steel material.
  • The latch is activated only in front of its magnetic strike. It is therefore less used. The frame is not subjected to friction from the bolt, which goes into strike directly.
  • Its latch is universal. There is no need to return it depending on the door configuration.
5 Year Warranty
Reversible Latch
European Profile Cylinder

Suggested application of use

Airports, Education, Financial, Homes, Hospitals, Hotels, Industrial, Medium to Large Sized Businesses, Offices, Plants, Public Buildings, Small to Medium Sized Businesses, Shop Installer

Specifications

Features

Lock Application TypeIntegrated Lock
Operation TypeCylinder Operated
Locking PointsSingle Point
Locking TypeEuropean Profile Cylinder
Closing MechanismStep Mechanical
Locking ElementsDeadbolt & Latch
Deadbolt OperationStandard
Internal Parts with Anti Corrosion TreatmentYes
Reversible LatchYes
Cylinder Fixation HolesDIN
Standard Warranty5 Years

Strike Plate IncludedYes
Interaxis (mm)92
Backset (mm)23.5, 26.5, 28.5, 32.5
Backset Without Forend (mm)21, 24, 26, 30
Case Height (mm)180
Case Depth (mm)36, 39, 41,45, 47, 52, 57
Case Thickness (mm)15
Case MaterialSteel
Case FinishGalvanised
Deadbolt ShapeRectangular
Deadbolt MaterialZamak
Deadbolt Dimension14
Deadbolt Throw (mm)14.5
Latch Dimension14
Latch Throw (mm)12.0
Latch MaterialZamak
Follower TypeSquare Follower
Follower (mm)8
Material of the FollowerZamak
Forend ShapeFlat
Forend Length (mm) 240
Forend Thickness2.5
Forend MaterialStainless Steel
Forend FinishBrushed
