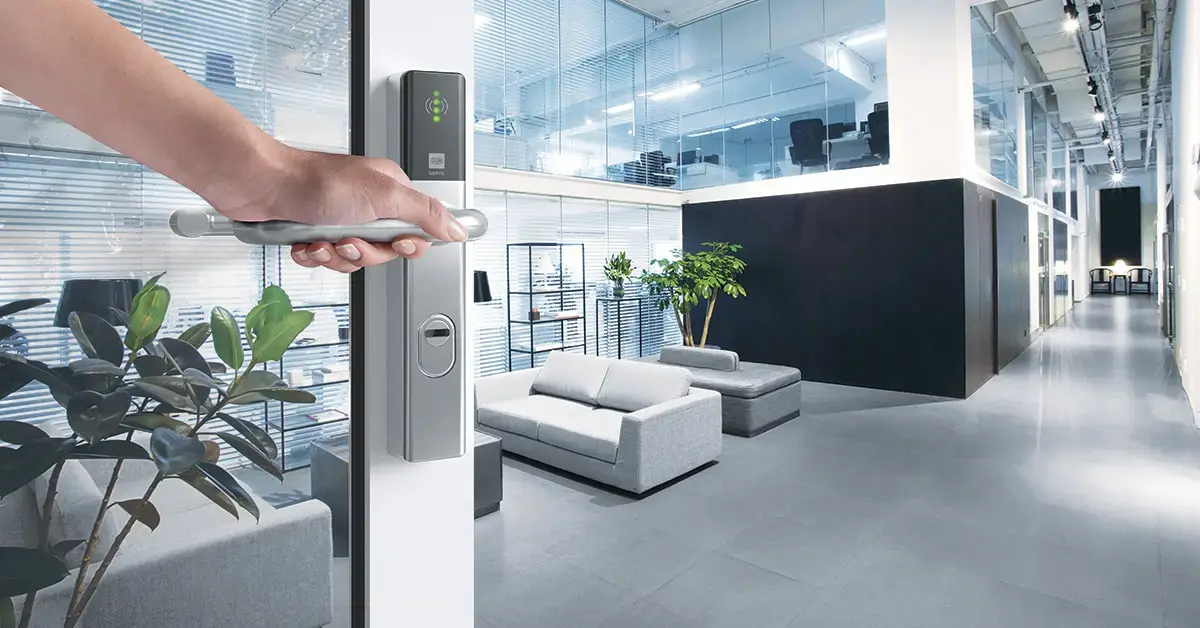

The Tapkey Guard S is used as a digital fitting reader where convenient access control with high intrusion protection and attractive design is required.
Perfect for your exterior doors and compatible for use in office and administration buildings, healthcare facilities, banks, hotels, education institutions, small and medium business, etc.
DOM Digital Smart Handles come in many different variants with multiple handle types and three different colours. Customise your door handles and enhance your buildings security system in one go.
DOM Tapkey is so named as it utilises a third-party app and/or software called Tapkey, a company which became part of the DOM group in 2023. Tapkey is a free-to-download app which is incredibly user-friendly and allows a user to manage their access control system from their phone, this includes sending access rights that the user can then use on their phone to access the door.
Just like the Digital Smart Handle, the Tapkey App is easy to use. It activates a DOM Tapkey device via the NFC (Near Field Communication) of a smartphone. The admin user can give authorisations to other users, safely and securely, via a highly protected Tapkey ID or Google ID.
There are just three simple steps: download the Tapkey app via Google or the Apple store, activate your account, connect your locking device for your digital cylinder in the entrance door and garage (for example), and there you go! In just a few steps you can authorise users to open or close a door with a digital device or DOM Tapkey tag.
Available in Slimline, Wideline and Compact versions
Highest level security: Digital ES1 security fitting with attack resistance class 2 according to EN 16867 for the highest level of protection for your door. With high environmental resistance for your exterior doors.
With drilling protection for the relevant areas of the fitting.
Protection against extreme weather: Guard S is rated IP 66, making it suitable for your exterior doors and gates.(IP66 meaning that Guard S is protected against the highest level of dust exposure, as well as against hose-directed water, heavy rain, and snow)
Designed with architects in mind, aesthetic and modern design
Strong handle: Guard S' handles are guaranteed with Class 4 handle, robust and resists strongly against vandalism, fulfilling the highest grade of use
Adjustable fixing points, allowing a universal fit regardless of the door
Three different colored reader sections (Black, White & Grey) to suit your environment
Easy battery change and long maintenance intervals due to long stand-by time and large number of locking cycles per battery
Airports, Education, Financial, Homes, Hospitals, Hotels, Industrial, Medium to Large Sized Businesses, Offices, Plants, Public Buildings, Small to Medium Sized Businesses, N/A, Prisons, Gambling Machines, Cash Machines, Ticket Machines, Transport, Energy, Wood Furniture
| Fire Resistant | 90 Minutes |
| Water Resistant | Yes |
| Patent Protection | Yes |
| Anti Corrosion Protection | Yes |
| Anti Drill Protection | Yes |
| Anti Pull Protection | Yes |
| Communication Technology | BLE 5.0, RFID 13.56 MHz, NFC |
| Stand-alone Functionality | Yes |
| Data On Card | Yes |
| Battery Lifetime Cycles | Up to 25000 cycles |
| Remaining Battery Cycles after 1st Warning | 500 |
| User Identification Technology | BLE 5.0, NFC, Mifare RFID 13.56 MHz |
| Number of Inputs | 2 |
| Number of Outputs | 0 |
| Acoustic Signalling | Yes |
| Optical Signalling | Yes |
| Supported Locking Media | Mifare Classic, Mifare DESFire, Mifare DESFire 8k, Mifare Ultralight, Mifare Plus, ISO 14443 A |
| Programming Methods | Master Card, Programming Card, Software, Smartphone |
| Battery Type | AAA Lithium |
| Number of Batteries | 2 |
| Battery Lifetime Years | Up to 2 Years |
| Battery Warning Alarm | Audio, Visual |
| Power Type | Battery |
| Emergency Power Supply | No |
| Assembly Information | Flexible Fixation Points due to movable sleeves/screws |
| Maximum Operating Temperature (celsius) | 65 |
| Maximum Relative Humidity (%) | 99 |
| Maximum Storage Temperature (celsius) | 65 |
| Minimum Operating Temperature | -25 |
| Minimum Storage Temperature (celsius) | -25 |
| SKG Star Rating | 3 * |
| Patent Protection | Yes |
| Patented Until (year) | 2039 |
| Ingress Protection Rating | IP66 |
| EN 179:2008 | 3 7 7 B 1 3 5 2 A B |
| Surface Finish | Brushed Stainless Steel, Black |
| Fixation Type | Screw on or screw through |
| Handle Types | L-Shape mitre, L-Shape curved, U-Shape mitre, U-Shape curved, Cranked curved, Cranked mitre, Ball mitre only outside, L-Shape mitre + ball, L-Shape curved + ball, U-Shape mitre + ball, U-Shape curved + ball, Cranked mitre + ball, Cranked curved + ball |
| Power Type | Battery |
| Events Storage Capacity in the Device | 1000 |
| RFID Encryption | AES, AES-128 Bit, DES, 3DES, Crypto-1, ISO 14443A, OSS |
| Data Encryption | XSALSA20-256 Bit, Curve 25519-256 Bit, Poly 1305-128 Bit |
| Input Options | Door open, lock status, ect. |
| Assembly Information | Flexible Fixation Points due to movable sleeves/screws |
| Handle Functions | Electronically controlled handle on the outside, Interior handle is always operable, DIN-L/R adjustability on site, Upward handle movement possible, Max. operation angle of the handle 45° |
DOM Tapkey Sticker Tag
Replacement set plastic cover Slimline
Replacement set plastic cover Wideline
DOM Tapkey Standard Tag
Sealing ring Slimline
Sealing ring Wideline
3x threaded sleeve Guard-S
Cylinder protection and cellular rubber ring
