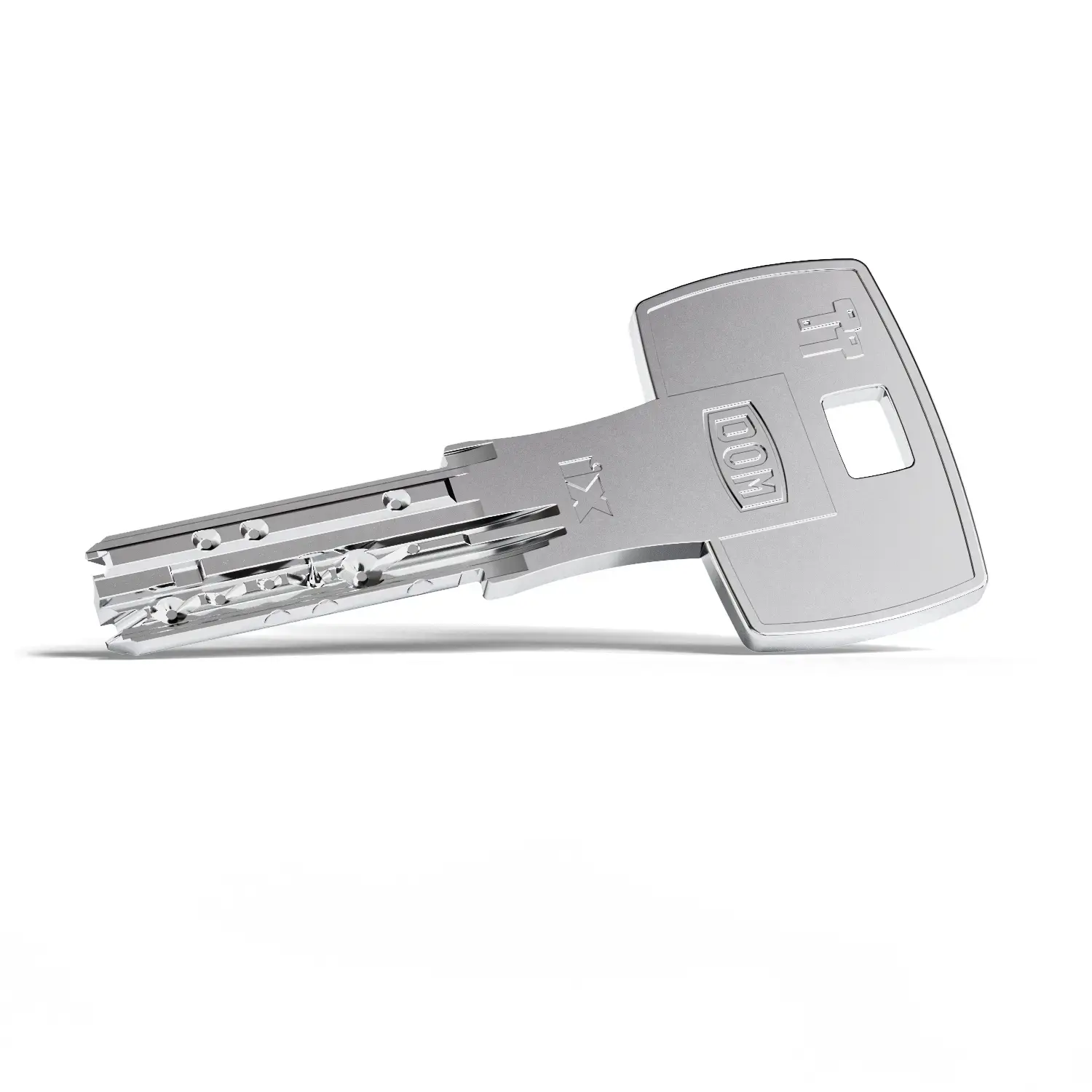

The new reversible key ix Teco® is especially well protected against unauthorised copying by an innovative stamped recess in the key, a technique for which a patent is pending. A special high-deep milling (HT) technique used in the horizontal basic profile enhances security during profile checks and is difficult to copy. With the innovative and sophisticated design you are purchasing a locking system with an efficient key copy protection which is predestined for use in locking system but also for single locks.
Airports, Education, Financial, Homes, Hospitals, Industrial, Medium to Large Sized Businesses, Offices, Plants, Public Buildings, Small to Medium Sized Businesses, Hotels
| Key Type | Reversible Key System |
| Registration Card | Yes |

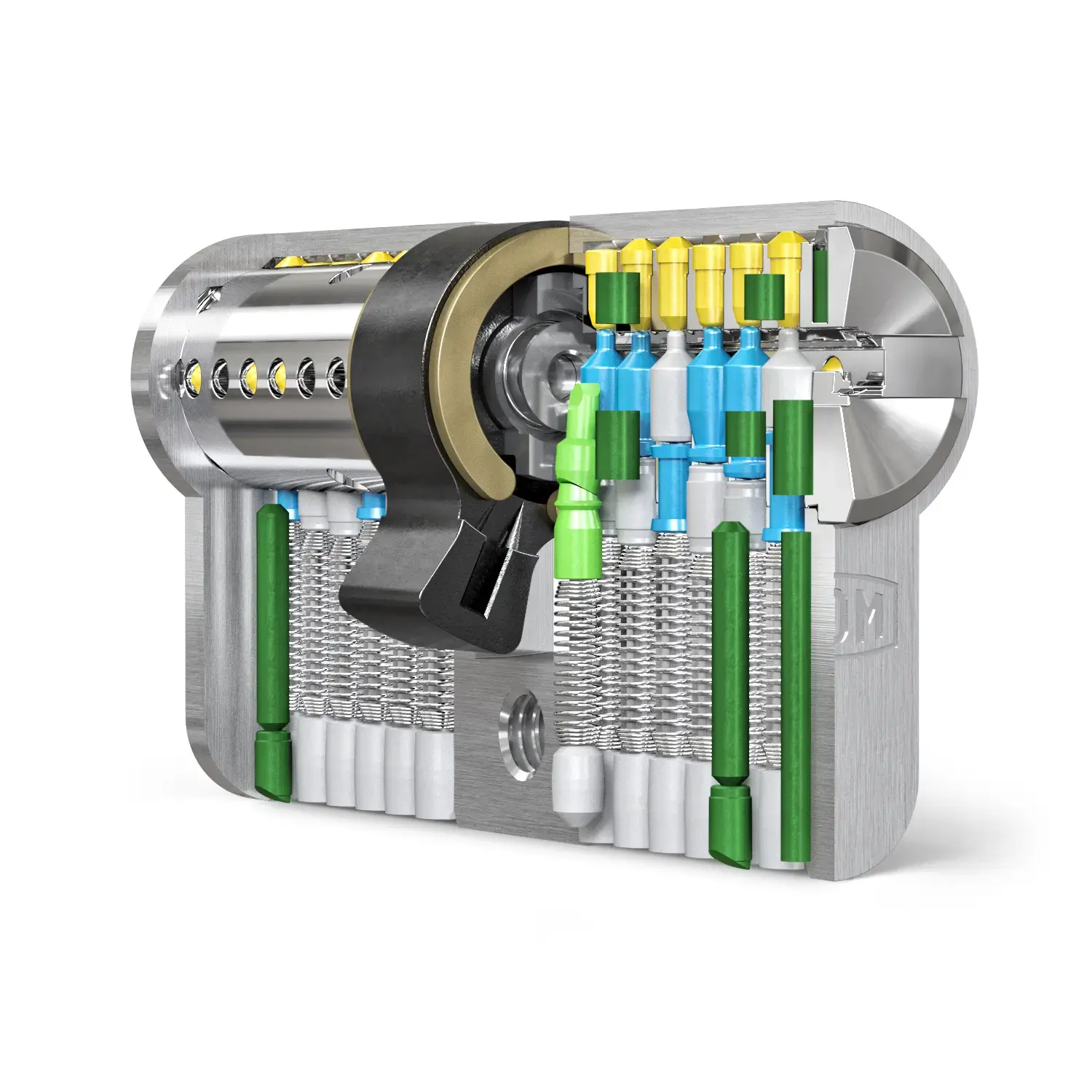

| Total Number of Locking Elements | 19 |
| MKS Possibilities | Grand Master Keyed, Master Key, Central Locking |
| Anti Pick Protection | Yes |
| Anti Bump Protection | Yes |
| Anti Drill Protection Housing | Yes |
| Anti Drill Core Protection | Yes |
| Modular | Optional |
| Construction Key Function | No |
| Maximum Number of Lateral Elements | 12 |
| Maximum Number of Upper Elements | 6 |
| Number of Active Locking Elements | 7 |
| Number of Ant Bumping Elements | 2 |
| Number of Anti Picking Elements | 2 |
| Number of Moveable Elements | 0 |
| Number of Passive Elements | 12 |
| Standard Warranty | 5 Years |

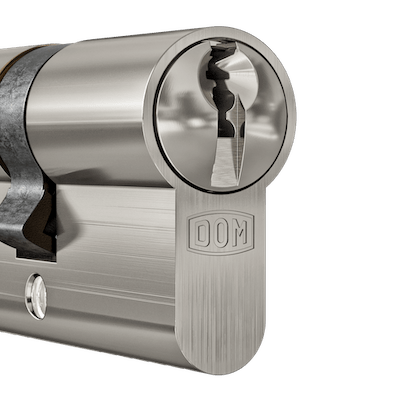

| Standard Finish | Matt Nickel |
| Standard Housing Material | Brass |
| EN 1303:2015 | 160B0C6B |
| A2P Rating | 1 * |
| SKG Star Rating | 2 * |
| EN 12320:2012 | Not Tested |
| Key Patent Protection | Yes |
| Key Patent Until (year) | 2038 |
| System Patent Protection | Yes |
| System Patented Until (year) | 2038 |
| Number of Keys | 3 |
| Key Material | New Silver |
| Standard Finish | Matt Nickel |

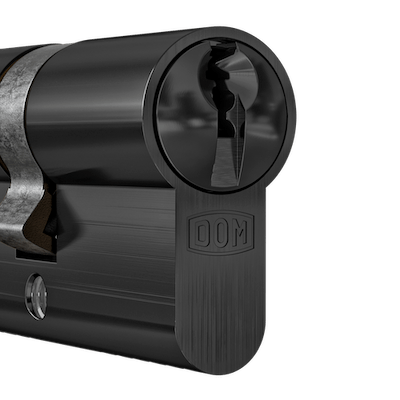

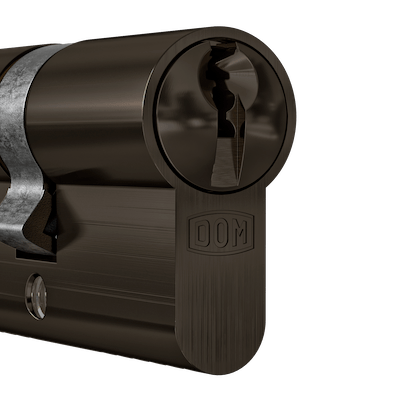

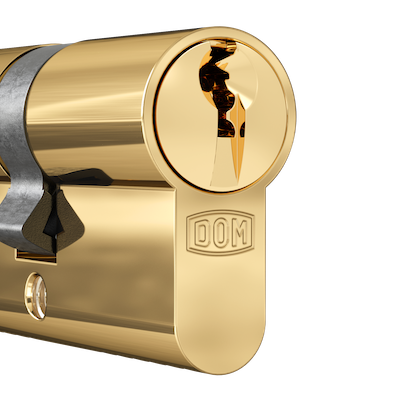

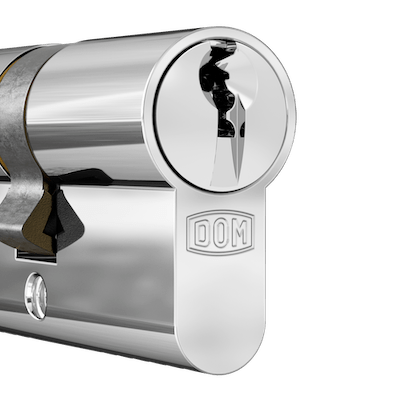

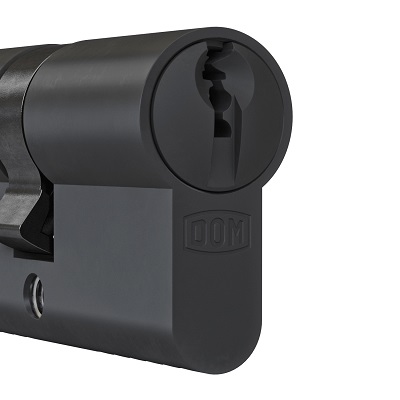

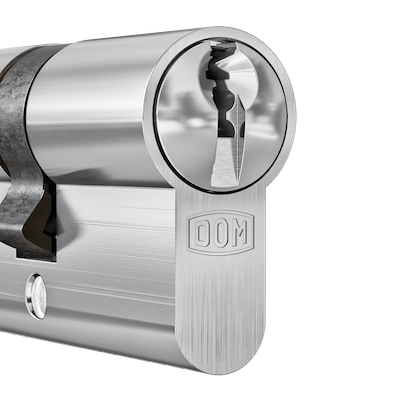

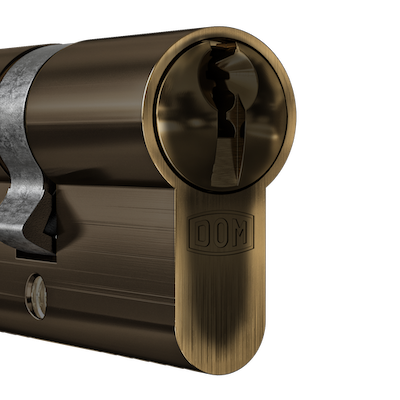

| Optional Finishes | Bright Chrome, Matt Chrome, Matt Brass, Bright Brass, Dark Bronze, Antique bronze, Bronze, Gold, Black |
| Standard Housing Material | Brass |
| Standard Cam | DIN |
| Optional Cams | 10 Teeth Gear Cams, 14 Teeth Gear Cams , PM1, PM2 |
