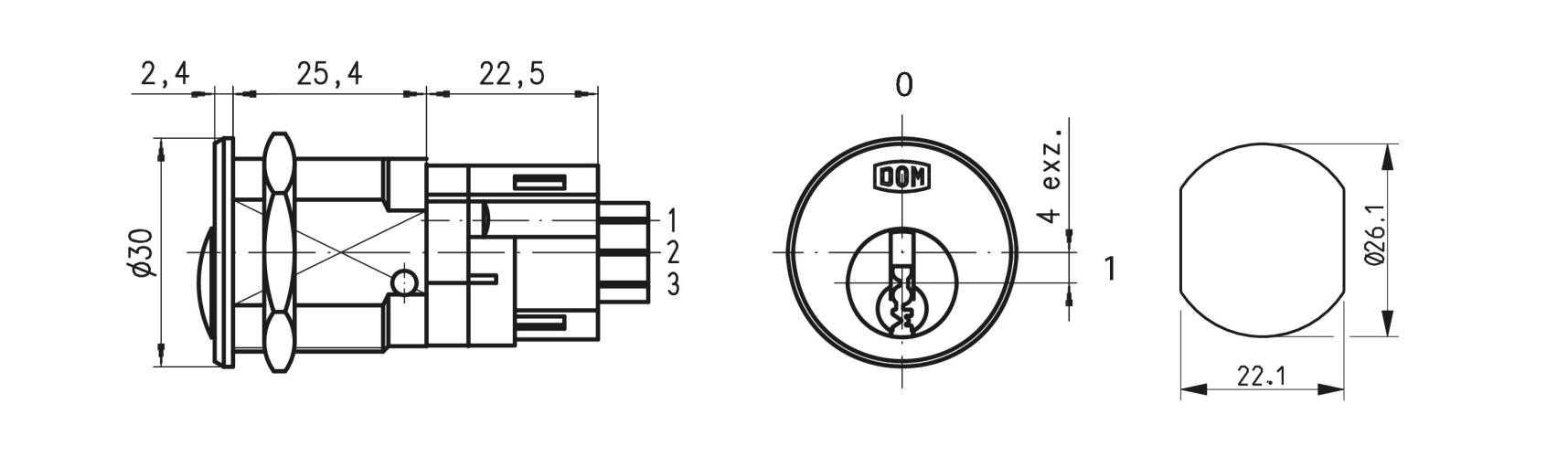

View technical drawing

About

Security and high durability combined with modern design.

Download Industry Catalogue

Features

  • Increases safety because only the authorised person can switch the machine on or off.
  • High durability

  • Safety, becuase only the allowed person can switch on or off the machine
  • Long operating life
  • 100% metal increases durability of the lock.
Conventional Pin System
Grand Master Key System

Suggested application of use

Storage, Stockist, Sustainable Energy, Metal Furniture, Gambling Machines, Toilet doors, Wood Furniture, Bicycle, Maintenance, Cash Machines, Car & Truck, Leisure & Fitness, Retail, Railway, Elevator, Ticket Machines, Letter Boxes, Vending Machines, Electrical Equipment, Shop Installer

Specifications

Features

Patent ProtectionYes
Security Type:Conventional Pin System
Available Key Series6SR, HT, RS8, SAT, SIG
MKS PossibilitiesGrand Master Keyed
Available Lock FixingsNuts
Resistance 500VYes
Standard FinishMatt Nickel

Patent ProtectionYes

Additional Informationresistance = 500V#with max. AC voltage 250V = max. amperage 5A#with max. d.c. voltage 30V = max. amperage 3A
Number of Keys2
Standard FinishMatt Nickel
MAX AC Voltage 250V : Max Amperage 5AYes
MAX AC Voltage 300V : Max Amperage 0.5AYes
