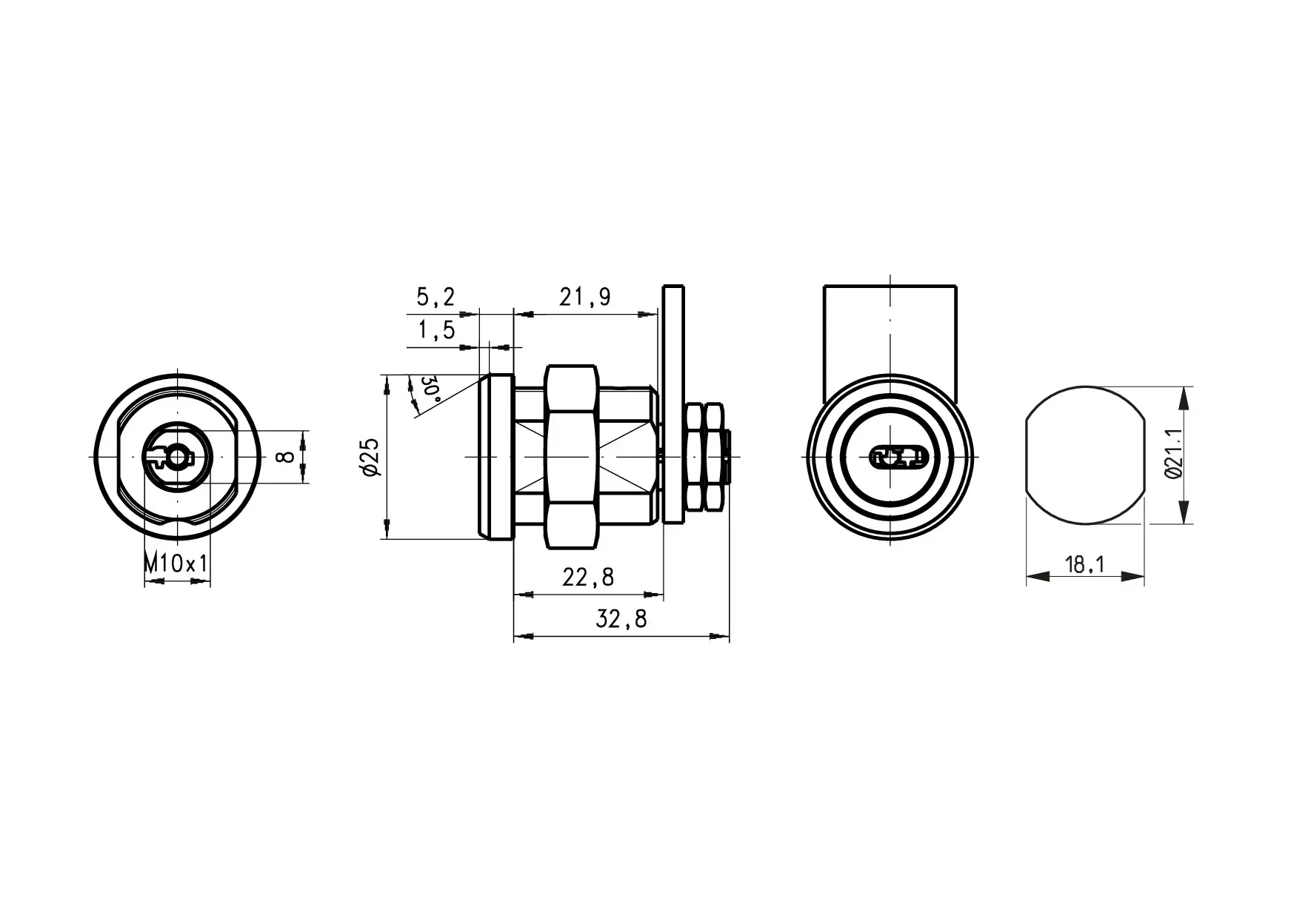

View technical drawing

About

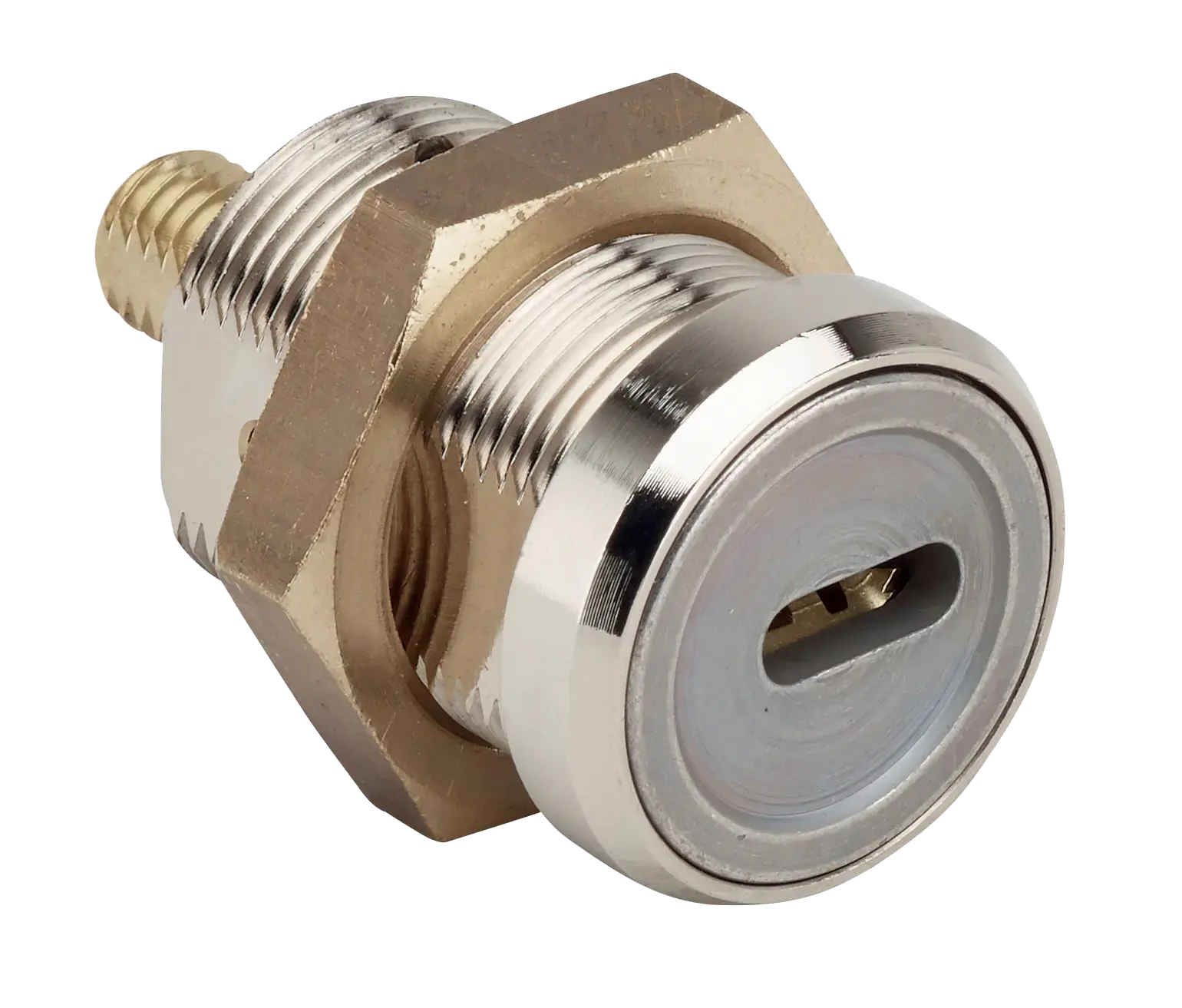

The DOM 31913H7 cam lock is manufactured in Brass. This ensures we can offer a product that is a robust and strong solution with a proven track record of offering a long life cycle. The core itself utilises Pin Technology, providing a high level of security for your application. It can also be integrated into new or existing Master Key systems where required.

We offer a comprehensive range of pin cam locks to suit the market requirements. Depending on your assembly process, we can offer you the best suited lock fixing to ensure an efficient and effective installation . The cam can be secured in place with a Nut fixing.

Download Industry Catalogue

Features

  • Reversible key system makes it easier to insert the key.
  • Reversible Pin technology offers a high level of security with extra anti drill protection.
  • Made from high quality materials, with a choice of finishes that provide a strong and robust product that you can rely on.
  • Available as a mastered or non mastered system, they can be easily integrated into a new or existing system seamlessly providing full control over your security.
  • Offering a 6 Pin barrel and a possible 100000 combinations. Lock rotations are: 90° Right opening / Left closing and 90° Left opening / Right closing.
  • 2 keys are provided as standard with Steel and Nickel key options available.
  • Secured in place with a Brass Nut fixing.
  • We offer an extensive range of cams to ensure we offer the best locking solution.
Reversible Pin System
Grand Master Key System
Anti Drill Protection
Profile Hole 2

Suggested application of use

Gambling Machines, Cash Machines, Ticket Machines, Transport, Energy

Specifications

Features

Anti Drill ProtectionYes
Security Type:Reversible Pin System
Available Key SeriesDH
MKS PossibilitiesGrand Master Keyed
Available Lock FixingsNuts
Standard Cam Family225
Standard FinishBright Nickel

Number of Keys2
Standard FinishBright Nickel
Flats Body A (mm)17.90
Body Diameter B (mm)M21x1
Body Length22.80
Full Length H (mm)32.80
