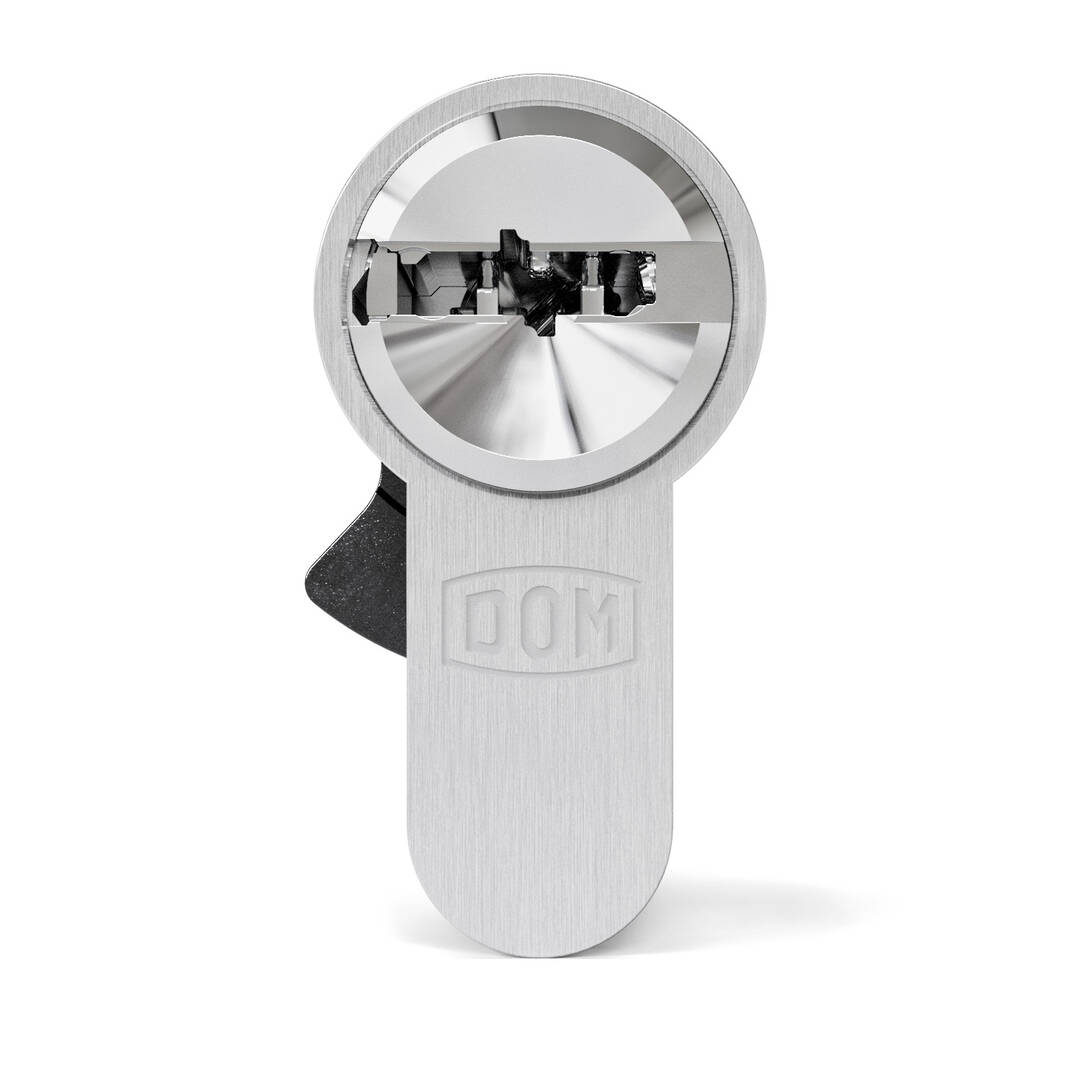

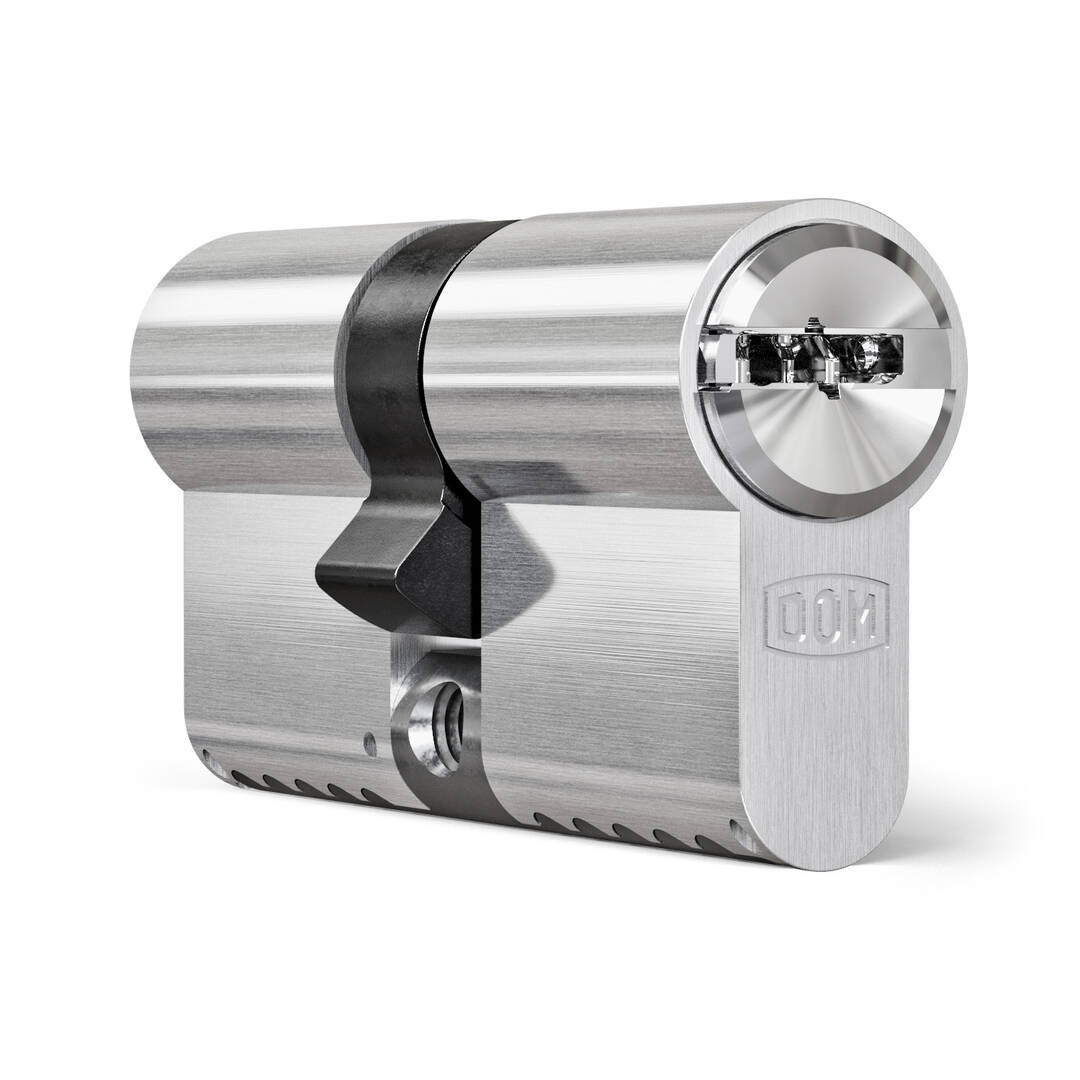

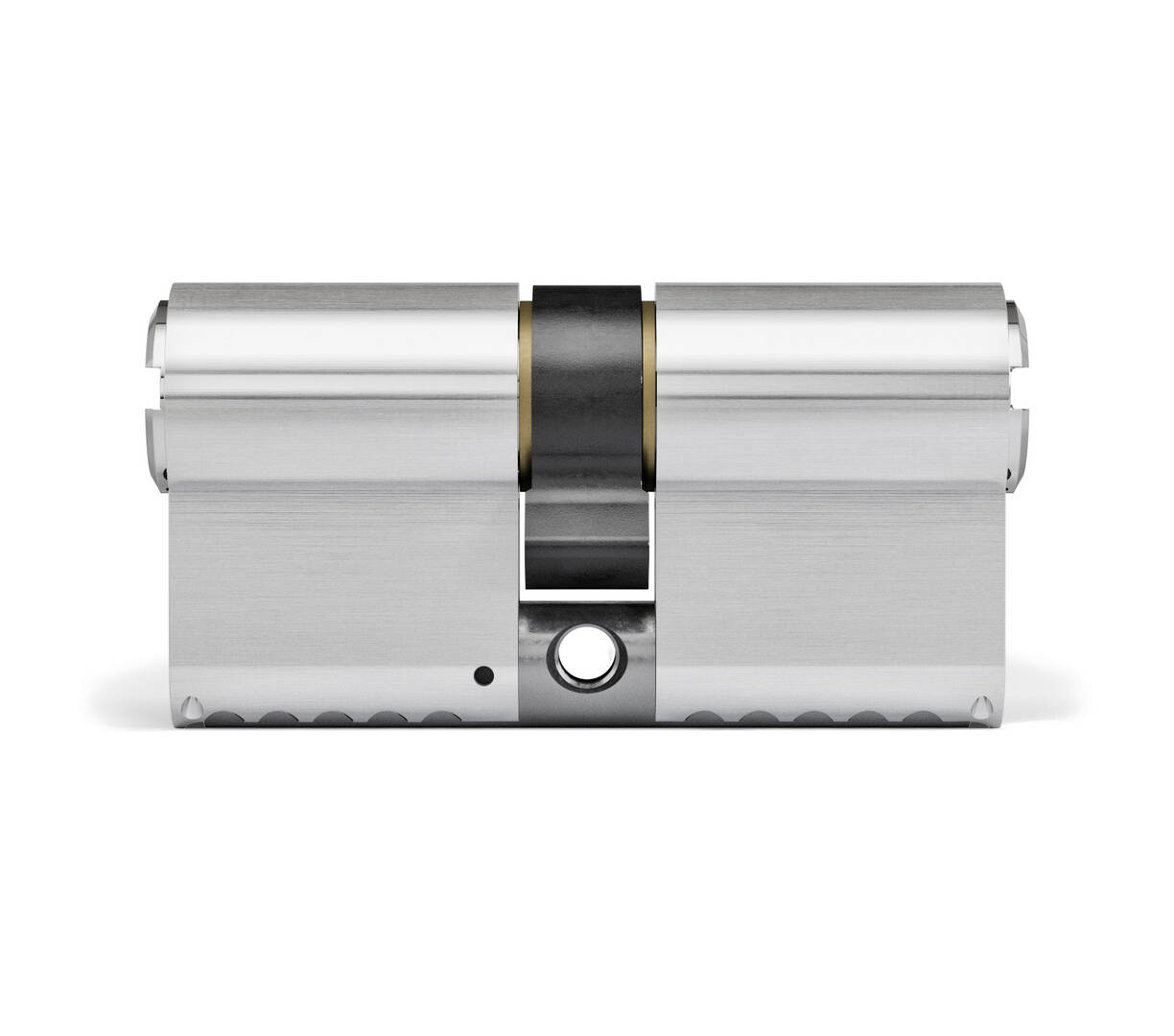

DOM ix Twintec Two roles - double the security

With its floating mounted dual role within the key the new reversible key system ix Twintec provides a high protection against unauthorised key copying. The complex system of 11 active locking elements has been desgined for use as a registered individual locks for the home or as a small masterkey system for small to medium sized businesses.

  • Property rights: patent term 2036
  • Floating mounted dual role within the key
  • Certifications: - DIN EN 1303 with the highest ranking in Attack Resistance - SKG 2* - SKG 3* (optional)
  • Modular cylinders, Highest level of drilling & pull protection
  • Compatibility with protective rosettes due to the flat key design
  • Extended key neck lenght for better fitment with security fittings
  • Available with a plastic key head for ergonomic handling
  • Compatibility to electronic locking systems with ClipTag
3 Dimensional Key System
Single Coded
Master Key System
Certification EN 1303
Certification Fire Resistant
Anti Break Protection
Anti Break Reinforcement
Anti Bump Protection
Anti Pick Protection
Anti Pull Protection
Dealer Profile
Registration Card

Sugestão de aplicação de uso

Airports, Education, Financial, Homes, Hospitals, Industrial, Medium to Large Sized Businesses, Offices, Plants, Public Buildings, Small to Medium Sized Businesses, Hotels

Características técnicas

Trademark ProtectionYes
Key TypeReversible Key Systems
Registration CardYes
Total Number of Locking Elements20
MKS PossibilitiesMaster Key, Single Coded
Anti Pick ProtectionYes
Anti Bump ProtectionYes
Anti Drill Protection HousingYes
Anti Drill Core ProtectionYes
Anti Pull ProtectionYes
ModularYes
2 in 1 FunctionOptional
Construction Key FunctionOptional
Maximum Number of Lateral Elements10
Maximum Number of Upper Elements9
Number of Active Locking Elements10
Number of Ant Bumping Elements8
Number of Anti Picking Elements8
Number of Moveable Elements2
Number of Passive Elements10

EN 1303:2015160B0C6D
SKG Star Rating2 *
Key Patent ProtectionYes
Key Patent Until (year)2036
System Patent ProtectionYes
System Patented Until (year)2036
Trademark ProtectionYes

Standard FinishMatt Nickel
Optional FinishesBright Brass, Bright Chrome, Bright Nickel, Matt Chrome, Dark Bronze, Gold
Standard Housing MaterialBrass
Number of Keys5
Key MaterialNew Silver
Standard CamDIN
