DOM Diamant Everlasting quality

The DOM Diamant system delivers high performance every time. Designed by DOM this new generation of locking system consists of 21 rotating steel discs and impresses with its quality and design. Complying with the highest of security requirements every single component from material through to the locking mechanism has been designed with quality and security in mind.

  • Highest level of key copy protection thanks to 3D shaped key
  • SKG
  • High manipulation protection with up to 35 locking authorisation queries per key
  • Registered Single Coded System, Security Card
  • Modular cylinders, Highest level of drilling & pull protection
Single Coded
Certification EN 1303
Certification Fire Resistant
Certification SKG 3 Star
Anti Bump Protection
Anti Pick Protection
Anti Pull Protection
Registration Card

Sugestão de aplicação de uso

Airports, Education, Financial, Homes, Hospitals, Industrial, Medium to Large Sized Businesses, Offices, Plants, Public Buildings, Small to Medium Sized Businesses

Características técnicas

Key Type3 Dimensional Key System
Registration CardYes
Total Number of Locking Elements10
MKS PossibilitiesSingle Coded
Anti Drill Protection HousingYes
Anti Pull ProtectionYes
ModularYes
Standard Warranty2 Years
Maximum Number of Lateral Elements0
Maximum Number of Upper Elements10
Number of Active Locking Elements10
Number of Ant Bumping Elements10
Number of Anti Picking Elements10
Number of Moveable Elements0
Number of Passive Elements0

EN 1303:2015160B0C6D
SKG Star Rating3 *

Standard FinishMatt Nickel
Optional FinishesBright Brass, Matt Chrome, Matt Brass, Dark Bronze
Standard Housing MaterialSteel & Zamak
Number of Keys3
Key MaterialStainless Steel
Standard CamDIN
Optional Cams10 Teeth Gear Cams

Acessórios opcionais

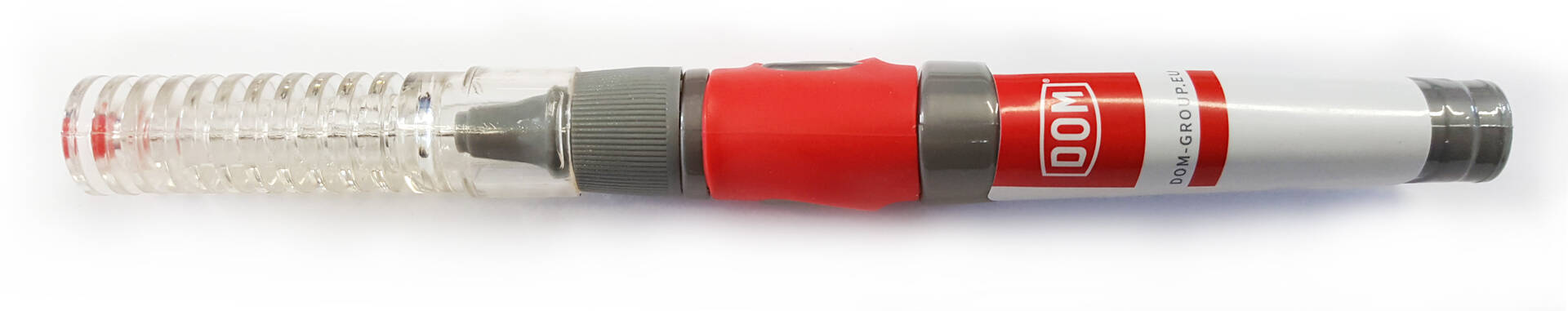

DOM Service Pen

DOM Service Pen

298700
Universal lubricant
