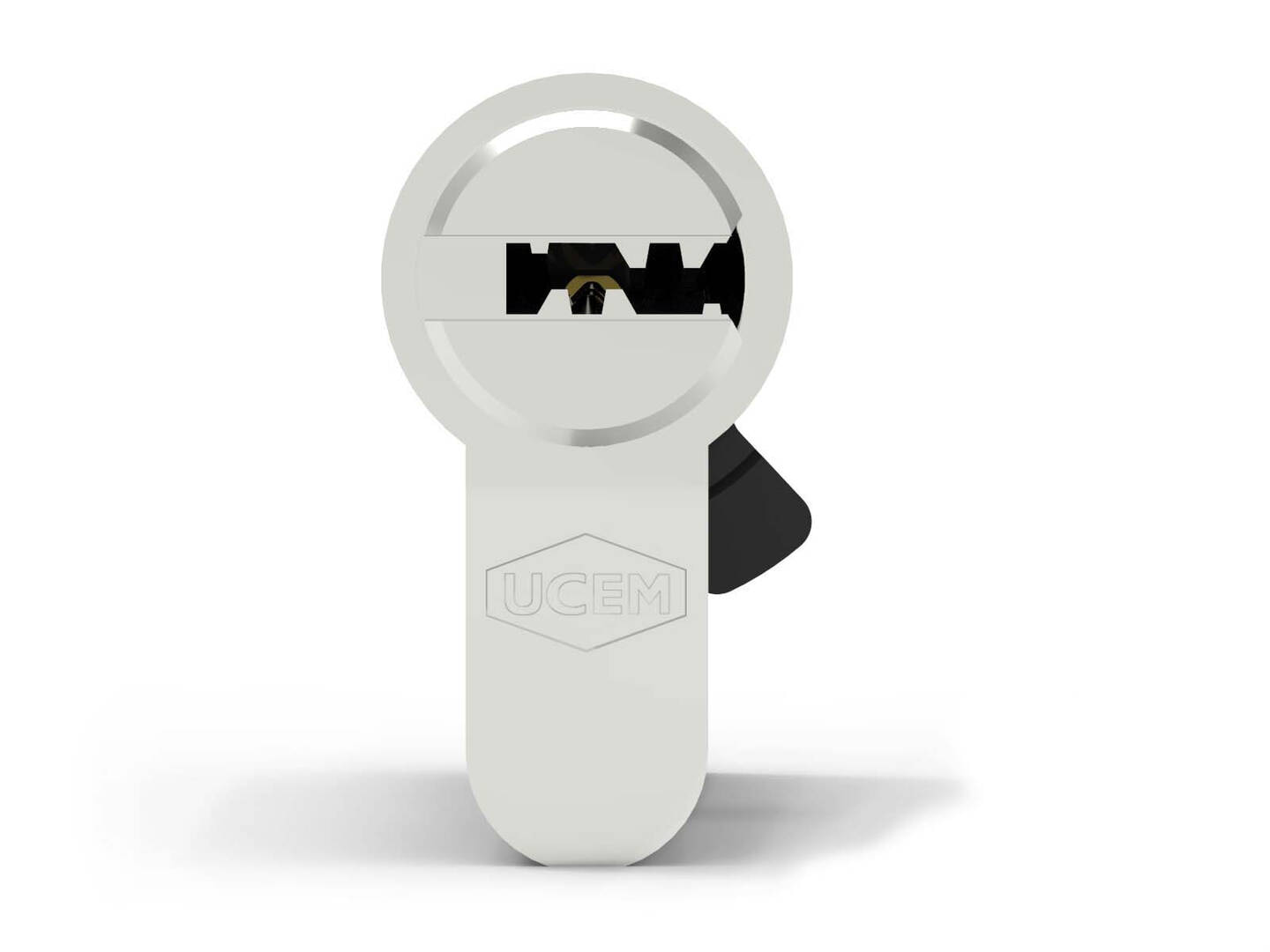

UCEM UAB Reversible - 6 pins - Antibumping


The UAB Ucem Antibumping security cylinder is ideal for flats, houses and offices. Its official EN1303 certificate confirms the highest level of durability, attack resistance and corrosion resistance.
The special security elements inside this cylinder (anti-drill inserts in the body and rotor and steel pins with anti-bumping function) help to protect the door against external attacks. The long neck of the key makes it compatible with the most of escutcheons on the market.
Available in multiple lengths and finishes, this cylinder will be a perfect match for every existing or new door.
In addition, you can also simplify your family's life by installing key alike cylinders on all doors without the need for heavy key rings with multiple keys - all doors can be opened with just one key!
On the other hand, the optional double clutch function will always allow you to open the door even if a key has been left somewhere else.


  • Increased protection against break-in attempts thanks to its 6 active anti-bumping and anti-picking pins.
  • The anti-drilling protections on the body and on the rotor contribute to increase the door's resistance to external attacks.
  • Maximum classification for durability and resistance to attack according to EN1303: 2015
  • The optional double clutch allows the door to be opened from one side even if the key is inserted on the other side.
  • The long neck of the key allows it to have a high compatibility with the scutcheons already installed.
  • Available in various finishes to match current door hardware.
  • Optional key alike: ideal for users who want to open all doors with a single key.
Reversible Key System
Master Key System
Grand Master Key System
Certification EN 1303
Anti Bump Protection
Anti Pick Protection
Registration Card

Suggested application of use

Airports, Education, Financial, Homes, Hospitals, Industrial, Medium to Large Sized Businesses, Offices, Plants, Public Buildings, Small to Medium Sized Businesses, Hotels


Technical features

Key TypeReversible Key System
Registration CardYes
Total Number of Locking Elements12
MKS PossibilitiesGrand Master Keyed, Master Key, Central Locking
Anti Drill Protection HousingYes
Standard Warranty3 Years
Number of Active Locking Elements6
Number of Ant Bumping Elements6
Number of Anti Picking Elements3
Number of Moveable Elements6

EN 1303:2015160B0C5D

Standard FinishBrass, Bright Nickel
Standard Housing MaterialBrass
Number of Keys5
Key MaterialBrass Nickel
Standard CamDIN
Optional CamsSpanish Cam 13.2 mm
