Technical Specification
Hydraulic door closer with cam action technology.
High quality components. Body manufactured with aluminium, arm and internal components manufactured with high quality steel.
Fixed closing force size EN3.
CE Certified according to European Standard EN 1154.
Certificate nº 1121 - CPR - AD5440
CE Classification
• Door Mount Pull Side and Transom Mount Pull Side application
4 - 8 - 3 - 1 - 1 - 3
• Door Mount Pull Side and Transom Mount Push Side application
3 - 8 - 3 - 1 - 1 - 3
On security systems against fire, it is not allowed to install a door closer size EN2.
Fire Resistant. Classification RF120’ according to Eurpoean Standrad EN 1634-1.
Closing Speed Control. Adjustable closing speed by valve in the range from 180º to 15º.
Latch Action Control. Ajustable latch action by valve in the range from 15º to 0º.
Thermostatic door closers. Closing time keeps stable submitted to temperatures between -15ºC y +40ºC.
Security against forced closings thanks to overpressure valve incorporated inside the door closer.
Adjustable Hold Open. Adjustable hold open system to any selected opening angle (optional).
High performance. Excellent closing efficiency by means of needle bearings incorporation.
Easy to install. Adapts to all type of applications and offers great ease of installation.

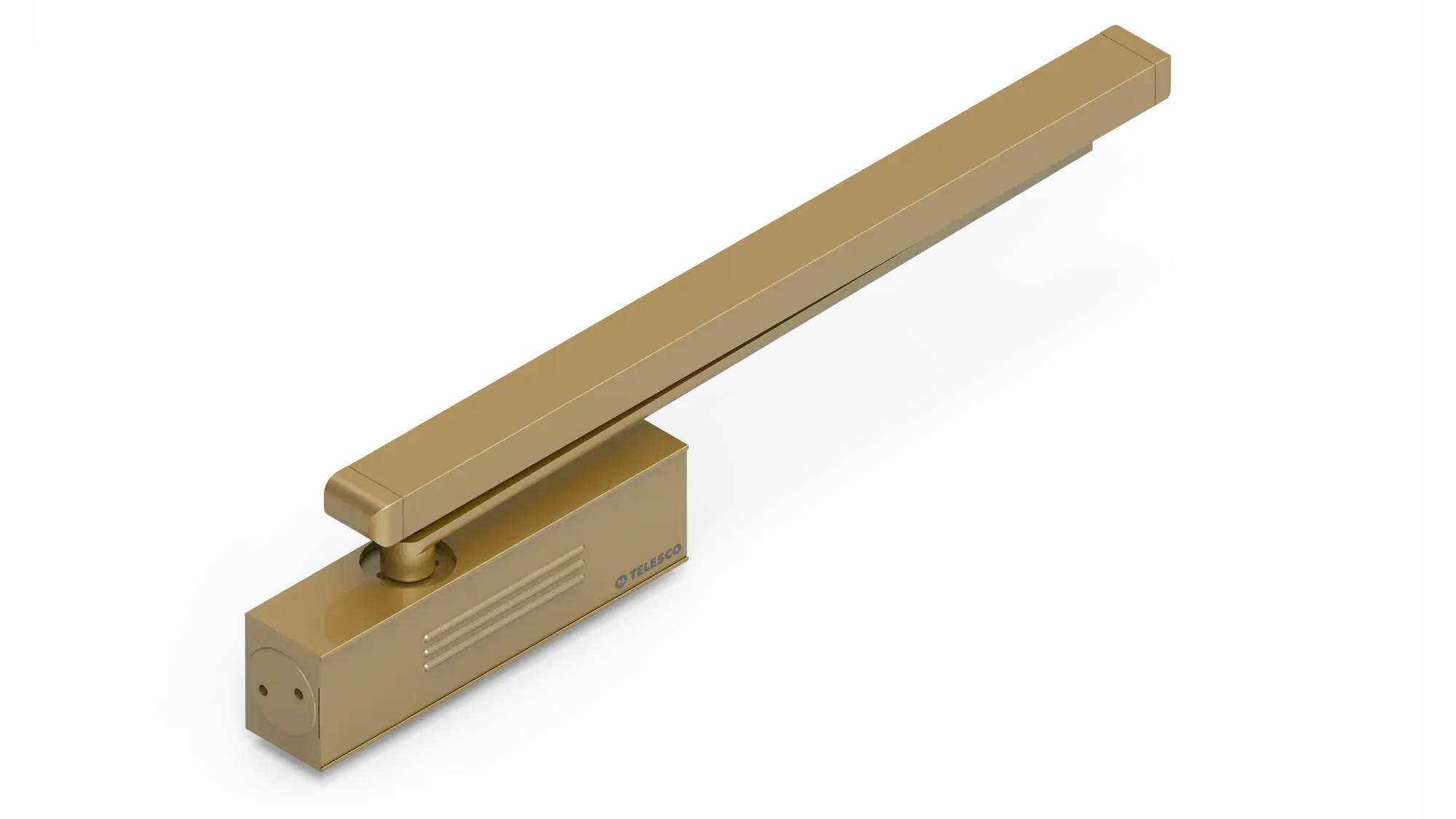

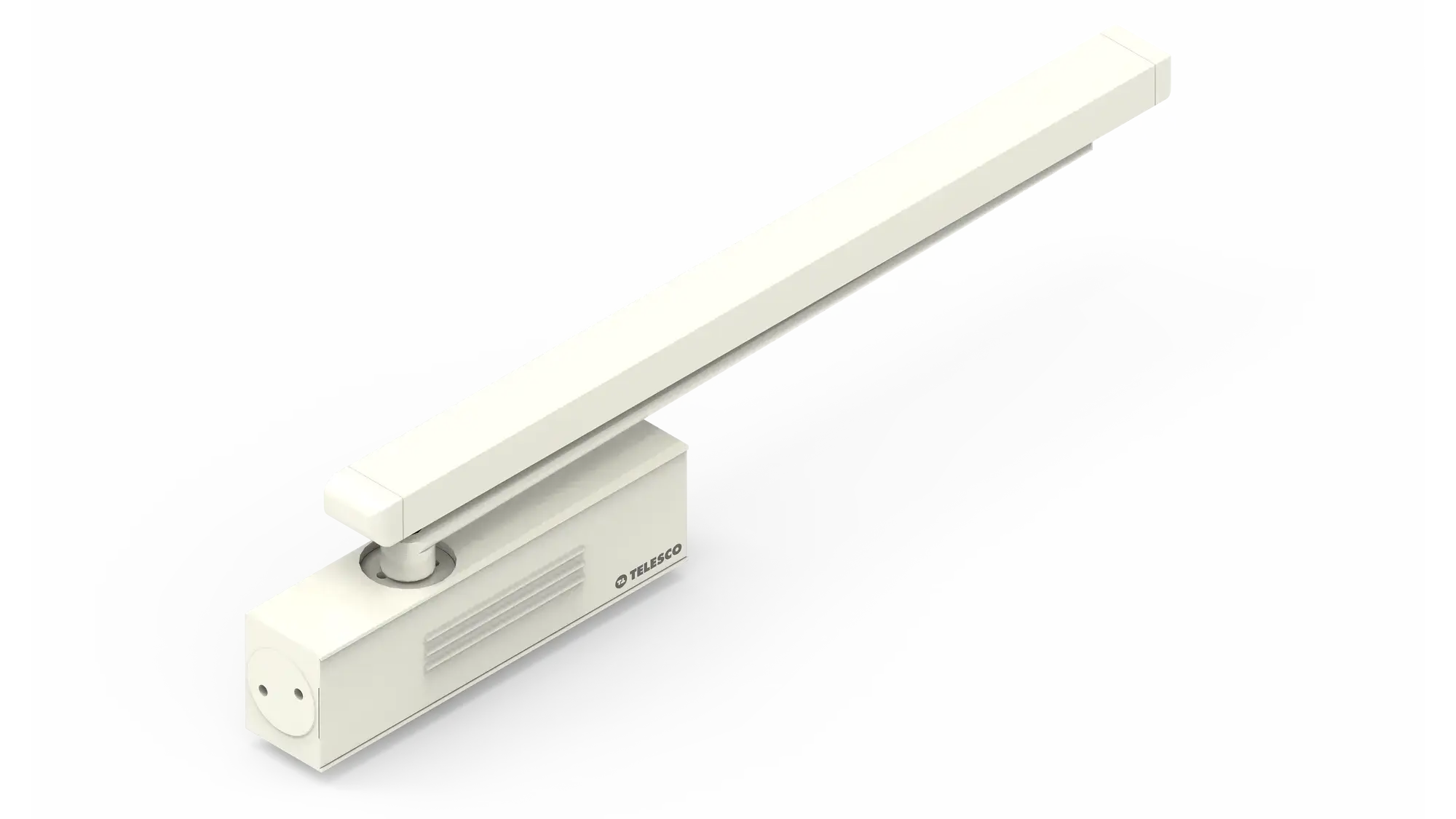

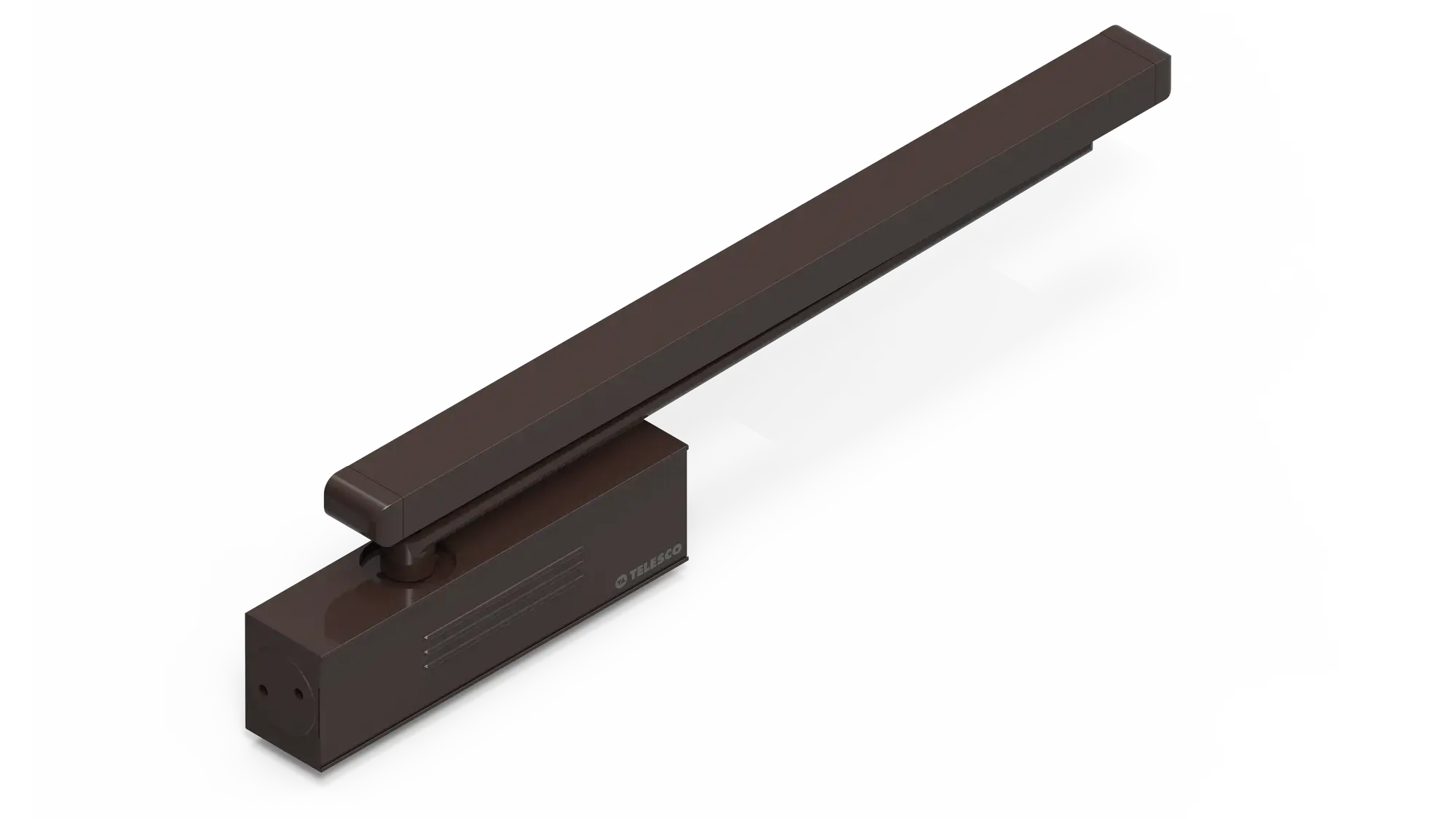

Range of colors. Available in five different colors: White (BL), Brown (BR), Black (NE), Gold (OR) and Silver (PL).
Packaging
Individual Box content: Complete door closer (hydraulic body, arm set, fixing screws and fixing instructions).
Carton Box content: 4 units
