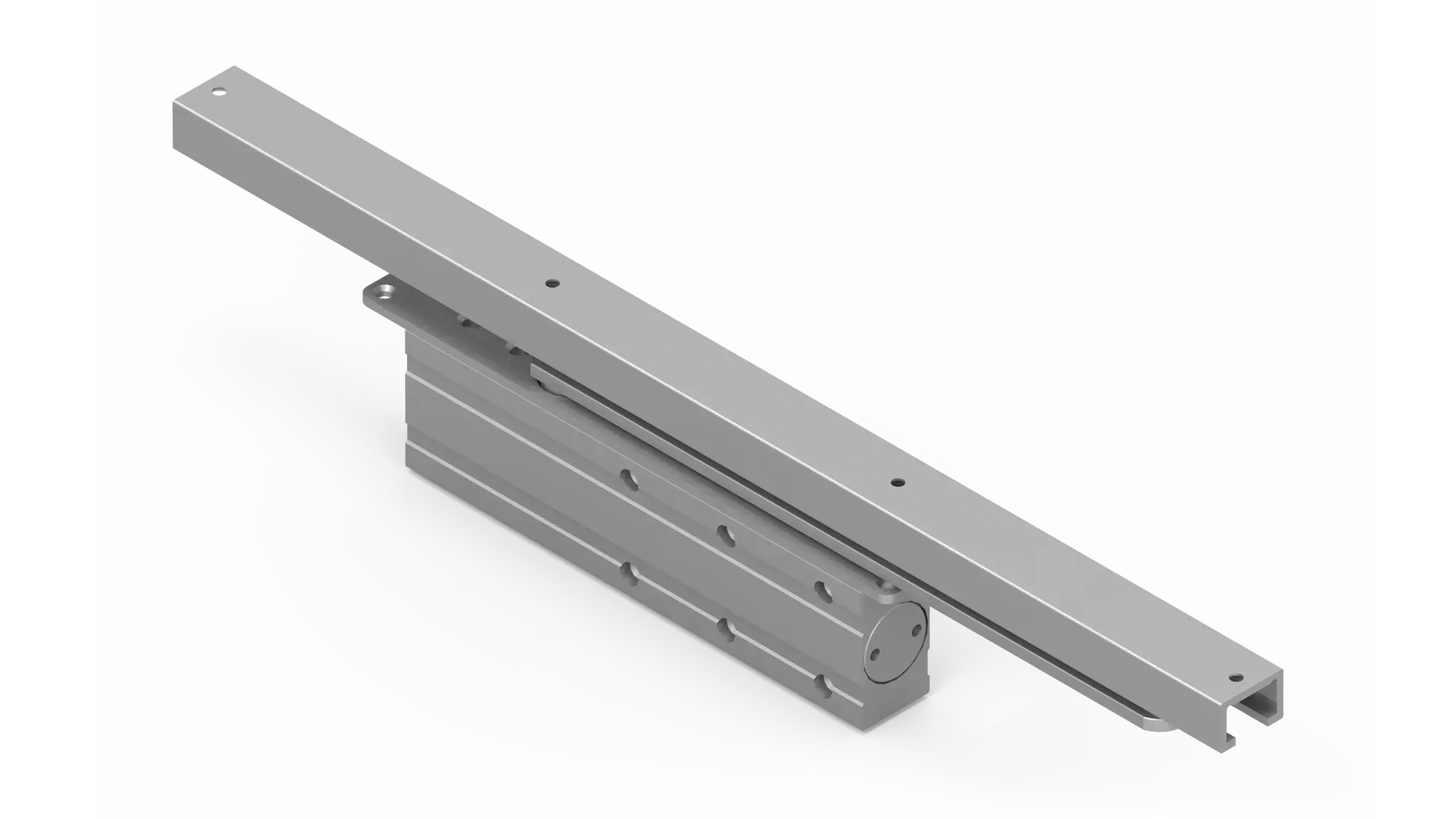

TELESCO Insert 7000 Compact concealed reversible door closer designed for light doors up to 950 mm

Technical Specification
Hydraulic door closer with rack and pinion mechanism.
High quality components. Body manufactured with aluminium, arm and internal components manufactured with high quality steel.
Fix closing force. Size EN3.
CE Certified according to European Standard EN 1154.
Certificate nº 1121 - CPR - AD5174
CE Classification
• Concealed in Door Application
3 - 8 - 3 - 1 - 1 - 4
On security systems against fire, it is not allowed to install a door closer size EN2.
Fire Resistant. Classification RF60’ according to Eurpoean Standrad EN 1634-1.
Closing Speed Control.Adjustable closing speed by valve in the range from 120º to 15º.
Latch Action Control. Ajustable latch action by valve in the range from 15º to 0º.
Thermostatic door closers.Closing time keeps stable submitted to temperatures between -15ºC y +40ºC.
Security against forced closings thanks to overpressure valve incorporated inside the door closer.

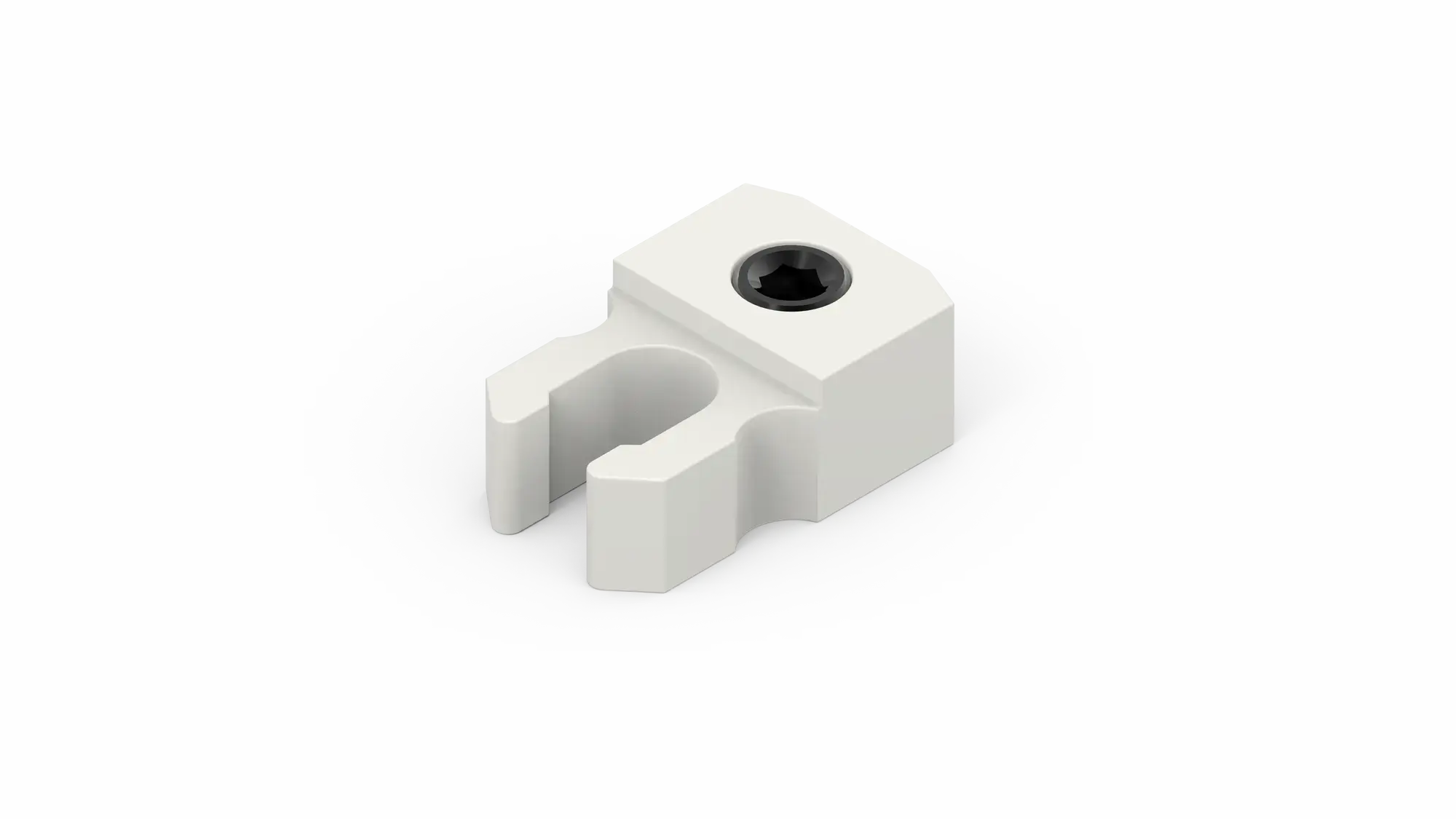

Adjustable Hold Open. Adjustable hold open system to any selected opening angle (optional).
High performance. Excellent closing efficiency by means of needle bearings incorporation.
Easy to install. Adapts to all type of applications and offers great ease of installation.
Fully invisible. All components are hidden once door is closed.
Range of colors. Available in five different colors: White (BL), Brown (BR), Black (NE), Gold (OR) and Silver (PL).

Packaging
Individual Box content: Complete door closer (hydraulic body, arm set, fixing screws and fixing instructions).
Carton Box content: 6 units
