Technical Specification

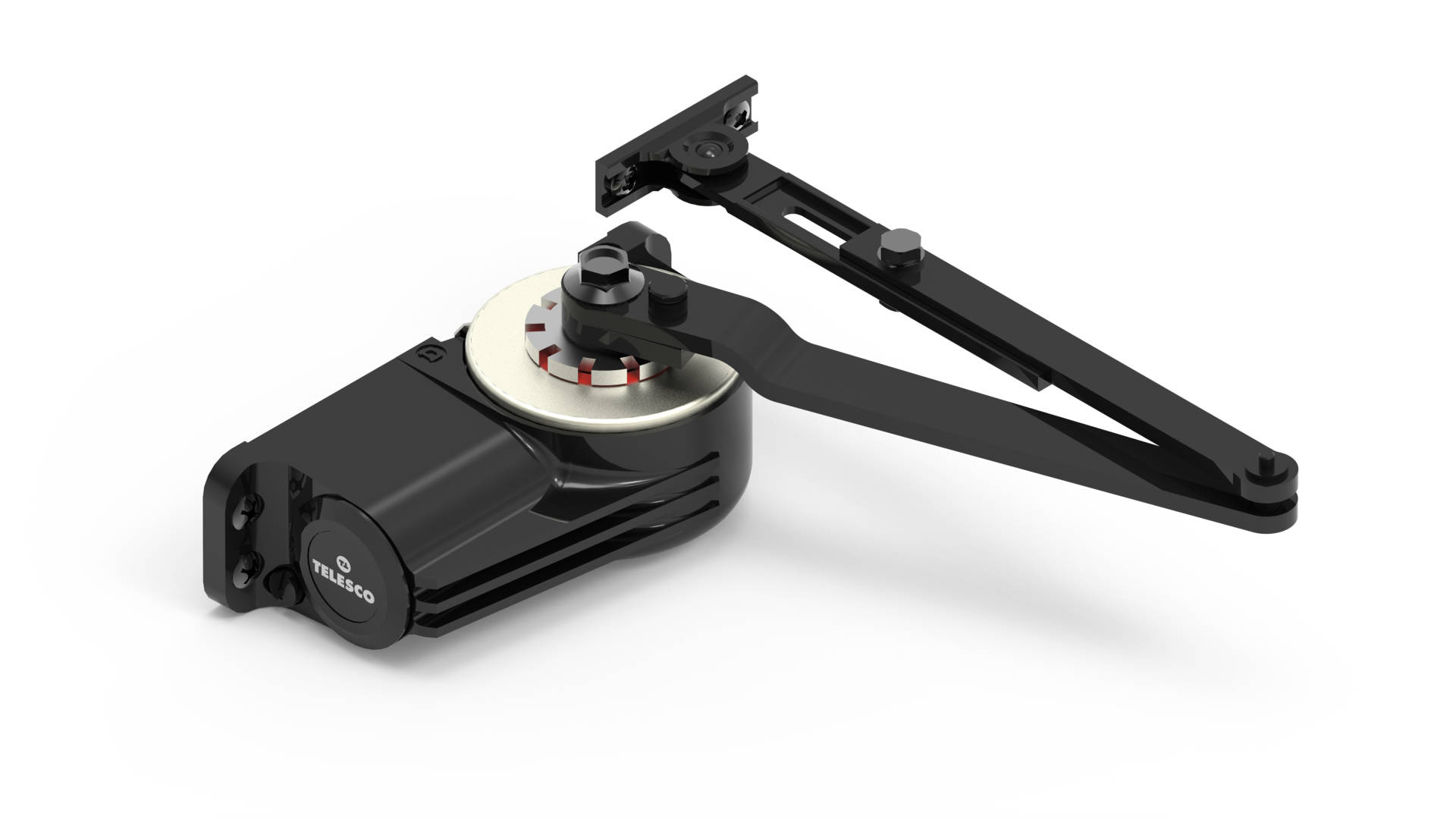

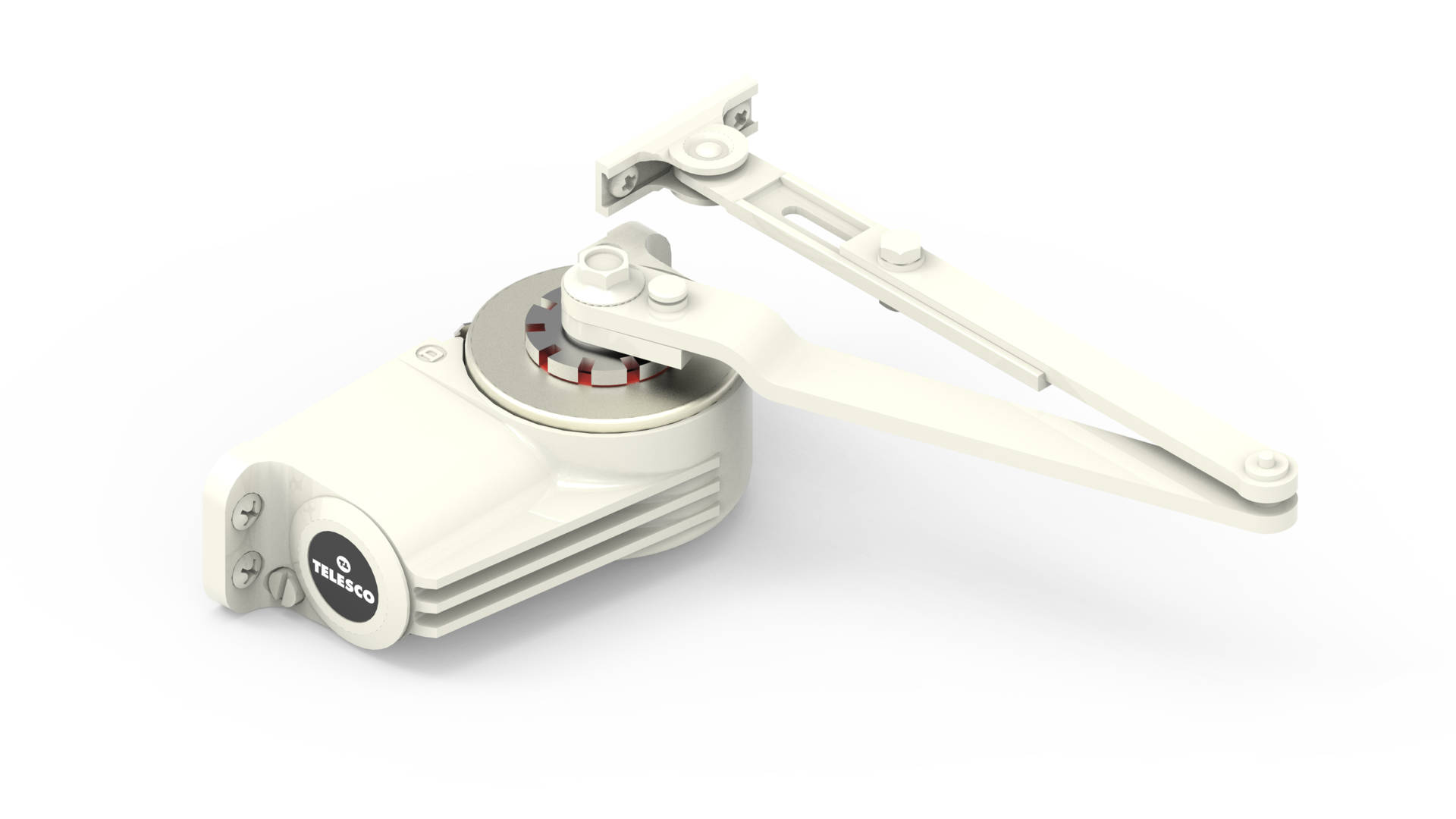

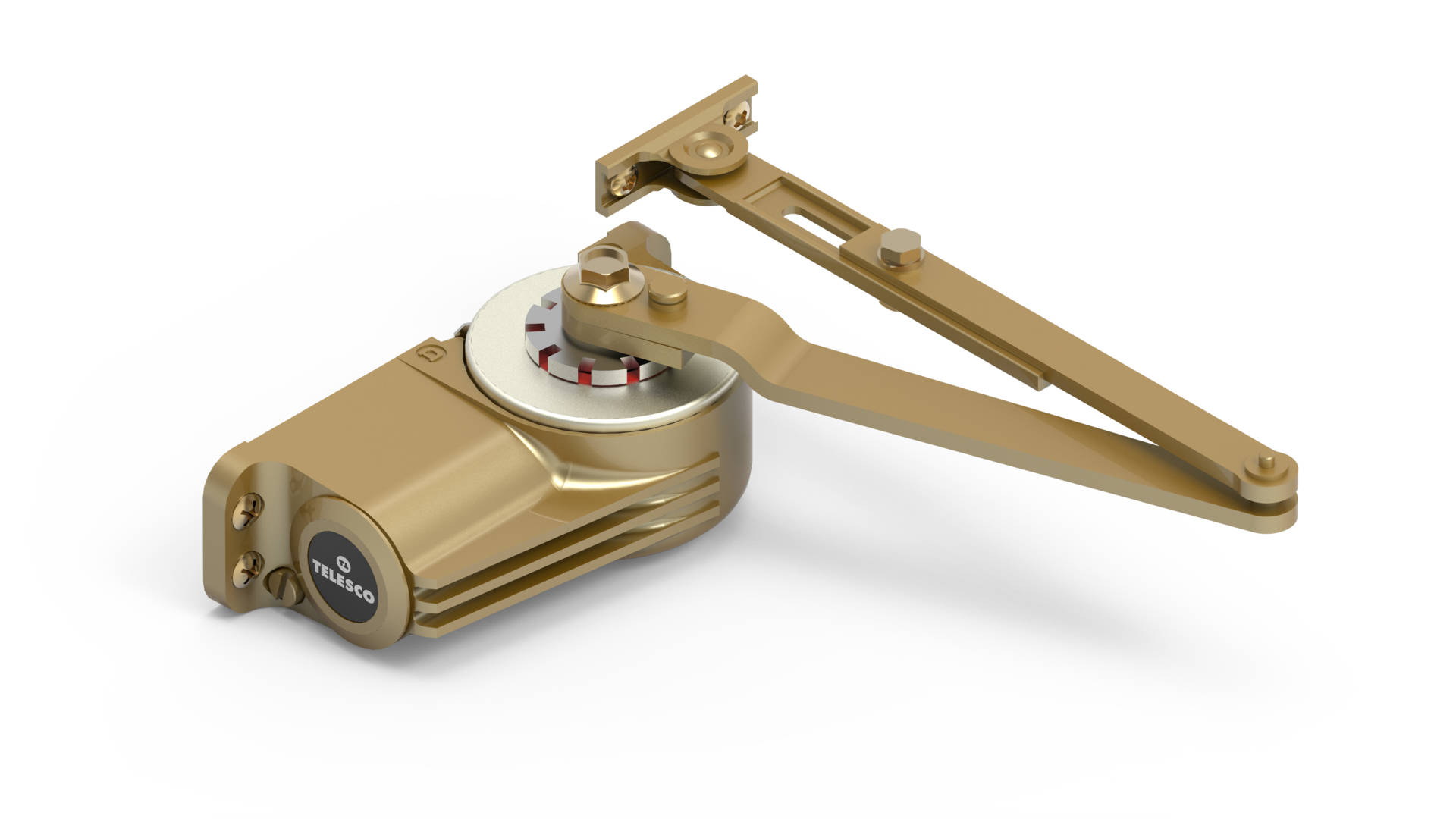

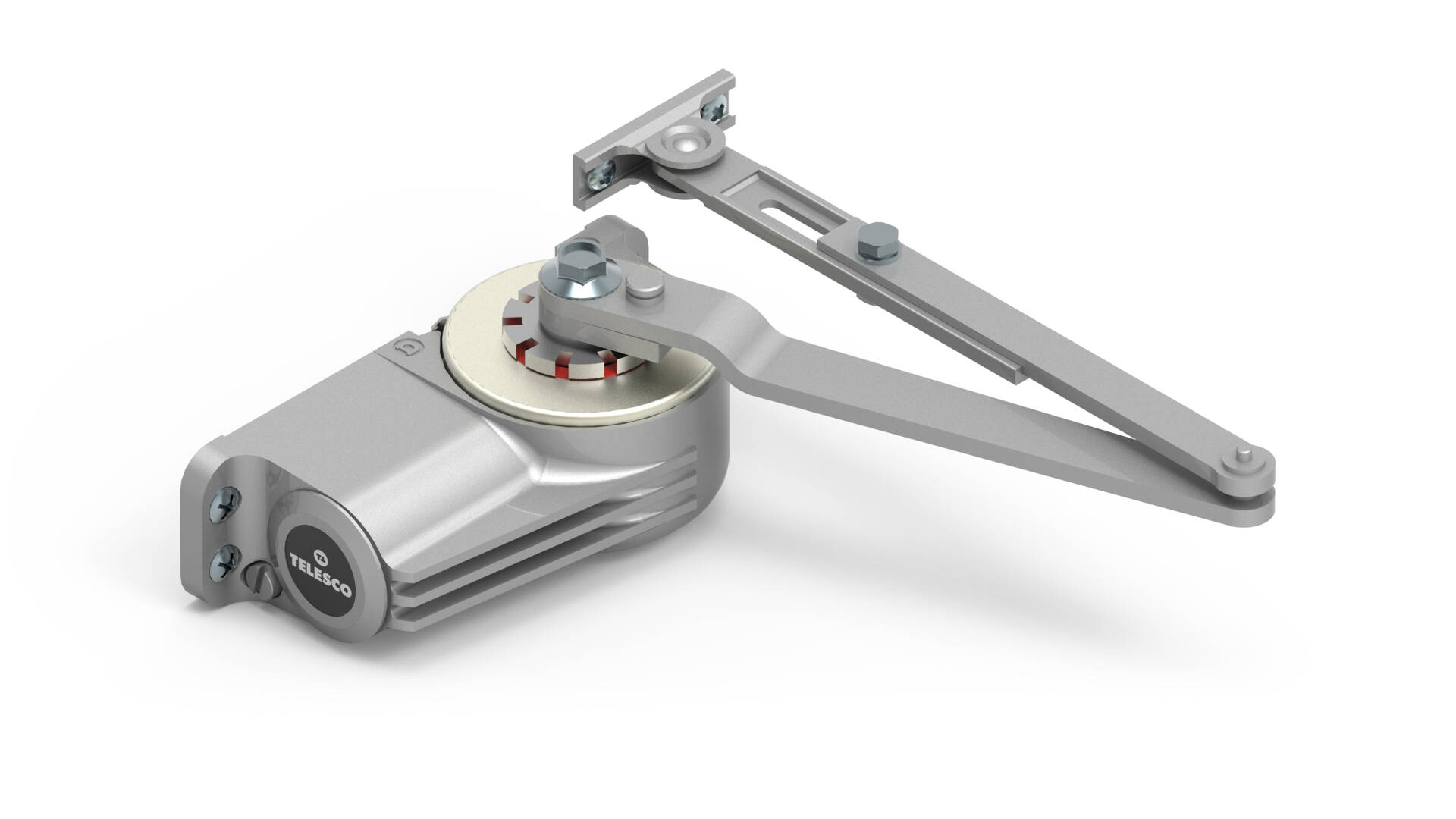

Hydraulic door closer with piston - crank - rod mechanism.
High quality components. Body manufactured with aluminium, arm and internal components manufactured with high quality steel.
Available in three adjustable closing forces 2 / 3 / 4. Spring`s tension can be adjusted to achieve required closing force according to each door's requirements.
Thermostatic door closer. Closing time keeps stable submitted to temperatures between -15ºC y +40ºC.
Inner Hold Open available on model AT permits to keep door opened at 90º.
Optional Latch Action available on model B.
Easy to install. Adapts to all type of applications and offers great ease of installation.
Range of colors. Available in five different colors: White (BL), Brown (BR), Black (NE), Gold (OR) and Silver (PL).
Packaging
Individual Box content: Complete door closer (hydraulic body, arm set, fixing screws and fixing instructions).
Carton Box content: 10 units
| Fire Resistant | None | ||
| Door Closer Type | Surface Mounted | ||
| Door Closer Technology | Piston-Crank-Rod | ||
| Closing Force Adjustment | Fix Force | ||
| Delayed Action Function | None | ||
| Hold Open | Optional | ||
| Installation Position | Universal (Standard & Reverse) | ||
| Adjustable Closing Speed By Valve | Yes | ||
| Door Closer Latch Type | Latch by Arm | ||
| Optional Parallel Arm Bracket | No | ||
| Standard Warranty | 10 Years |
| Latch Angle | 10º |

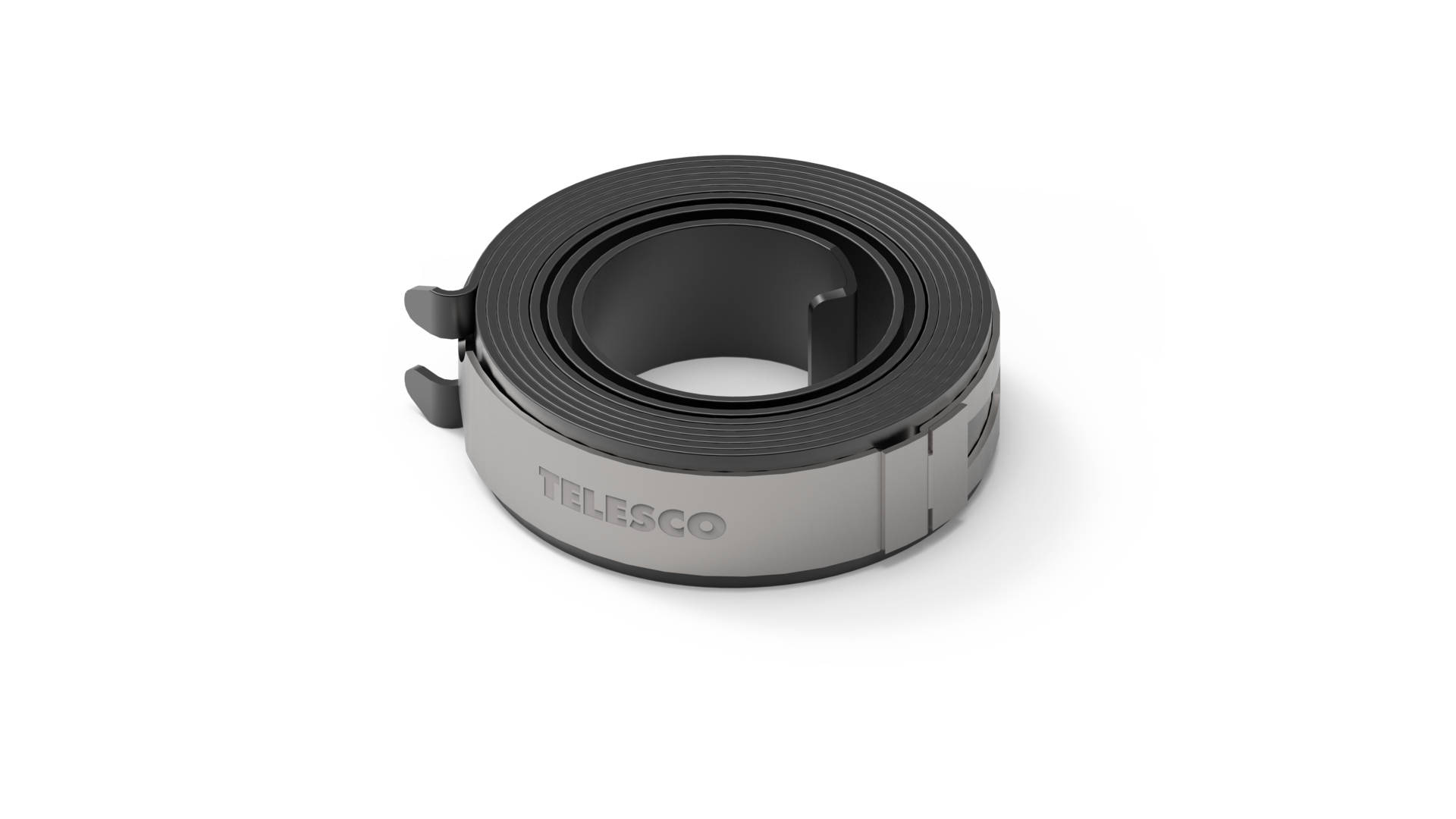

Spare Spring Kit

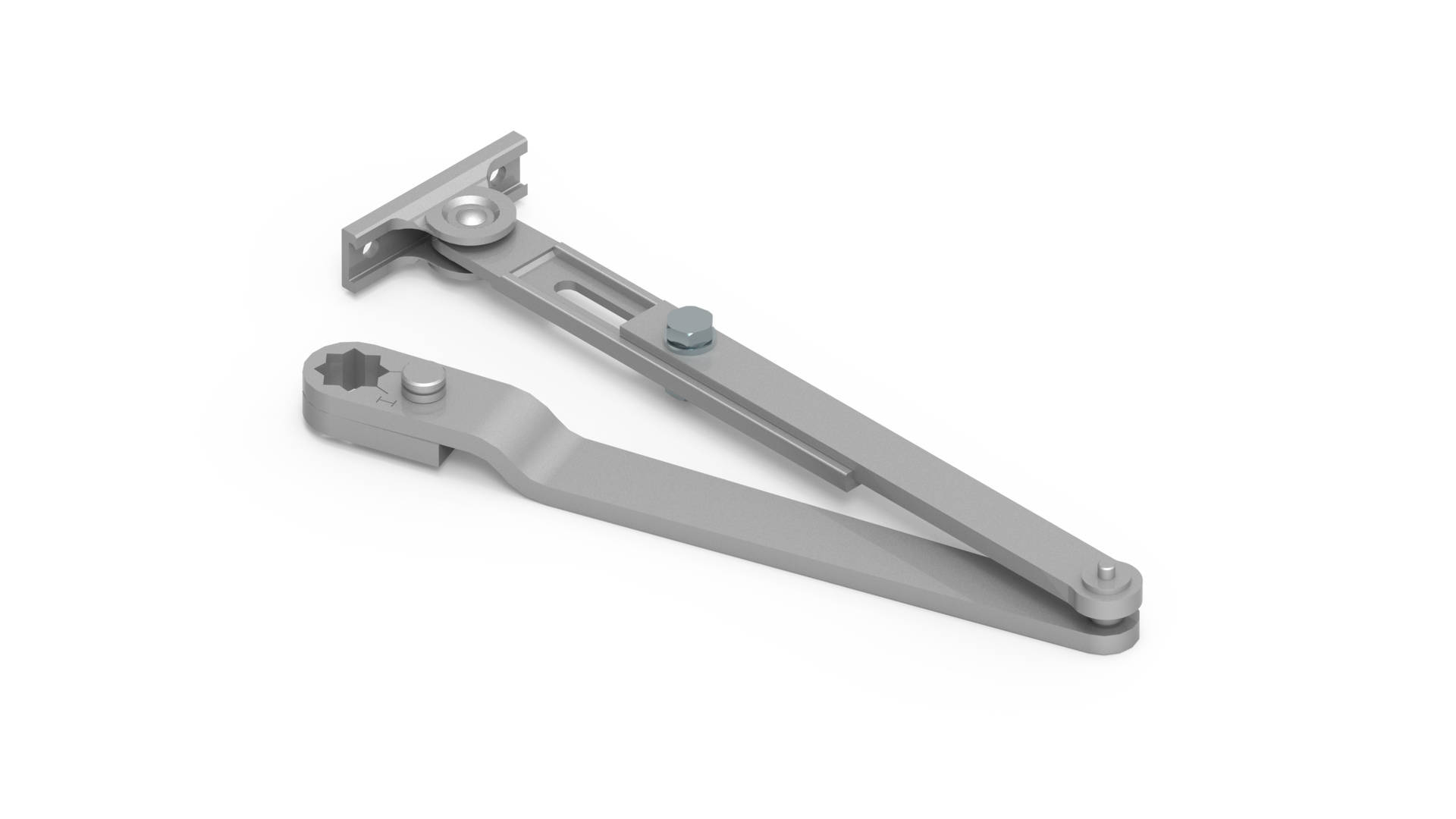

B Model Standard Link Arm
AT Model Standard Link Arm
