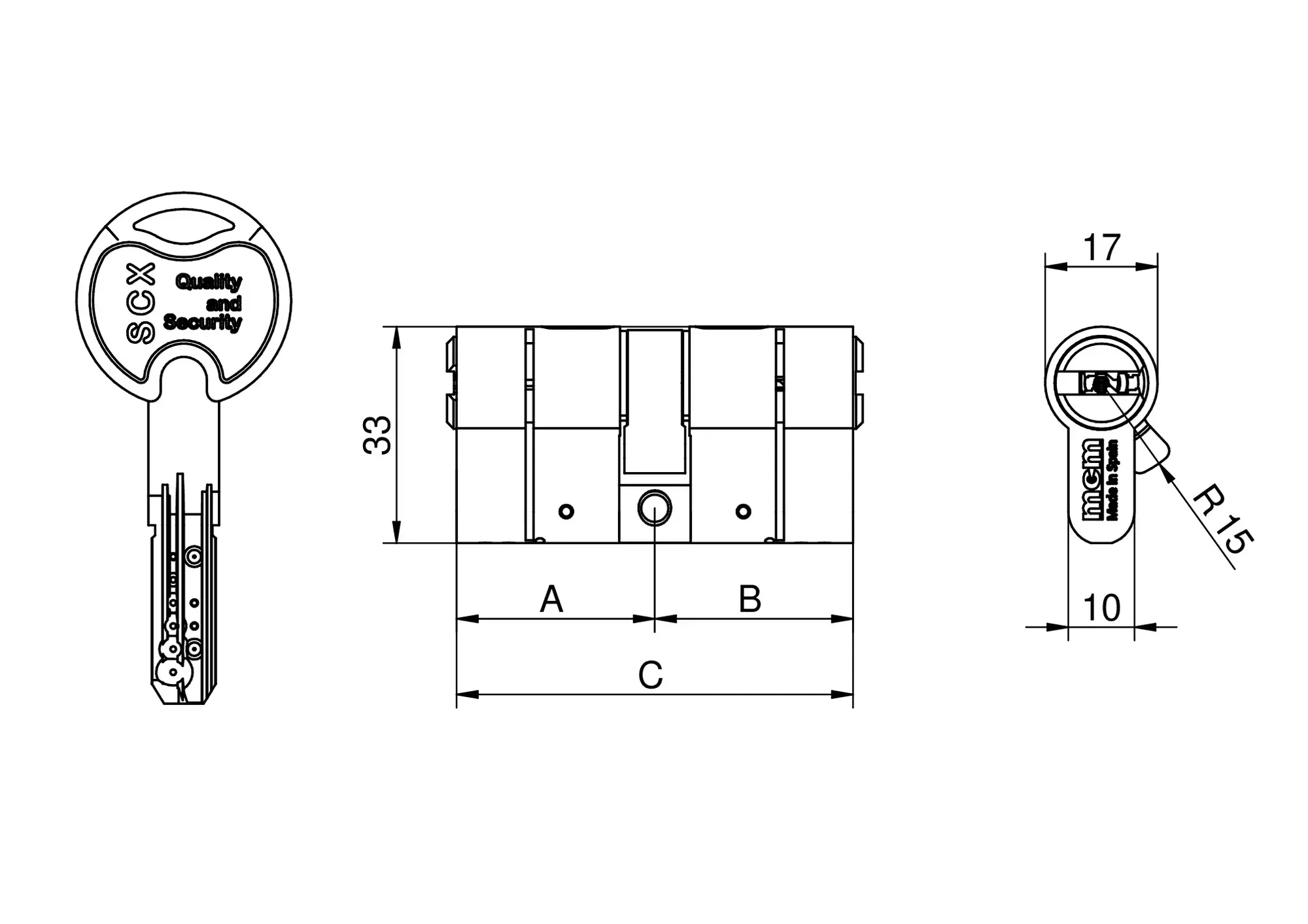

View technical drawing

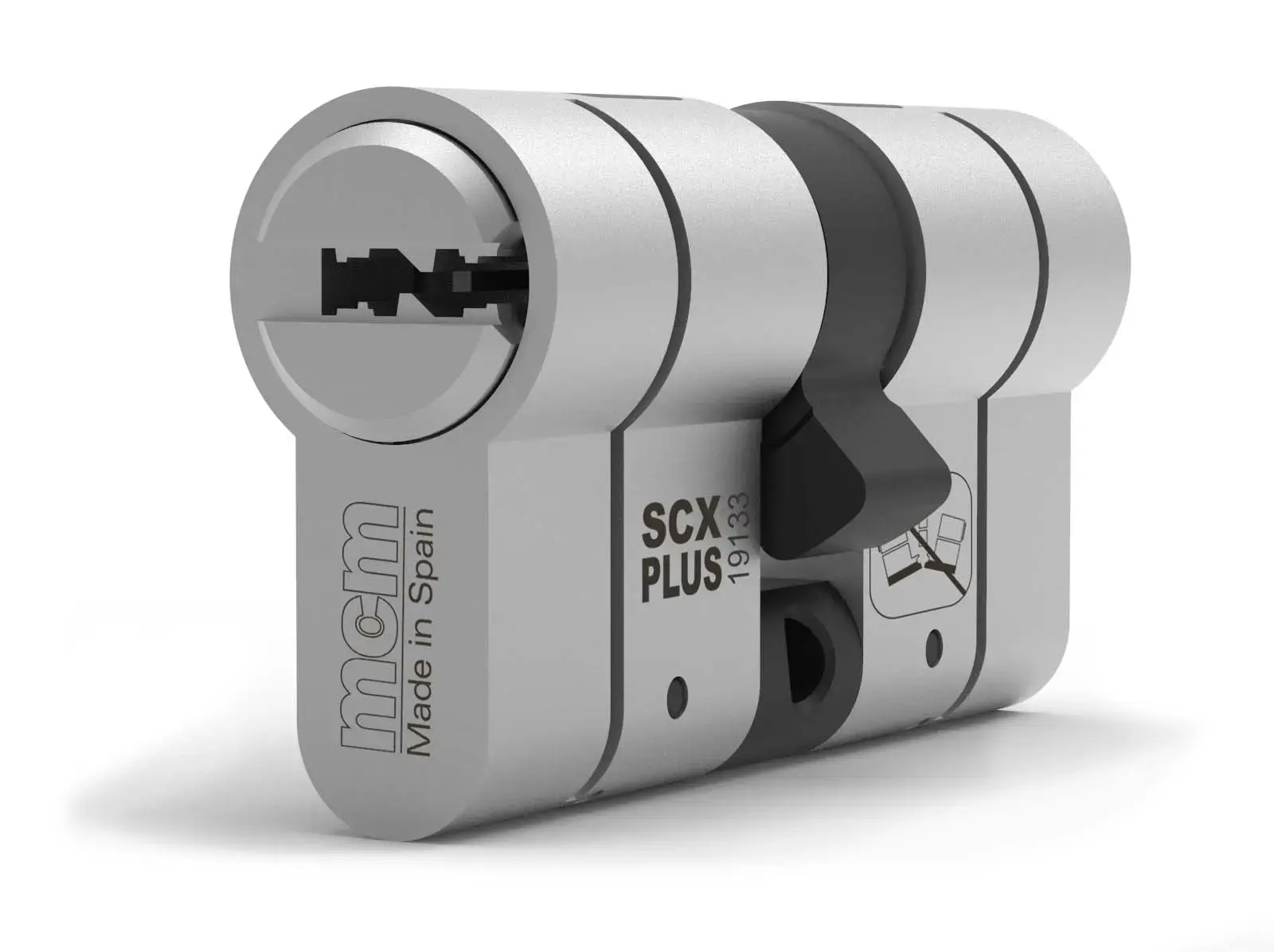

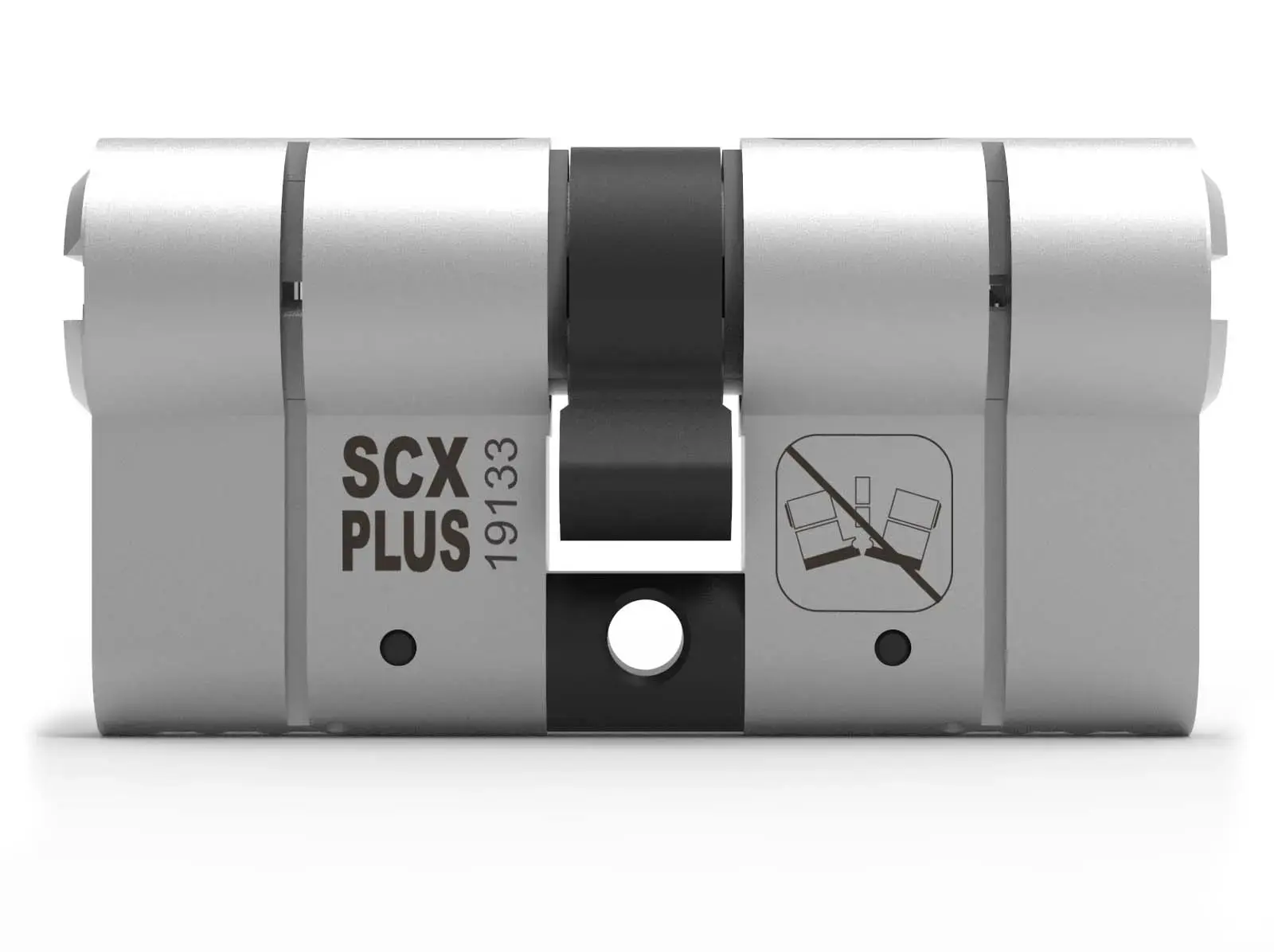

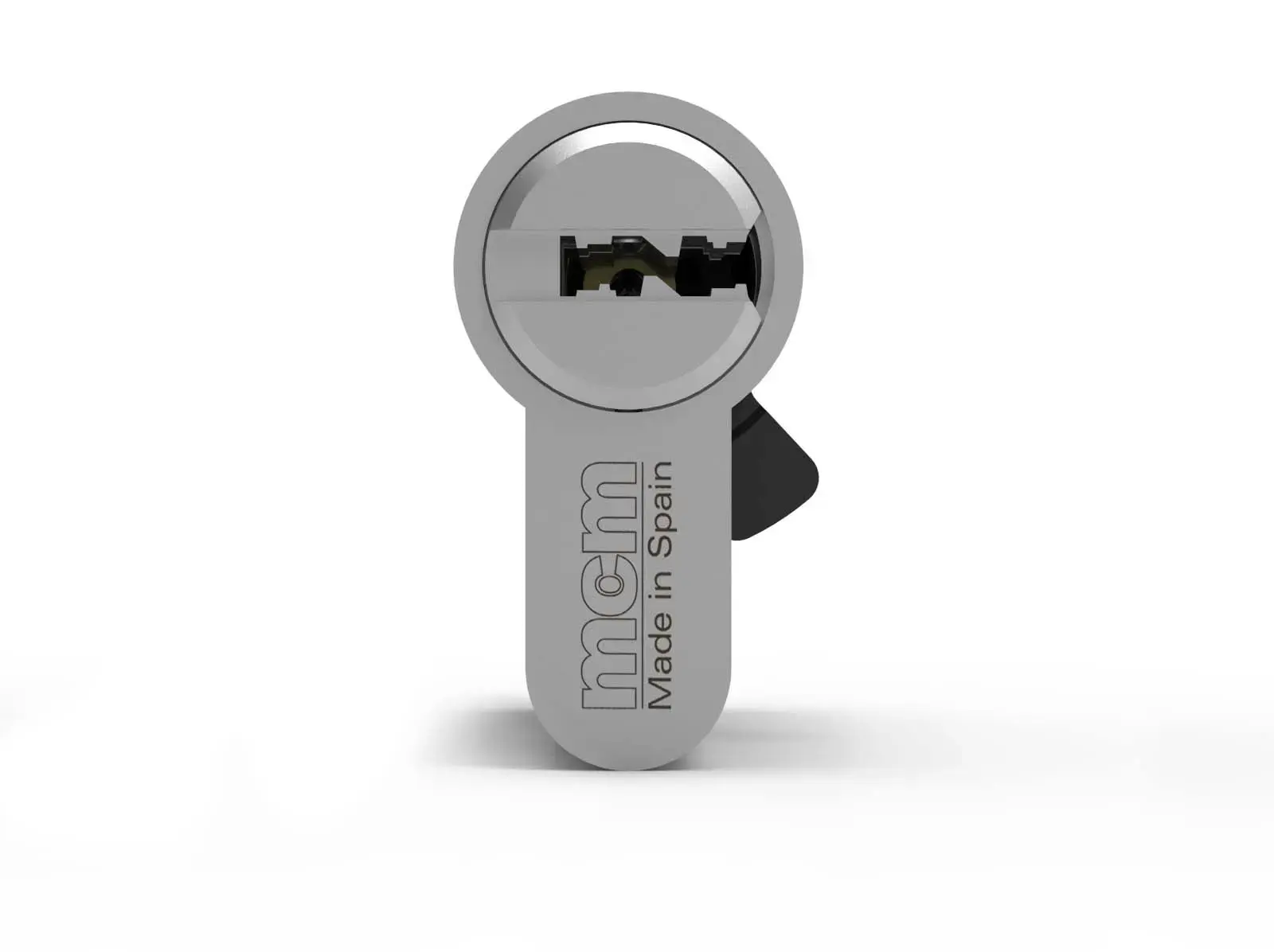

MCM SCX+ Reversible - 6+5 pins - Anti-breaking bar, anti-snap, anti-bumping

About

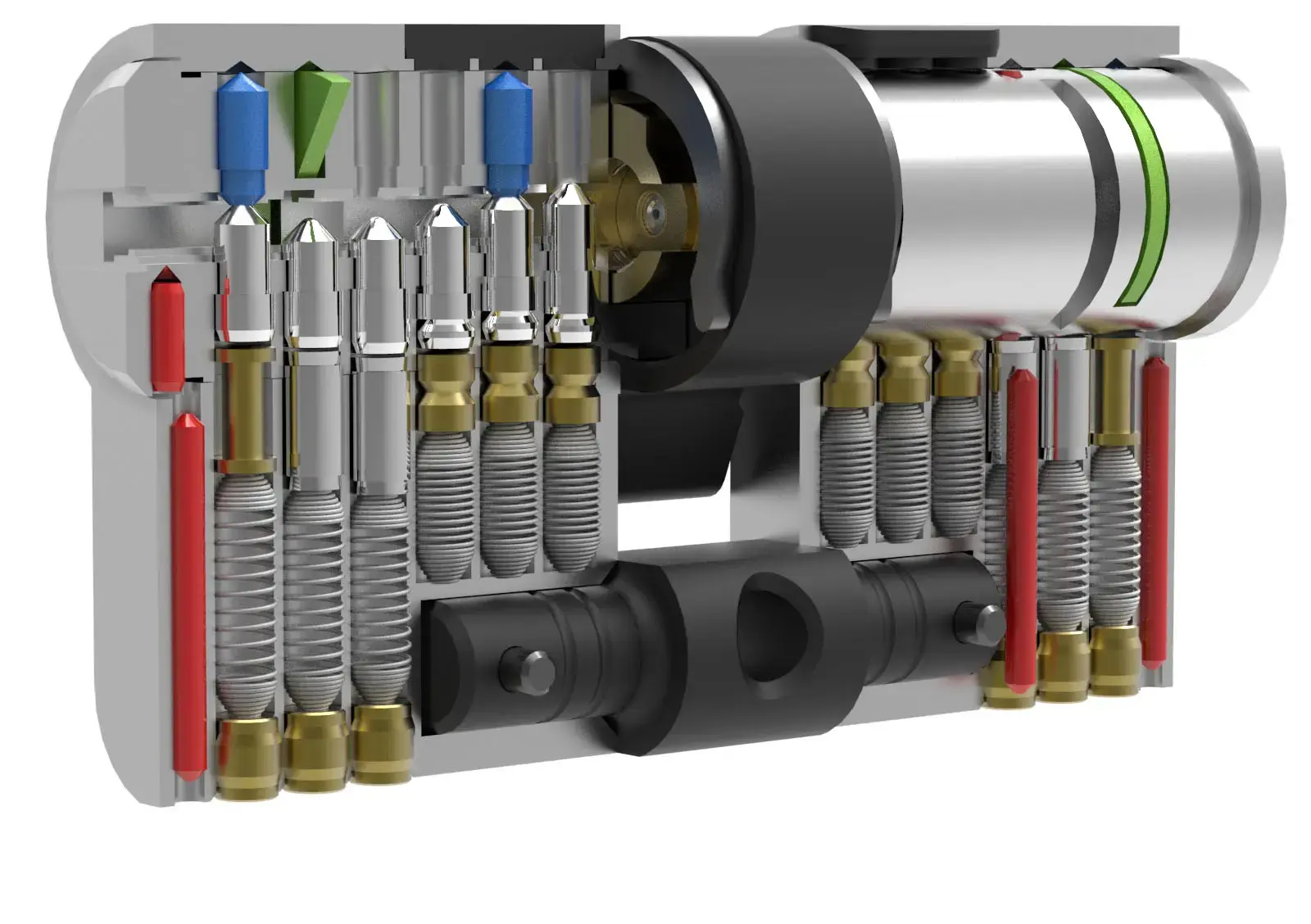

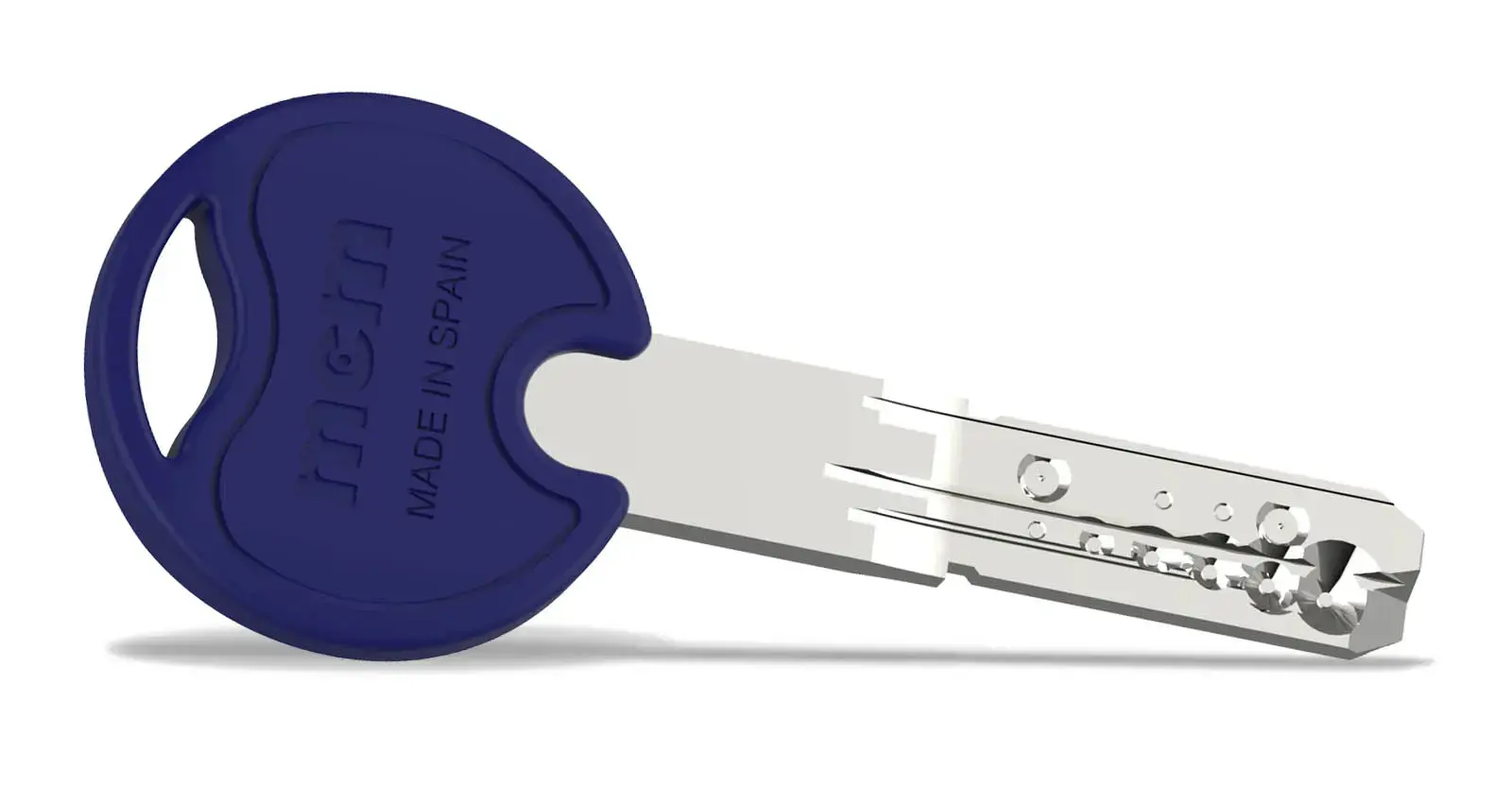

The SCX+ high security anti-bumping and anti-picking cylinder has a double row of upper and lower pins, anti-drilling protection on the rotor and on the body and a high masterkey capacity. In addition, its long-necked Soft key makes it very comfortable to use and compatible with the majority of escutcheons on the market.

Due to its double row of upper and lower pins, this cylinder has a very high number of locking combinations allowing the design of locking systems that meet the expectations of all building owners.

A wide range of cylinder lengths and formats cover all types of doors installed: double cylinder, cylinder for mortise locks, cylinder with button, half cylinder and gear cam cylinder.

The official EN 1303:2015 certification confirms the highest levels of durability, corrosion resistance, key-related security and attack resistance.

The anti-snap break secure cuts allows the front part of the cylinder to be deliberately broken off in the event of a burglary attack, leaving the remaining part of the cylinder intact and functional.

The additional double entry function allows the lock to be opened even if a second key is inserted from the opposite side of the door.

The key alike function or masterkey option is a good opportunity for a homeowner to get rid of a heavy key ring and open all doors with one key.

Features

  • Anti-break safety cylinder with steel bar.
  • System of programmed breaking

  • High anti-drilling protection.
  • Double-row pins key.
  • Great master key capacity. 5 soft keys (*2) (wide and soft head with long shaft).
  • Antibumping and anti-picking
Reversible Key System
Master Key System
Grand Master Key System
Certification EN 1303
Anti Break Protection
Anti Break Reinforcement
Anti Bump Protection
Anti Pick Protection
Registration Card

Suggested application of use

Airports, Education, Financial, Homes, Hospitals, Industrial, Medium to Large Sized Businesses, Offices, Plants, Public Buildings, Small to Medium Sized Businesses, Hotels

Specifications

Technical features

Key TypeReversible Key System
Registration CardYes
Total Number of Locking Elements16
MKS PossibilitiesGrand Master Keyed, Master Key, Central Locking
Anti Pick ProtectionYes
Anti Bump ProtectionYes
Anti Drill Protection HousingYes
Anti Drill Core ProtectionYes
ModularNo
Construction Key FunctionNo
Maximum Number of Upper Elements5
Number of Active Locking Elements6
Number of Ant Bumping Elements6
Number of Anti Picking Elements4
Number of Moveable Elements8
Number of Passive Elements2
Standard Warranty3 Years
Standard FinishBrass, Matt Nickel
Standard Housing MaterialBrass

EN 1303:2015160B0C6D
SKG Star RatingNone

Number of Keys5
Key MaterialBrass Nickel
Standard FinishBrass, Matt Nickel
Standard Housing MaterialBrass
Standard KnobOval
Standard CamDIN
Optional CamsSpanish Cam 13.2 mm, 10 Teeth Gear Cams, 13 Teeth Gear Cams , 14 Teeth Gear Cams
