MCM SCX+ High security anti-breakage and anti-bumping cylinder.


The MCM SCX Plus high security anti-breakage and anti-bumping cylinder features a steel bar and a programmed breakage system. This system causes the cylinder to break in the event of a violent attack, remaining inside the lock which prevents attackers from hooking the bulb and pulling it out. After the break the cylinder remains fully functional, allowing the owner to open the cylinder with his key.


  • Anti-break safety cylinder with steel bar.
  • System of programmed breaking

  • High anti-drilling protection.

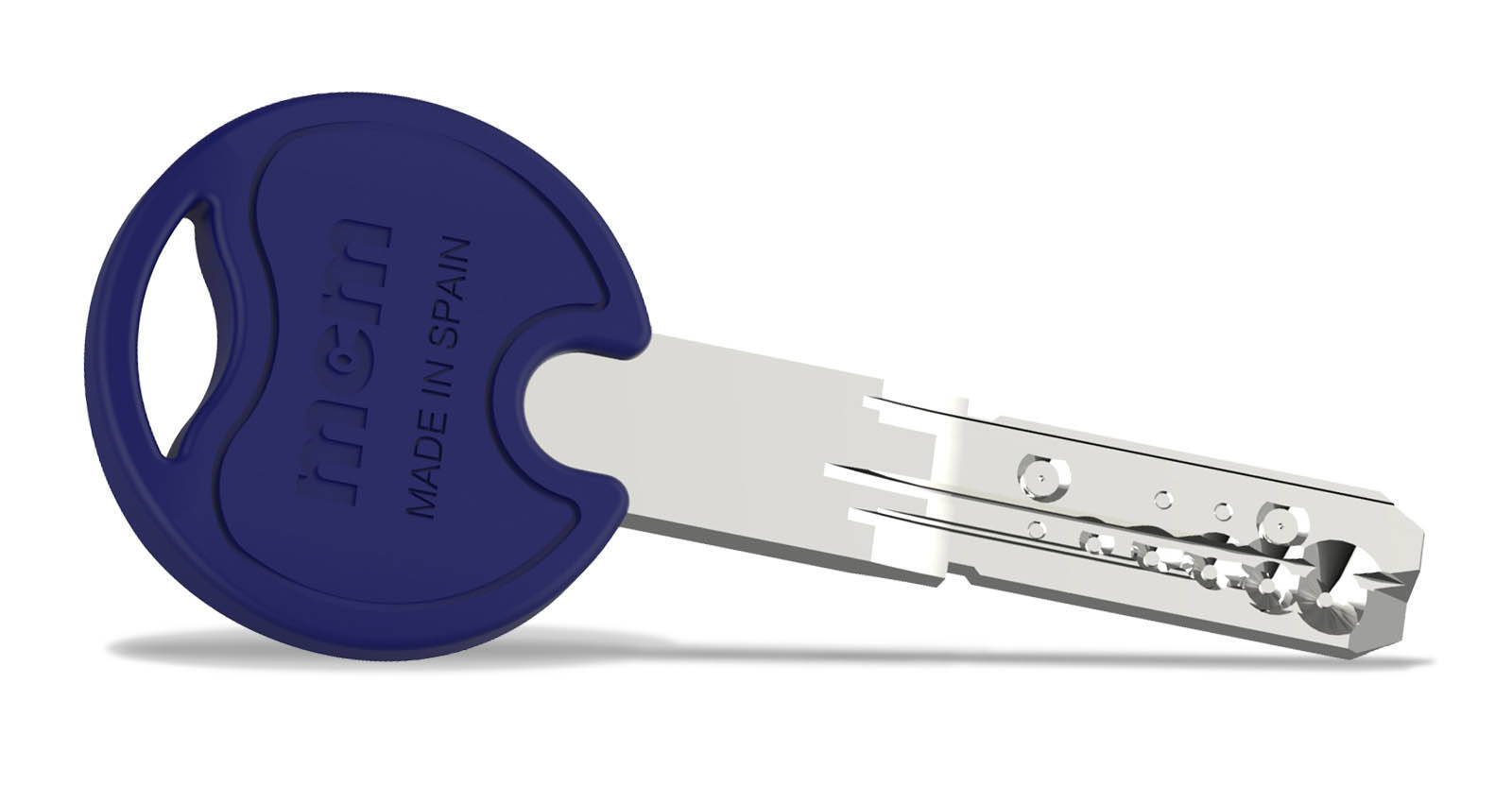

  • Double-row pins key.
  • Great master key capacity. 5 soft keys (*2) (wide and soft head with long shaft).
  • Antibumping and anti-picking
Reversible Key System
Master Key System
Grand Master Key System
Certification EN 1303
Anti Break Protection
Anti Break Reinforcement
Anti Bump Protection
Anti Pick Protection
Registration Card

Suggested application of use

Airports, Education, Financial, Homes, Hospitals, Industrial, Medium to Large Sized Businesses, Offices, Plants, Public Buildings, Small to Medium Sized Businesses, Hotels


Technical features

Key TypeReversible Key System
Registration CardYes
Total Number of Locking Elements16
MKS PossibilitiesGrand Master Keyed, Master Key, Central Locking
Anti Drill Protection HousingYes
Standard Warranty3 Years
Maximum Number of Upper Elements5
Number of Active Locking Elements6
Number of Ant Bumping Elements6
Number of Anti Picking Elements4
Number of Moveable Elements8
Number of Passive Elements2

EN 1303:2015160B0C6D

Standard FinishBrass, Matt Nickel
Standard Housing MaterialBrass
Number of Keys5
Key MaterialBrass Nickel
Standard CamDIN
Optional CamsSpanish Cam 13.2 mm, 10 Teeth Gear Cams, 13 Teeth Gear Cams , 14 Teeth Gear Cams
