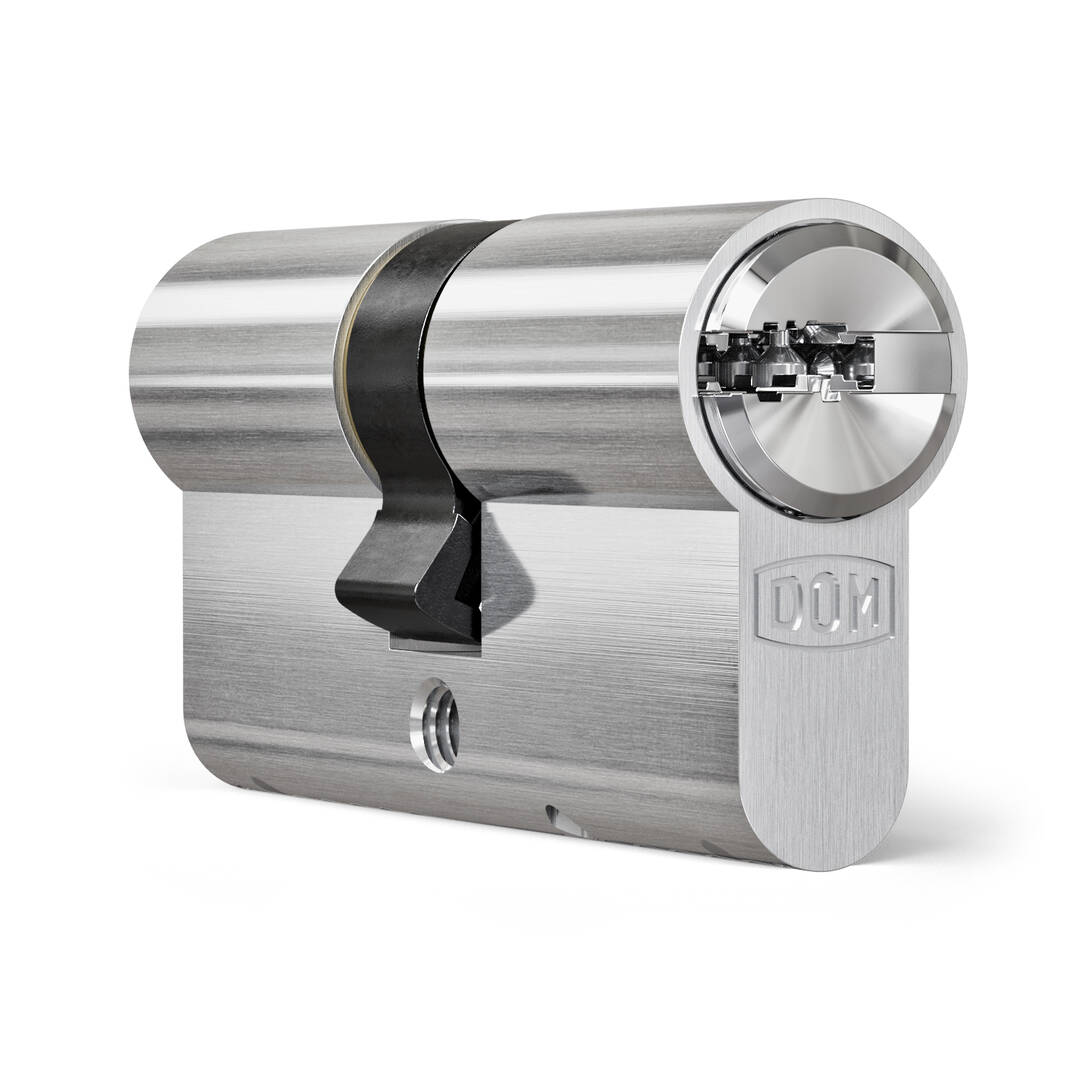

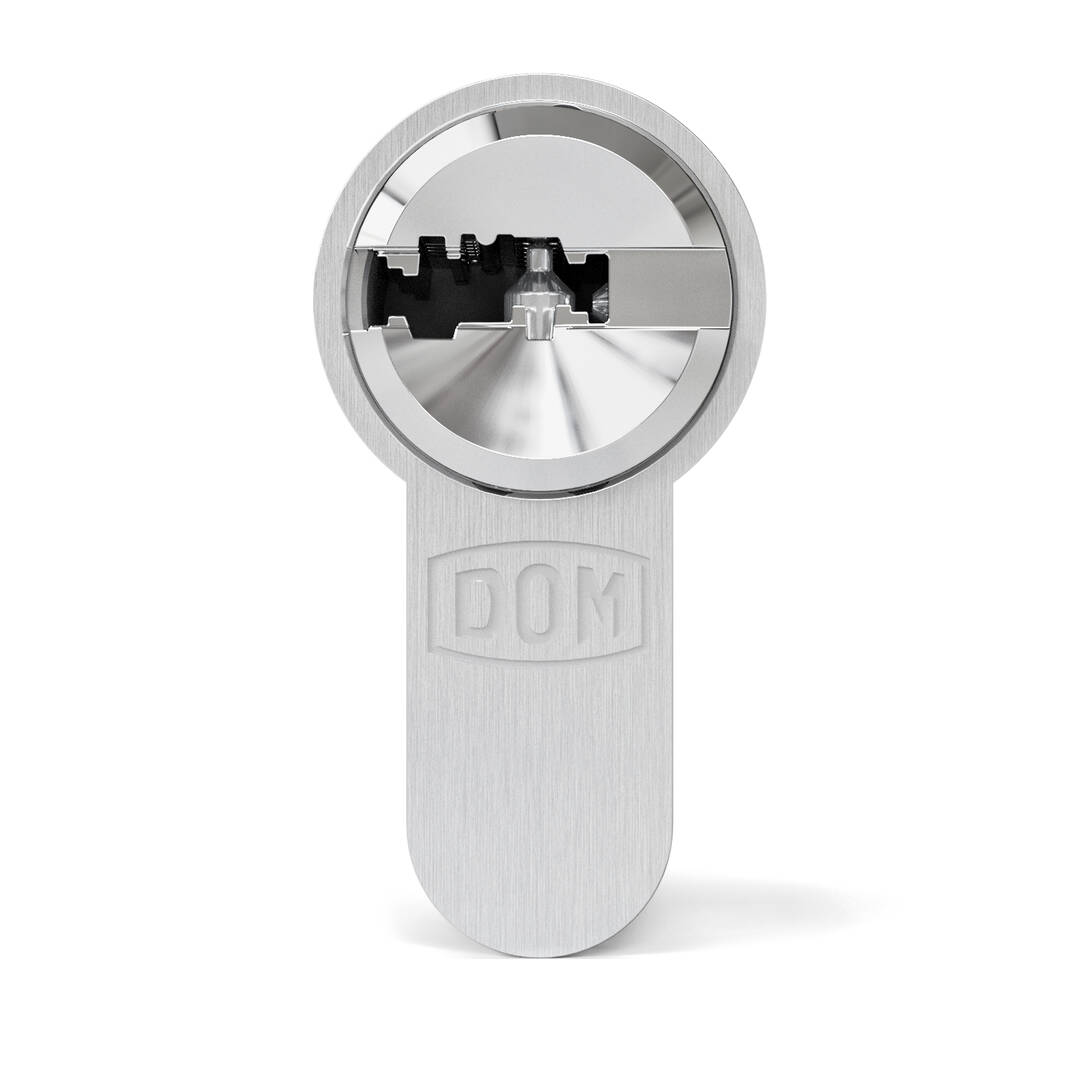

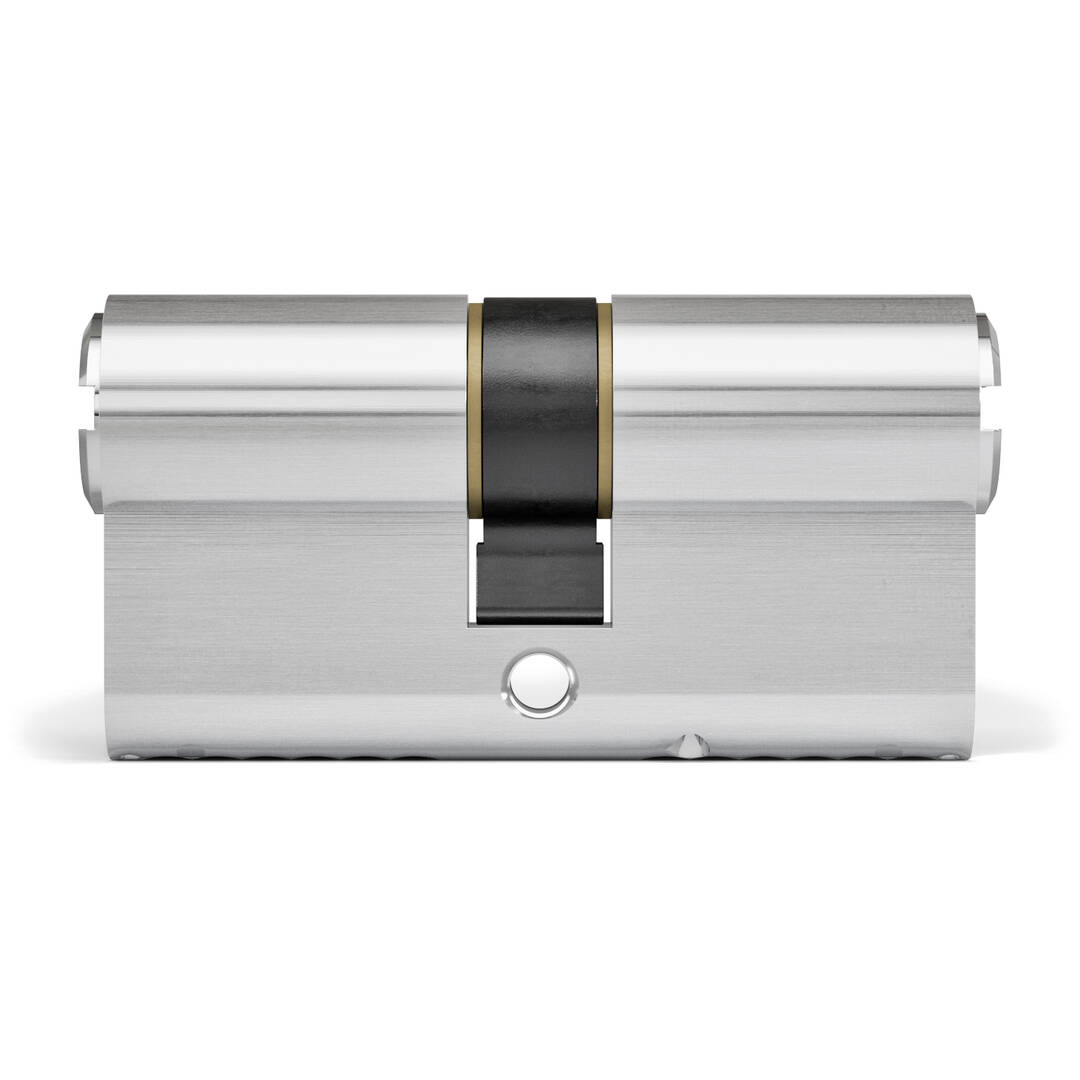

DOM ix Twido Security can cost so little

About

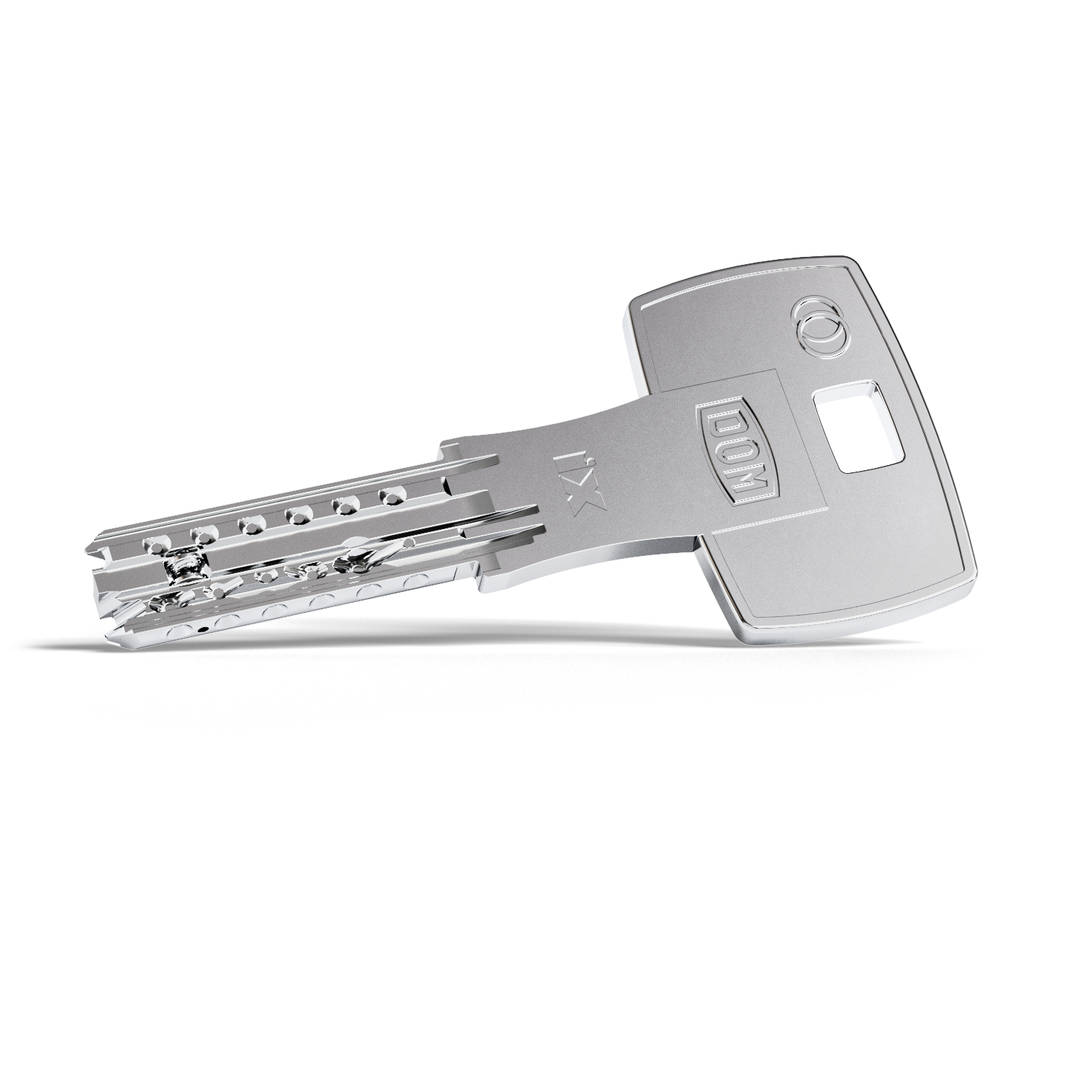

The new reversible key system ix Twido® is particularly well protected against unauthorised copying thanks to the float-mounted double roller in the key. A special high-deep milling (HT) technique used in the horizontal basic profile enhances security during profile checks and is difficult to copy. The new ix Twido® meets almost every security requirement. With its new roller technology and sophisticated design, this locking system literally has more to it than meets the eye.

Features

  • Available with 360° freewheel functions (333FRL).
  • If required also lockable if the key is inserted from one side (333T).
  • Can be incorporated into all DOM Masterkey systems.
  • Optional: seawater-resistant version.
  • Excellent handling: Security fittings can be used comfortably due to the extended key blade
  • Registration card included in the scope of delivery
  • Compatibility to electronic locking systems with ClipTag
  • Optional: Modular cylinders, Highest level of drilling & pull protection
Reversible Key System
Master Key System
Grand Master Key System
Certification EN 1303
Certification SKG 2 Star
Anti Bump Protection
Anti Pick Protection
Anti Pull Protection
Dealer Profile
Registration Card

Suggested application of use

Airports, Education, Financial, Homes, Hospitals, Industrial, Medium to Large Sized Businesses, Offices, Plants, Public Buildings, Small to Medium Sized Businesses, Hotels

Specifications

Technical features

Key TypeReversible Key System
Registration CardYes
Total Number of Locking Elements19
MKS PossibilitiesGrand Master Keyed, Master Key
Anti Drill Protection HousingYes
ModularOptional
Standard Warranty2 Years
Maximum Number of Lateral Elements12
Maximum Number of Upper Elements6
Number of Active Locking Elements7
Number of Ant Bumping Elements2
Number of Anti Picking Elements2
Number of Moveable Elements2
Number of Passive Elements12

EN 1303:20151|6|0|B|0|C|6|C
Key Patent ProtectionYes
Key Patent Until (year)2036
System Patent ProtectionYes
System Patented Until (year)2036

Standard FinishMatt Nickel
Optional FinishesBright Brass, Bright Chrome, Bright Nickel, Matt Chrome, Gold, Dark Bronze, Black
Standard Housing MaterialBrass
Number of Keys5
Key MaterialNew Silver
Standard CamDIN
Optional CamsSwiss Cam, 10 Teeth Gear Cams, 14 Teeth Gear Cams , Spanish Cam 13.2 mm

Optional Accessories

DOM Service Pen

DOM Service Pen

298700
Universal lubricant
Clip Tag V2

Clip Tag V2
