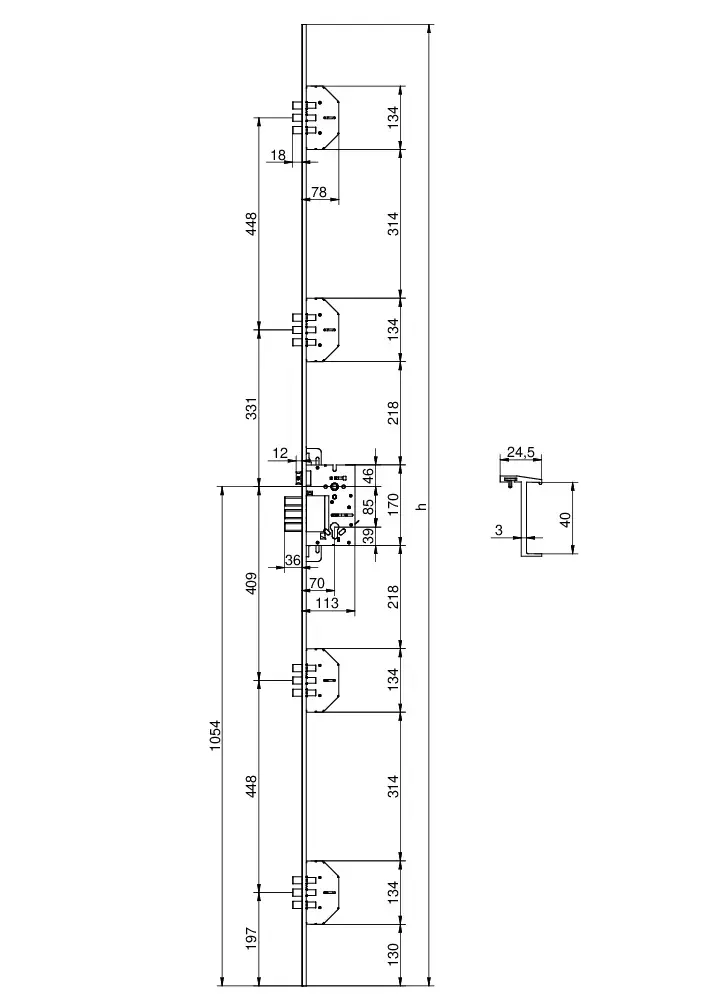

Mortise lock for wooden locks MCM 7140-5 with 5 locking points and H forend 40mm. Central lock operated by europrofile cylinder, with 3 round bolts and backset of 70mm. The bolts are projected 21mm with 3 key turns. Interaxis 85mm.
Front Door, Homes
| Door Type | Wooden Doors |
| Lock Application Type | Mortise Lock |
| Operation Type | Handle Operated, Cylinder Operated |
| Locking Points | 5 points |
| Locking Type | European Profile Cylinder |
| Closing Mechanism | Step Mechanical |
| Locking Elements | Round Bolt, Latch |
| Multi Point Type | Long Forend |
| Deadbolt Operation | Standard |
| Latch Type | Standard Latch |
| Lock Handing | Hand guard: Right or Left |
| Latch Operation | Handle, Key |
| Adjustable Latch | 12mm-17mm |
| Key Turns | 3 |
| Compatible with Electric Strike | Yes |
| Number of Keys | 5 |
| Key Material | Brass Nickel |
| Interaxis (mm) | 85 |
| Backset Inc Forend (mm) | 70 |
| Backset Without Forend (mm) | 67 |
| Case Height (mm) | 170 |
| Case Depth (mm) | 113 |
| Case Width (mm) | 113 |
| Case Thickness (mm) | 21 |
| Case Material | Steel |
| Case Finish | Galvanised |
| Additional Locking Point Material | Nickel Zamak |
| Additional Case Height (mm) | 134 |
| Additional Case Depth (mm) | 78 |
| Additional Case Thickness (mm) | 19 |
| Deadbolt Shape | Round |
| Deadbolt Material | Nickel Zamak |
| Deadbolt Dimension | Ø20x14 |
| Deadbolt Throw (mm) | 36 |
| Latch Throw (mm) | 12 |
| Latch Material | Stainless Steel |
| Follower Type | Standard Follower |
| Follower (mm) | 8 |
| Material of the Follower | Zamak |
| Forend Shape | H-Shape |
| Forend Length (mm) | 2030, 2110, 2300 |
| Forend Thickness (mm) | 3 |
| Forend Width (mm) | 45 |
| Forend Material | Aluminium |
| Forend Finish | Painted Silver, Painted Gold |
| Net Weight | 7.1 |
| Cylinder Included | Yes |
| Security Escutcheon Included | Yes |
| Strike Plate Included | Yes |
| Escutcheon Included | Yes |
