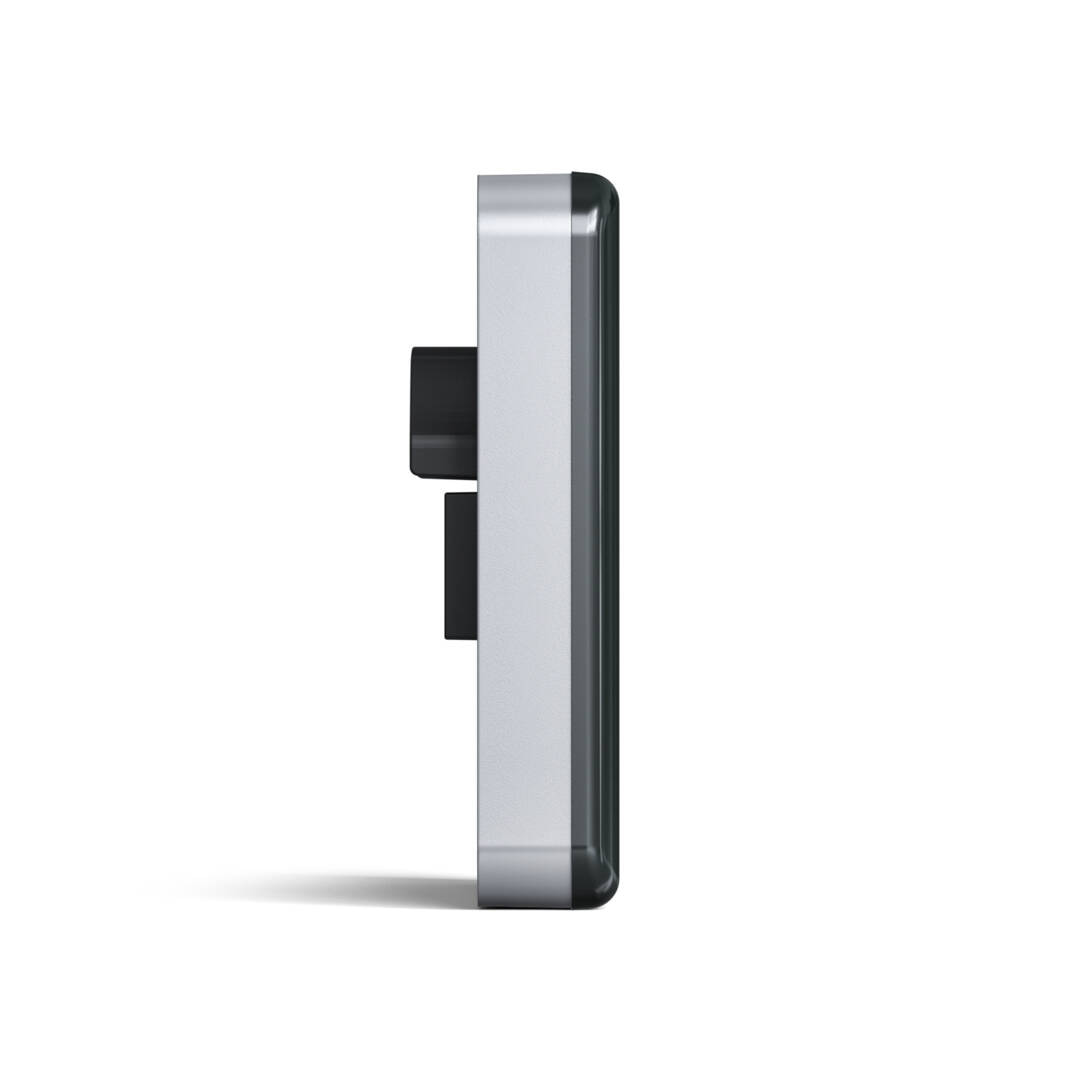

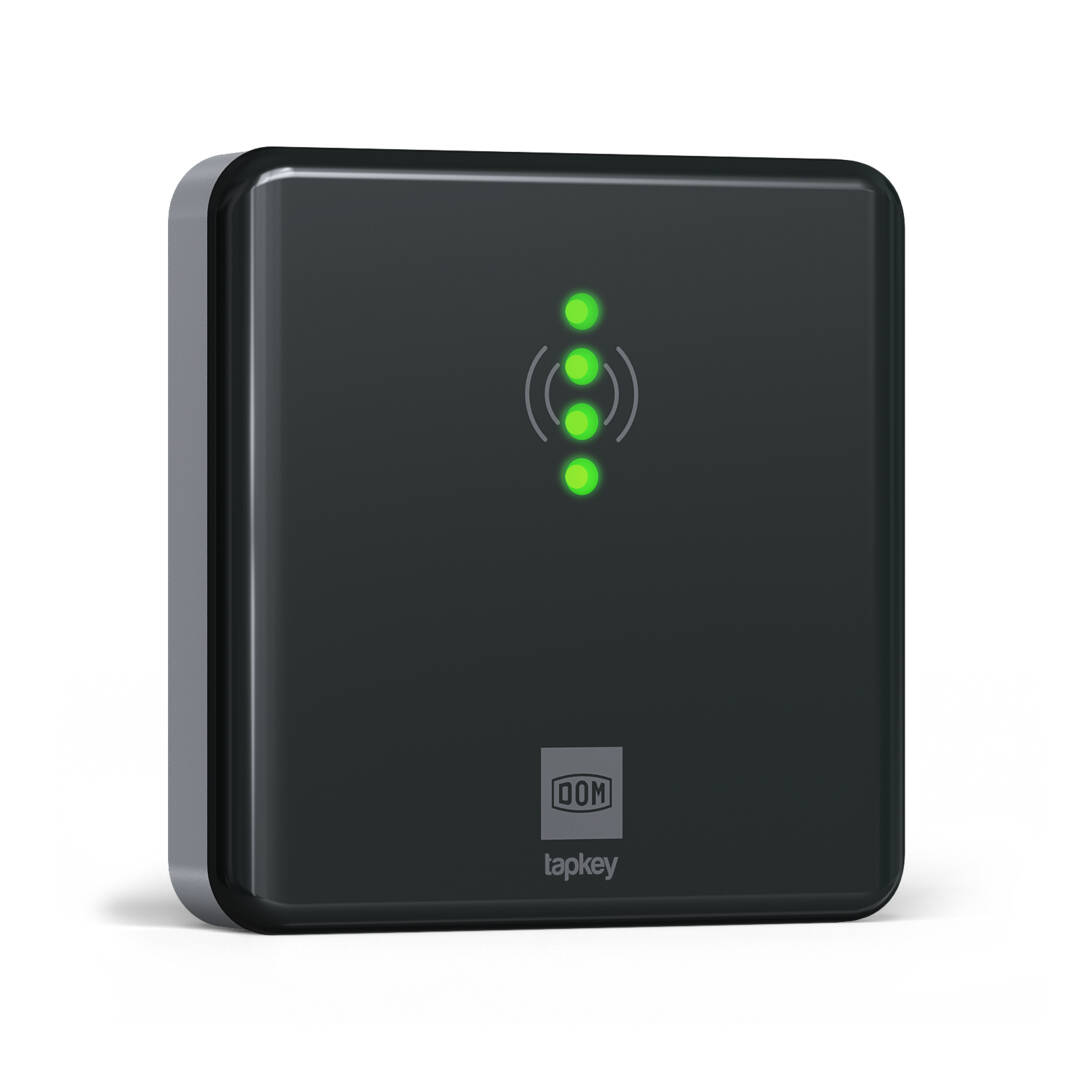

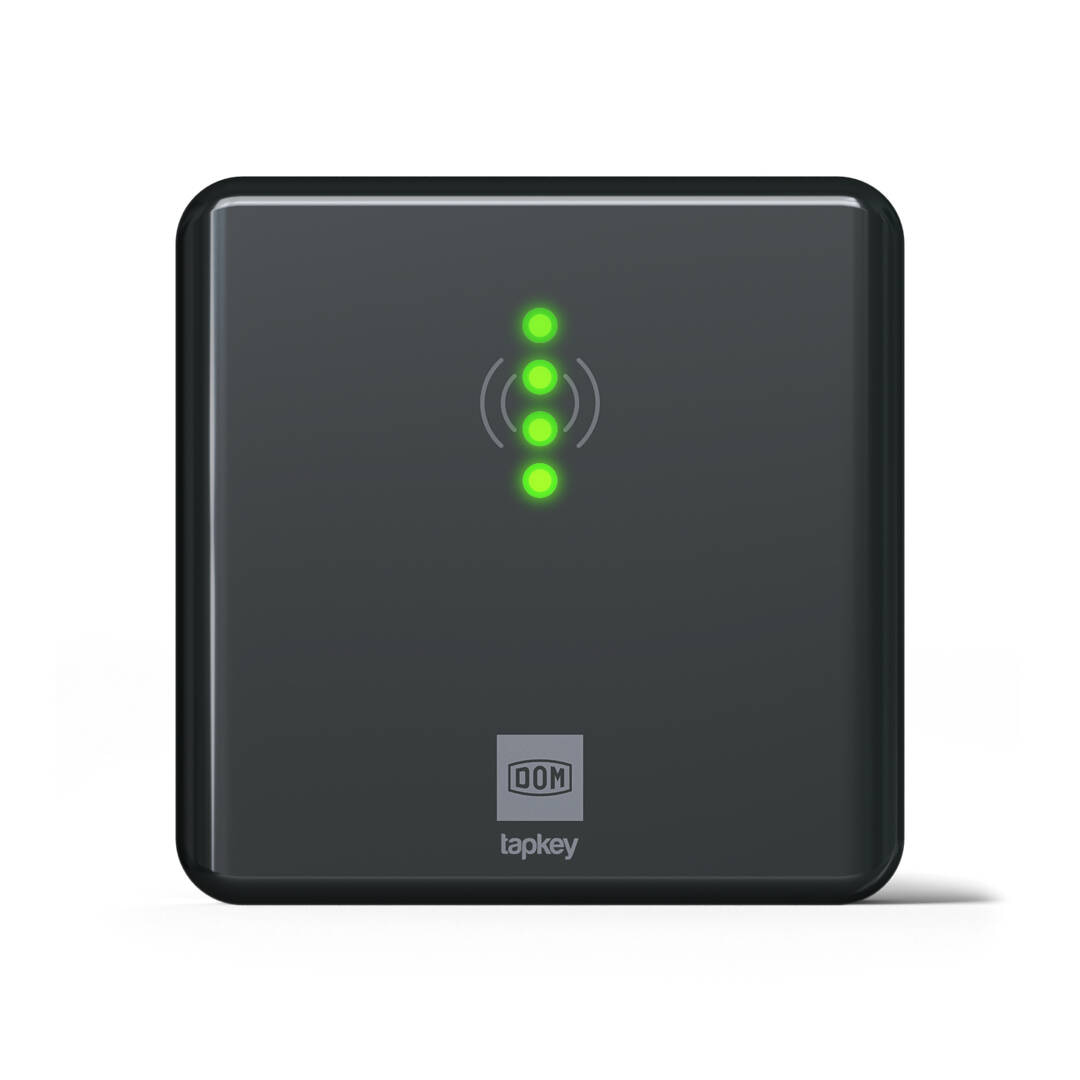

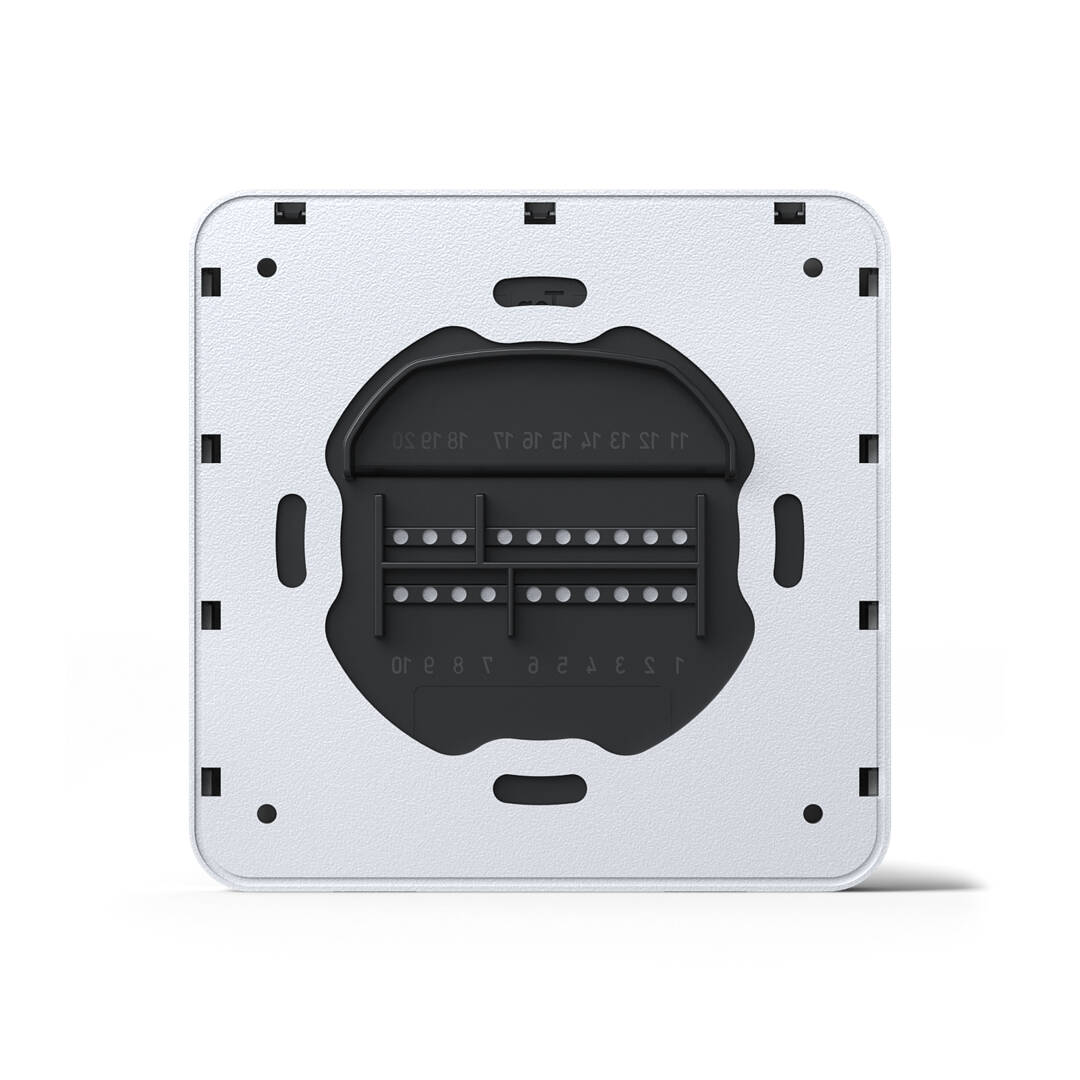

The DOMTapkey® AccessManager is a wall reader in black. It can be mounted on a standard switch box, but can also be placed directly on the wall with a surface-mounted frame.
The wall reader convinces with its variety of applications and is also suitable for outside doors. The smart reader works with Android mobile phones and with iPhones that have the Tapkey app installed. Depending on the choice of our user packages, you can assign access authorisations. Alternatively, you can also use Tapkey NFC transponders for opening.
Airports, Education, Financial, Homes, Hospitals, Hotels, Industrial, Medium to Large Sized Businesses, Offices, Plants, Public Buildings, Small to Medium Sized Businesses
| Water Resistant | Yes |
| Anti Corrosion Protection | Yes |
| Communication Technology | BLE 5.2, NFC, Ethernet, RS 485 |
| Stand-alone Functionality | Yes |
| Data On Card | Yes |
| User Identification Technology | BLE 5.2, NFC, RFID Mifare 13.56 MHz |
| Number of Inputs | 2 |
| Number of Outputs | 1 |
| Acoustic Signalling | Yes |
| Optical Signalling | Yes |
| Supported Locking Media | ISO 14443 A, Tapkey Mifare DESFire |
| Programming Methods | App, Software, Smartphone, Programming Card |
| Power Supply Required | Yes |
| Maximum Operating Temperature (celsius) | 55 |
| Maximum Relative Humidity (%) | 95 |
| Minimum Operating Temperature | -20 |
| Ingress Protection Rating | IP54 |
| Surface Finish | Black |
| Fixation Type | In-wall mounting with flush boxes diameter 60 X 42 mm (DIN VDE 0606, DIN VDE 0471, DIN IEC 695) or alternatively with surface mounted frame or on wall mounting |
| Power Type | Wired |
| Current Consumption | max. 60 mA |
| Power over Ethernet | PoE IEEE 802.3af, PoE IEEE 802.3at, PoE IEEE 802.3bt |
| Events Storage Capacity in the Device | 2000 |
| RFID Encryption | Additional AES -128 Bit over all |
| Data Encryption | XSALSA20-256 Bit, Curve 25519-256 Bit, Poly 1305-128 Bit |
| Operating Temperature (Celsius) | -20° to 55° |
| Voltage Range | 12-24V |
| Voltage Type | PoE, DC |
| Input Specification | For DIP-switches |
| Input Options | 2.0 |
| Output Specification | Floating change over contact: Electric strength 30V DC 125 V AC, Current load 1 A/DC 0,3 A/AC |
| Output Options | 1.0 |
| Assembly Information | On switch box diameter 60m x 42 mm (DIN VDE 0606, DIN VDE 0471, DIN IEC 695). Alternatively with DOM surface-mounted frame. Metallic objects in the immediate environment of the reader or other interference can reduce the range of the RFID and radio interface . Minimum distance between two AccessManager > 50 cm |
DOM Tapkey Standard Tag
DOM Tapkey Sticker Tag

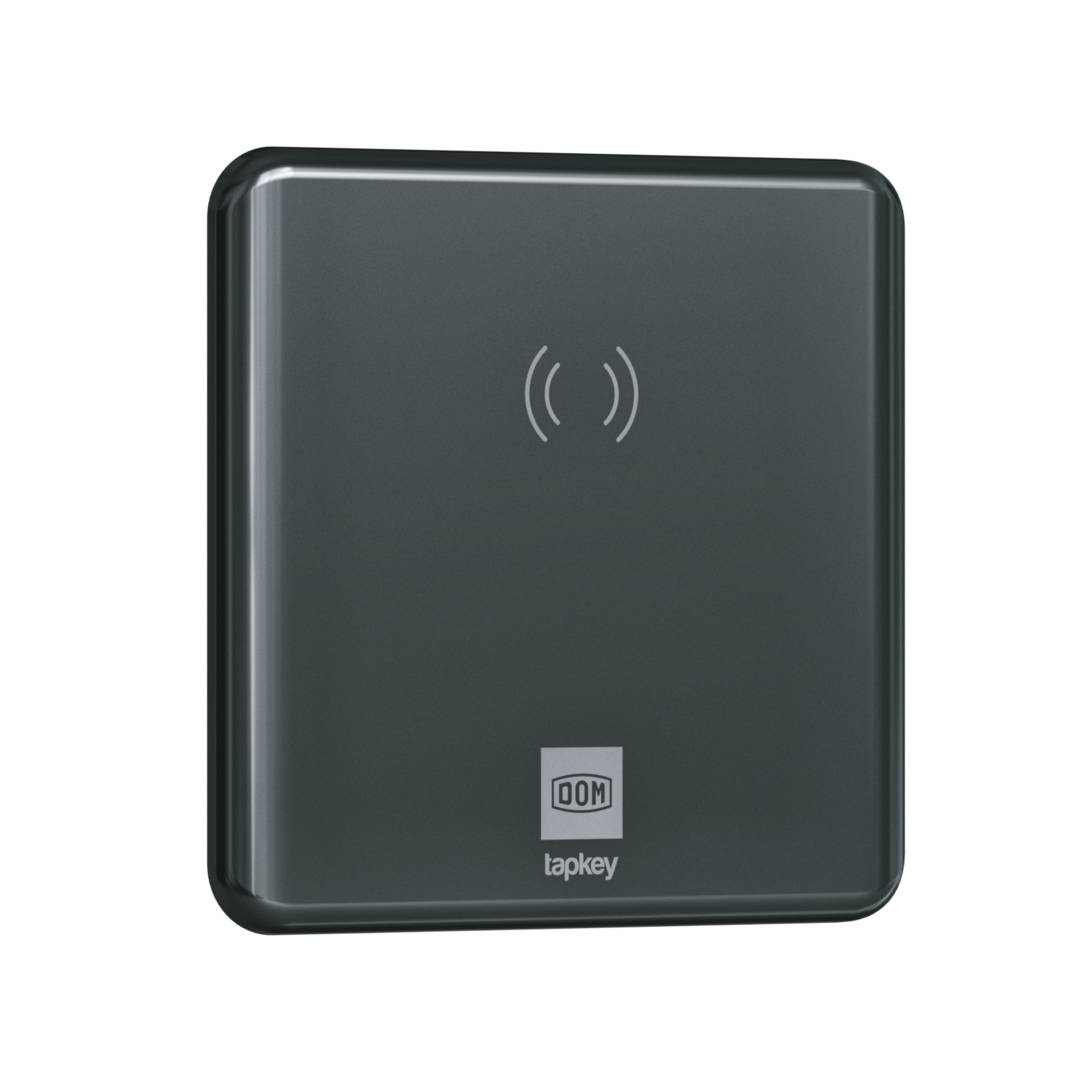

Cover black DOM Tapkey

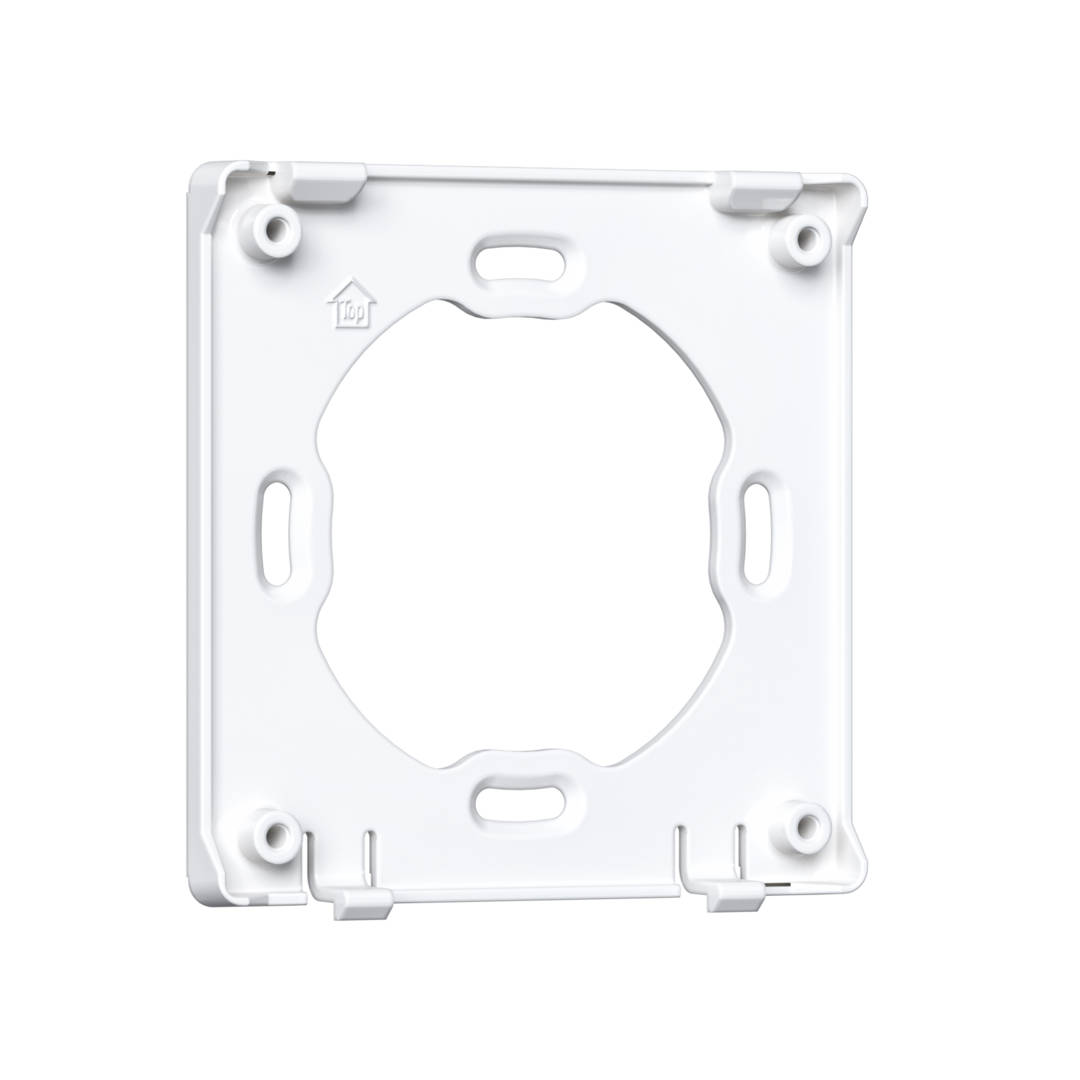

Installation frame
Screwset for surface-mounting frame
Surface-mounting frame unit
