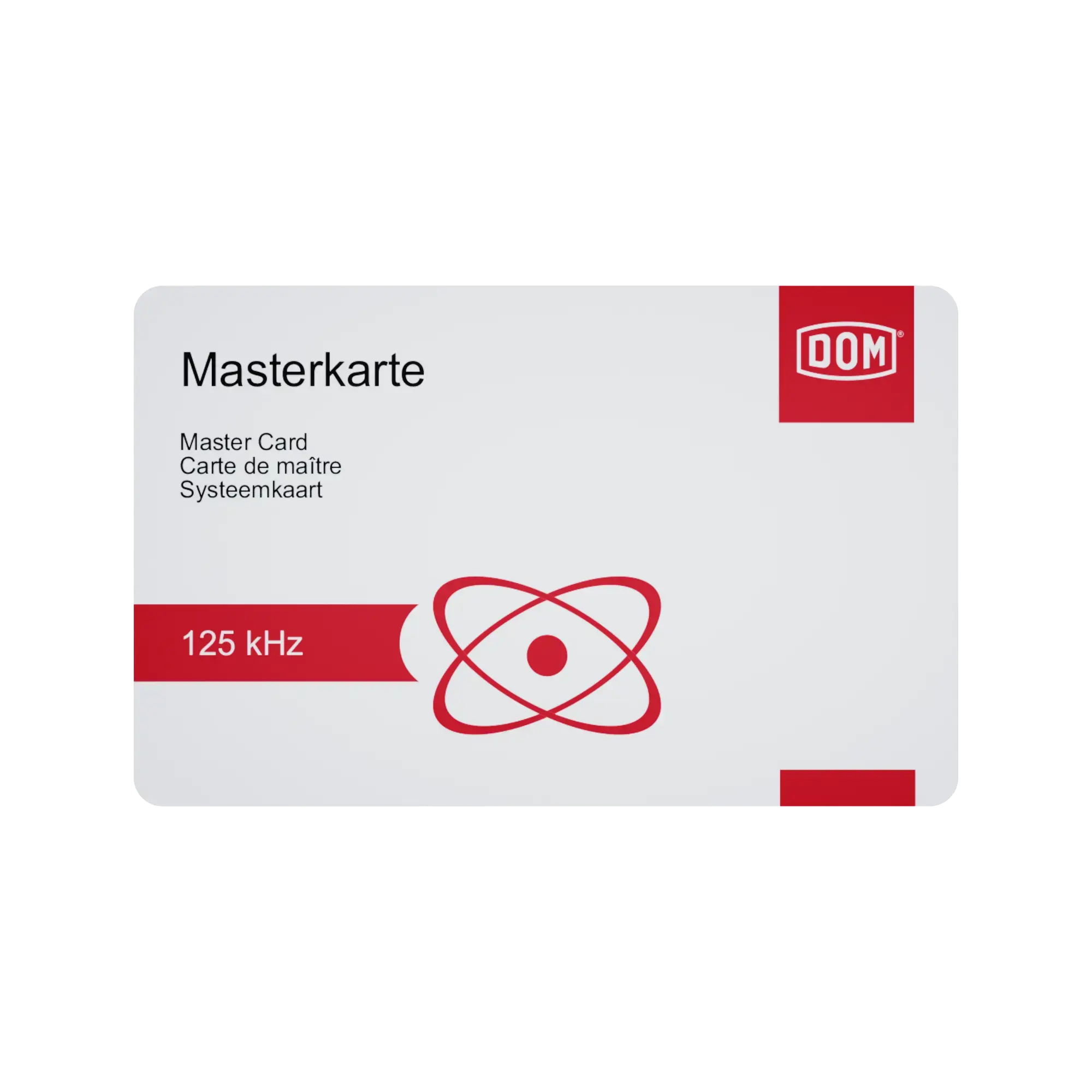

Master Card

About

The master card is the most important card in your system. It serves as proof of ownership and with your help you can add or remove digital terminals to your system. It can also be used to authorise programming cards and locking media on terminal devices, delete individual ones if they are physically present, or reset the terminal device completely, thereby deleting all authorisations. The master card is normally only used for the initial setup of terminals and programming cards, after which the programming card should be used for authorising locking media. After the master card has been used, it should be stored in a safe.

Features & Benefits

  • Encryption possible with Hitag S Transponder only.
IP54: protection from limited dust ingress and against water splashed from all directions; limited water ingress permitted and shall have no harmful effect
RFID Mifare 13.56mHz

Suggested application of use

Airports, Education, Financial, Homes, Hospitals, Hotels, Industrial, Medium to Large Sized Businesses, Offices, Plants, Public Buildings, Small to Medium Sized Businesses

Specifications

Technical features

Fire ResistantNone
Water ResistantYes
Anti Drill ProtectionN/A
ModularNo
Communication TechnologyRFID 125 kHz, Mifare RFID 13.56 MHz
User Identification TechnologyRFID 125 kHz, Mifare RFID 13.56 MHz
Maximum Operating Temperature (celsius)55
Maximum Relative Humidity (%)95
Maximum Storage Temperature (celsius)55
Minimum Operating Temperature-25
Minimum Storage Temperature (celsius)-25

Ingress Protection RatingIP54

Surface FinishWhite
Data EncryptionAES, AES-128 Bit, Crypto-1, ISO 14443A, OSS, DES, 3DES
Operating Temperature (Celsius)-25° to 55°

Optional Accessories

ENiQ Starter package Pro

ENiQ Starter package Pro

352155
