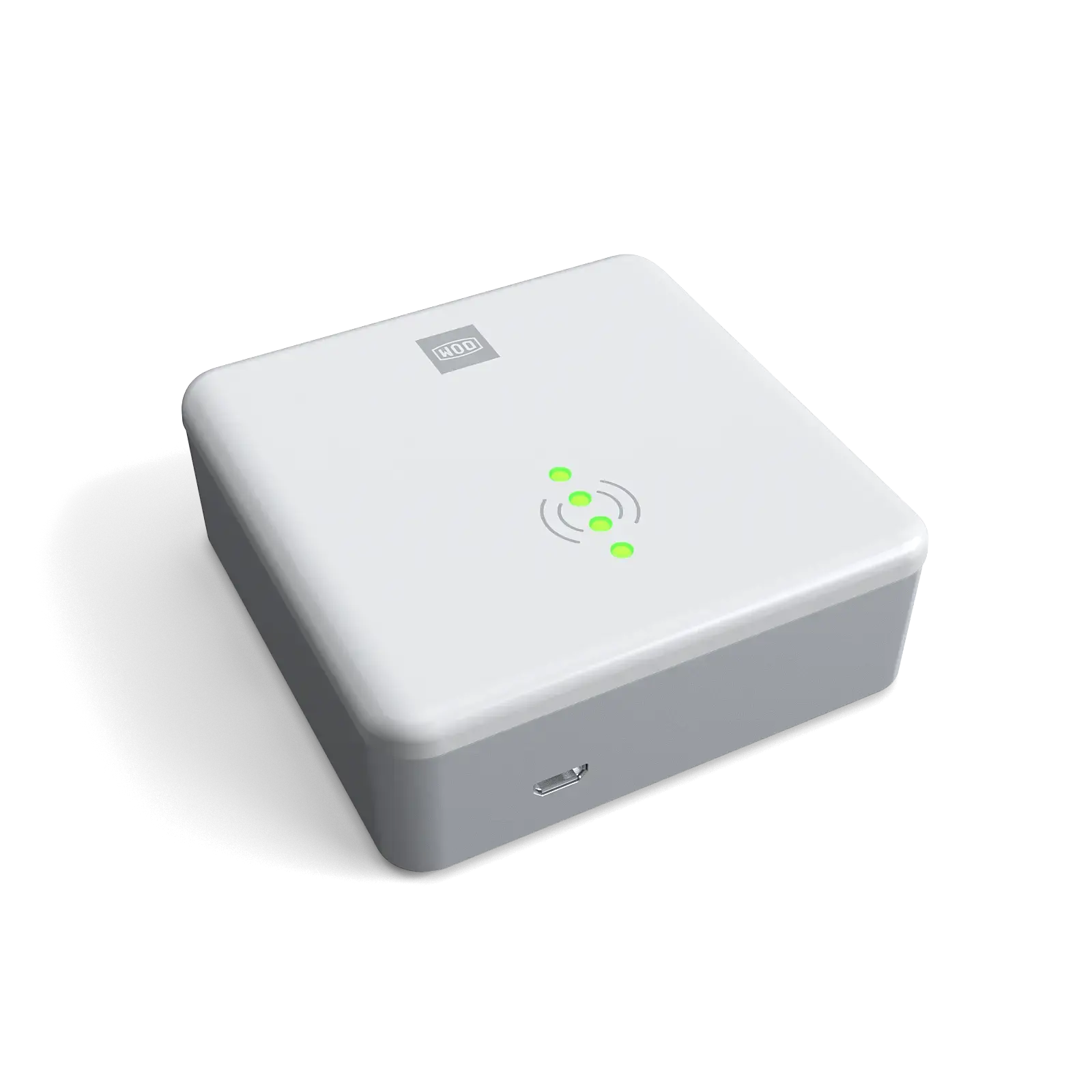

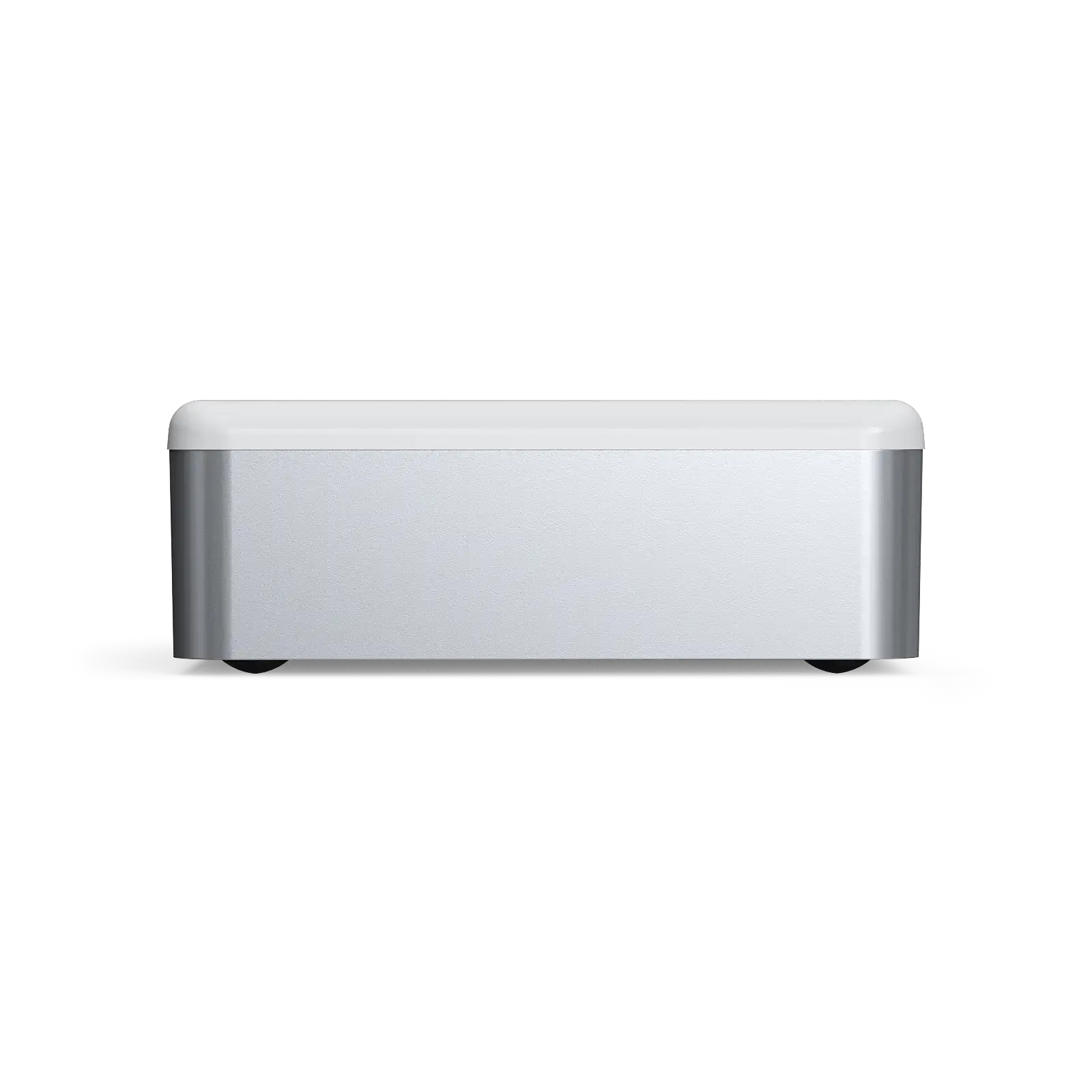

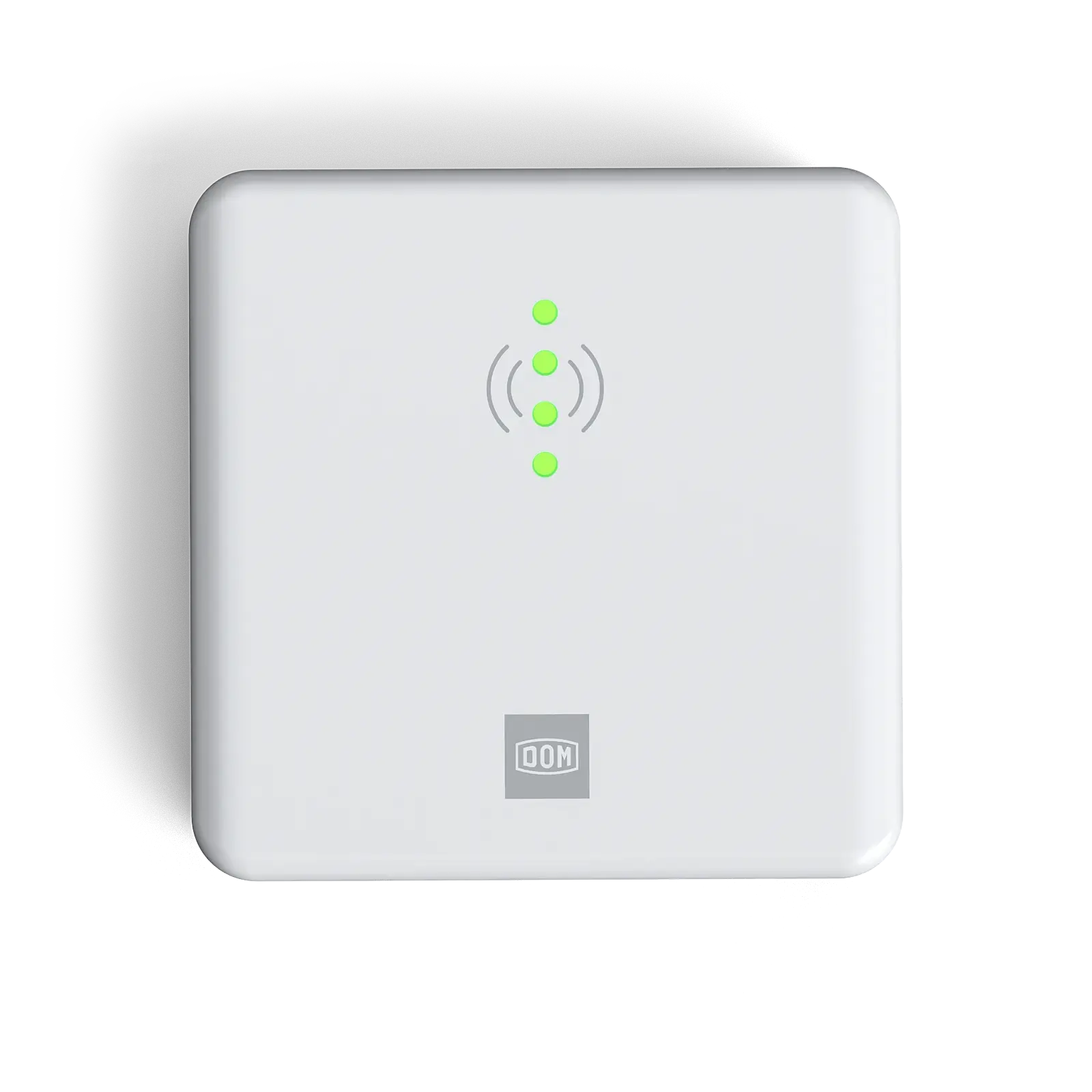

ENiQ Desk Reader V2 With the ENiQ desktop reader 13.56 MHz transponders can be added to the software and programmed

About

With the ENiQ desk reader you can read and write access authorisations of transponders from your ENiQ Access Management software.

Features & Benefits

IP54: protection from limited dust ingress and against water splashed from all directions; limited water ingress permitted and shall have no harmful effect

Suggested application of use

Airports, Education, Financial, Homes, Hospitals, Hotels, Industrial, Medium to Large Sized Businesses, Offices, Plants, Public Buildings, Small to Medium Sized Businesses

Specifications

Technical features

Water ResistantYes
Communication TechnologyUSB 3.0
Stand-alone FunctionalityNo
Data On CardYes
User Identification TechnologyRFID Mifare 13.56 MHz, NFC, BLE 5.0
Acoustic SignallingYes
Optical SignallingYes
Supported Locking MediaMifare Classic, Mifare DESFire, Mifare Plus, Mifare Ultralight
Programming MethodsSoftware
Maximum Operating Temperature (celsius)55
Maximum Relative Humidity (%)95
Minimum Operating Temperature-20

Ingress Protection RatingIP54

Surface FinishBlack, White, Grey
Power TypeWired
Current Consumptionmax. 200 mA
RFID EncryptionAdditional AES -128 Bit over all, Mifare Desfire AES-128 Bit, Mifare Classic Crypto-1
Data EncryptionXSALSA20-256 Bit, Curve 25519-256 Bit, Poly 1305-128 Bit
Operating Temperature (Celsius)-20° to 55°
Voltage TypeUSB 2.0
