ELS Guard S ES1 security reader for the application of 125 KHz RFID transponders and 868 MHz communication interface in the ELS world.

About

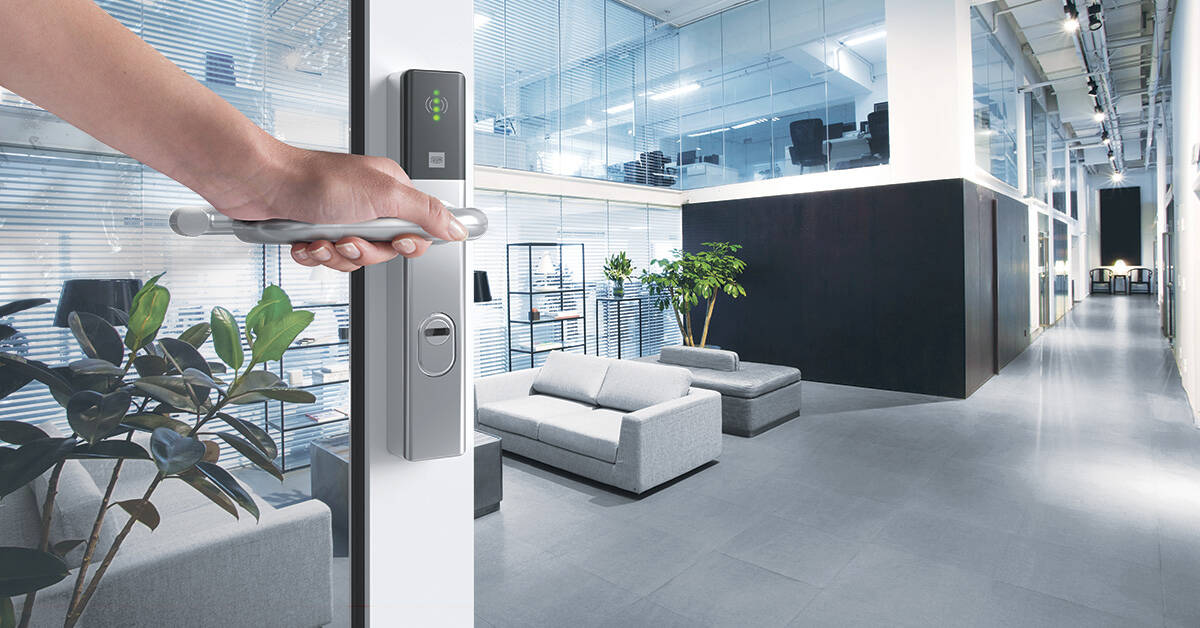

The ELS Guard S is used as a digital fitting reader where convenient access control with high intrusion protection and attractive design is required. Perfect for your exterior doors and compatible for use in office and administration building, healthcare facilities, banks, hotels, education institutions, small and medium business, etc.

Features & Benefits

  • Integrated in the ELS ecosystem: ELS Guard S is fully integrated within the ELS environment. This device accepts 125 KHz RFID transponders and receives its access rights and updates via an 868 MHz interface.
  • Highest level security: Digital ES1 security fitting with attack resistance class 2 according to EN 16867 for the highest level of protection for your door. With high environmental resistance for your exterior doors. With drilling protection for the relevant areas of the fitting.
  • Protection against extreme weather: Guard S is rated IP 66, making it suitable for your exterior doors and gates. IP66 meaning that Guard S is protected against the highest level of dust exposure, as well as against hose-directed water, heavy rain, and snow.
  • Combined elegance and security: With its' modern design, the Guard S meets every taste. The Guard S has three types of design: Slimline (suitable for tubular frames), Wideline, and Wideline with round rosette screw points.
  • Strong handle: Guard S' handles are guaranteed with Class 4 handle, robust and resists strongly against vandalism, fulfilling the highest grade of use.
  • Flexible and adjustable: Thanks to various types of screw connection and flexibly adjustable mounting position, the Guard S is applicable in almost all door situations.
  • High durability battery: The AAA batteries of ENiQ Guard S are easy to change with long stand-by times and high number of durability cycles (70,000 battery cycle).
  • User-friendly signalisation: Intuitive visual (LED light) and acoustic (sound) signaling indicates whether authorization has been granted.
Anti Corrosion
Certification SKG 3 Star
IP66: dust tight and protected against high pressure water jets; limited water ingress permitted and shall have no harmful effect
Anti Drill Protection
Anti Pull Protection

Suggested application of use

Airports, Bed & Breakfast, Education, Financial, Homes, Hospitals, Hotels, Industrial, Medium to Large Sized Businesses, Offices, Wet & Dry environments, Public Buildings, Exterior doors, Vacation Rentals, Retail, Leisure & Fitness, Shared Offices, Small to Medium Sized Businesses, Front Door, Apartments, Coworking Spaces, Prisons, Entrance hall doors

Specifications

Technical features

Fire Resistant90 Minutes
Water ResistantYes
Patent ProtectionYes
Anti Corrosion ProtectionYes
Anti Drill ProtectionYes
Anti Pull ProtectionYes
Communication TechnologyRFID 125 kHz, RF 868 MHz
Stand-alone FunctionalityYes
Data On CardYes
Battery Lifetime CyclesUp to 50000 cycles
User Identification TechnologyRFID 125 kHz, RF 868 MHz
Number of Inputs2
Number of Outputs0
Acoustic SignallingYes
Optical SignallingYes
Supported Locking MediaHitag 1, Hitag 2, Hitag S, EM 4100, EM 4102, EM 4150, EM 4450
Programming MethodsMaster Card, Programming Card, Software, Smartphone
Battery TypeAAA Lithium
Number of Batteries2
Battery Lifetime YearsUp to 4 Years
Battery Warning AlarmAudio, Visual
Maximum Operating Temperature (celsius)65
Maximum Relative Humidity (%)99
Maximum Storage Temperature (celsius)65
Minimum Operating Temperature-25
Minimum Storage Temperature (celsius)-25

Patent ProtectionYes
Patented Until (year)2039
Ingress Protection RatingIP66
EN 179:20083 7 7 B 1 3 5 2 A B

Surface FinishBrushed Stainless Steel, Black
Fixation TypeScrew on or screw through

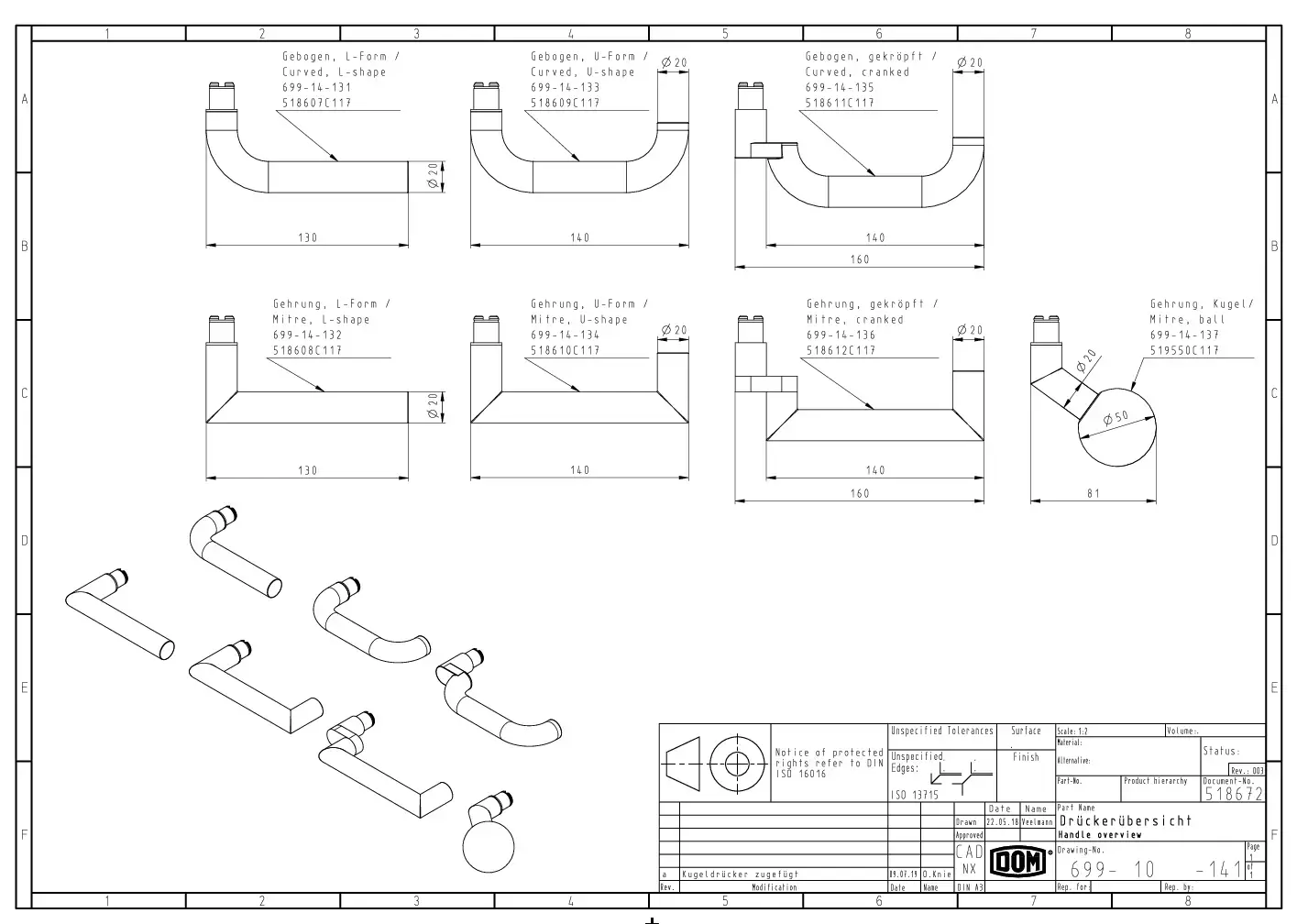

Handle TypesL-Shape mitre, L-Shape curved, U-Shape mitre, U-Shape curved, Cranked curved, Cranked mitre, Ball mitre only outside, L-Shape mitre + ball, L-Shape curved + ball, U-Shape mitre + ball, U-Shape curved + ball, Cranked mitre + ball, Cranked curved + ball
Power TypeBattery
Events Storage Capacity in the Device2000
RFID EncryptionAES
Data EncryptionXSALSA20-256 Bit, Curve 25519-256 Bit, Poly 1305-128 Bit
Operating Temperature (Celsius)-25° to 65°
Input OptionsDoor open, lock status, ect.
Assembly InformationFlexible Fixation Points due to movable sleeves/screws

Optional Accessories

ELS Standard Tag with Magnet

ELS Standard Tag with Magnet

STANTAC504599
ELS Standard Tag without Magnet

ELS Standard Tag without Magnet

STANTAC504599
Cylinder protection and cellular rubber ring

Cylinder protection and cellular rubber ring

521158
3x threaded sleeve Guard-S

3x threaded sleeve Guard-S

521157
Sealing ring Wideline

Sealing ring Wideline

519862
Sealing ring Slimline

Sealing ring Slimline

519861
Replacement set plastic cover Wideline

Replacement set plastic cover Wideline

521156
Replacement set plastic cover Slimline

Replacement set plastic cover Slimline

521155

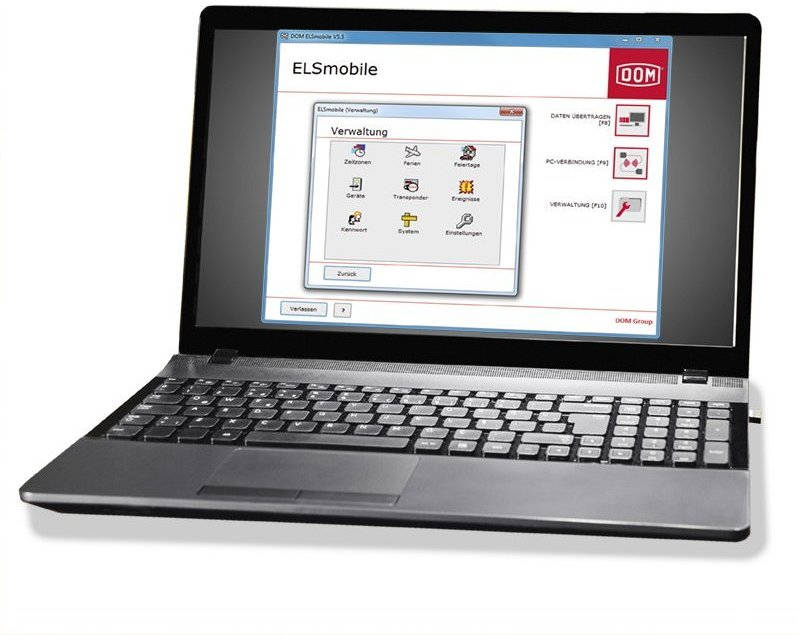

Related Software
