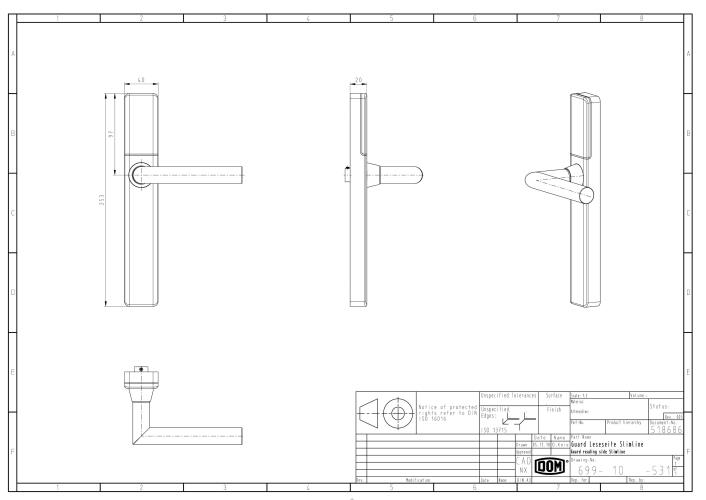

View technical drawing

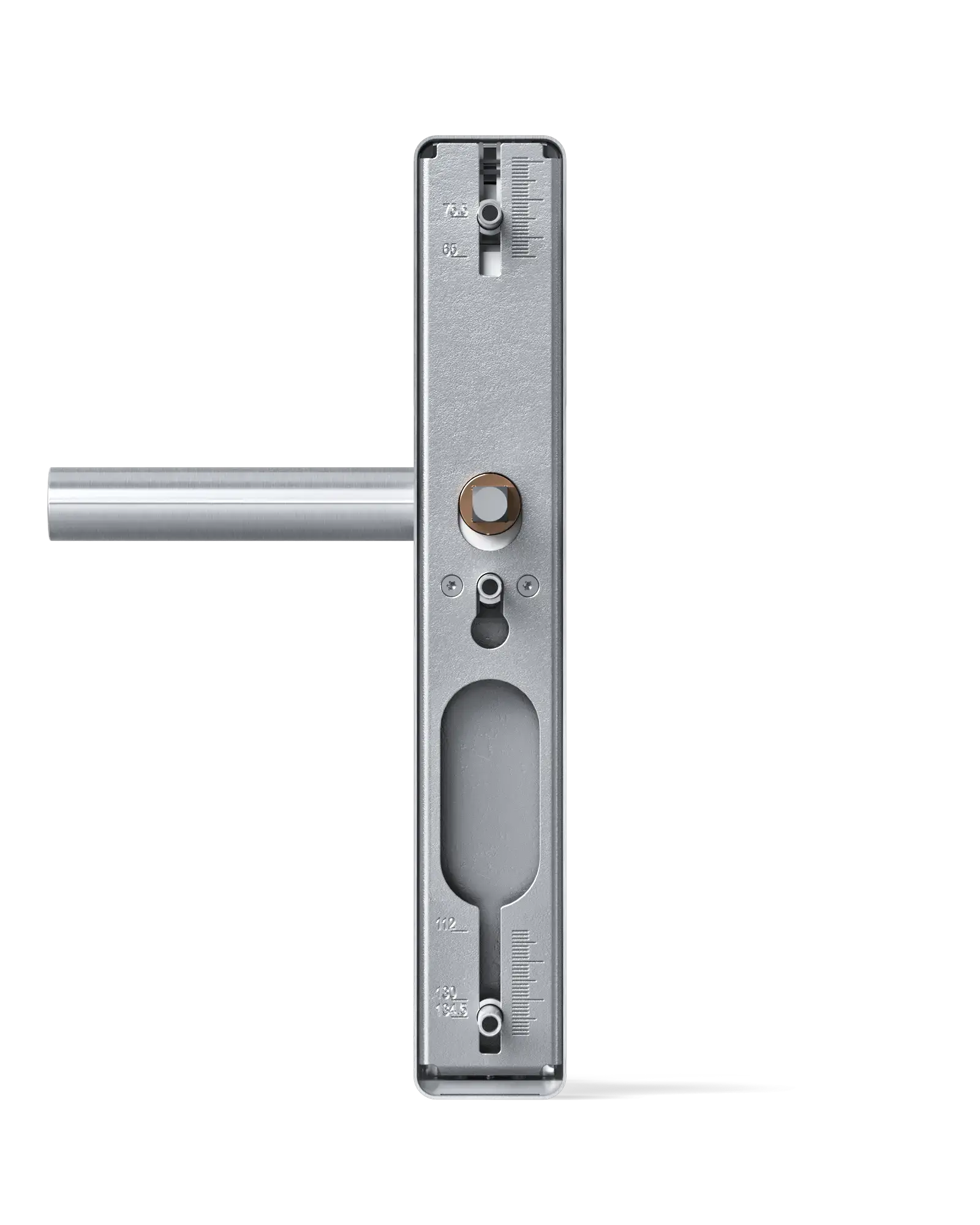

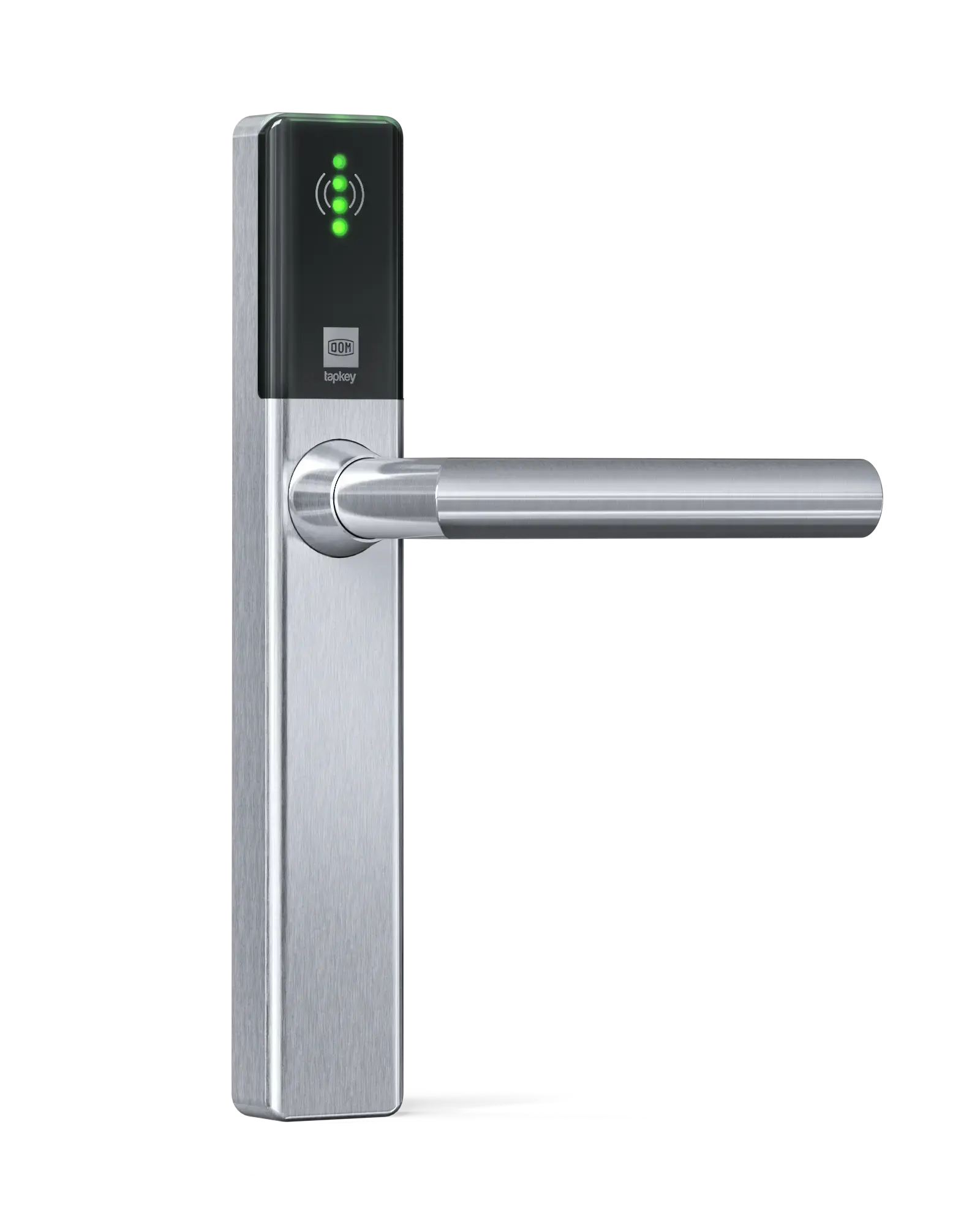

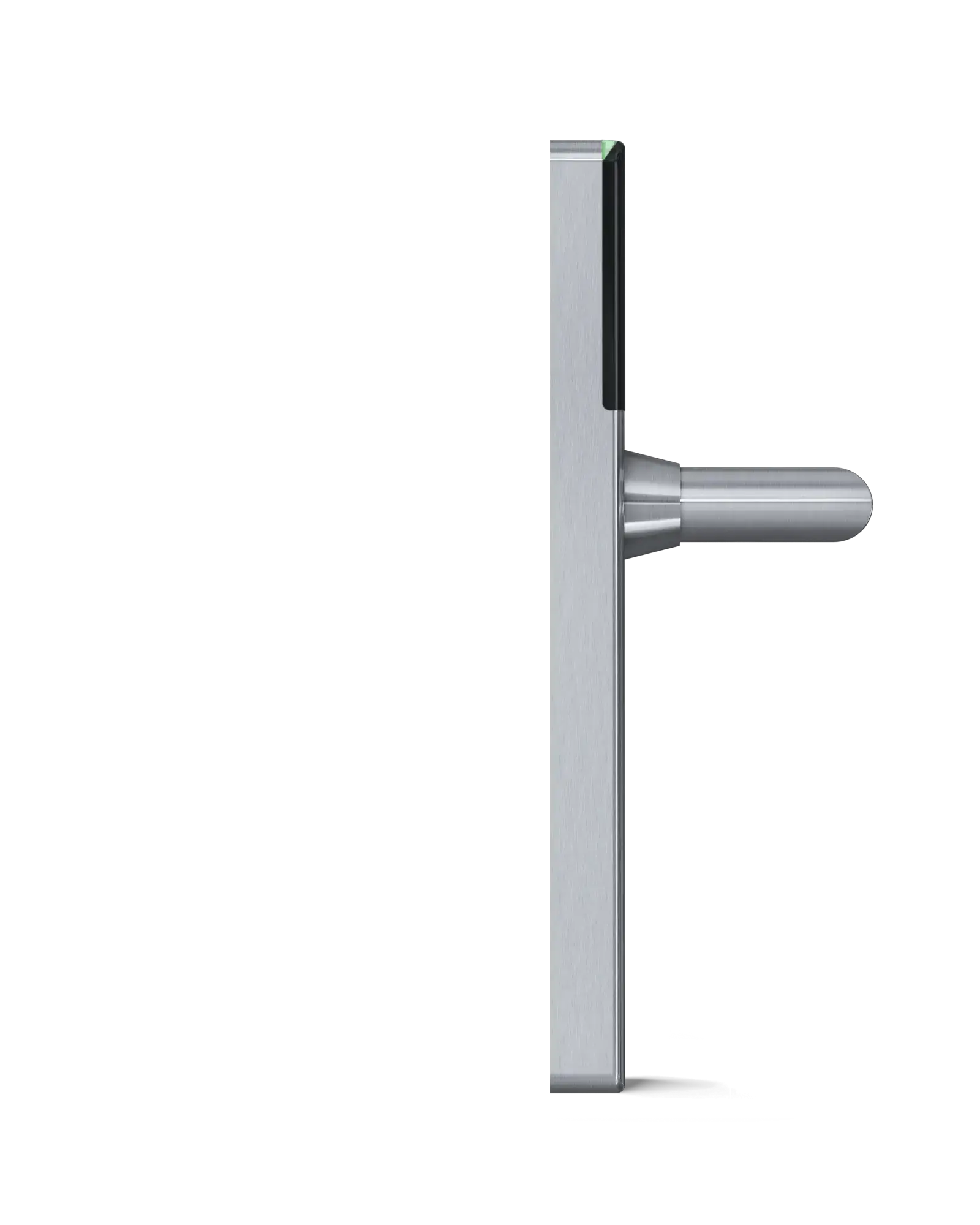

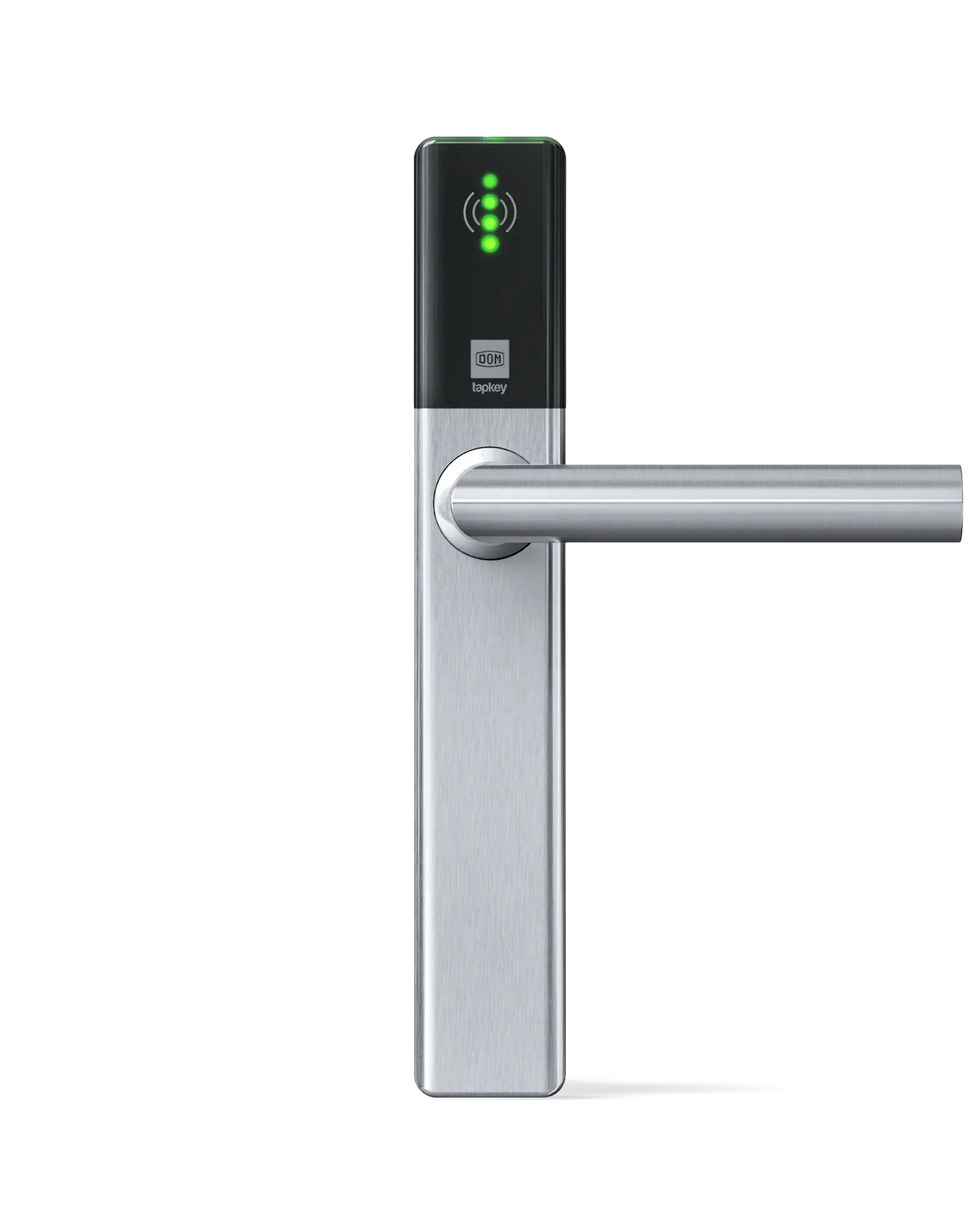

DOM Tapkey Guard Digital reader to control access to your door for opening and locking with 13.56 MHz Mifare RFID transponders, as well as with smartphones via Near Field Communication (NFC) and Bluetooth Low Energy (BLE) in the Tapkey product world.

Features & Benefits

  • Complete digital handle portfolio. Available as Slimline, Wideline and Compact version with one or two-sided readability or as purely mechanical fitting.
  • No matter what taste you have, always meet your preference of architectual design respecting the safety and security regulations.
  • Compatible with all European cylinder models and interaxes dimensions.
  • Intuitive visual and acoustic signalisation lets you know directly if you are allowed to open the door.
  • Easy battery change and long maintenance intervals due to long stand-by time and large number of locking cycles per battery.
  • Available in high class balck design colours matching to your doors. At the moment you install the Guard, your door becomes innovative and elegant
  • Robust handle with a strong resistance against vandalism, fulfilling the highest grade of use class.
Anti Corrosion
IP54: protection from limited dust ingress and against water splashed from all directions; limited water ingress permitted and shall have no harmful effect
NFC

Suggested application of use

Airports, Education, Financial, Homes, Hospitals, Hotels, Industrial, no value, Offices, Plants, Public Buildings, Small to Medium Sized Businesses, Prisons, Gambling Machines, Cash Machines, Cash Machines, Transport, Energy, Wood Furniture

Specifications

Technical features

Fire Resistant90 Minutes
Water ResistantNo
Patent ProtectionYes
Anti Corrosion ProtectionYes
Communication TechnologyBLE 5.0, RFID 13.56 MHz, NFC
Stand-alone FunctionalityYes
Data On CardYes
Battery Lifetime CyclesUp to 25000 cycles
User Identification TechnologyBLE 5.0, RFID 13.56 MHz, NFC
Number of Inputs2
Number of Outputs0
Acoustic SignallingYes
Optical SignallingYes
Supported Locking MediaISO 14443 A, Tapkey Mifare DESFire
Programming MethodsMaster Card, Programming Card, Software, Smartphone
Battery TypeAAA Lithium
Number of Batteries2
Battery Lifetime YearsUp to 2 Years
Battery Warning AlarmAudio, Visual
Maximum Operating Temperature (celsius)65
Maximum Relative Humidity (%)99
Maximum Storage Temperature (celsius)65
Minimum Operating Temperature-25
Minimum Storage Temperature (celsius)-25

Patent ProtectionYes
Patented Until (year)2038
Ingress Protection RatingIP54
EN 179:2008In Testing

Surface FinishBrushed Stainless Steel, Black, White, Grey
Fixation TypeScrew on or screw through
Handle TypesL-Shape mitre, L-Shape curved, U-Shape mitre, U-Shape curved, Cranked curved, Cranked mitre, Ball mitre only outside, L-Shape mitre + ball, L-Shape curved + ball, U-Shape mitre + ball, U-Shape curved + ball, Cranked mitre + ball, Cranked curved + ball
Power TypeBattery
Events Storage Capacity in the Device2000
RFID EncryptionDES, 3DES, ISO 14443A
Data EncryptionAES
Operating Temperature (Celsius)-25° to 65°
Input OptionsDoor open, lock status, ect.
Assembly InformationFlexible Fixation Points due to movable sleeves/screws

Optional Accessories

DOM Tapkey Standard Tag

DOM Tapkey Standard Tag

STANTAC504599M
DOM Tapkey Sticker Tag

DOM Tapkey Sticker Tag

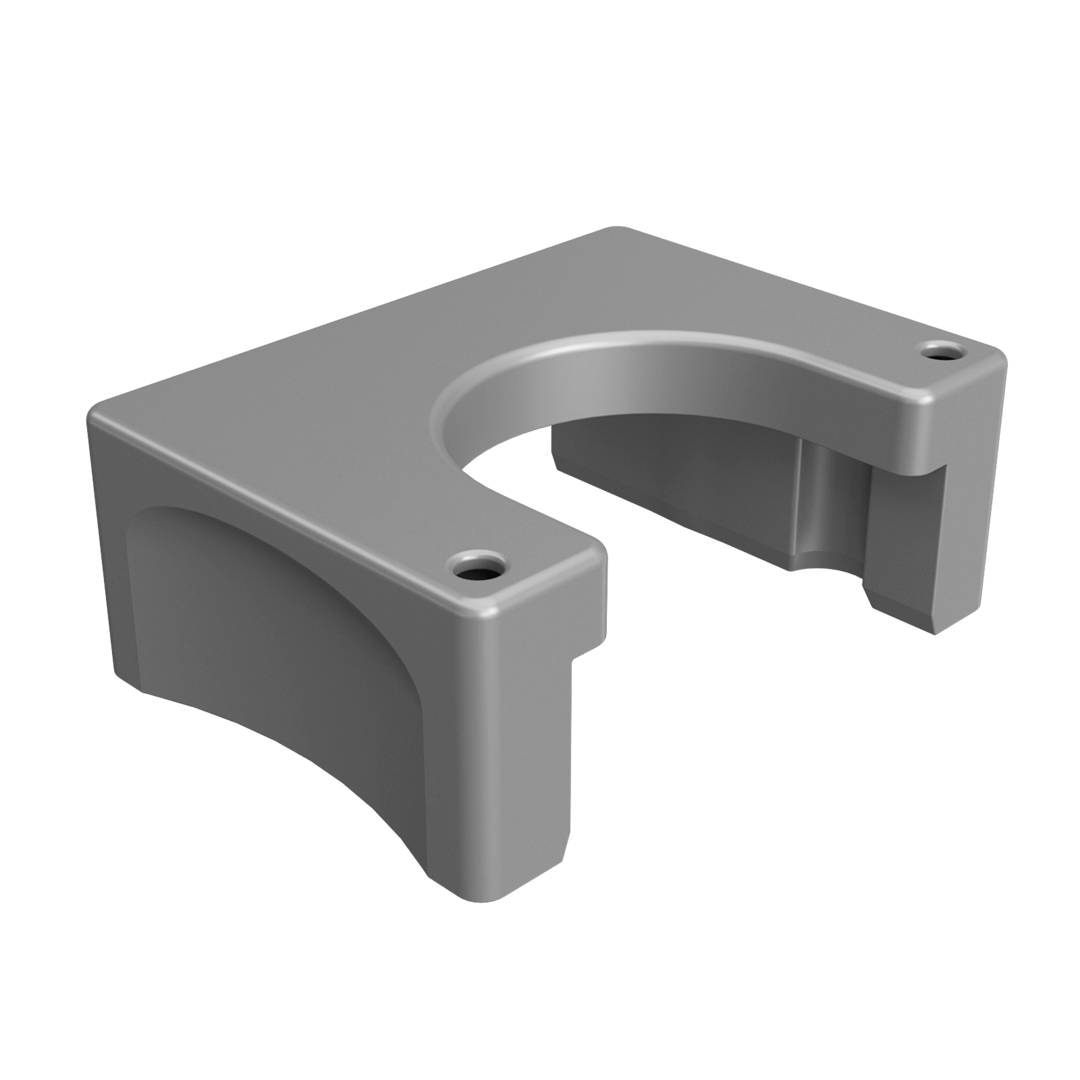

Mounting tool Hook bush

Mounting tool Hook bush

518841C032
Required for mounting and dismounting of hook bushes

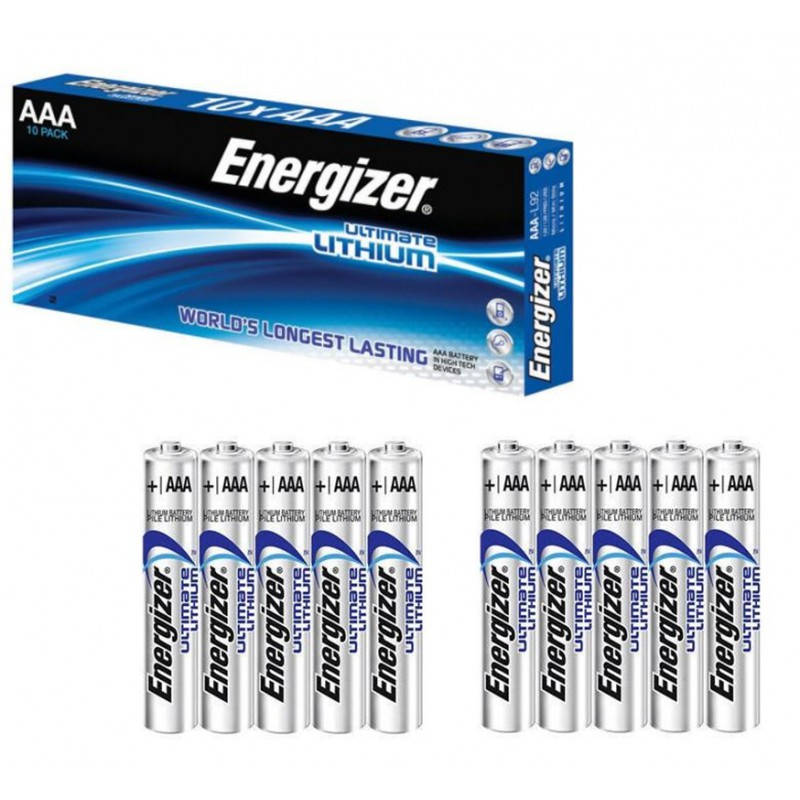

Batteries 10 pieces per box

Batteries 10 pieces per box

352356
Battery for the Guard
