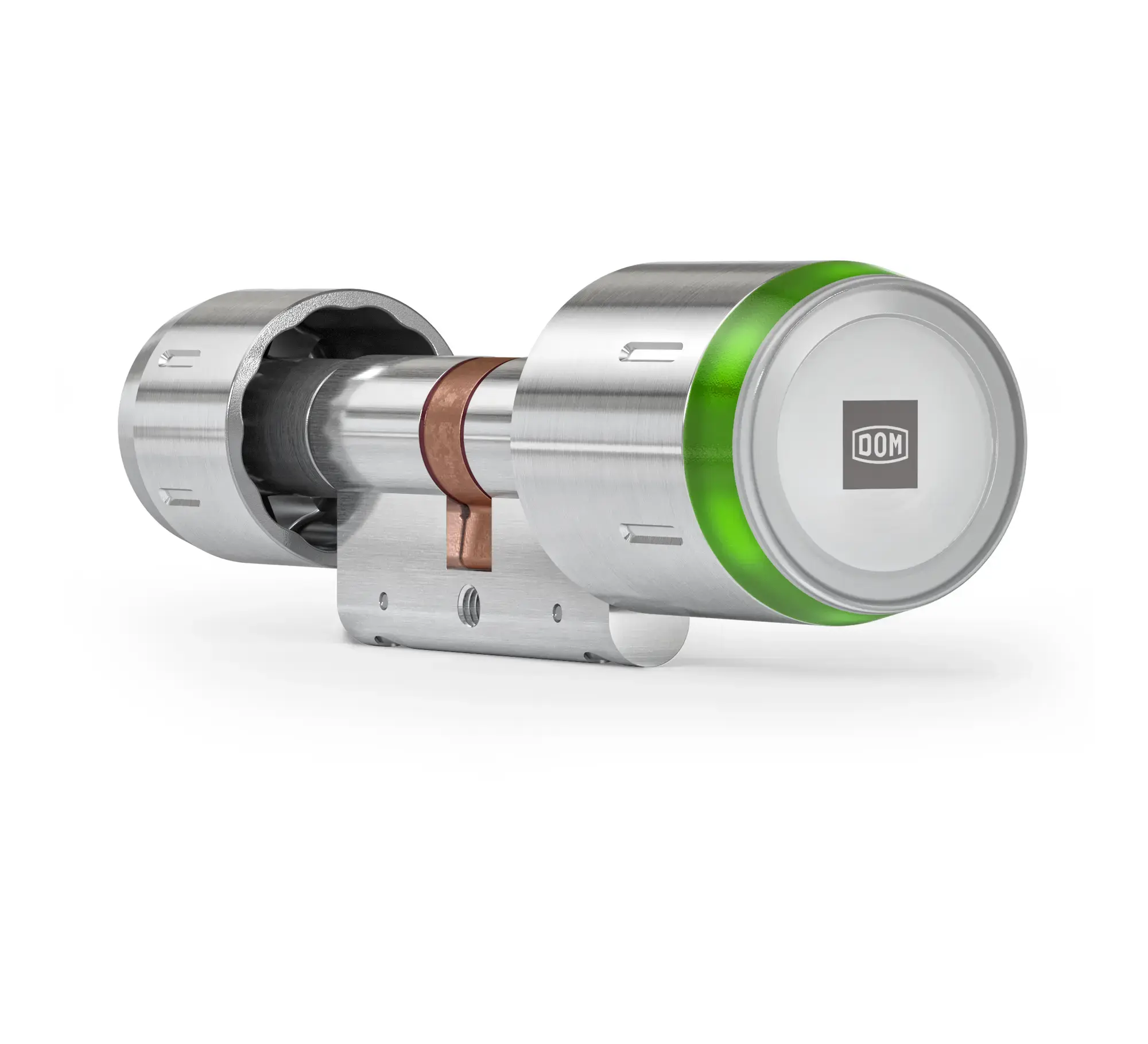

DOM ENiQ Pro V2 The digital lock cylinder for professional access control within the DOM ENiQ Ecosystem.

About

The DOM ENiQ Pro V2 digital lock cylinder is a powerful solution for modern access control in businesses, public buildings and complex locking systems. As part of the DOM ENiQ Ecosystem, the cylinder can be seamlessly combined with additional digital access solutions such as door fittings, wall readers, digital cabinet locks and other components.

Central management is handled conveniently via the DOM ENiQ software and the DOM ENiQ app. Access rights, doors and components can be organised and managed efficiently, making the system ideal for modern building infrastructures and complex organisational structures.

Thanks to NFC and BLE technology, the ENiQ Pro V2 enables fast, secure and energy-efficient access management. At the same time, offline, online and intelligent operating modes provide maximum flexibility for a wide range of applications.

The simple plug-and-play installation allows integration into almost any door without wiring. Different designs as well as various design and colour options provide maximum flexibility for different installation situations and architectural requirements.

High investment security through fast blocking and reprogramming in the event of transponder loss, combined with certifications according to IP65, T90, VdS BZ+ and SKG***, ensure reliable operation and the highest security standards for professional digital locking systems.

With its high scalability and full integration into the DOM ENiQ Ecosystem, the DOM ENiQ Pro V2 offers a future-proof solution for professional digital access control.

Features & Benefits

  • Flexible access management for complex digital locking systems and modern building infrastructures.

  • Part of the DOM ENiQ Ecosystem with compatible digital cylinders, door fittings, wall readers, cabinet locks and more.

  • Central management of access rights and components via the DOM ENiQ software and the DOM ENiQ app.

  • High investment security through fast blocking and reprogramming in the event of transponder loss, combined with certified security according to IP65, T90, VdS BZ+ and SKG*** standards.

  • Supports offline, online and intelligent operating modes for maximum flexibility.

  • NFC and BLE technology enable fast, secure and energy-efficient access management.

  • Plug & Play – easy to install, combined with long battery life for reliable operation.

  • Available in 12 designs as well as various design and colour options for a wide range of applications and installation situations.

Anti Corrosion
Certification EN 1125
Certification EN 179
Certification SKG 3 Star
IP65: dust tight and protected against low pressure water jets; limited water ingress permitted and shall have no harmful effect
Anti Drill Protection
Anti Pull Protection
NFC

Suggested application of use

Airports, Education, Financial, Homes, Hospitals, Hotels, Industrial, Medium to Large Sized Businesses, Offices, Plants, Public Buildings, Small to Medium Sized Businesses

Specifications

Technical features

Fire Resistant90 Minutes
Water ResistantYes
Patent ProtectionYes
Anti Corrosion ProtectionYes
Anti Drill ProtectionYes
Anti Pull ProtectionYes
Communication TechnologyNFC, BLE 5.0
Stand-alone FunctionalityYes
Data On CardYes
User Identification TechnologyMifare RFID 13.56 MHz
Acoustic SignallingNo
Optical SignallingYes
Supported Locking MediaMifare DESFire, Mifare Classic, Mifare Plus, Mifare Ultralight, ISO 14443 A, Mifare DESfire EV1, Mifare DESfire EV2, Mifare DESfire EV3
Programming MethodsSoftware, Master Card, Programming Card, USB Key
Battery TypeCR2
Number of Batteries2
Battery Lifetime YearsUp to 3 Years
Battery Warning AlarmVisual
Maximum Operating Temperature (celsius)65
Maximum Relative Humidity (%)99
Minimum Operating Temperature-25

Patent ProtectionYes
VdS 2156:2 ClassificationBZ+
Ingress Protection RatingIP65
EN 179:2008Für die Verwendung in Fluchtwegen gemäß EN179 geeignet
EN 1125:2008Für die Verwendung in Fluchtwegen gemäß EN1125 geeignet

Surface FinishMatt Nickel
Outer Knob FinishStainless Steel, High Gloss Black, High Gloss White, Brass
Inner Knob FinishMatt Nickel, High Gloss Black, High Gloss White, Brass
Power TypeBattery
Events Storage Capacity in the Device2000
RFID EncryptionAES-128 Bit, Crypto-1, ISO 14443A
Data EncryptionXSALSA20-256 Bit, Curve 25519-256 Bit, Poly 1305-128 Bit
Operating Temperature (Celsius)-25° to 65°

Optional Accessories

Knob tool

Knob tool

515820
Is required for mounting and dismounting the external knob sleeve
Fixing bracket

Fixing bracket

517707
Is required for mounting and dismounting the knob electronics on the cylinder body

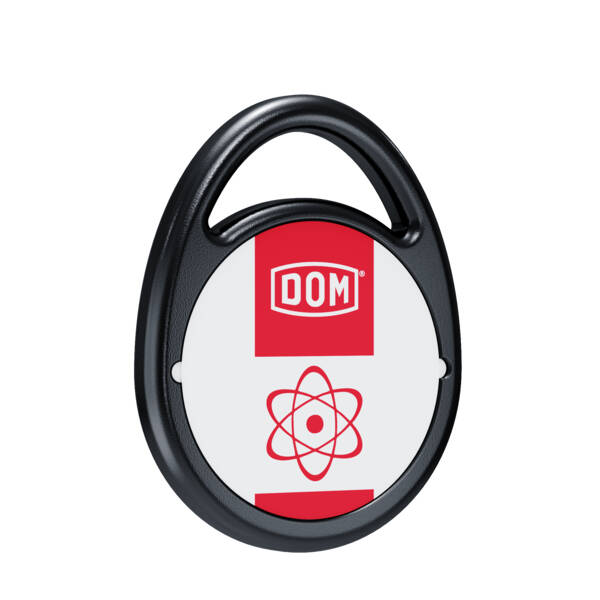

ENiQ Standard Tag

ENiQ Standard Tag

STANTAC504599M
Torx Srewdriver TX 6

Torx Srewdriver TX 6

513828
Required for mounting the mechanical inner knob

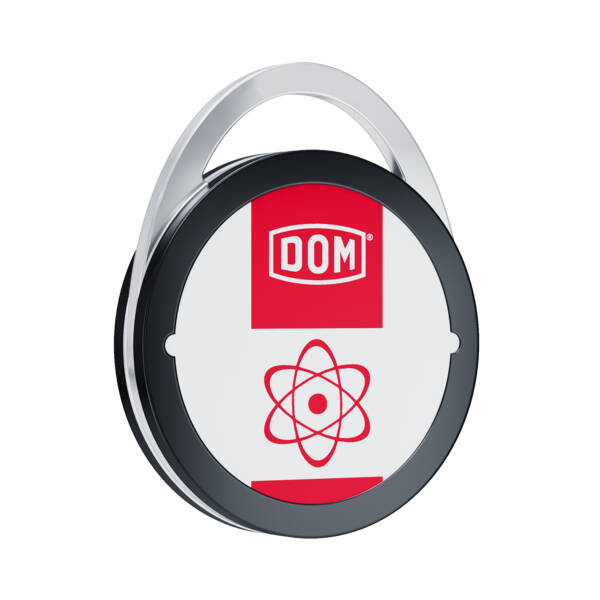

ENiQ Premium Plus Tag

ENiQ Premium Plus Tag

PREMPLUSTAC504599M
Special key for mechanical inner locking of EE IM

Special key for mechanical inner locking of EE IM

254491
Key for locking function of Pro EE with inner lock
ENiQ Combined Transponder Standard Tag

ENiQ Combined Transponder Standard Tag

STANTAC504599M
ENiQ Clip Tag V2

ENiQ Clip Tag V2

ENiQ ISO Cheque Card Transponder

ENiQ ISO Cheque Card Transponder

ISOSCHE503523M
ENiQ Starter package Pro

ENiQ Starter package Pro

352155
Consisting of master card, programming card, knob tool, Torx TX 6, bixing bracket
Torx Srewdriver TX 10

Torx Srewdriver TX 10

290493
Required for the installation of the Pro padlock cover
Battery Pack

Battery Pack

352153
2-CR2-Pack for Protector and Guardian
Key Ring Tags

Key Ring Tags

Installation tool set

Installation tool set

516574
Consisting of Torx screwdriver TX6, knob tool, fixing bracket
ISO Cards

ISO Cards
