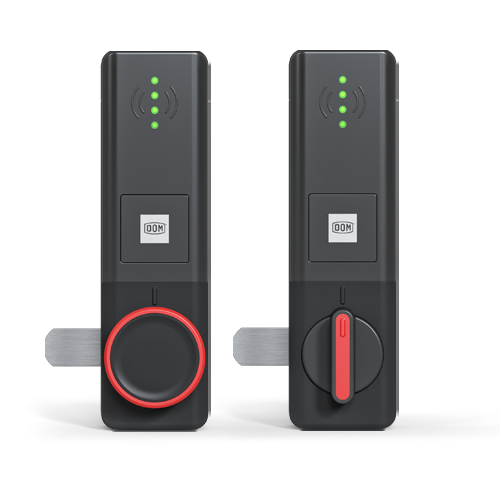

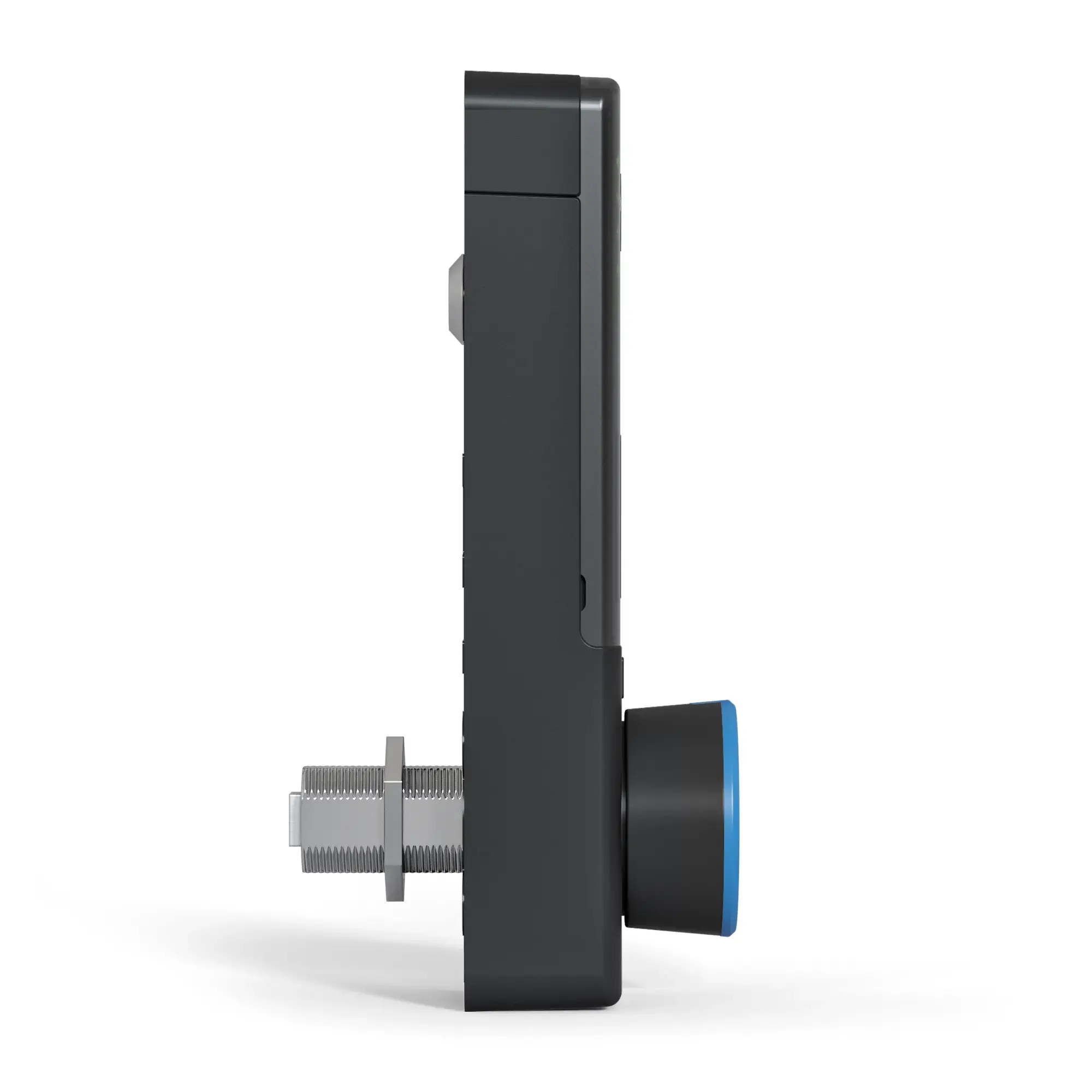

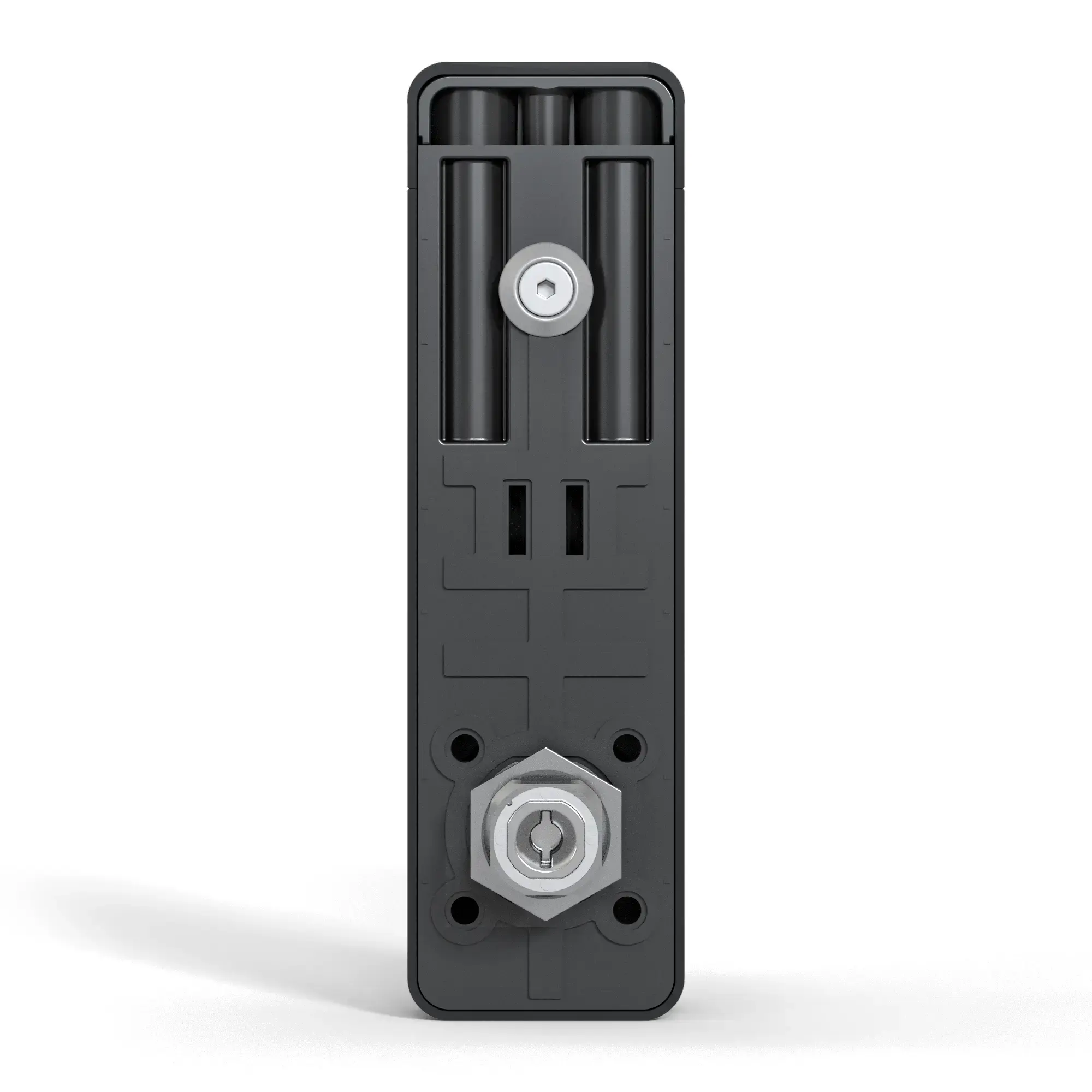

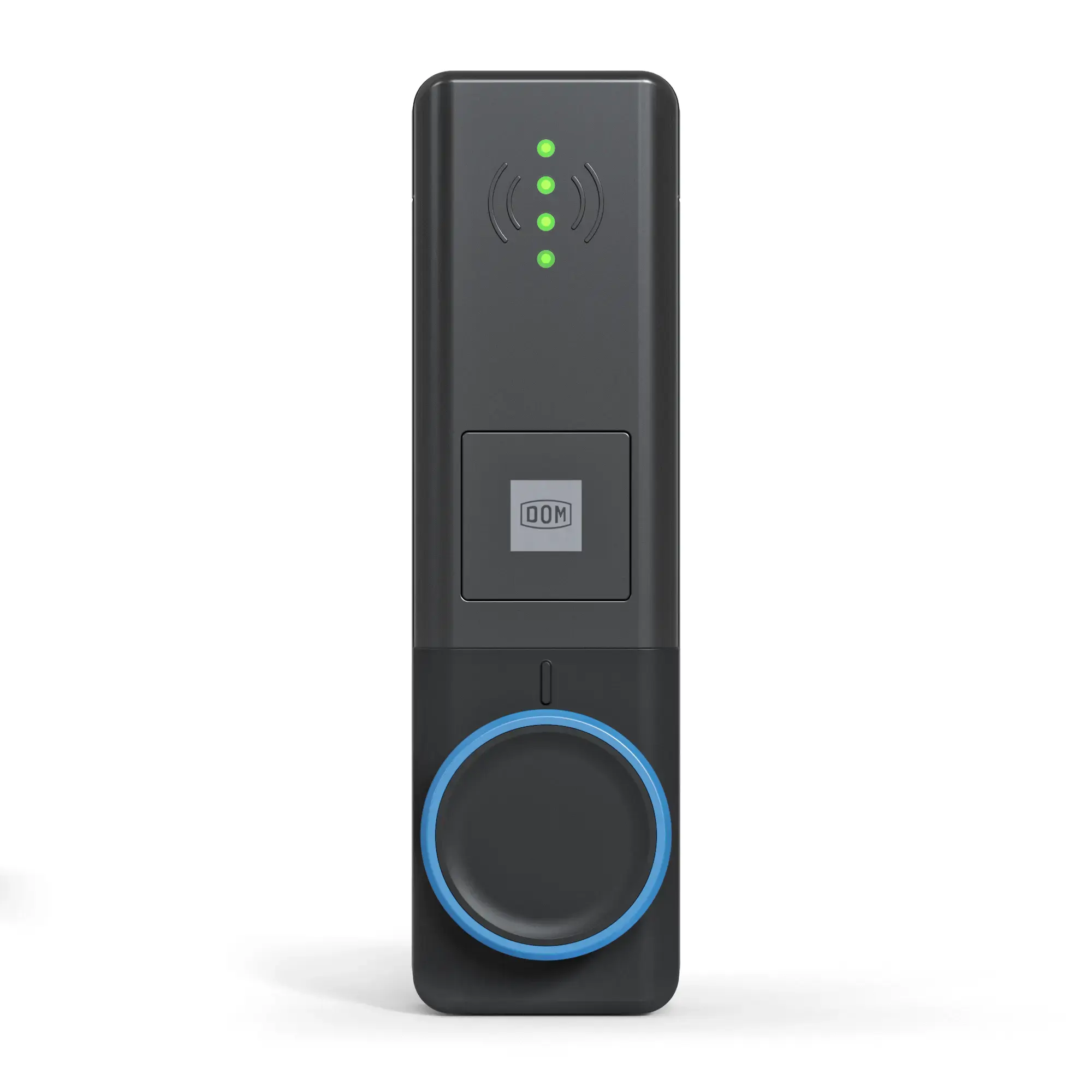

With ENiQ LoQ you can integrate your lockers or cabinets in your ENiQ Access Management system easily. With the same transponder, your users can open the doors in the building that they are allowed to go and also open their locker to store their valuables. It is suitable for panel thickness from 1 to 20mm, so it can be integrated in almost every type of metal or wood furniture. The user simply taps his Mifare transponder to the lock, and he has access. Due to the Auto-Lock function the user can close the cabinet within an adjustable (1-30 seconds) time after showing his transponder and it is possible to automatically open all the cabinets after for example a working day.
Education, Electrical Equipment, Hygiene, Industrial, Letter Boxes, Maintenance, Metal Furniture, Offices, Retail, Shop Installer, Wood Furniture, Hospitals, Shared Offices, Wet & Dry environments, Leisure & Fitness, Storage
| Patent Protection | Yes |
| Anti Corrosion Protection | No |
| Anti Drill Protection | N/A |
| Communication Technology | BLE 5.0, Mifare RFID 13.56 MHz, NFC |
| Stand-alone Functionality | Yes |
| Data On Card | Yes |
| User Identification Technology | Mifare RFID 13.56 MHz, NFC, BLE 5.0 |
| Acoustic Signalling | Yes |
| Optical Signalling | Yes |
| Supported Locking Media | Mifare Classic, Mifare DESFire, Mifare Ultralight, Mifare Plus, ISO 14443 A, Mifare DESFire 8k |
| Programming Methods | Master Card, Programming Card, Software, Smartphone |
| Battery Type | AAA Lithium |
| Number of Batteries | 2 |
| Battery Lifetime Years | Up to 2 Years |
| Battery Warning Alarm | Visual, Audio |
| Maximum Operating Temperature (celsius) | 65 |
| Maximum Relative Humidity (%) | 90 |
| Maximum Storage Temperature (celsius) | 65 |
| Minimum Operating Temperature | -25 |
| Minimum Storage Temperature (celsius) | 21 |
| Patent Protection | Yes |
| Patented Until (year) | 2028 |
| Ingress Protection Rating | IP53 |
| Surface Finish | Anthracite Grey |
| Outer Knob Finish | Black, Red, Green, White, Yellow, Blue, Pink |
| Power Type | Battery |
| Events Storage Capacity in the Device | 2000 |
| RFID Encryption | AES-128 Bit, Mifare Classic Crypto-1, XSALSA20-256 Bit, Poly 1305-128 Bit, Curve 25519-256 Bit |
| Data Encryption | AES-128 Bit |
| Operating Temperature (Celsius) | -25° to 65° |
| Input Options | Knob position open/closed. |
| Assembly Information | Flexible |
