DOMConnect® Online & Offline

Communicate online without cabling with a digital locking system or NFC smartphone.

Download brochure

Using DOMConnect®


With DOMConnect you can combine the offline and online worlds. This means you can manage online as well as offline devices with the same bridge and interface in your existing property management software (PMS). The online programming method gives you a live connection to all your doors, making it perfect for anyone who needs to immediately see who enters where and when in a building. With the offline program method you will bring the access authorization and privilege data to all your digital locks by using the DOMConnect app.

Benefits for endusers


  • BI-DIRECTIONAL COMMUNICATION
    Smooth and transparent communication between the TPS and identified DOM products for more control and insight.
  • ACCESS FALLBACK
    The locking devices have the latest access whitelist stored in the memory. In case of a network failure the latest access authorisations are still controlling, which grants a stable process and continuity of your organisation.
  • COMBINATION OF BOTH WORLDS
    You can manage online as well as offline devices with the same bridge and interface.

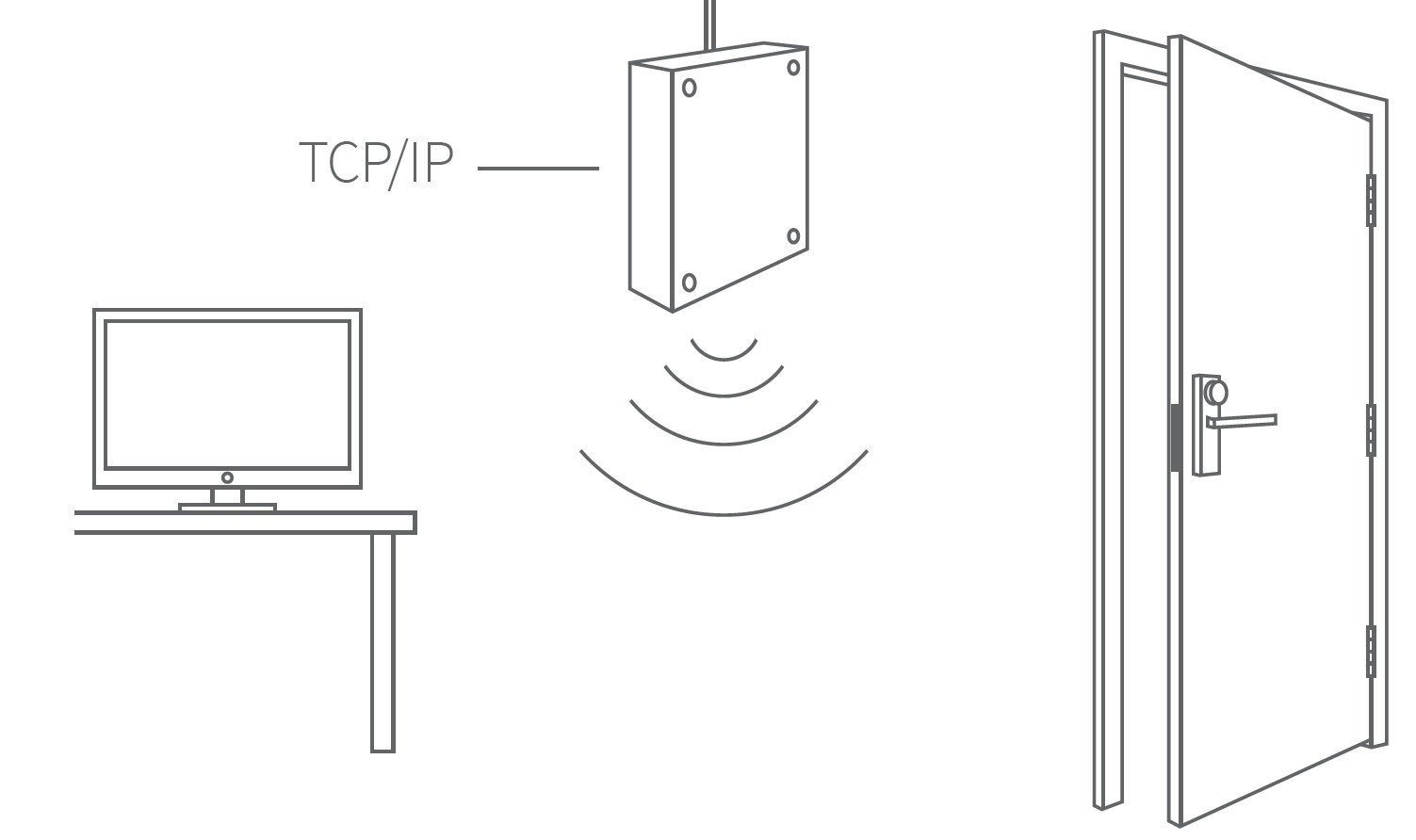

Programming method Online

1. Data from transponder will be read via desk reader/writer and programmed in the devices.

2. Communicates directly with the door over (W)LAN.

3. Person can now open the door.

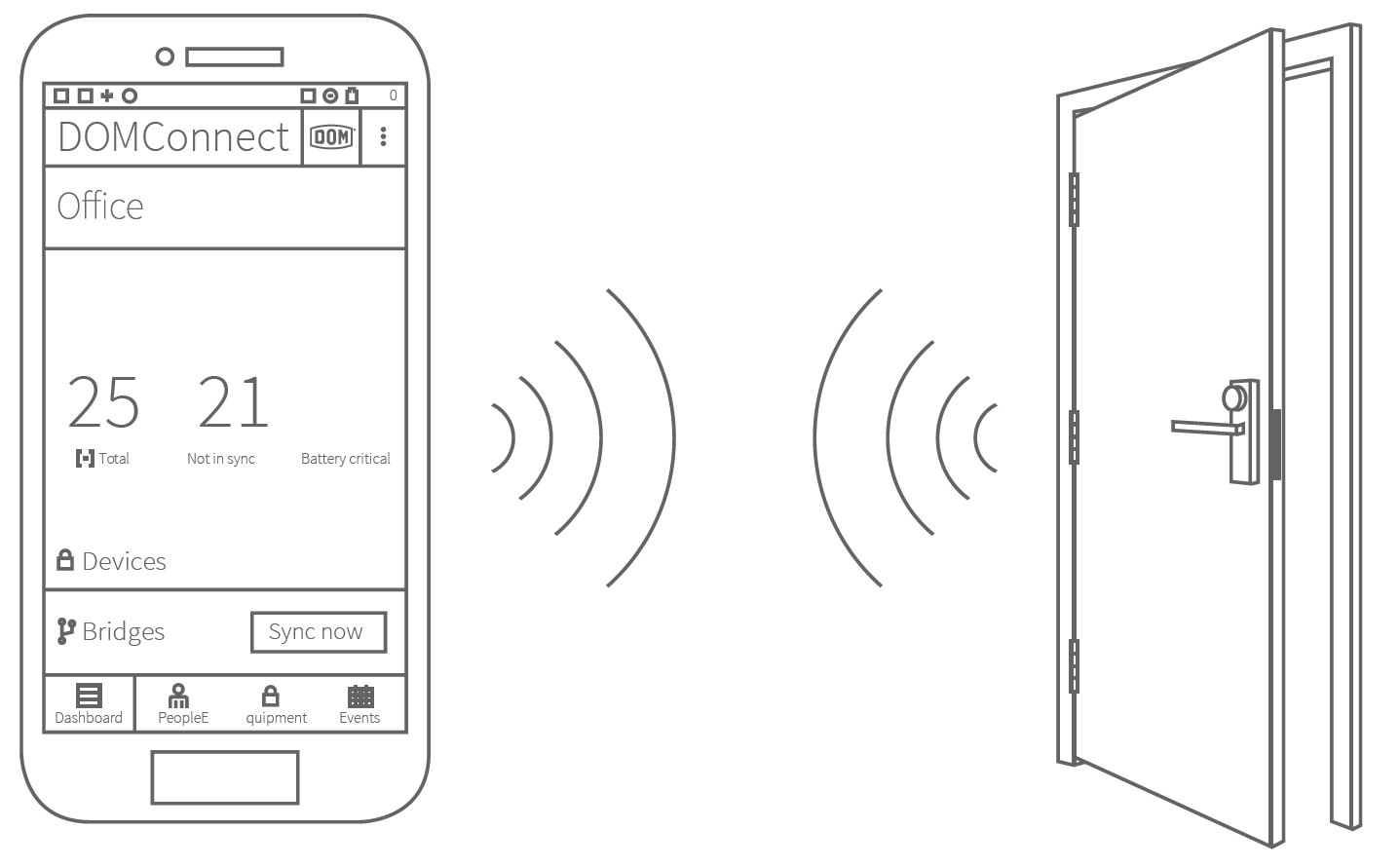

Programming method Offline

1. Add transponders or change access authorisations in DOMBridge via Third Party Software (TPS)

2. Take smartphone to the door, and program data in the devices.

3. Person can now open the door.

Benefits for integrators


  • COMPLETE OVERVIEW
    The graphical user interface DOMPloy is an attractive and user friendly tool for developers. This Windows tool supports developers as well as integrators, to have a good overview on the status of the DOM Bridge devices and access authorisations and to perform specific maintenance and configuring tasks.
  • FREEDOM OF PROGRAMMING
    Due to a standard HTTPS interface with web service it is easy for developers to integrate it in any programming language.
  • NO EXTENSIVE SOFTWARE LIBRARIES
    Third-party software does not require any proprietary software libraries for development, deployment or execution.

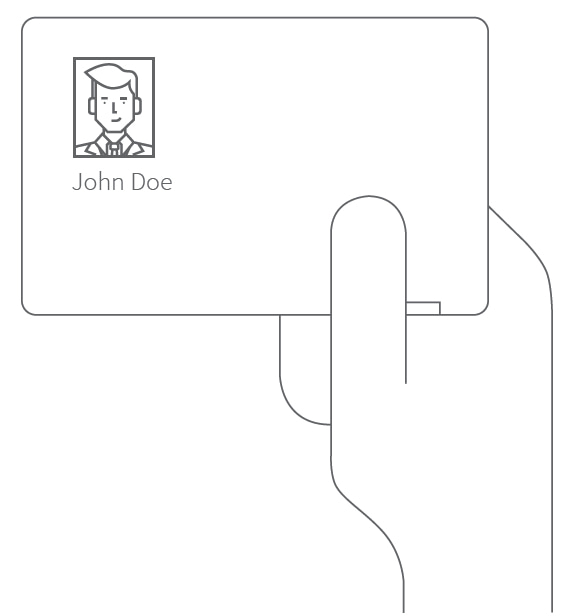

Transponders

DOMConnect can be integrated with new and existing access management systems via secure and user-friendly web services. Whether you choose a DOM transponder or an existing transponder (card) that you already use for existing applications.

DOMConnect digital locks support a wide range of transponder types:

Mifare Classic 1k
Mifare Classic 4k
Mifare Classic 1k 7-byteUID
Mifare Classic 4k 7-byte UID
Mifare Classic 1k compatible
Mifare PLUS, 4-byte UID
Mifare PLUS, 7-byte UID
Mifare Ultralight
Mifare DESFire 4k
Mifare DESFire 2k EV1 / EV2
Mifare DESFire 4k EV1 / EV2
Mifare DESFire 8k EV1 / EV2
  • The security or facility manager is in full control of who has access to what areas, at what time and for what period.
  • Users can access anything they need to in your building, but cannot enter rooms they should not be in. This feels safe, without feeling restricted in movement.
  • With the DOMConnect App the manager can maintain the system easily. All events can be read out directly in front of the door and synchronised to the DOMBridge.

Do you want more information?

To download the DOMConnect Online & Offline brochure, please click the button below.

Download brochure
