Our commercial agents together with our specialized dealers are supporting you in drawing up a locking plan for any system size without additional costs, if you choose cylinders from our product range. When designing a locking system, there are many things to consider. Your locking system is designed by our team of experts with the utmost care according to your specifications. Regardless of the size and nature of the building, our specialists ensure a clear and functional solution that meets the highest security requirements.
The lock plan template in Excel format makes it easy to design both simple and complex locking plans. With our extensive range of cylinders we are able to offer large locking systems for e.g. for hospitals, universities and airports as well as for smaller facilities for e.g. office space or doctor surgeries.

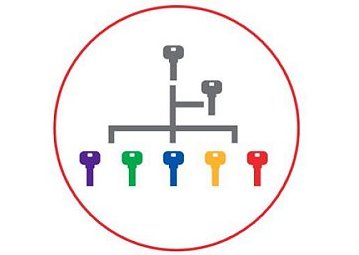

In the central locking system, an apartment key unlocks the own apartment and all common or even central doors, which are also unlocked by other tenants, for example the front door, courtyard door, cellar door. However, none of these keys fits on another apartment door.
Central locking systems can be found especially in apartment blocks and halls of residence.

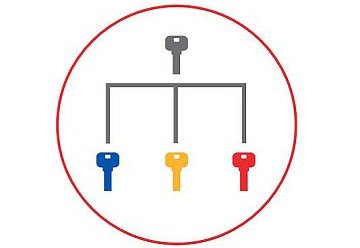

In the master key system, a parent key - the master key - unlocks all cylinders of the entire building. However, each cylinder will also have its own differ key which will be used by the person who works in that particular room or office.
HS systems can be found in schools and small and medium-sized commercial properties.

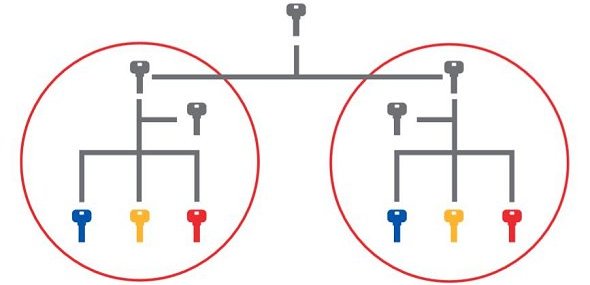

Often, a technical master key is added. The building owner or the facility manager can unlock the central doors (entrances etc.), the supply rooms, but not the individual apartment doors.
Central master key systems can be found, for example, in larger residential complexes.

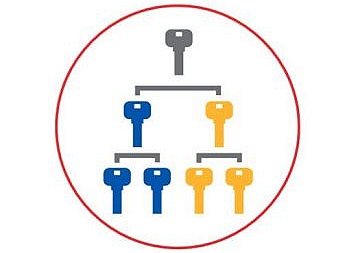

In the grand master key system, groups are formed from at least two master key systems. The grand master key allows one person access to all rooms in the entire facility. At the group level, several persons receive group keys which unlock a section of the building. Each cylinder can only be locked by its own key except for the parent key.
Grand master key systems can be found in larger, hierarchically organized objects or separated building complexes.
Lock plan template Excel 97-2003
Lock plan template new Excel versions
DOM ix TwinStar - a locking system for all applications (Video)
