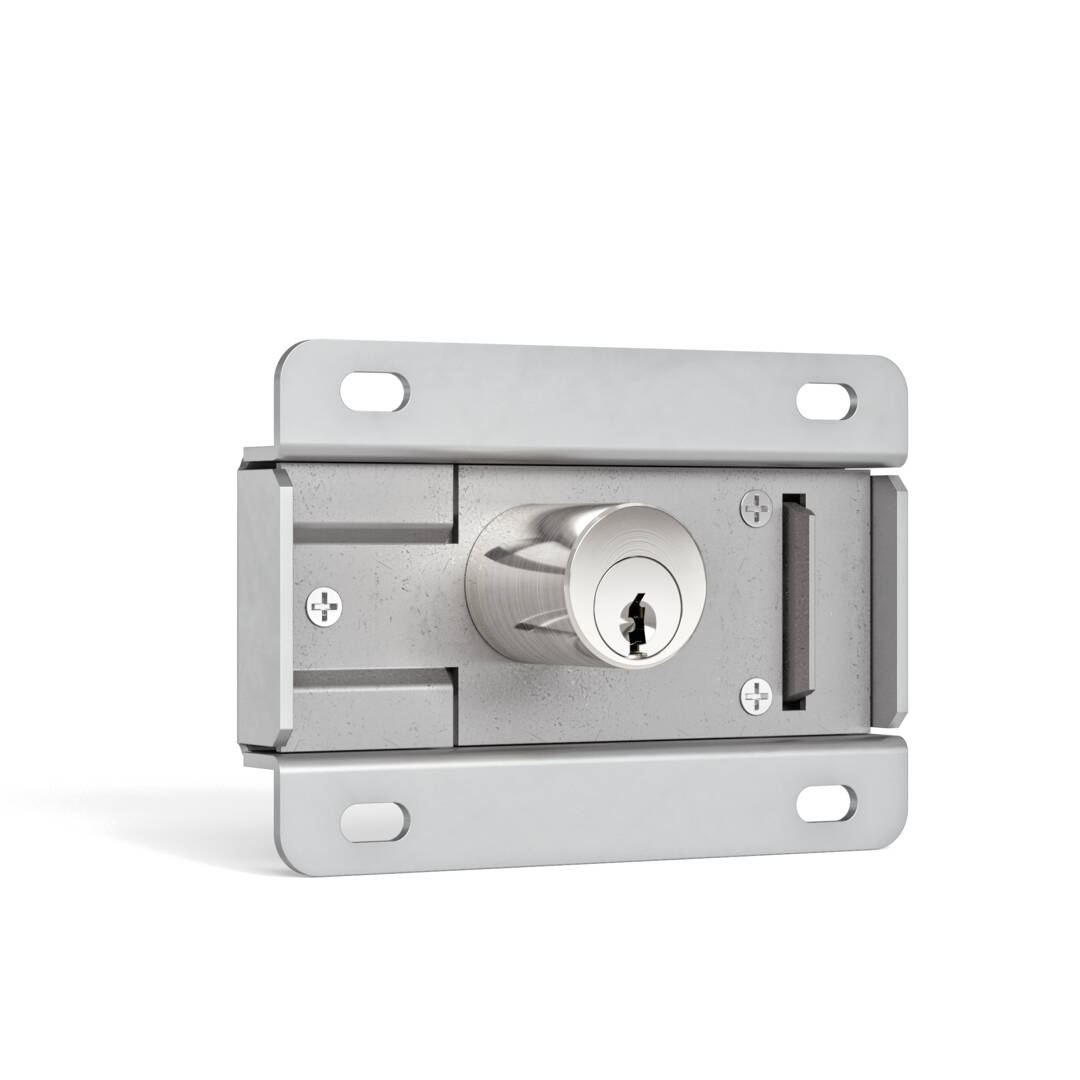

The ELP range of door locks are used to control access points (hatches, doors, gates ...) which can include transformers. The main feature of the ELP range is to ensure the final key is trapped inside the lock whilst the electrical equipment door is open. The key can only be removed when the door is closed and the strike plate has been re-introduced to the ELP lock. Depending on access requirements for the door, it is possible to have one, two or three cylinders on the lock.
| Standard Finish | Nickel |
| Standard Housing Material | Stainless Steel 304L |
| Assembly Information | This safety lock should be installed by a competent and qualified person, after reading and understanding the following instructions: 1 - Use anti-tamper fixings according to your application (maximum torque 5 N.m) 2 - The locks should be mounted in a non-corrosive environment and compatible with IP indicators 3 - Maximum torque while turning the key: 5 N.m 4 - The key should not be placed under stress. 5 - A bad alignment of the strike or in the course of the bolt may cause malfunction or blocking. 6 - Lubricate the clinder with CK Dry Power Graphite once the product has been assembled. 7 - In case of installing an electromechanical lock, make sure that the power is off before carrying out the wiring. |
